ZenAire ZP-HR50-01 Installation And Operation Manual

1.5-5 tons, r454b
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION
1.5-5 TONS | R454B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZP-HR50-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZenAire ZP-HR50-01

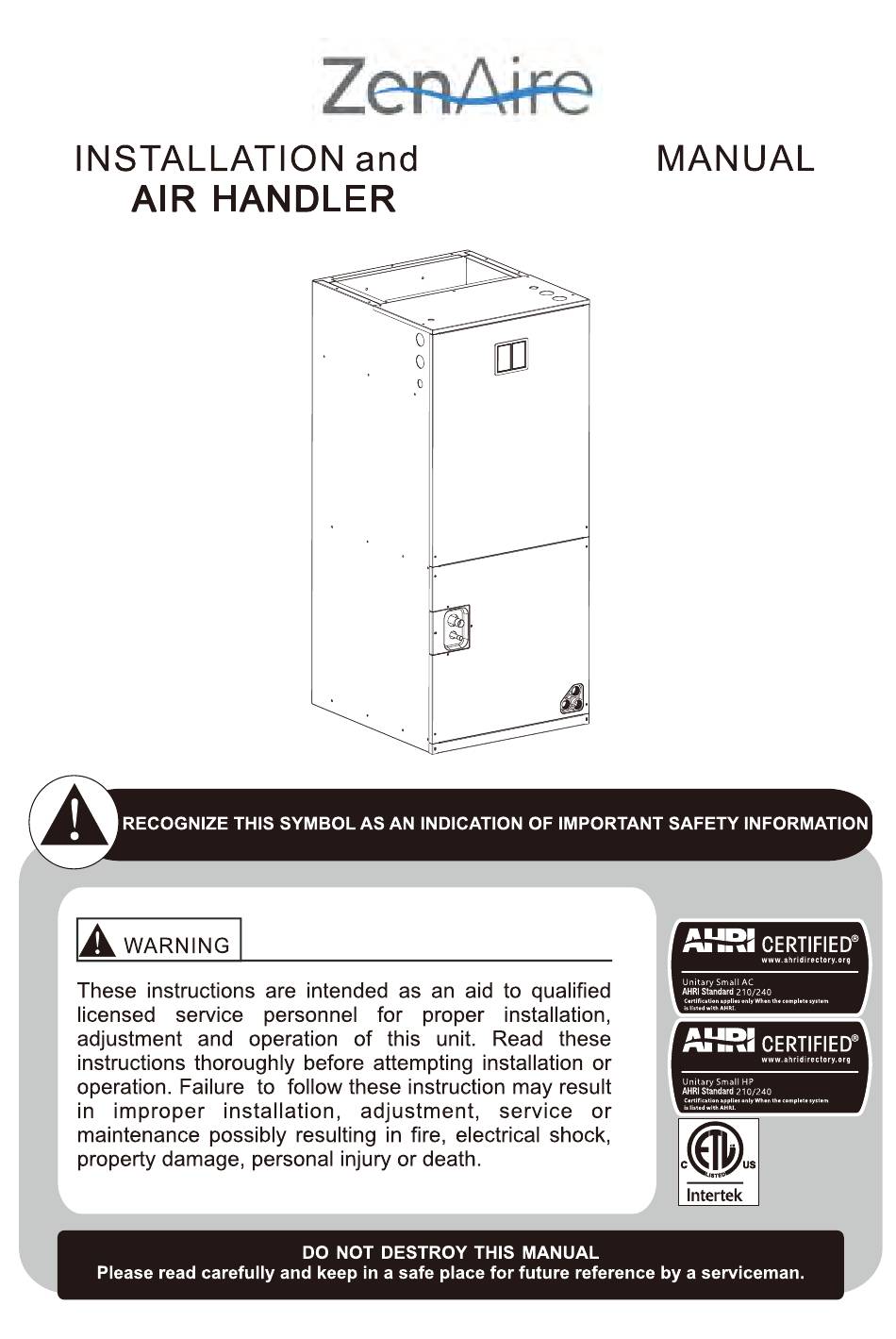

  • Page 1 OPERATION 1.5-5 TONS | R454B...

  • Page 2: Table Of Contents

    CONTENTS 1 SAFETY Safety Signs Safety Precautions 2 ABOUT THE PRODUCT Unit Dimensions Refrigerant Sensor 3 INSTALLATION Installation Instructions Vertical Upflow Vertical Downflow Horizontal Installation in an Unconditioned Space Refrigerant Charge and Room Area Limitations 4 REFRIGERANT LINE 5 AIRFLOW PERFORMANCE (AIR HANDLERS ARE SUITABLE FOR MOBILE HOME APPLICATIONS) 6 DUCTWORK ABOUT THE AIR FILTER...

  • Page 3: Safety

    This document is customer property and is to remain with this unit. These instructions do not cover all the different variations , nor do they provide for every possible contingency to be met in connection with installation. All phases of this installation must comply with national state and local codes. If additional information is required, please contact your local distributor.

  • Page 4: Safety Precautions

    1.2 Safety Precautions WARNING DANGER PROPOSITION 65: This appliance contains fiberglass insulation. Respirable particles of fiberglass are known to the State of California to Disconnect all power to unit before installing or cause cancer. servicing. More than one disconnect switch may be required to de-energize the equipment.
  • Page 5 WARNING WARNING WARNING Only use this unit in a well-ventilated area and When repairing the refrigerating system, comply ensure unit's airflow inlet and outlet would not be with the following precautions prior to conducting impeded by obstructions. Do not use this unit in work on the system: the following locations: –...
  • Page 6 Leak detection fluids are also suitable for use Refrigerating pipe or components are installed in with most refrigerants but the use of detergents a position where they are unlikely to be exposed containing chlorine shall be avoided as the to any substances which may corrode refrigerant chlorine may react with the refrigerant and containing components, unless the components corrode the copper pipe-work.
  • Page 7 Prior to recharging the system, it shall be When transferring refrigerant into cylinders, pressure-tested with the appropriate purging ensure that only appropriate refrigerant recovery gas. The system shall be leak-tested on comple- cylinders are employed. Ensure that the correct tion of charging but prior to commissioning. A number of cylinders for holding the total system follow up leak test shall be carried out prior to charge is available.
  • Page 8 training on the meaning of appropriate safety If electrical appliances are disposed of in landfills signs and the actions that need to be taken in or dumps, hazardous substances can leak into connection with these signs. the groundwater and get into the food chain, harming your health and well-being.

  • Page 9: About The Product

    2 ABOUT THE PRODUCT 2.1 Unit Dimensions SUPPLY AIR HIGH VOLTAGE CONNECTION 10-1/2" LOW VOLTAGE CONNECTION ELECTRICAL CONNECTIOS MAY EXIT TOP OR EITHER SIDE UPFLOW UNIT SHOWN; UNIT MAY BE INSTALLED UPFLOW, DOWNFLOW, HORIZONTAL RIGHT, OR LEFT AIR SUPPLY. VAPOR LINE CONNECTION COPPER (SWEAT) LIQUID LINE CONNECTION COPPER (SWEAT) AUXILIARY DRAIN CONNCECTION 3/4"...

  • Page 10: Refrigerant Sensor

    2.2 Refrigerant Sensor 3 INSTALLATION 3.1 Installation Instructions R454B refrigerant leakage sensor is configured for the indoor unit. Before installing the indoor unit, check whether the refrigerant sensor is correctly installed The unit can be positioned for bottom return air in the according to Section 3.
  • Page 11 When the unit is installed in a hot and humid place, If the humidity inside the installation space might exceed 86℉ and RH 80%, it is recommended to insulate the cabinet exterior. Use glass wool or polyethylene foam as insulation so that the thickness is more than 2 inches and fits inside the installation space opening.

  • Page 12: Vertical Upflow

    3.2 Vertical Upflow Vertical Upflow configuration is the factory set on all models. See Fig.3-7. If return air is to be ducted, install duct flush with floor. Use fireproof resilient gasket 1/8 to 1/4 in. thick between the ducts, unit and floor. Set unit on floor over opening. IMPORTANT NOTE Torque applied to drain connections should not exceed 15 ft.lb.
  • Page 13 Steps for Changing Cabinet Orientation to Vertical Downflow or Horizontal Left Orientation 1. Remove the screws and front panel and disconnect the refrigerant sensor from the control board. 2. Pull out the coil with refrigerant sensor (Figure 3-9, Step 2). 3.
  • Page 14 When installing the evaporator, ensure the retaining channel is fully engaged with the coil rail. Fig.3-10 Vertical Downflow & Horizontal Left Applications Conversion in Horizontal Direction: NOTE Horizontal right-hand supply can be changed to horizon- tal left-hand supply by removing the indoor coil and Horizontal units must be configured for right reinstalling 180°...

  • Page 15: Installation In An Unconditioned Space

    3.5 Installation in an Unconditioned For determination of room area (A) when used to calculate the refrigerant charge limit, the following shall Space apply. The room area (A) shall be defined as the room area enclosed by the projection to the base of the walls, NOTE partitions and doors of the space in which the appliance is installed.
  • Page 16 3.6.2. The allowed maximum refrigerant The minimum opening for natural ventilation (Anvmin) in connected rooms is related to the room area (A), the charge and required minimum room actual refrigerant charge of refrigerant in the system (Mc) , area and the allowable MAXIMUM REFRIGERANT CHARGE in the system (Mmax), Anvmin can be determined according If the fan incorporated in the appliance is continuously to Table 3-1.
  • Page 17 The minimum circulation airflow CAUTION The allowable maximum refrigerant charge of Qmin(CFM) Qmin(CFM) the Table 3-2 or the required minimum room area of the Table 3-3 is available only if the following conditions are met: Minimum velocity of 3.28 ft/s, which is calculated as the indoor unit airflow divided by the nominal face area of the outlet.

  • Page 18: Refrigerant Line

    Field-made refrigerant joints indoors shall be tightness 4 REFRIGERANT LINE tested. The test method shall have a sensitivity of 5 grams per year of refrigerant or better under a pressure The vapor pipe and liquid pipe of the indoor unit need to of at least 0.25 times the maximum allowable pressure.

  • Page 19: Airflow Performance (Air Handlers Are Suitable For Mobile Home Applications)

    5. AIRFLOW PERFORMANCE ( AIR HANDLERS ARE SUITABLE FOR MOBILE HOME APPLICATIONS) Airflow performance data is based on cooling performance with a coil and no filter in place. Select performance table for appropriate unit size. External static applied to unit allows operation within the minimum and maximum limits shown in table below for both cooling and electric heat operation.

  • Page 20: Ductwork

    Important: 1. When model 36 used with electrical heater kit model ZP-HR150-01, you need to ensure that the air volume is not less than 1260 CFM. 2. When model 42 used with electrical heater kit model ZP-HR150-01 and ZP-HR200-01, you need to ensure that the air volume is not less than 1452 CFM.

  • Page 21: About The Air Filter

    7 ABOUT THE AIR FILTER IMPORTANT: Do not double filter the return air duct system. Do not filter the supply air duct system. This will change the performance of the unit and reduce airflow. 7.1 Air Filter (Not Factory-Installed) WARNING Do not operate the system without filters.

  • Page 22: Drain Pipe Installation

    AIR FILTER REMOVAL 1. Remove bolts manually, remove air filter recover. See in Fig.7-1. 2. Hold the edge of the air filter and extract out. 3. Clean the air filter (Vacuum cleaner or pure water may be used to clean the air filter. If the dust accumulation is too heavy, use soft brush and mild detergent to clean it and dry out in cool place).

  • Page 23: Electrical Wiring

    9 ELECTRICAL WIRING The cross-section areas of wires or lines should not be less than the corresponding ones listed in the table below; Besides, if the power wires is quite long from the unit, please choose the windings with larger cross-section area to guarantee the normal power supply.

  • Page 24: Control Wiring

    9.1 Control Wiring 9.1.1 Low voltage wires maximum length Table 9-3 defines the maximum total length of low voltage wires from the outdoor unit to the indoor unit. CAUTION Low Voltage Wires Size Max Length Conventional 24VAC non-communicating thermostat control wires must be connected 16/18 AWG 300 ft.
  • Page 25 2. Wires connections diagram Fig.9-2 Wiring connetion for A/C Systems Fig.9-3 Wiring connetion for H/P Systems...

  • Page 26: Power Wiring

    9.2 Power Wiring NOTE In the U.S.A., wiring must conform with current local Electrostatic discharge can affect electronic codes and the current National Electric Code (NEC). In components. Take care during unit installation Canada, wiring must conform with current local codes and service to protect the unit’s electronic and the current Canadian Electrical Code (CEC).

  • Page 27: Alarm Wiring

    9.3 Alarm Wiring 9.3.1 Wiring Diagram Fig.9-5 Buzzer/Alarm Light Wiring Note: 1. If you need to install a buzzer/alarm light, connect its power wire in series with the terminals CN18 and CN19 on the control board. 2. When the refrigerant concentration reaches the threshold, the terminals CN18 and CN19 will be connected, causing the buzzer to sound/alarm light to illuminate.

  • Page 28: Electric Heater Kit

    9.4 Electric Heater Kit 9.4.1 Electrical DATA CIRCUIT MAXIMUM CIRCUIT MODEL VOLTAGE HERTS SPEEDS AMPS. PROTECTOR 3(A) 3(A) 6(A) 6(A) 10(A) 10(A) 10(A) Table 9-4 9.4.2 Electric heater kits installation information Requirements Installation of electric heat sections must conform with standard in National Fire Protection Association (NFPA) Standard for Installation of Air Conditioning and Ventilation Systems NFPA No.
  • Page 29 Ampacity (HACR) Ampacity Handler Model Heat (kW) Model Used 208 V 230 V 208 V 230 V 1(LOW) 3(MEDIUM) 5(High) • • • ZP-HR50-01 22.8 24.9 • • • ZP-HR75-01 34.8 37.9 • • • ZP-HR50-01 22.8 24.9 • •...

  • Page 30: Setting

    12 DISPOSAL 10 SETTING After the electrical wiring is completed, check whether Comply with national regulations. the dip switches are set correctly according to the wiring Components and accessories from the units are not part nameplate. SW1 and SW2 are used to set the speed of of ordinary domestic waste.

This manual is also suitable for:

Zp-hr75-01Zp-hr100-01Zp-hr150-01Zp-hr200-01
