Sonoff ZBCurtain Manual

Introduction

This device does not support the curtain rod and curved curtain track.
Make sure the top space of the curtain track is greater than 2mm and the track width is less than 40mm, so that you can install the C-shape brackets properly.

Indicator Status Description

Features

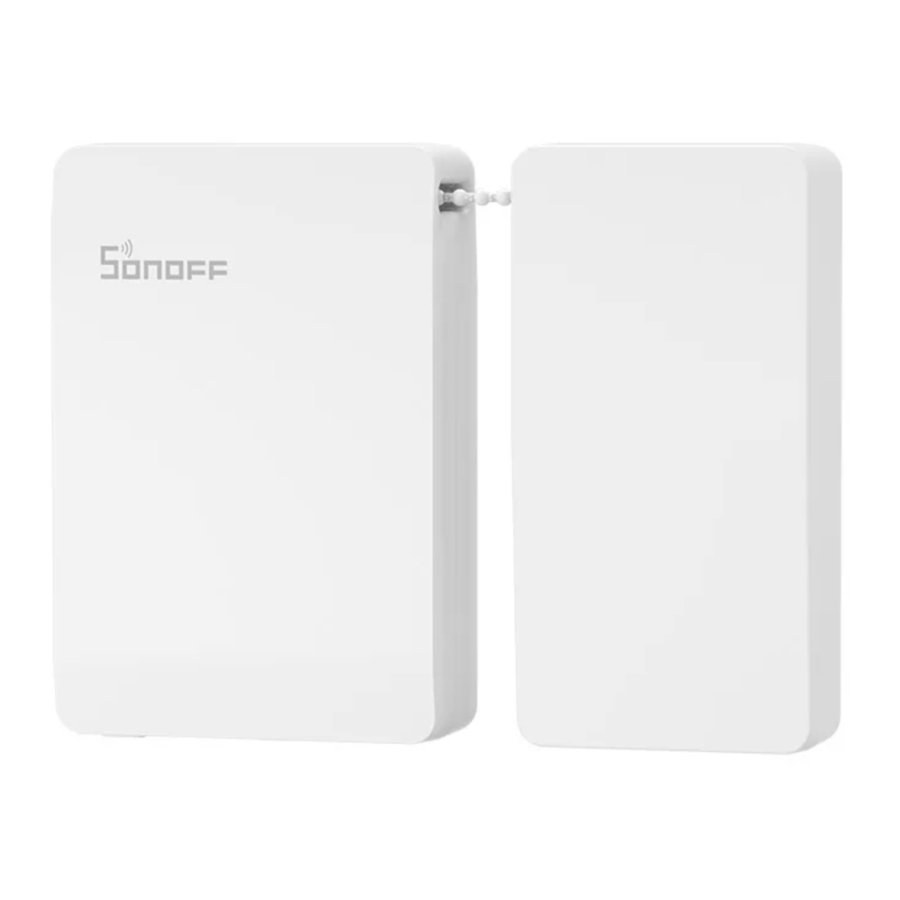

SONOFF ZBCurtain is a Zigbee smart curtain motor, which allows you to remote control, local control, voice control and manually open/pause your curtains. You can also open or close the curtains to percentage, set smart scenes, timers and etc. to make your curtains more automatic.

Features

SONOFF ZBCurtain is a Zigbee smart curtain motor, which allows you to remote control, local control, voice control and manually open/pause your curtains. You can also open or close the curtains to percentage, set smart scenes, timers and etc. to make your curtains more automatic.

Install the C-shape brackets

Install the curtain motors

1. Remove the cover of the reel, then take out the drive-chain.

2. Mount the main-motor on the left C-shape bracket and fasten it downwards.

3. Hold the vice-motor and press the button on the clamp(R), then gradually extend the drive-chain to the right to the C-shape bracket position.

   The tied part can be disassembled and used if the drive-chain is not long enough.
4. Mount the vice-motor on the right C-shape bracket and fasten it downwards.

5. Press and hold the button on the clamp(R) while pulling down the chain tightly.


Mount the curtain clamps

Close the curtains before mounting the curtain clamps.

1. Double-side opening curtain
   1. Clip the clamp(R) on the right curtain.

   2. Clip the clamp(L) on the left curtain, and mount the clamp(L) on the inner curtain drive-chain.

2. Single-side opening curtain
   Clip the clamp(R) on the opening side of the curtain (The clamp L is not required).


Pair with eWeLink App

1. Download the eWeLink App
   Please download the "eWeLink" App from Google Play Store or Apple App Store.


2. Add SONOFF Zigbee Bridge to your eWeLink account
   Make sure the proper versions of Zigbee gateway: ZBBridge-P V1.1.0 and later, ZBBridge V1.6.0 and later.
3. Add curtain motor to Zigbee Bridge

   Open the eWeLink App, select the gateway you want to pair and tap the "Add" icon, then power on the curtain motor. After powering on, LED indicator will "flash green slowly", now the device is in pairing mode and waiting for been added. The LED indicator on the device will keep on for 3s when adding the device successfully.

   The device will exit the pairing mode when it doesn't be paired successfully within 30s. If you want to enter the pairing mode again, press and hold the pairing button for 5s until the LED indicator "flashes green slowly" and then release.
4. Effective Communication Distance Verification
   Install the device in the desired place, then press the Pairing button on the device. The LED indicator flashes twice means the device and the device under the same Zigbee network (the router device or hub) are in the effective communication distance.

Set up the curtain opening and closing limit position

Please set up the opening limit position first and then set up the closing limit position (Otherwise it will affect the manual pause feature).

1. Curtain opening limit position setting:
   Press and hold the "Open+Pause" buttons on the remote controller at the same time, and release the buttons when the curtain moves to the desired position that you want to open the curtain.

2. Curtain closing limit position setting:
   Press and hold the "Close+Pause" buttons on the remote controller at the same time, and release the buttons when the curtain moves to the desired position that you want to close the curtain.


If the curtain position changes while the device is powered off, please reset the limit position after the device powers on again.
When the remote controller is paired with more than one curtain motor, please set the limit points one by one for each curtain motor and switch off the other curtain motors temporarily.

Charge

1. Charged by USB Type-C and proper adapter

2. Charged by solar panel

   When you using the solar panel to charge the curtain motor, please install the solar panel in a sunny spot.
   The adapter and the solar panel are not included in the product, please purchase them separately.

Pairing & Clearing of Curtain Remote and Curtain Motor

Pairing

1. Power off the Curtain Motor, long press the pairing button and then power on the Curtain Motor to wait for about 5s until the LED indicator turns green and keeps on, then release. Now Curtain Motor has entered the Curtain Remote pairing state.
2. Press any button on the Curtain Remote within 10s, then LED indicator will turn off and the Curtain Motor will move forward and backward briefly once, now the pairing is successful between Curtain Motor and Curtain Remote.

If the Curtain Remote does not been paired within 10s, please follow the above steps and pair them again.

Clearing
Power off the Curtain Motor, press and hold the pairing button, then power on the Curtain Motor, wait for about 10s until the LED indicator flashes green quickly and then release. Now all paired Curtain Remotes are cleared from ZBCurtain.

Specifications
