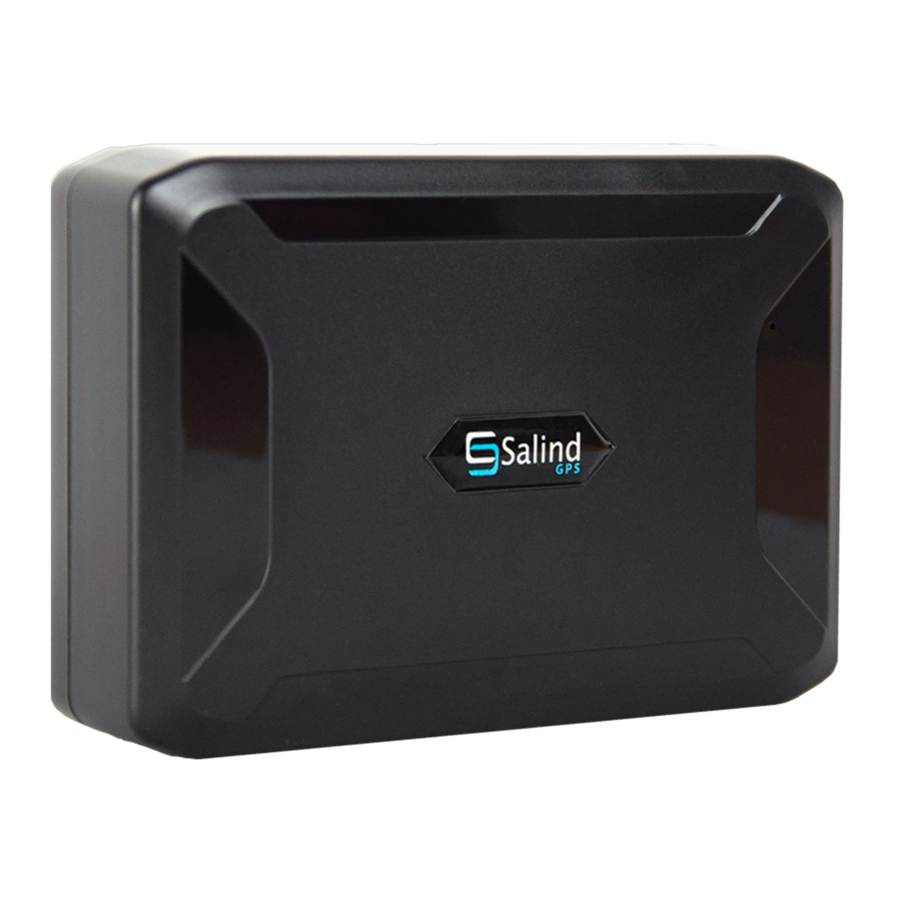

Salind 11 4G Manual

Scope of delivery

Your delivery will include:

• Salind 11 4G
• Charging cable
• M2M SIM card*

*the M2M SIM card is already inside your tracker and is not replaceable.

Product description

NOTE!
To activate, you need the device ID. Please have it ready or write it down.

Instructions for charging

You should fully charge the tracker before using it for the first time. Please proceed as follows.

1. Connect the supplied charging cable to the USB-C port of the GPS tracker.

2. Connect the other end of the charging cable to the USB port of a wall plug adapter.
   (If no wall plug adapter is included, you can use any USB wall plug.)

3. Plug the USB wall plug adapter into a power socket.

4. Wait for the end of the charging process. The unit is fully charged when the red LED goes out, see „Meaning of the LED lights".


NOTE!
In rare case, the LEDs do not indicate that the tracker is fully charged when charging for the first time. If the LED lights still do not indicate the end of charging after 10 hours of charging, plese disconnect the tracker from th epower supply and start using it. Then simply check the battery level in the FINDER-Portal.

The Salind 11 4G offers a battery life of up to 90 days, without charging in between! However, it should be noted that the runtime depends on the utilisation. The more the device is moved and the more alarms are sent, the higher the utilisation.

Activation

In order to use your tracker, you will need to previously activate it online. Enter the link as above and follow the instructions:

Start-up

When the activation is successfully, you can start the Salind 11 4G. The on/off switch is located under the protective flap.

Switch on:
To turn the tracker on, slide the switch to ON. For information regarding the LED lights, see section Meaning of the LED lights".

Switch off:
Slide the switch to OFF. The tracker then switches off.

NOTE!
We recommend that after you start your device for the first time you move it in an open space (for example during a walk or a short car ride). This can speed up the connection process, meaning that your device will connect to the best available network more quickly. A good network connection is required in order for the device to send and log data in the FINDER Portal.

Use

As soon as your device has been successfully activated, started up and has sent and logged data for the first time, you can place it wherever you choose and use your phone, tablet or PC to start tracking it! You will be able to do this in our App or enter the following link to the desktop version:
v2.finder-portal.com

Short description FINDER-Portal

1. Application menu
   View statistics, device settings, application settings, alert summary, extra features e.g. logbook etc.
2. Alerts and activities
   Last activity, unread notifications, timeline
3. Button
   Update page/refresh
4. Device list
   Overview devices, alert settings, travelled routes, customize device display
5. Options
   Map view options

Detailed instructions for the FINDER-Portal can be found on:
paj-gps.de/portal-anleitung
or scan this QR-Code:

Standby mode

By default, our devices send their position to the FINDER portal every 30 seconds, so you can always see the current location there. For some devices, the transmission interval is higher or can be changed in the FINDER portal.

Standby mode
As soon as the tracker is no longer moved, standby mode is activated after a few minutes to save power. This suspends the update of the location for the duration of the standstill of the unit. In the FINDER portal, the standby mode is displayed as follows:

Nevertheless, the unit naturally remains on standby and still sends alarm messages. As long as the tracker is in standby mode, only the data (time, battery status, etc.) of the last position before standby mode is displayed on the portal, as the position does not change during standby.

Online mode
At the latest, when the tracker is moved again, the device automatically switches to active and sends its position to the portal again every 30 seconds.

Location update in standby mode
If the tracker is in standby mode for a longer period of time, the unit will still send a new position to the portal at least every 24 - 26 hours.

Meaning of the LED lights

Orange LED - Network
Signal	Meaning
The orange LED is on	Signal available
The orange LED flashes	No signal available
The orange LED is off	The GPS tracker is in standby mode or switched off
Blue LED - GPS status
Signal	Meaning
The blue LED is on	GPS signal available
The blue LED flashes	No GPS signal available
The blue LED is off	The GPS tracker is in standby mode or switched off
Red LED - Battery
Signal	Meaning
The red LED is on (when attached to power supply)	Battery is charging
The red LED is off (when attached to power supply)	Battery fully charged

Alerts

	Movement/Shock alert Receive a notification as soon as your GPS tracker is either moved or shaken.
	Geofence alert Receive a notification as soon as your GPS tracker leaves your determined perimeter.
	Speed alert Receive a notification as soon as your GPS tracker exceeds a certain speed (you can set the speed limit in the FINDER Portal).
	Battery alert Receive a notification when your GPS tracker's battery level is low.
	Drop alert Receive a notification as soon as the GPS tracker is lifted.

NOTE!
All alerts must be activated and deactivated via the FINDER-Portal. Once the alert is active you will receive a notification via the app and/or via email.

Technical data

*in motion about one hour a day.

Safety Instructions

Signal words

The following signal words are used in these operation instructions:

NOTE!
This is a warning about possible damage to property.

This classifies a hazard of medium risk level. Failure to comply with the warning may result in serious injury.

Proper use

Please read the safety instructions for this Salind GPS Tracker, hereinafter only referred to as GPS tracker, carefully before use in order to be able to deploy it properly. The intended use is to employ the GPS tracker only as described in this manual to locate an object or a living being. Please bear in mind that it is a criminal offence to monitor third parties using a GPS tracker without their consent. If you use it in any other way, this is considered improper use and can lead to damage to property or even personal injury. Please note that the GPS tracker is not a toy for children. In other countries and regions there are different laws on digital positioning and localization of people, animals and/or objects. Salind UG is not responsible if such laws or regulations are violated, this is the sole responsibility of the user.

NOTE!
The manufacturer and dealer accept no liability for damage caused by improper or incorrect use.

Safety

RISK OF ELECTRIC SHOCK!
A faulty electrical installation or a mains voltage that is too high can lead to an electric shock.

• Before use, make sure that the mains voltage of the socket corresponds with the information on the type plate.
• To be able to disconnect the charging cable from the mains as quickly as possible in the event of a failure, connect the power supply unit where it is easily accessible.
• If you notice any visible damage to your GPS tracker or charging cable, do not use it.
• Use only the original parts supplied to charge the GPS tracker. If the charging cable is damaged, replace it only with original accessories from the manufacturer.
• Never place the GPS tracker near an open fire or hot surfaces.
• The GPS tracker is not protected against humidity and water. Please use and store it only in a dry environment.
• The charging cable should only be used indoors. Keep it away from humidity and do not kink it.
• Do not open the housing of the GPS tracker. Leave the repair to qualified specialists. However, if you carry out repairs yourself, connect the GPS tracker incorrectly or operate it incorrectly, liability and warranty claims are excluded.

Hazards for children and vulnerable people

DANGER OF SUFFOCATION!
Please do not let people (including children) with limited physical, sensory or mental abilities use the GPS tracker. It is considered an exception if they have previously received instructions from a person responsible for their safety on how to use the device.
Please be sure that they not play with small parts (e.g. accessories, etc.). These may be swallowed, leading to suffocation.

NOTE!
Inform your child about the dangers and use of the GPS tracker.

Cleaning

RISK OF DAMAGE!
Below you will find information and instructions on how to clean the GPS tracker:

• Do not use aggressive cleaning agents or brushes for cleaning. Do not clean the GPS tracker with metallic cleaning objects (e.g. knife, metal sponge). This may damage the surface.
• Never put the GPS tracker in water, in a dishwasher (or the like) and do not use a steam cleaner.

Correct cleaning:

• The surface may be wiped clean with a slightly damped cloth.
• The GPS tracker should then be wiped dry completely.

Storage

If you are not using the GPS tracker for a lengthy period of time, turn it off. Place the tracker in its original packaging or in a carton of the same size. Protect the tracker from dirt and humidity.

NOTE!
Keep the tracker away of children's reah in order to avoid possible damage to property or personal injury.

DO YOU HAVE ANY QUESTIONS?
In this case, please contact us and we will be delighted to help you!
Salind UG (haftungsbeschränkt)
Hohe Straße 61
51570 Windeck
Germany

Mail: info@salind-gps.de
Phone: +49 2292 39 499 60
Web: salind-gps.de
