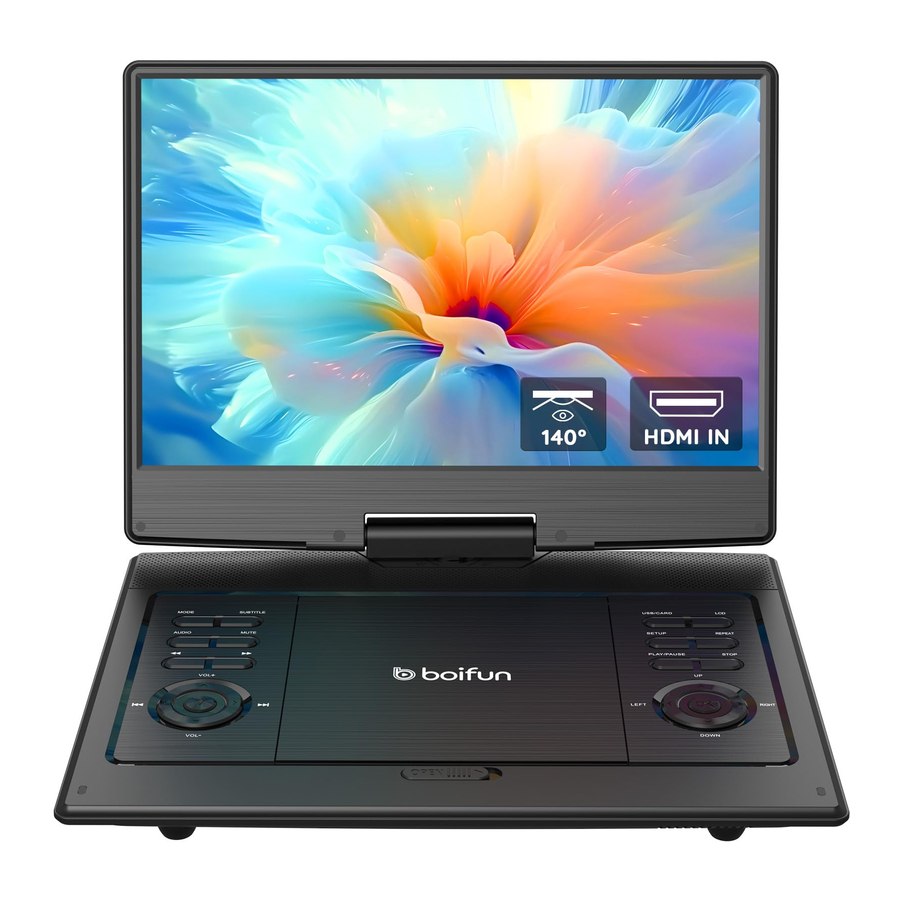

Boifun BFN-131 Manual

USEFUL TIPS

1. Battery
   Please recharge the Battery for at least 6 hours before the initial use. If you connect this player with AC power, you can use it directly.
   Note: Make sure you switch off the unit before charging The charging indicator LED will change from RED to GREEN to indicate that the battery has been fully charged. When the unit is on, the LED turns BLUE.
2. Power switch
   Slide the Power switch on the right side of the player to "ON" position to turn on the player after connecting the mains power supply. Slide the Power switch on the player to "OFF" position to turn off the player completely When the DVD player is turned off, the power indicator will go out
3. LCD Screen
   If you find scratches on the screen, just remove the screen protector.

4. Laser Pickup
   There is a card inside the player Before gou insert a disc, please remove the card. Please DO NOT touch the laser pick up or other parts with your hand.

5. Disc Format

• Disc Format Supported

  File	Supported Format
  Compatible Disc	CD, DVD, DVD+R/-R, DVD+RW/-RW, VCD, SVCD, CD-R/RW
  Audio	MPS, OGG, MPEG1 Lauer2, MPEG1 Lauer5, WMA (Bit rates 32-192kbps)
  Video	AVI. DIVX, MPG, VOB, MPEGI, MPEG 2, MPEG 4 (Resolution must be within 720*480)
  Picture	JPG

• Disc Format NOT Supported
  Blu-ray, HD DVD, Discs recorded in the AVCHD format, DVD-Audi0, Version 1.0 of DVD-RW, DVD-ROM, CD-ROM, CDV, CD-G, SACD, Photo CD, DVD-RAM that cannot be removed from their cartridges, 26-GB and 5.2-GB DVD-RAM, PAL discs.
• Language Settings
  Press keg [SET UP] COSD language] Change the display language. It is the same procedure for Audio, Subtitles and Menu.
• About the Maintenance
  • Wipe with a soft, dry cloth to clean this unit.
  • Use eyeglass cleaner to remove stubborn dirt from the LCD.
  • Do not use alcohol. paint thinner or benzine to clean it.
  • Do not press onto the LCD screen or drop the product from a high place.
  • This unit is not waterproof. To prevent getting wet, do not place any container with liquid near this unit (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.


• To clean discs, wipe with a damp cloth and then wipe dry.
• Do not attach labels or stickers to any discs (This may cause disc warping, making it unusable).
• Do not write on the discs With a ball-point pen or any other writing instrument.
• To protect discs from scratches and dirt, please return them to their cases or cartridges when they are not in use
• Do not use discs that are badly warped or cracked, or irregularly shaped discs, such as heart shapes.

PRODUCT DESCRIPTION

Package Contents

Button and Port Introduction

1	MODE	Press to select "DVD"mode or "HDMI IN"mode or "AV IN"mode.
2	SUBTITLE	Press to select subtitles.
3	MUTE	Press key to mute the audio of the plauer Press it again to activate the sound
4		Press to select the fast forward speed, 2X, 32X, press "OK" to cancel.
5	AUDIO	Press to adjust the current audio settings for the loaded DVD
6		Press to select the rewind speed, 2X, 32X, press "OK" to cancel.
7	VOL+	Press to increase volume, maximum to 25.
8		Press to return to the previous chapter
9	VOL-	Press to decrease volume, minimum to 0.
10		Press to view the main menu on a loaded DVD.
11		Press to enter to the next chapter.
12	PLAY/ PAUSE	Press to play/pause current audio/video/photo playback.
13	SETUP	Press to enter the setup menu, then use the direction kegs and OK to set the system menu.
14	USB/CARD	Press repeatedly to switch among the input of the Disc, SD card. USB source.
15	LCD ON/OFF	Press to turn on/off the LCD screen.
16	REPEAT	Press repeatedly to cycle through repeat options for the loaded disc.
17	STOP	Press to stop current audio/video/photo playback
18	up	Up Direction Key
19	RIGHT	Right Direction Key
20	DOWN	Down Direction Key
21	OK	Confirm Key
22	LEFT	Left Direction Key
23	DC IN	12V DC Power Charging Interface
24	ON/OFF	Main Power Switch
25	AV IN	AV Signal Input Interface (Used in AV IN Mode)
26	AV OUT	AV Signal Output Interface (Used for Sync Display)
27		5.5mm Headphone Jack, can be connected to 3.5mm headphones ar some speakers
28	SD	SD Card Reading Interface
29	USB	USB Reading Interface
30	HDMI IN	HDMI Signal Input Interface(Used in HDMI IN Mode)
31	Indicator Light	There are two indicator lights Charging Indicator Light: Red light indicates that the device is currently charging. Green light indicates that the device is fully charged Power Indicator Light: The blue light indicates that the device is powered on.

Remote Control Instruction

1	MUTE	Press keg to mute the audio of the player. Press again to activate the sound
2	POWER	Press to turn on and off the player screen.
3	USB/CARD	Press the key to switch between DVD, CARD and USB modes.
4	SLOW	Press to achieve 1/2, 1/4, 1/8, 1/16 times slow playback.
5	REPEAT	Press repeatedly to cycle through repeat options for the loaded disc.
6	A-B	Set point A and point B for loop playback,
7	VOL-/ VOL+	Press to decrease volume, minimum to 0. Press to increase volume, maximum to 25
8	RETURN	During DVD play. press this key to main menu,
9	DISPLAY	Press to display audio and video information such as title. play time, etc,
10	SETUP	Press it to go to the Setup menu directly in any time (except the AV or HDMI mode)
11	MENU	Press to view the main menu on a loaded DVD
12		Press to play previous chapter/ title/track or Upward.
13		Press to select fast rewind speed
14	ENTER	Press to confirm option.
15		Press to select fast forward speed
16		Press to play next chapter/ title/track or Downward.
17		Press to play/pause current audio/video/photo playback.
18		Press to stop current audio/video/photo playback.
19	NUMBERS PAD	Enter a number to jump to the corresponding chapter/title/track.
20	AUDIO	Press to adjust the current audio settings for the loaded DVD
21	SUBTITLE	Press to select subtitles

PRODUCT STARTUP GUIDE

Playing Disc

1. Slide the switch to the "ON" side

2. Open the lid.

3. Insert a disc and close the lid. To play the desired side of a double-sided disc, load it with the label facing up wards.


• Some discs start to play automatically when the unit is on.

Turn On/ Off the Player
Slide the Power switch on the right side of the player to "ON" position to turn on the player after connecting the mains power supply.
Slide the Power switch on the player to 'OFF" position to turn off the player completely.
Note: If the player will not be in use for a long period of time, slide Power switch to the "OFF" position and unplug the portable DVD player from the power source.

Selecting the Different Mode (DVD/USB/SD)
When the playback is in the stop mode, press the [USB/CARD] button on the remote control or the player to select DVD or USB or SD play mode if certain discs or memory devices are connected. When a USB mass storage device is simultaneously inserted, the USB device will be recognized.

Return to the Root Menu or Title Menu
During the disc playback, press the [MENU] button on the remote control or the player to return to the disc's root menu or title menu (depending on the disc). For MP3 DVD, Picture discs, press it to go to the file or folder list after pressing the [MENU) or [STOP] button. Use Direction buttons [UP/DOWN/LEFT/RIGHT] to select a play option. Press the [CENTER] button to confirm and start playback.

Play/Pause the Playback (DVD/VCD/CD/MP3)
During the playback, press the [PLAY/PAUSE] b utton on the remote control or the player to pause the playback, Press it again to resume playback.

Volume Control
Press the [VOL+/-] button on the player or the remote control to increase or decrease the volume level. To switch off the volume temporarily press the [MUTE] button on the player or the remote control. Playback will continue without sound. Press it again or press the volume button to activate sound.

Selecting a Track/Chapter/Title (DVD/ VCD/CD)
Press the [PREVIOUS/NEXT] button to skip to the previous or next title/chapter/ track.

Stop Playback (DVD/ VCD/ CD)
During the playback, press the [STOP] button on the remote control or the player to stop the playback.

Remote Control
Battery installation and replacement for Remote:

1. Slide the cover down as indicated bu the arrow.
2. Pull the battery loader out.
3. Insert the battery (2 AAA battery) into the receptacle, making sure the polarity matches the marks inside the component.
4. Replace the battery compartment cover of remote control

Using of Remote Control

1. Point the remote control towards the sensor window on the main unit when operating,
2. The remote control works best at a distance less than 8m and at an angle of up to degrees to the front of the unit
3. Remote requires line-of-sight to work, ensure no objects are between remote and infrared sensor. Do not place the remote control in direct sunlight.
4. If the remote control fails to work even when it is operated near the player, replace the battery.

Notes on Batteries
If the remote control is not used for an extended period of time, please remove the battery from the compartment
Do not heat batteries or dispose of them in fire
Do not dismantle, deform or modify batteries.

Range of Remote Control

CONNECTION

Enjoy Fun with a Fire TV stick
Your DVD player comes equipped with a HDMI input port. Use this feature to connect a Fire TV stick.
Please refer to the image as below to connect.

1. Plug the Fire TV stick into the right-side HDMI port.


2. Power the Fire TV Stick. You can choose to power it internally, plug into the USB port on the right side of DVD player, or externally, plug it into a power bank or a wall outlet.
   Note: Using a DVD player for power accelerates battery usage


Enjoy Fun with a Television
Your player comes equipped with an AV output jack. Use this feature to connect the player's signal to external equipment (e.g. TV, monitor), Please refer to the image as below to connect them.

1. Connect the 3.5mm RCA Cable to the AV Output on the unit and the audio/ video inputs on the Television (Red to Red, White to White, and Yellow to Yellow).
2. Turn the unit on bu switching the Power Button to the On position.
3. Change the television to the correct audio/video input setting Audio and the video played through the unit will now be seen and heard on the connected television.

Enjoy Fun with a Headphone
Connecting Headphones
Stereo headphone jacks have been provided on the player for private listening. To use the jacks, plug in the headphones with a stereo mini-jack 5.5mm plug into the headphone jack and adjust the volume to a comfortable listening level.
Note:
When headphones or earphones are connected to the earphone jack, the main speakers will be automatically muted

1. Be sure that your player is set at a low volume level before connecting the headphones.
2. Increase the volume gradually for comfortable listening
3. Listening at high volumes for a long period could cause hearing loss.

Enjoy Fun to Connect to USB

You can play or view the supported data flash, such as the MP3/WMA, Video flash in AVI and JPEG photos. Insert the USB device into the USB port on the right side of your portable DVD player. The portable DVD player supports USB devices up to 32GB. (Note: Not all USB devices can be read well, which mag result in playback issues.)

When the disc playback is in stop mode, press the [USB/CARD] button on the unit or the remote control, and then press the direction button [UP/DOWN] to select the videos or image, and press [OK] button. If you want to exit playback, choose to return to the menu bu pressing the [MENU] button.

Enjoy Fun with a SD/MMC Memory Card

1. Plug a SD or MMC card into the SD/MMC Memoru Slot.
2. Switch unit to Card Mode bu pressing the CUSB/CARD] button.
3. Use the Directional buttons to select videos or image. Press the [OK] button to play.
4. The portable DVD player supports Memory Cards up to 32GB.
   Note: Please be sure you don't insert the card incorrectly or it may become damaged. Always stop the playback or change to another mode before removing the USB/memory card.

SETUP PAGE

Menu Operation

1. Press [SETUP] on the remote control or on the unit to show the setup menu.
2. Press [LEFT] / [RIGHT] to select an item. The submenu of the selected item will be instantly shown, then press [OK]/ [ENTER] to enter
3. Use [UP]/ [DOWN] to select on option, then press [OK]/ [ENTER] to confirm it or press [LEFT] to cancel.
4. Press [UP]/ [DOWN] to continue to set other items in the submenu, then press [OK]/ [ENTER] to go back to the superior menu of the current one
5. Press [SETUP] again to exit the setup menu

General Setup Page

The General menu allows you to change the general setup of the DVD.

[TV Display]

1. 4:3 Normal / PS PANSCAN
   If the unit is connected to a conventional TV set, the wide-screen image will be displayed on the screen in its native aspect ratio with some part on the left and right cut off.
2. 4:3 Normal / LB LETTERBOX
   If the unit is connected to a conventional TV set, the wide-screen image will be displayed in its native aspect ratio with black borders on the top and the bottom side.
3. 16:9 Wide
   Select this option if the unit is connected to a wide-screen TV set. The wide-screen image will be displayed in full screen in its native aspect ratio while the 45 image will be stretched out horizontally to fit in the screen.

[ANGLE MARK]

1. Set this item to ON. When a disc encoded with multiple camera angles is playing, the angle mark will display on the screen,
2. Set this item to OFF to disable this function.

NOTE : This function only works with those discs encoded with multiple camera angles.

[OSD LANGUAGE]
(on-screen display language)
Set this on-screen display language in this item(English/French/German/Spanish/Portuguese/ Italian).

[SCREEN SAVER]

1. ON: If the image remains motionless on the screen, for several minutes, a screen saver will appear on the screen. You can press any key or button to wake it up.
2. OFF. Turn off the screen saver function.

[LAST MEMORY]

1. ON: Each time you turn off the unit or stop the disc, it will memorize the last play duration. Next time you turn on the unit and play the same disc, the unit will play from that memorized point.
2. OFF: Disable the last memory function.

SPECIFICATIONS

Difference among MPEG 1, MPEG 2 and MPEG 4

Specification

Compatible DISC	CD, DVD, DVD+R/-R, DVD+RW/-RW, SVCD, CD-R/RW
Screen Size	13.3inch
Screen resolution	1280*800
Screen Type	TFT-LCD Panel
Video output	1 Vp-P75
Audio output	1.4 Vrms/10k
Power source	DC12V
Battery Type	Li polymer
Battery Capacity	4,000mAh

TROUBLESHOOTING

Before contacting the customer service, please kindly check by yourself with the following chart.

GET SUPPORT
Official Mailbox: admin@boifun.net
Official Website: https://boifun.net/warranty
