Summary of Contents for Calca DR-1390-150W-K

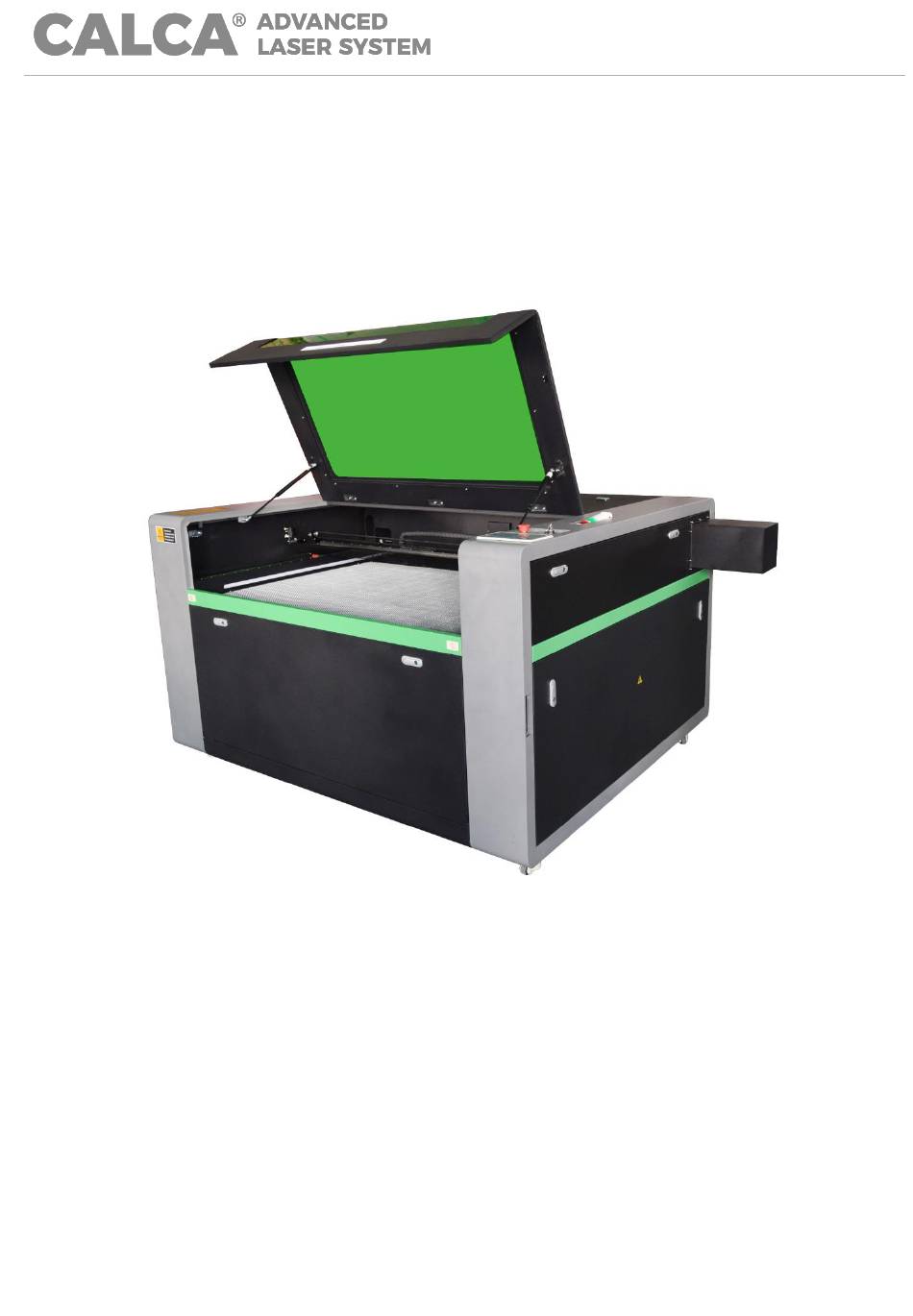

- Page 1 51" x 35" DR-1390-150W-K CO2 Laser Engraver USER MANUAL...
-
Page 2: Table Of Contents
CATALOG PROLOG ..............................4 Machine Installation Instructions ....................4 CHAPTER 1. UNPACKING & PLACEMENT YOUR MACHINE ..........7 1.1 Receiving ..............................7 1.2 Placement ..............................7 1.3 Unboxing ..............................8 CHAPTER 2. MACHINE APPEARANCE AND CONTROL ELEMENTS INTRODUCTION10 2.1 Machine Appearance ........................10 2.2 Specifications ............................11 2.3 Control &... - Page 3 7.2 Warranty Clause ........................... 38 Chapter 8. Common Problems and Solutions ..............40 - 3 -...
-
Page 4: Prolog
PROLOG Thank you for purchasing the laser-engraving machine from Sign-in-Global.us. This equipment is a high-tech product integrating light, machine and electricity, with strong professionalism and high technological content. In order to let our users operate and maintain the equipment better, we write this manual. We add many real pictures of this manual so you can understand easily. - Page 5 The direct shooting of laser radiation will do harm to human body. Therefore, flying and explosive materials should not be stacked on the workbench and it's surrounding and fire-fighting equipment must be equipped. Please maintain good ventilation when the machine is working. >...
- Page 6 DANGER: High Voltage This warning indicates that precautions should be taken when touching or handling any electrical components of the machine. Please make sure to disconnect the laser from all power sources prior to opening these cabinets or handling the internal electrical components.
-
Page 7: Chapter 1. Unpacking & Placement Your Machine
CHAPTER 1. UNPACKING & PLACEMENT YOUR MACHINE 1.1 Receiving It is likely that your machine will be delivered by a third party. Before unboxing, be sure to inspect the packaging and shipping documents supplied by the driver. Ensure that there is no visible damage to the shipment. If any damage has occurred because of shipment, note the damage on the bill of lading or refuse the shipment. -
Page 8: Unboxing
1.3 Unboxing Your new laser will be delivered in a large wooden crate like the one pictured in F1-2. Please be sure to have the necessary tools on hand when unpacking the crate, we recommend a hammer and a pry bar, as well as some type of metal cutter or tin snips that will allow you to remove the bands from the crate. - Page 9 F1-2 Accessories: Except of the machine your random accessories should include as below: Toolbox Contents: air pump, air tube, network line, power cord, USB cable, venting tube, 1 set of inner hexagon spanner, ground wire, operation manual as the picture F1-3 shows below.
-
Page 10: Chapter 2. Machine Appearance And Control Elements Introduction
Make sure to remove any foam or padding from inside or outside of the machine, this includes the inside of the cabinet. Remove any plastic ties used for securing the laser head from moving while in transit. Check for any nuts or bolts that may have come off or become loose during transit, these can usually be found in the bottom of the cabinet. -
Page 11: Specifications
F2-2 2.2 Specifications Model LCM-DR-1390-150W-K Working size 51" x 35"(1300mm x 900mm) with double side open door Z table Motorized Z (15.7" vertical adjust) Laser tube type Reci 150W laser tube Laser Type CO2 Sealed Glass 10.64 um Cooling Type... -
Page 12: Control & Display Elements
2.3 Control & Display Elements 2.3.1 Important switches There are several switches installed on the laser cabinet. This can be shown in F2-3 F2-3 1. Emergency Stop Switch (E-Switch) It is the large red circular pushdown button with arrows. The emergency stop push button is normally in the “up”... -
Page 13: Control Panel Led Keypad
Note: This switch is placed in the left position by default. When the switch is in the left position, the current adjustment knob has no effect .The power output is determined only by the 6-pin terminal (green) input. When the switch is in the right position, the current adjustment knob is in effect. - Page 14 F2-4 Introduction to the Keys: Reset the whole system. To start or pause the work Let the Laser to splash Stop working or motor axis motion Automatic searching for focus Set the relative origin User parameters, factory parameters, language settings, etc To track by the current file’s frame Special function switching...
-
Page 15: Chapter 3. Machine Installation And Debugging
Set the speed of the current running layer, or set the direction keys’ move speed To move the X axes and Y axes or up, down, left and right functions Moving Z-axis. Moving U axis. Point movement and continuous motion switching. Decimal point Backspace To stop work, or to exit to some menu... -
Page 16: Water Protection System And Water Chiller Connection
The electrical cord is found in the accessory package with your machine. The power cord for the laser plugs into the power receptacle located on the left side of the machine in the rear corner. The air pump power cord and chiller power cord can be plugged into the white socket... - Page 17 F3-3 3) Open the injection port and add water. For best results, use deionized water. Pour slowly and do not fill the chiller completely. There should be about 3-6 inches (80-150mm) between the opening and the top of the water in the machine.
-
Page 18: Air Pump Installation
minutes. Do not become frustrated and switch the machine on and off, except when necessary to add water. 5) Check the water level of the water tank again, as in Step 2 above. The water level of the chiller will lower somewhat as it fill the cooling path of your machine. -
Page 19: Exhaust Fan Installation
2) Please find the air inlet port on the machine, as marked in picture F3-6, then connect one side of the hoses to the air blowing mouth, the other side to the machine. F3-6 3) Please connect the power cable (of the air system) to the machine. The air pump works normal if it blowing air in air outlet port on the laser head. -
Page 20: Ground Wire Installation
F3-7 2) Connect the exhaust fan plug to power (considering voltage fluctuations in different areas. We strongly recommend that power exhausting fans individually instead of plug on the machine). And you can test and confirm the fan works normally. 3.5 Ground Wire Installation The laser tube used in this laser machine is a Class IV laser, and the Class IV laser. -
Page 21: Connect The Machine With Computer
F3-8 F3-9 Please note: The machine must be grounded. Poor grounding will lead to a high failure rate of the equipment and may cause other safety accidents at the same time! ! ! The company does not assume any responsibility or obligation to the failures or accidents caused by no grounding! ! ! 3.6 Connect The Machine With Computer 1) Firstly connect the machine plug to the power,... -
Page 22: Adjust The Focal Length
F3-10 Note: This machine support output by Ethernet, USB and U-Disc. 3.7 Adjust The Focal Length 3.7.1 Focal lens assembly (F) Focal Length. (L) Focal Spacing. (1) Unfocused Laser Beam. (2) Laser Head Mirror. (3) Head Removal Set. (4) Lens Removal Set. (5) Focal Lens. (6) Rubber Gasket. (7) Locking Nut. -
Page 23: Adjust The Focal Length
F3-11 Lens is 0.79” (20mm) in diameter, and has a focal length of 2.5” (63.5mm). Note: The lens should be checked often for cleanliness and can be changed for lenses of different purpose. 3.7.2 Adjust the focal length Manual Focus: Focusing the lens is a very important part of running this laser machine. -
Page 24: Chapter 4. Laser Beam Path Adjustment
1. If you lost your focal guide by accident, the reference focal guide width of this machine is 6.5 mm. 2. Always be careful when focusing your lens with thick material, do not allow the material to collide with the lens housing. This can cause SERIOUS DAMAGE to the laser machine. - Page 25 Please connect all the power cord and power on and power on the laser machine. At this time, the machine starts to reset and returns to the last positioning point, which indicates that the machine is operating normally. Turn on the laser switch and you can start to adjust the light path. 1) Put the dimming paper (paper tape) on front of the first lens A (#1).
- Page 26 the rail position. Click the "Pulse" button to see the location of the laser spot. As shows in Picture F4-3. Then press the arrow keys on the control panel and move X rail to the lower left corner, the same press "Pulse" button and there will be the other laser spot. As shows in Picture F4-5.
- Page 27 F4-5 3) Adjustment of optical path C (#3). Put the lens dimming paper onto front of the second mirror frame C (#3). Repeat pulsing in the farthest point to the nearest point of C (#3). As shows in F4-6 & F4-7. (First, move the laser head to the left of the X-axis, put the test paper in front of the hole of the laser head, press "pulse"...
- Page 28 F4-6 F4-7 4) The optical path adjustment between the third reflective lens and the focusing lens. Put the dimmer paper into the below of laser head, then press the “Pulse” button, check if the spot hit the middle of dimming paper. If it happened to be in the middle of the below of laser head, the light path is positive.
- Page 29 Only raise or lower the laser tube. 2. Adjust inside and outside deviation: The laser tube can only be adjusted inward or outward. 3. In this example, the laser tube (referred to here as the low-pressure end of the laser tube) must be lowered, and then all readjusted from the first step; Note: The above work must be performed by professionally trained personnel.
-
Page 30: Chapter 5. Equipment Maintenance
CHAPTER 5. EQUIPMENT MAINTENANCE Storage of the Laser: Keep the laser machine in a clean, dry and warm location with no vibration. Make sure there is NO MATERIAL (S) left on the worktable when the machine is not in use. Machine Memory: There should always be little to no files stored on your machine’s memory. -
Page 31: Focal Lens Cleaning
5.2 Focal Lens Cleaning This is the lens that is used to focus the laser beam and it should be cleaned at least once per week. It is NOT possible to clean the lens while it is mounted in the focal lens tube. -
Page 32: Linear Rails & Bearings
your gantry or worm rods is discolored, clumping or filled with debris, it must be cleaned. 5.4 Linear Rails & Bearings The linear rails are the guiding rails along the left and right sides and across the gantry. These rails should be kept clean and without rust and have alight coating of white lithium grease. -
Page 33: Clean And Install Laser Tube
5.8 Clean And Install Laser Tube Generally, the glass turns yellow because of oil stains in the air and alkali in water vapor, such as scale. In addition, the laser tube will have a burning smell after use, and the surface color of the laser tube will turn brown. This is because static electricity will be generated in high-voltage environment, and static electricity will produce adsorption phenomenon. - Page 34 Make absolutely sure that the machine is not connected to the power source. Laser Tube Installation, as is shown in picture: (1) Laser Tube Mount. (2) Laser Tube. (3) Water Outlet. (4) Anode Terminal. (5) Cathode Terminal. (6) Water Inlet. - 34 -...
- Page 35 (A) Laser tube (B) Laser tube (C) Laser tubes in mount. packaging. place rotate water outlet vertical. (D) Laser tube two- (E) Laser tube (F) Cathode finger spacing mounted. connection & water from mirror. inlet connection. (G) Cap. (H) Water outlet (I) Anode connection.
-
Page 36: Clean Fan
A. Remove the top portion of each (1) laser tube mount with an Allen wrench. Do not make any adjustments to the other components of the laser tube mounts. B. Carefully remove the (2) laser tube from the packaging. C. Carefully place the (2) laser tube in the laser tube mounts. Once in place, rotate the laser tube so that the (3) water outlet tube is pointed straight up. - Page 37 1. Is the emergency stop button pressed? 2. Is the key in the machine and turned into the on position? 3. Is the cord plugged into the machine and electrical outlet? Machine is turning on but Not Firing: The laser has multiple protection modes built in to prevent possible injuries or damage to the machine.
-
Page 38: Chapter 7. Warranty Regulations
CHAPTER 7. WARRANTY REGULATIONS 7.1 Warranty The machine warranty is 12 months from the day you order the machine (except the consumable parts). WARNING! VOLTAGE. Before connecting this tool to a power supply (receptacle, outlet, etc.) makes sure that the voltage supplied is the same that is specified on the nameplate of the tool. -
Page 39: Warranty Card
The company only assumes due legal obligations for the products sold, but does not assume other responsibilities arising from the use of the company's products. Warranty Card 1 year warranty from date of purchase Reference No. LCM-DR-1390-150W-K-US Serial No. Date of Purchase www.sign-in-global.us - 39 -... -
Page 40: Chapter 8. Common Problems And Solutions
Chapter 8. Common Problems and Solutions 1. Problem: No reset, chaotic engraving, misplacement after booting. Reason: The ground wire is not connected or the ground wire is not connected well. Solution: Connect the ground wire as required. 2. Problem: The engraving depth is uneven. Reason: The water circulation system does not work, and the light path is not adjusted properly. - Page 41 There are commonly two types of acrylic. Casted acrylic produces a frosted-look engraving. Extruded Acrylic (the cheaper of the two) is best for cutting and produces a clear engraving. Wood Hardwoods, Plywoods, MDF, Particle Boards Engrave 200 -100% 300 -100% 450 -100% Deep Engrave 100 -100%...
