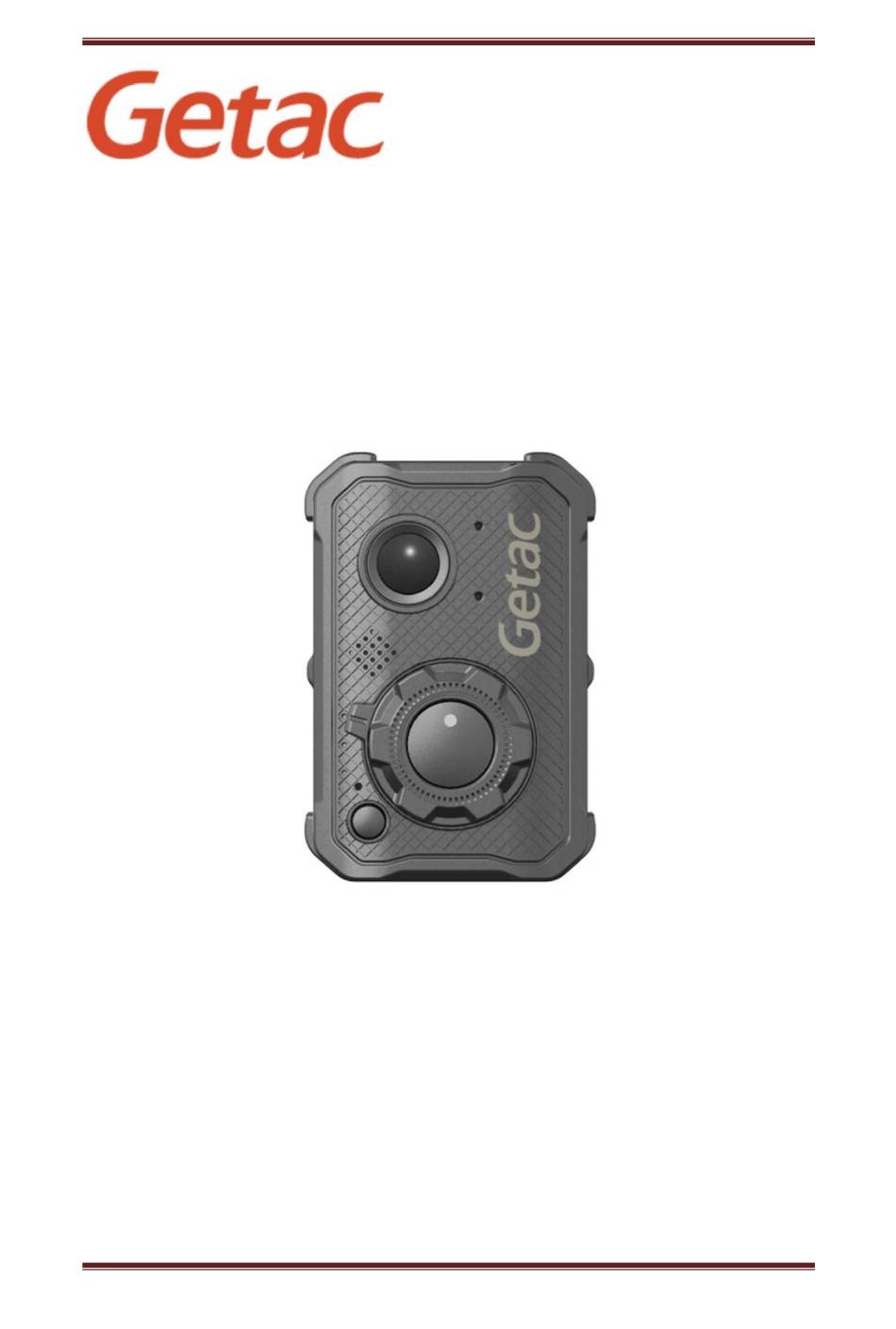

Getac BWC BC-4K User Guide

BWC BC-4K User Guide

Phone +886 (0)2-2785 7888

Rev: 1.61

R1.61

Table of Contents

Need help?

Do you have a question about the BWC BC-4K and is the answer not in the manual?

Questions and answers

Summary of Contents for Getac BWC BC-4K

Page 2: Table Of Contents
Getac BWC BC-4K User Guide Contents Chapter 0: Revision History ...................... 3 Chapter 1: Unpacking ........................ 4 Chapter 2: System Requirement ....................5 Chapter 3: System Specification ....................6 Chapter 4: System Operation ....................7 Chapter 5: Management ......................18 Chapter 6: Troubleshooting ....................
Page 3: Chapter 0: Revision History
Getac BWC BC-4K User Guide Chapter 0: Revision History Getac BWC BC-4K Title User Guide Date Description v1.0 2021/09/22 Initiation version. v1.1 2021/10/20 Notice update v1.2 2022/02/11 Model name update v1.3 2022/03/11 Add 5.5. OLED Display v1.4 2022/03/29 Add Input Information v1.5...
Page 4: Chapter 1: Unpacking
Getac BWC BC-4K User Guide Chapter 1: Unpacking  Standard Package Item Description Outlook Quantity BWC BC-4K Body Worn Camera  Optional Accessories Item Description Outlook Quantity Adjustable Pocket Mount v2 Optional Chest Clip v2 Optional Magnetic Mount v2 Optional...
Page 5: Chapter 2: System Requirement
Getac BWC BC-4K User Guide Chapter 2: System Requirement 2.1. Operating System. Operating Version Supported Remark System Win10 64bit 2.2. System Requirement Item Specification Remark Intel Core i3 or i5 above Memory 4.00 GB 100GB Disk R1.61...
Page 6: Chapter 3: System Specification
Getac BWC BC-4K User Guide Chapter 3: System Specification 3.1. BWC BC-4K Hardware Specifications Item Specification Remark Dimension 96 x 65.6 x 25.4 mm Weight 200g 48Gb eMMC 128GB; Built-In Lens FOV 140 degree(H) Wireless - WIFI 802.11 a/b/g/n/ac 2.4GHz / 5GHz...
Page 7: Chapter 4: System Operation
Getac BWC BC-4K User Guide Chapter 4: System Operation 4.1. BWC Operation Description On/Off Button: Wi-Fi wake-up supported Microphone Camera Status LED Mode Switch (Normal/Covert) Camera Lens Wheel Switch Main Button (Start/Stop/Mark/Confirm) Speaker Dock Connector: Connects to the charging dock.
Page 8 Getac BWC BC-4K User Guide 4.2. BWC Button Function Function Remark Power Button To power on/off body worn camera Power Button To wake up Wi-Fi forcedly To start/stop recording Main Button Main Button To confirm categorize operation & mark 4.2.1. LED Please refer to 5.3.
Page 9 Getac BWC BC-4K User Guide 4.2.8. Action Description Action State Audio Press Power button 1 sec Power on Hello Press Power button for 10 sec Power off Goodbye Wheel select Category Clarify Event-1 Event-… Event-…. Event-64 Confirm Press REC button two times...
Page 10 Getac BWC BC-4K User Guide 4.3. BWC LED Indicator 4.3.1. Status LED Operation LED Operation Mode Green Solid Available camera (Data Offloaded/Full Charged) Red Solid Storage Full, Battery Low, OTA Red Normal Blinking Normal Recording Red Slow Blinking Audio only Recording,...
Page 11 Getac BWC BC-4K User Guide 4.4. Audio Prompt Operation Mode Beep Sound Audio Prompt Video Tag Beep/Every press Storage Full Beep/5 sec Storage Low<4GB Beep/5 sec with 10 times Buffer mode and WiFi Beep * 2 within 1 second connected...
Page 12 Getac BWC BC-4K User Guide 4.5. OLED Display 4.5.1 Icon Definition Function Icon Function Icon Wi-Fi Wi-Fi Only Wi-Fi Off Wi-Fi On, No SIM No Connection Wi-Fi On, Connected No Service Signal Low Wi-Fi On, Connected Signal Low Signal Middle...
Page 13 Getac BWC BC-4K User Guide Function Icon Function Icon Bluetooth Bluetooth Off GPS Off Bluetooth On, GPS On, Standby No fixed Bluetooth On, GPS On, Connected Fixed R1.61...
Page 14 Getac BWC BC-4K User Guide Function Icon Function Icon Storage Battery Storage Low < 4GB Battery Fully Charged Storage Full Battery Charging Battery Low < 5% (0-5) Battery 25%(6-25) Battery 50%(26-50) Battery 75%(51-75) Battery 100%(76-100) Off Mode Charging R1.61...
Page 15 Getac BWC BC-4K User Guide Function Icon Function Icon Other Other APP Connecting Live Streaming On APP Connected Live Streaming Off Other Panic R1.61...
Page 16 Getac BWC BC-4K User Guide 4.5.2 Menu Operation 4.5.2.1 Menu R1.61...
Page 17 Getac BWC BC-4K User Guide 4.5.2.2 Certification Information (1) Turn the “Wheel” during “Ready status” (2) Select “System(8/8)” column (3) Press “Power button” to enter into 2nd level menu, then to select “Certification” R1.61...
Page 18: Chapter 5: Management
5.1. Operation Introduction Automatic uploading is Quick, Secure and requires no action from the officer. With Getac Cloud, you can securely manage the digital assets obtained from in-car cameras, body worn cameras, interview rooms and other digital devices. Any digital video, image or document may be securely uploaded, browsed, viewed, classified and shared using only a web browser.
Page 19 True control means having access to the sensors and information you need to make quick, informed decisions. Getac Real Time Command allows your force to capture, record and store digital evidence crucial to the case. All so you can visualize and associate agency-unique and mission-specific data and sensors in a clear, easy-to-track format.
Page 20 Getac BWC BC-4K User Guide 5.3. Instant tag Turning the Dial allows officers to classify incidents into one of 64 different preset classifications for quicker and easier access. The 64 preset BWC evidence categories can be specified for each department. Use the convenient category wheel to easily classify videos by up to four predefined incident types.
Page 21 Getac BWC BC-4K User Guide 5.4. Mobile APP With the mobile Getac BWC App, Police officers can perform video playback and categorize the videos. Videos are not downloaded, but merely played off the BWC. 5.4.1. Remote Recording 5.4.2. Video Playback...
Page 22 Getac BWC BC-4K User Guide 5.4.3. Instant Category R1.61...
Page 23: Chapter 6: Troubleshooting
NOTE The information in this manual is subject to change without notice. For the latest version of the manual, please visit the Getac website at www.getacvideo.com. Notice (1) For SIM slot replacement, please use dedicated hook in the shipping box.
Page 24: Chapter 7: Regulatory Information
Getac BWC BC-4K User Guide Chapter 7: Regulatory Information NOTE: Marking labels located on the exterior of your device indicate the regulations that your model complies with. Please check the marking labels on your device and refer to the corresponding statements in this chapter.
Page 25 Getac BWC BC-4K User Guide Industry Canada Statement RSS-Gen Issue This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 26 Getac BWC BC-4K User Guide CAUTION: Do not expose your skin to the BWC when operating it in a very hot or cold environment. The BWC can get uncomfortably warm when you use it in high temperatures. As a safety precaution in such a circumstance, do not place the BWC on your lap or touch it with your bare hands for extended periods of time.
Page 27 Getac BWC BC-4K User Guide Safety Notices About the Battery If the battery is mishandled, it may cause fire, smoke or an explosion and the battery’s functionality will be seriously damaged. The safety instructions listed below must be followed. Danger Do not immerse the battery with liquid such as water, sea water or soda.
Page 28 Getac BWC BC-4K User Guide In case lead wires or metal objects come out from the battery, you must seal and insulate them completely. Caution Texts Concerning Lithium Batteries R1.61...
Page 29 Getac BWC BC-4K User Guide Rating Label Information About the Input ◼ Input: 5V 3A 或 9V 2.2A R1.61...
