VEWIOR A1 (HQSC-50) Manual

PRODUCT INTRODUCTION

This product is a small desktop air purifier. The unique appearance design provides users with an aesthetic experience. Air circulation and purification are improved by having all sides' air intake and an air output on the top surface. The unit is compact enough to fit on a desktop and has no negative impact on the workplace. It absorbs, dissolves, or converts various air pol utants, thus improving air quality. VEWIOR air purifier provides consumers with clean and safe air. Small yet powerful!

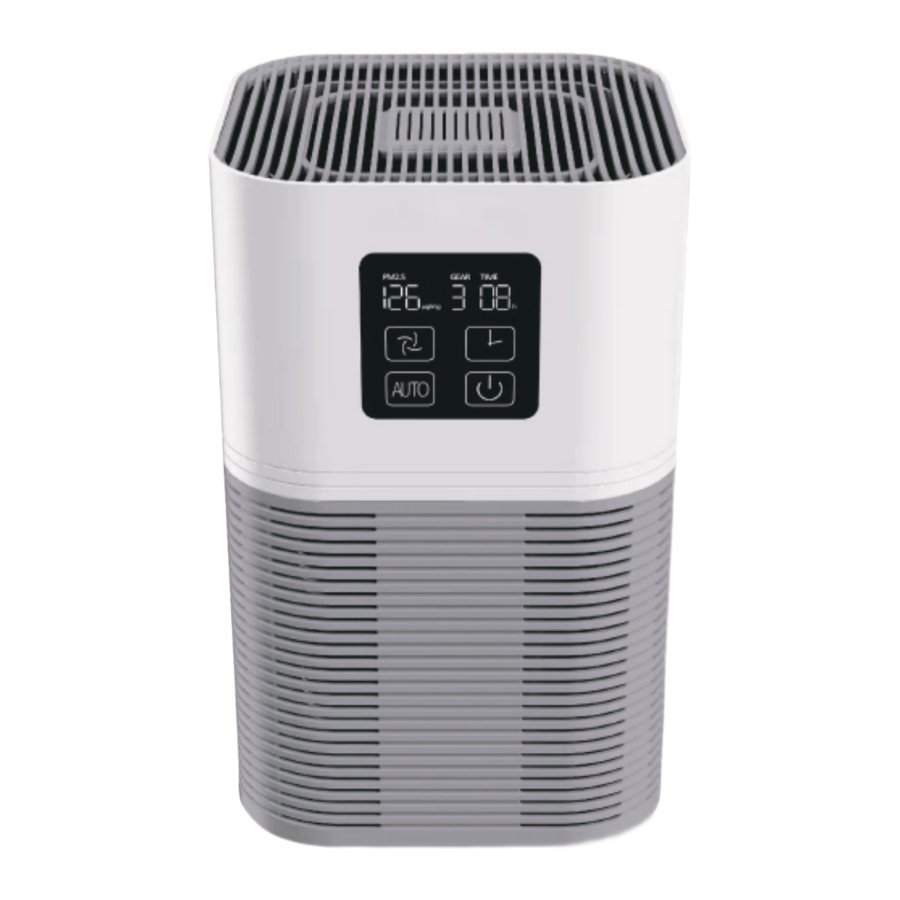

PRODUCT OVERVIEW

BEFORE USE

1. Open the package.
2. Take out the unit and the filter.
3. Remove the new filter protective bag before installation.
4. Align the filter locking notches and tighten the filter buckle in the " " direction.
5. Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlets closer than 20cm.
6. Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance.
7. Please insert the plug into the power socket firmly. After switching the power on, the indicator light will flash.

CONTROL PANEL OVERVIEW

ADDING ESSENTIAL OIL

HOW TO REMOVE THE PROTECTIVE BAG

1. Rotate the twist handle clockwise to unlock the base cover.

2. Flip the air purifier over and remove the filter.

3. Remove the filter protective bag before installation.

4. Place the filter into the air purifier and install the base cover properly.
   Tighten the filter buckle until it clicks into place.


OPERATION

1. Power ON/OFF: Turn the air purifier on by pressing the "ON/OFF" button. The filtration speed is adjusted to the 2F fan speed (backlighting and "2F" fan speed indicator light up).
2. Auto Mode: Press the "Auto Mode" button to enter the auto mode (corresponding indicators will light up to indicate the selected mode and current fan speed according to the air quality in the area).
   When PM2.5 levels are: < 70, the fan speed is adjusted to 1;71-150, the fan speed is adjusted to 2;> 150, the fan speed is adjusted to 3.
3. Manual Mode: Press the "Fan Speed Control" button to exit the auto mode. The unit enters the manual mode. Adjust the fan speed (1→2→3) when manual mode is selected.
4. Timer: Press the 'Timer" button to pick the required operating time (2, 4, 6, 8, 10 or 12 hours). Air purifier shuts off automatically at the end of the selected period.
5. Air Quality Indication: After the unit is turned on, the sensor automatically detects the air quality, and the air pol ution value is displayed in the front panel display.

NOTE
It might take up to 30s for the sensor to determine the current air quality value in the area.
The value determined by air quality sensor is for reference only and cannot be used to replace professional testing equipment.

CARE AND MAINTENANCE

Switch off and unplug the appliance if you are cleaning the appliance or when it is not in use for a long time.

Reference for the filter cleaning and maintenance frequency: once a month.
Never use abrasive objects which could damage your appliance's appearance.
Clean the appliance with a soft, dry cloth.
Never use abrasive cleaning agents, scourers, acetone or petrol to clean the appliance.
Switch off the appliance and unplug it from the wall outlet before cleaning.
Never immerse the motor base in water or place it under running water to avoid the risk of electric shock.
The filter is easy to be damaged and deformed. Please do not press or pull it forcefully during cleaning.
If it is damaged, replace the filter with a new one.

1. Replace the filter every 3-6 months. It varies depending on the area and ambient air quality. The filter replacement cycle may be reduced in heavily polluted areas, smoking areas, and etc. When the filtering effect is poor, please replace the filter.
2. Cleaning: Wipe the outer surface, the air inlet and outlet with a wrung soft cloth. Do not clean the surface with abrasive cleaning agents.
3. When not in use for a long period: unplug the power adapter, clean the outer surface and filter. Put it in a plastic bag and store in a low humidity evel area.

TROUBLESHOOTING

IMPORTANT

Please follow the further recommendations to avoid personal injury or product damage.

WARNING/ATTENTION

Please read the important safeguards carefully before using this appliance ATTENTION It reminds that misusing or mlshandling may cause hurt.
FORBID The operation cannot be performed or forbidden.	FORCE A certain operation should be performed (mandatory).

Please supervise your children and avoid them from touching or using appliance.

Do not handle the plug with wet hands.
It may cause electrical shock.

Do not disassemble, repair, or reconstruct the appliance.
It may cause an electric shock, fire hazard, or getting an injury.
Contact the authorized retailer for item repairing.

Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance.
Other electric appliances used simultaneously may cause the socket to be hot or cause the fire.

1. Do not wash or spill this product with liquid.
2. Keep your hands and fingers away from the high-speed whee component rotating in the purifier. Avoid foreign objects entering the unit air vent, it may cause heat or damage to the unit.
3. Do not block the air inlets and outlet. There should be a certain space around the air purifier.
4. Children shall not play with the air purifier. This appliance can be used by children.
5. In order to improve the purification effect, close the doors and windows when using the unit (to avoid carbon monoxide poisoning, properly ventilate when using a combustion unit).
6. Please do not use any other power adapter than the one provided with the air purifier.
7. Do not use the appliance in wet, moist areas such as bathrooms, steamy kitchens, or near swimming pools, otherwise, it may cause an electric shock.

CUSTOMER SERVICE
Thank you very much for choosing Vewior Air Purifier. We are a team full of innovation and passion, we hope our product can bring you the most convenient and enjoyable experience. If you have any questions or feedback on your new product, please contact our customer support team.
Our customer service team is always ready to assist you if you have any issues or concerns.

24/7 LIVE CHAT SUPPORT
1-888-285 6061
support@vewiorlife.com
www.vewiorlife.com
