Summary of Contents for Rocks OK-08.3150

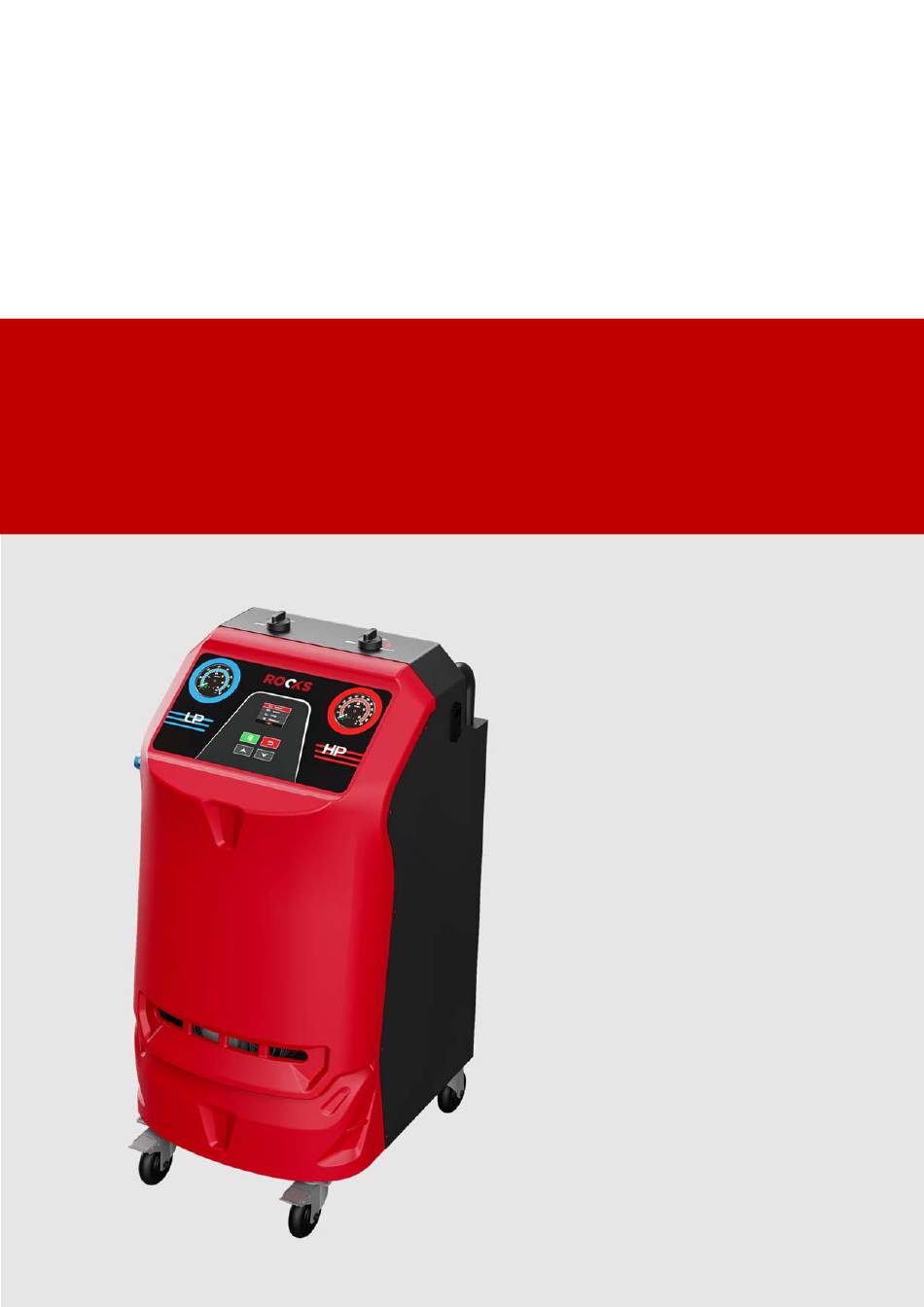

  • Page 1 OK-08.3150 Manual...
  • Page 2: Table Of Contents

    Manual Table of Contents 1. Symbols use .......................... 1 1.1. Warning notices ........................... 1 2. Important notes ........................1 2.1. User group ............................2 2.2. Agreement ............................2 2.3. Obligation of contractor ........................2 2.4. Safety regulations..........................2 2.5. Technical Data ............................. 4 3.
  • Page 3: Symbols Use

    Manual 1. Symbols use 1.1. Warning notices Warning notices warn of dangers to the user or people in the vicinity. Warning notices also indicate the consequences of the hazard as well as preventive action. Warning notices have the following structure: KEYWORD - Nature and source of hazard! Warning Consequences of hazard in the event of failure to observe action and information given.
  • Page 4: User Group

     Before connecting the OK-08.3150 to a vehicle air generous amounts of water. conditioning system or an external refrigerant bottle, make sure the quick- release couplings are not leaking.
  • Page 5: Technical Data

    08.3150 for A/C service.  If there is damage to the OK-08.3150 , terminate usage  R134a is not to be used in areas in which there is a immediately and contact customer service.
  • Page 6: Product Description

     The OK-08.3150 can only be operated with R134a.The OK-08.3150 is not to be used for service work on vehicles with air conditioning systems employing refrigerants other than R134a, as this will cause damage. Prior to A/C service check the type of refrigerant used in the vehicle air conditioning system.
  • Page 7: Description Of Unit

    Manual 4. Description of unit Knob HP Gauge LP Gauge Oil bottles Low side quick connector port High side quick connector port Power Switch Filter drier Work tank Vacuum pump...
  • Page 8: Input Selection

    5.4.Locking caster brakes The main interface is as below. disconnection of the couplers (Puff-effect); Rolling of the OK-08.3150 can be  Check possible valve leaks before prevented by locking the caster disconnection; brakes at the front wheels.
  • Page 9: Unpacking

     Prevent exposure to direct sunlight and excessive dust. of filling the vehicle air conditioning system impossible. Also, if there is an insufficient quantity, the OK-08.3150 may not be  Unit must be properly grounded with the power plug able to operate efficiently. In the event of an excessive quantity, ground pin.
  • Page 10: A/C System Service

    Manual 5. Tank Refilling reaches the preset amount. Please close the source tank valve, press Enter to recover the refrigerant in the hose. 8.A/C system service 8.1.Recovery process 1. From the main menu, select MANUAL, and then select 4. Recovery Completed. RECOVERY.
  • Page 11: Charge Process

    Manual 2. Set the Charge amount, and press “Start” to begin charge process. 2. Set the Vacuum time, and press “Start” to begin vacuum process. 3. Charge is in progress. The charged weight will be displayed after the charge process is completed. 3.
  • Page 12: Maintenance

    Manual There is potential for unit to display an error of the slow charging. Please close the high side valve and turn on A/C. 9.Maintenance Please contact an authorized technical service center for 9.1.Load Cell Calibrate purchasing factory replacement parts. Make sure the machine is disconnected from power before 1.
  • Page 13: Insufficient Refrigerant In Work Tank

    To ensure a reliable procedure, it is advisable to use the optimum quantity of refrigerant. The optimum quantity of refrigerant for the OK-08.3150 is 4kg – 10.0kg. An inadequate quantity of refrigerant may make effectiveness of filling the vehicle air conditioning system impossible. If there is insufficient refrigerant in work tank, please Refer to 7.2...
  • Page 14: Replace Filter Dryer

    Manual Using a flat head screwdriver, rotate the front locking screw and lift the front housing. Place a bowl under the vacuum pump oil drain hole. Remove the upper filling plug and the 9.4.Replace filter dryer lower drain plug to allow the oil to drain from unit. Once the pump has been emptied, reinstall the lower drain plug.
  • Page 15: Language Selection

    Manual 9.5.Language selection 1.select the language. 2.choose the language that you need.
