Summary of Contents for Global Industries EV ONE
- Page 1 All manuals and user guides at all-guides.com USER GUIDE...
- Page 2 All manuals and user guides at all-guides.com Table of contents Accessor ies included with the charging station. O ver view of the charging station Technical speci cations I nstallation Er ror messages Changing the charge level...
- Page 3 All manuals and user guides at all-guides.com Accessories 1x Wall plate 1x Hook 10x Plastic bolts 10x S crews...

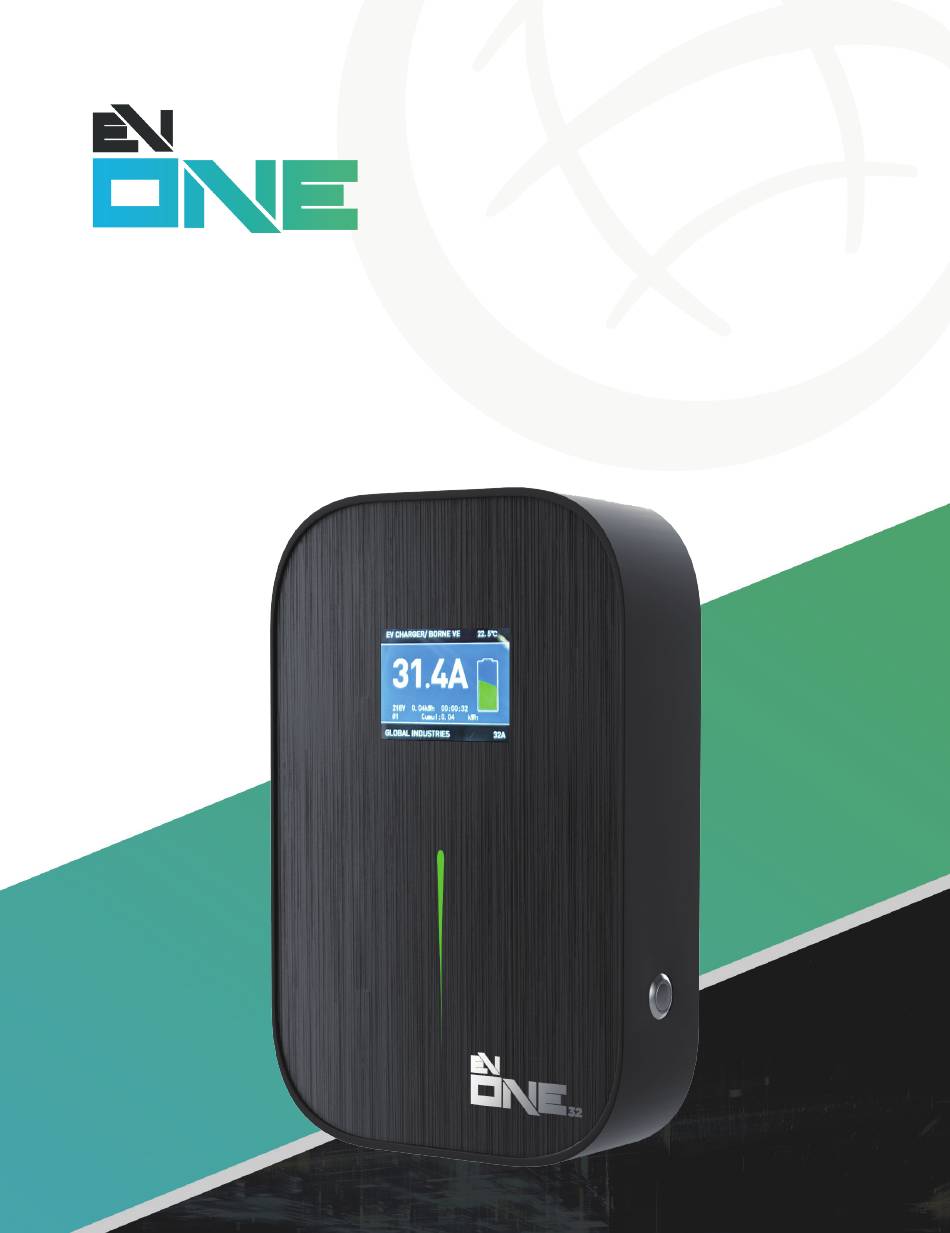

- Page 4 All manuals and user guides at all-guides.com Overview Display screen RFID scanning area (RFID charging station only) Emergenc y stop / Exit from standby Power cord (NEMA 6-50 or 14-50) or 2 meter cord for fixed connec tion. Charging connec tor Charging connec tor...
-
Page 5: S Ecurit Y Protec Tion
All manuals and user guides at all-guides.com I nstallation metho d Wall / Pole Charging p or t SAE J1772 Cer tific ate TUV, CE, C CSA US IP Degree IP66 R ated Voltage 240 VAC R ated Current 32A or 40A Single phase mo de (32A) 7.7Kw (R equires double 40A circuit breaker) Single phase mo de (40A) 9.6Kw... -
Page 6: Installation
All manuals and user guides at all-guides.com Installation Important The charging station must be installed at more than 4 feet from the ground... - Page 7 All manuals and user guides at all-guides.com M essage Description Solution Suggestion CP Error The Control Pilot (CP) Check that your Control Pilot(CP) signal pin isn’t shor ted. Contac t the Ev O ne connec tion is not reliable provider if this problem p ersists. Low voltage System voltage is lower than Consult your elec trician to ensure...
- Page 8 All manuals and user guides at all-guides.com Press the button for 5 seconds Af ter 5 seconds release the button and the charge level options should appear. I f nothing is displayed, you have not pressed long enough. Press the button to selec t the new charge level At each click the charge level changes.
