WI-FI STICK GUIDE
STARTUP
CHECKLIST
Please make sure that:
✔ Wi-Fi Stick is properly plugged in
✔ DC Switch is closed and Inverter is powered.

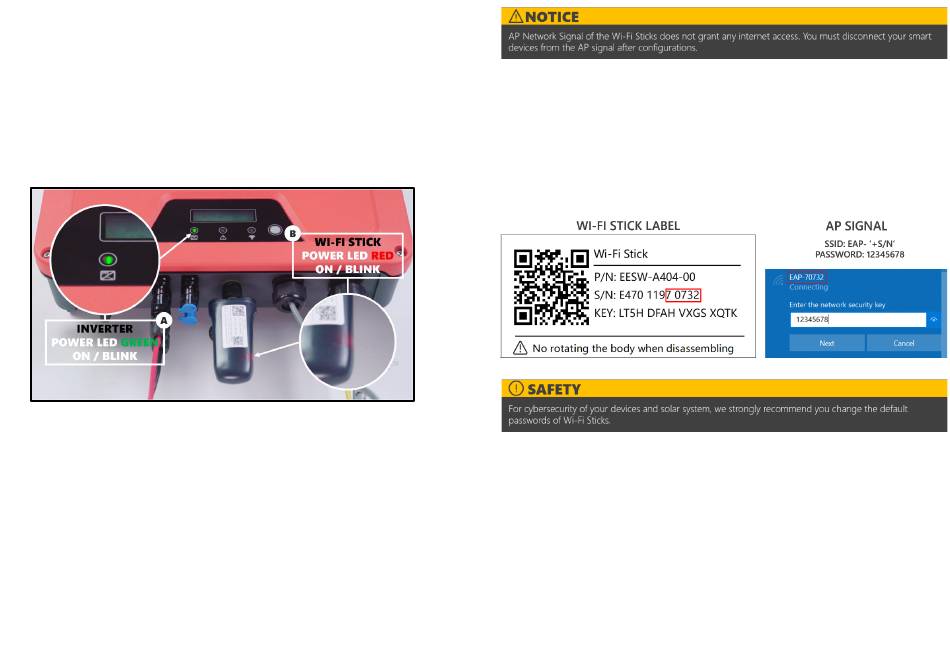

You should see:
Green LED on inverter: ON / Blink - Inverter Power ON.
Red LED on Wi-Fi Stick: ON / Blink - Wireless waiting for configuration.
ABOUT WI-FI STICK'S AP SIGNAL
When connected to a working inverter (at least powered on), Wi-Fi Stick generates an
AP (Access Point) Signal that stays visible and accessible for smart devices, such as
smartphone, tablet, and PC.
As shown in the following diagram, AP Signal is coded with an SSID in EAP-*****,
where the suffix part (after hyphen) in SSID is identical to last 5 digits of the Serial
Number (S/N) of corresponding Wi-Fi Stick.
*Default Password for Wi-Fi Stick's AP Signal is: 12345678
Power generation profile of your inverters will be available once the Wi-Fi Stick has
access to internet, e.g. by pairing it to your home WLAN.
Green LED on Wi-Fi Stick should light up when all configurations are properly
completed, which indicates that the Stick is now uploading data from the inverter to
HiPortal® , a monitoring platform designed by HYPONTECH.
