NuAire CM-THERM-CONTROL Installation And Maintenance Manual

CM-THERM-CONTROL
Digital Room Thermostat
Installation and Maintenance Manual
1.0 INTRODUCTION
The CM-THERM-CONTROL digital room thermostat is designed
to provide comfort with economy in modern systems. Its large
display and simple button interface make it extremely easy to use.
2.0 INSTALLATION

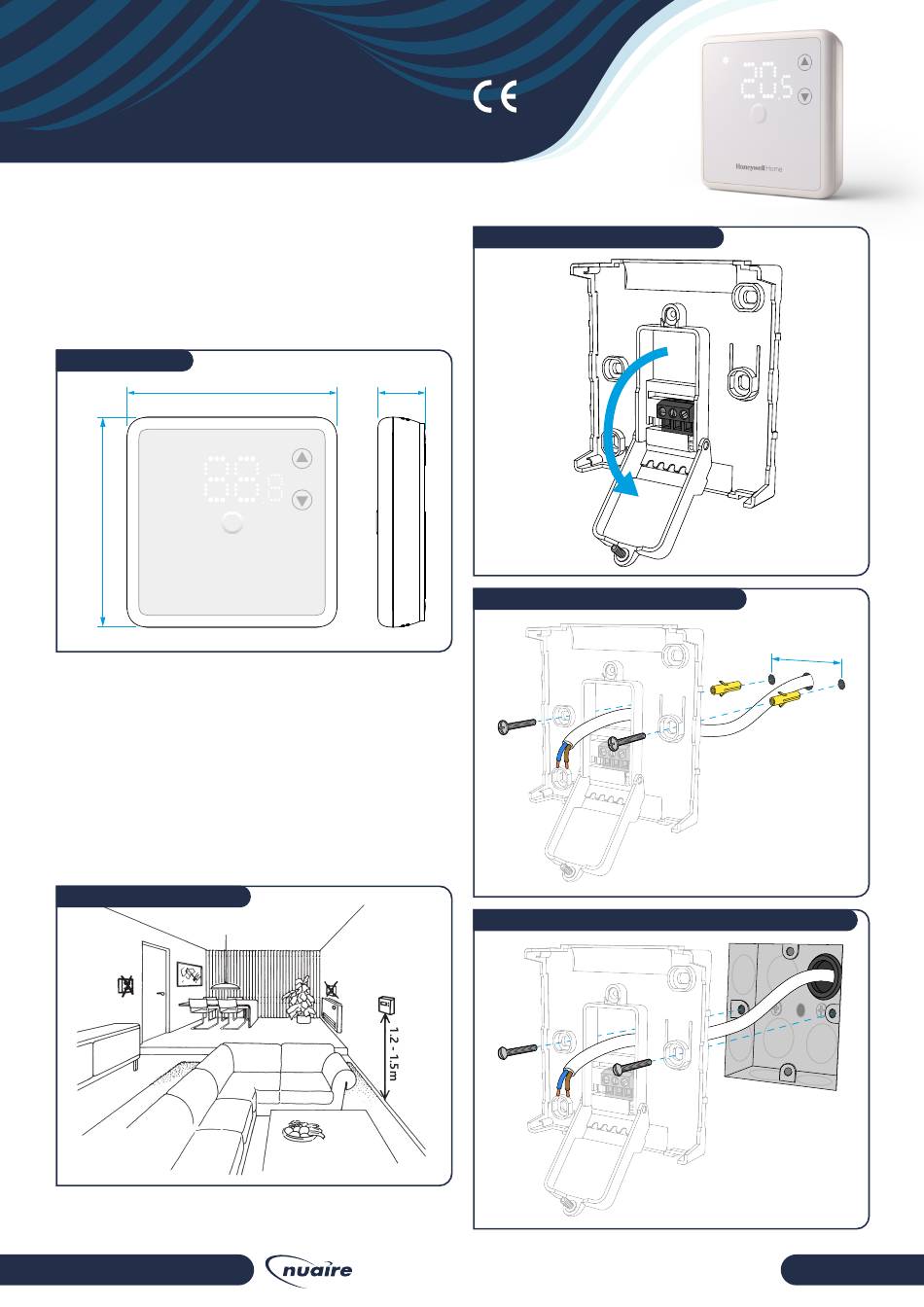

2.1 DIMENSIONS
Fig 1: Dimensions
101
2.2 POSITIONING
The thermostat is for use in normal domestic environments, and
so should be located inside the house or building where the
ambient temperature is within the range 0 - 40°C. Avoid locations
with high levels of condensing moisture.
As the temperature control element in the cooling system,
thermostat MUST be located in a position with good air circulation
at average room temperature on an inside wall 1.2 - 1.5m from the
floor.
Do NOT position the thermostat near sources of heat (radiators, hot
air vents, TV or lights), near doors or window, or in direct sunlight.
Fig 2: Thermostat Position
11.06.2024 I&M No. 672119
101 23
| Western Industrial Estate | Caerphilly | CF83 1NA | nuaire.co.uk
The EMC Directive
2014/30/EU
The Low Voltage
Directive
2014/35/EU
2.3 MOUNTING
Fig 3: Opening the Terminal Cover
Fig 4: Mounting Backplate onto a Wall
Fig 5: Mounting Backplate onto an Electrical Back Box
60mm
