MedaCure HCFE36 Owner's Manual

Full/semi electric homecare bed
Hide thumbs

Advertisement

Quick Links

Download this manual
FULL ELECTRIC HOMECARE BED
MODEL #: HCFE36
SEMI ELECTRIC HOME CARE BED
MODEL #: HCSE36
Owner's Manual
DEALER: This manual must be given to the user.
USER: please read this manual completely for warnings, proper assembly, maintenance, and safe
usage instructions before using this bed. Save manual for future reference.
CAUTION: DO NOT attempt to operate bed controls prior to completion of assembly as damage
to bed components may occur. In case of damage DO NOT use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCFE36 and is the answer not in the manual?

Questions and answers

Summary of Contents for MedaCure HCFE36

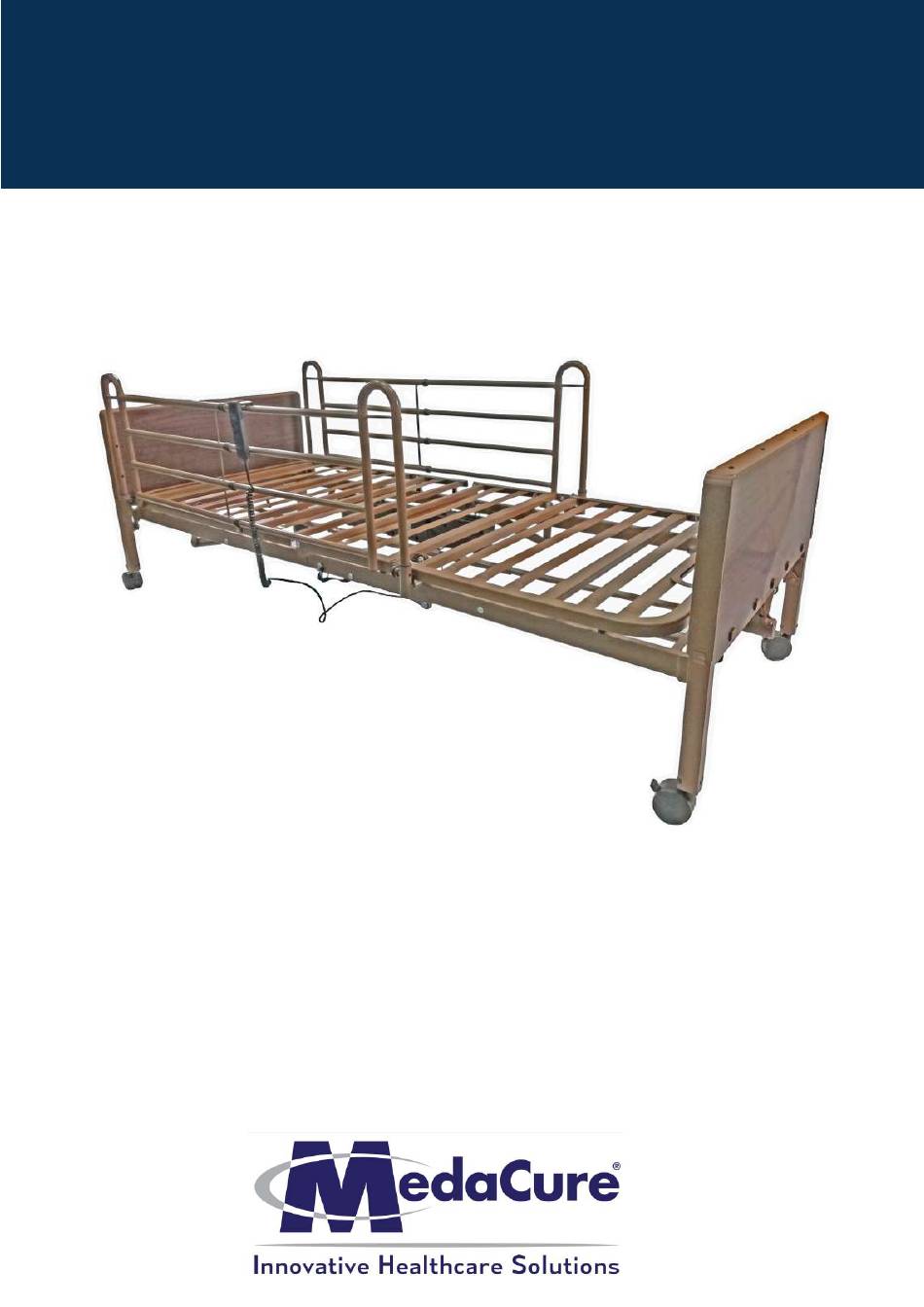

  • Page 1 FULL ELECTRIC HOMECARE BED MODEL #: HCFE36 SEMI ELECTRIC HOME CARE BED MODEL #: HCSE36 Owner’s Manual DEALER: This manual must be given to the user. USER: please read this manual completely for warnings, proper assembly, maintenance, and safe usage instructions before using this bed. Save manual for future reference.
  • Page 3 TABLE OF CONTENTS SPECIAL NOTES......................2 TABLE OF CONTENTS....................3 SAFETY INSTRUCTION....................4 ASSEMBLY INSTRUCTION...................6 MOTOR INSTALLATION....................11 BED RAIL INSTALLTION....................12 OPTIONAL FIXED HEIGHT ADJUSTMENT..............14 STORAGE........................15 OPERATION AND ADJUSTMENT..................16 HOW TO UPGRADE TO FULL- ELECTRIC..............19 MAINTENANCE & SAFETY CHECKS................20 SPECIFICATIONS......................21 WARNINGS........................22 WARRANTY REGISTRATION..................26...
  • Page 4 NG INFORMA' s 01 the bed ar e prop secu rety , t ema廿ve means of safe 咋 sferring an ed to h suppo, •. y, sit or lean in s ·011s of fhe bed.
  • Page 5 : a min 吹 釭 k函the cord aw叮from surfaces. SERVICE INFORMATIO DO NOT o,pe e1ec订ical contra lif.ed to re Medacure n those dis nance on t卜 RADI OF IGHTU cm) wide Electric i n g into conside「ation rails, proper onin 「ealianment...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Confirm that all parts are present: A. Foot Deck Section B. Head Deck Section C.Headboard & Footboard D. Casters (4) 2 locking, non-locking E. Hand Crank F. Hi/Low Drive Shaft G. Head/Foot Deck Section Motors with Hand Control Caution: DO NOT attempt to operate bed controls until completion of assembly as damage to bed components and/or personal injury may occur.

  • Page 7: Frame Assembly

    FRAME ASSEMBLY 2. Place both ends of the frame/sleep surface on their side and align the flange with the receptacle as shown.
  • Page 8 3. To attach the head and foot sections, slide the two sides together and lock into pos巾on with cotter pin and clasp To disassemble the head and foot section, remove cotter pin and clasp and separate sections...
  • Page 9 4. Secure the frame/sleep surface with the cotter pin as shown (Figure A). Lock the cotter pin with the attached clasp. Repeat on the opposite side (Figure B). Figure A Figure B...
  • Page 10 A7. Assemble Bed Ends to Frame: Install casters onto Bed ends by inserting the stem of the caster into the leg receptacle. It is recommended to install one locking caster and one non-locking caster on each bed end. The locking casters should be installed dia- gonally from each other.
  • Page 11 NOTE: Before installing motor, plug hand pendant and Hi/Low motor cable into motor as shown Align the motor with the actuator bar and lift the head spring to the highest pos巾on. The motor will automatically be pulled towards the bed and lock onto the actuator .
  • Page 12 Attaching Bed Rails NOTE: Half Rails The head section features labels on the frame marked, “Attach Half Rails Here” . NOTE: Full Rails The foot and head section have color coded springs, labels and notches in the frame. Install the cross brace between the black springs for proper rail placement.
  • Page 13 BED RAIL ASSEMBLY Full Bed Rails: To install Full Bed Rails, lift the head section and find the rail receptacle located on the frame of the bed as shown (Fig A). Pull receptacle outward and return head section to the flat position. Turn receptacle in a vertical position to receive the rail (Fig B).
  • Page 14 Optional fixed height adjustment with lock pins NOTE: The four large pins are used if the height of the bed is to be locked at a set height. Set the height of the bed so that the hole in the leg is aligned with the hole in the bed end outer leg.
  • Page 15 Shown on Bed Storage Transporter with motor attached with storage strap Optional equipment Not included...

  • Page 18: Operation And Adjustment

    OPERATION AND ADJUSTMENT Raising and Lowering the Entire Bed Raising and Lowering the Head and Foot Sections (Semi-Electric Beds [ FIGURE 5]) (Semi-Electric Beds [ FIGURE 6]) *TO RAISE ENTIRE BED-SEMI-ELECTR BEDS TO RAISE tEAD SPRING SECTION- SEMI- ELECTRIC BEDS SEMI-ELECTRIC SINGLE CRANK-HI/LO: * SEMI-ELECTRIC SINGLE CRANK­...

  • Page 20: Warranty

    • Check all bolts and tighten as needed. WARRANTY · 3 year warranty on Frame. • 1 year warranty on all parts and components. During the warranty period, defective items will be repaired or replaced at Medacure's option at no charge.
  • Page 21 22. 87" 85.67" 15.35"...
  • Page 22 「 sure that all sections of the bed a e prope ly and securely Medacure and are not recommended fo 「 「 「 in place before using. with Medacure products. ALWAYS use caster locks except when moving the bed...
  • Page 23 Use transport. Otherwise, injury or damage may result only authorized replacement pa ts and/ Medacure 「 or accessories otherwise the warranty is void. The bed may be equipped with locking casters. When will not be responsible for any damage or...
  • Page 27 www.medacureinc.com...
