Version: 0.1

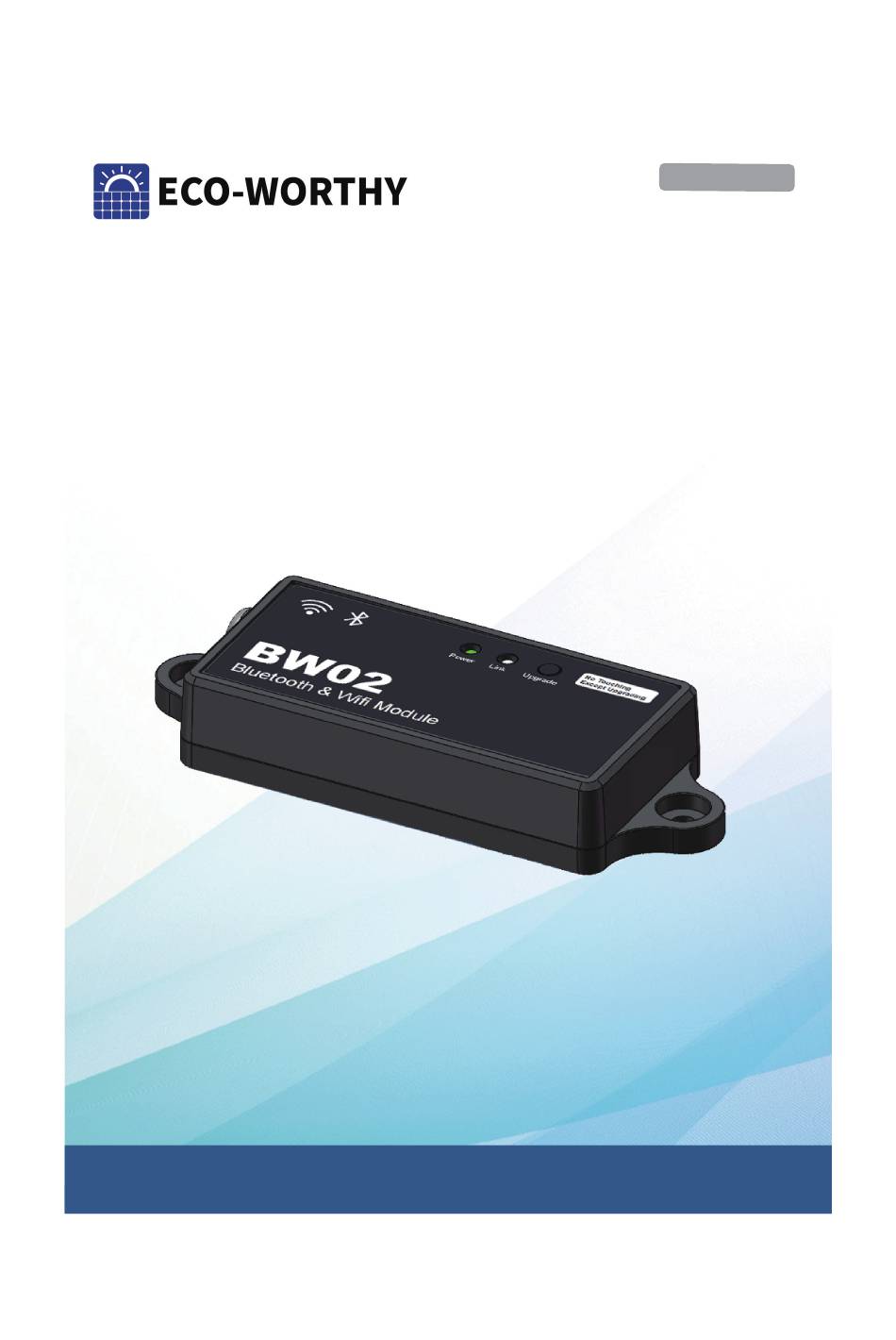

BLUETOOTH AND WIFI MODULE 2.0
Disclaimer & Warning:
1. Thank you for choosing our products! Before using this product, please read
this manual carefully.It includes important information and advice on installation,
use, troubleshooting, etc., and please keep this manual in a safe place.
2. The warranty does not cover failure of the product due to accidental damage,
unauthorised repair, improper storage and use.
·Call:1-866 939 8222(US)
+44 20 7570 0328(UK)
+49 693 1090 113(DE)
·Email: customer.service@eco-worthy.com

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUETOOTH AND WIFI MODULE 2.0 and is the answer not in the manual?

Questions and answers

Kevin George
May 7, 2025

Is this compatible with your 40Amp MPPT controller (NS24L40)

User image 681b3513544b8

Summary of Contents for ECO-WORTHY BLUETOOTH AND WIFI MODULE 2.0

  • Page 1 Version: 0.1 BLUETOOTH AND WIFI MODULE 2.0 Disclaimer & Warning: 1. Thank you for choosing our products! Before using this product, please read this manual carefully.It includes important information and advice on installation, use, troubleshooting, etc., and please keep this manual in a safe place.
  • Page 2: Table Of Contents

    CONTENTS I. Product Overview .................1 II. Product Features .................1 2.1 Product Characteristics ..............1 2.2 Basic Technical Parameters .............2 III. Usage Method ...................2 3.1 Packing List ..................2 3.2 Product Description ..............3 3.3 Assembly Steps ................4 3.4 Instructions For Use .................5 IV. Anomaly Analysis And Troubleshooting Program .......10 V.
  • Page 3: Product Overview

    1.Compatible with select ECO-WORTHY products featuring an RS485 com- munication port, ECOMPPT60A controllers, and ECO1100W (BB) inverters. 2.Supports WIFI or Bluetooth communication with eco-worthy mobile APP, you can view/set the detailed parameters and historical data of the accessed devic- es in real time.
  • Page 4: Basic Technical Parameters

    2.2 Basic Technical Parameters Input Voltage 4.5V~5.5V Operating Power Consumption 0.4W Operating Frequency 2.412GHz ~ 2.462GHz Connection Port Type RJ45 Communication Method RS485 Operating Temperature -20°C ~ 65°C Operating Humidity 10% ~ 90% IP Rating IP31 Sizes 106x40x16mm/4.2*1.6*0.6inch Weights 66g/0.15lbs III.
  • Page 5: Product Description

    3.2 Product Description Device Functional Diagram Name Functionality Green - power on Power Indicator Indicates on/off status Off-Power supply abnormal Blue light blinking - device connected successfully Off - device not connected Communication Indicator Indicates device connection status Red light blinking-APP successfully issued the command Use the mobile app to access...
  • Page 6: Assembly Steps

    3.3 Assembly Steps ① 1. Either of the following can be selected for use: Mode 1: Wireless transmission of single device data This product connects to the RJ45 connector at the device end after ensuring that the device end is powered. Mode 2: Wireless transmission of hub data This product connects to the hub RJ45 port, after ensuring that the hub is powered.
  • Page 7: Instructions For Use

    3.4 Instructions For Use 3.4.1 Dimensions: 3.4.2 Download APP: You can search and install eco-worthy in Apple App Store or Google App Store, you can also scan the QR code below to download the APP and use Bluetooth connection without login.
  • Page 8 After ensuring that the access device is correctly connected to this product, start the eco-worthy APP and click the + sign in the upper right corner of the APP device page to add a device, and select the corresponding product number (ECO-WORTHY BW02_xxxx) in the device list.
  • Page 9 Click the 'Firmware update' option and select 'Download the Iatest' button, APP will download the latest firmware version of both the product and hub. After holding firmware upgrade button 2s, the communication indicator of this product will turn off and the product will enter the firmware upgrade mode, and at last click the 'Install' button on this page of APP.
  • Page 10 Find the software Upgrade Tools in that folder and run it as [Administrator], click the 'Connect Device' button in the pop-up window. If the connection is success- ful, the device name will be displayed. It is recommended that you click on the Refresh icon in the lower right corner each time you need to update the version, and then proceed with the version upgrade when the Update Success pop-up window is displayed.
  • Page 11 1.Ensure that the operating temperature of this product at range of -20℃ ~ 65 ℃ and keep it in a dry environment. 2.This product should only be used on ECO-WORTHY products, otherwise the product may be damaged. 3.Not to lose everything in the packing list - accessories, manuals, etc.
  • Page 12: Anomaly Analysis And Troubleshooting Program

    HUB2.0, and check whether the does not light up. communicate with each other, connected devices are working or this product is damaged. normally. ②Check the network cable. V. After-sales Contact Information Official website address: www.eco-sources.cn After-sales service email: customer.service@eco-worthy.com -10-...
  • Page 13 Fehlerbehebung usw. und bewahren Sie dieses Handbuch bitte an einem sicheren Ort auf. 2. Die Garantie deckt keine Ausfälle des Produkts aufgrund von Unfallschäden, unbefugter Reparatur, unsachgemäßer Lagerung und Verwendung ab. ·Call:1-866 939 8222(US) +44 20 7570 0328(UK) +49 693 1090 113(DE) ·Email: customer.service@eco-worthy.com...
  • Page 14 INHALT .................1 I. Produktübersicht ................1 II. Produktmerkmale ..............1 2.1 Produkteigenschaften ..........2 2.2 Grundlegende technische Parameter ..............2 III. Verwendungsmethoden ..................2 3.1 Packliste ............3 3.2 Beschreibung der Ausrüstung ................4 3.3 Montageschritte ..............5 3.4 Gebrauchsanweisung ....10 IV. Programm zur Anomalieanalyse und Fehlerbehebung ..............10 V.
  • Page 15: Produktübersicht

    ECOMPPT60A-Controllern ECO1100W (BB)-Wechselrichtern. 2. Unterstützt die WIFI- oder Bluetooth-Kommunikation mit der mobilen Eco-Worthy-App. Sie können die detaillierten Parameter und historischen Daten der Geräte, auf die zugegriffen wird, in Echtzeit anzeigen/einstellen. 3. Einfach zu verwenden. 4.Direkte Stromversorgung über den RS485-Kommunikationsanschluss des Geräts, extrem niedriger Betriebsstromverbrauch.
  • Page 16: Grundlegende Technische Parameter

    2.2 Grundlegende technische Parameter Tabelle 2-1 Grundlegende technische Parameter Eingangsspannung 4.5V~5.5V Betriebsstromverbrauch 0.4W Arbeitsfrequenz 2.412GHz ~2.462GHz Verbindungsporttyp RJ45 Kommunikationsmethode RS485 Betriebstemperatur -20°C ~ 65°C Betriebsfeuchtigkeit 10% ~ 90% IP-Bewertung IP31 Größen 106x40x16mm/4.2*1.6*0.6inch Gewichte 66g/0.15lbs III. Verwendungsmethode 3.1 Packliste Tabelle 3-1 Packliste NEIN.
  • Page 17 3.2 Produktbeschreibung Funktionsdiagramm des Geräts NEIN. Name Funktionalität Grün – eingeschaltet Kraftmesser Zeigt den Ein-/Aus-Status an Aus-Stromversorgung anormal Blaues Licht blinkt – Gerät Zeigt den Verbindungsstatus erfolgreich verbunden Kommunikationsindikator Aus – Gerät nicht verbunden Rotes des Geräts an Licht blinkt – APP Der Befehl wurde erfolgreich ausgegeben Schaltfläche Nutzen Sie für den Zugriff die mobile...
  • Page 18: Montageschritte

    3.3 Montageschritte ① 1. Zur Verwendung kann eine der folgenden Optionen ausgewählt werden: Modus 1: Drahtlose Übertragung von Einzelgerätedaten Dieses Produkt wird an den RJ45-Anschluss am Geräteende angeschlossen, nachdem sichergestellt wurde, dass das Geräteende mit Strom versorgt wird. Modus 2: Drahtlose Übertragung von Hub-Daten Dieses Produkt wird an den RJ45-Port des Hubs angeschlossen, nachdem sichergestellt wurde, dass der Hub mit Strom versorgt wird.
  • Page 19: Gebrauchsanweisung

    3.4Gebrauchsanweisung Maße: APP Connect: Sie können „Eco-worthy“ im Apple App Store oder Google App Store suchen und installieren. Sie können auch den untenstehenden QR-Code scannen, um die APP herunterzuladen und die Bluetooth-Verbindung ohne Anmeldung zu verwenden.
  • Page 20 APP-Tutorial Scannen Sie den QR-Code unten, um die APP-Bedienungsanleitung zu erhalten. Google-App-Download Apple-App-Download APP-Bedienungsanleitung. Firmware-Upgrade Upgrade-Methode 1: Mobile App Nachdem Sie sichergestellt haben, dass das Zugangsgerät korrekt mit diesem Produkt verbunden ist, starten Sie die umweltfreundliche APP und klicken Sie auf das +-Zeichen in der oberen rechten Ecke der APP-Geräteseite, um ein Gerät hinzuzufügen, und wählen Sie die entsprechende Produktnummer (ECO-WOR- THY BW02_xxxx) aus ) in der Geräteliste.
  • Page 21 USB-Schnittstelle Ihres Computers über das Mirco-USB-Kabel, stellen Sie sicher, dass die Firewall und die Antivirensoftware geschlossen sind, und laden Sie dann das Programm herunter http://app.eco-worthy.com:7777/hub2/E- co Upgrade Tools Install.zip Öffnen Sie die Website, entpacken Sie sie, wählen Sie die entsprechende Anwendung CH340 Driver.exe entsprechend Ihrem Windows-System aus und führen Sie sie als [Administrator] aus, um die...
  • Page 22 Suchen Sie in diesem Ordner nach den Software-Upgrade-Tools, führen Sie sie als [Administrator] aus und klicken Sie im Popup-Fenster auf die Schalt- fläche „Gerät verbinden“. Bei erfolgreicher Verbindung wird der Gerätename angezeigt. Es wird empfohlen, jedes Mal, wenn Sie die Version aktualisieren müssen, auf das Symbol „Aktualisieren“...
  • Page 23 Nachdem Sie eine der Download-Methoden ausgewählt haben, klicken Sie auf die Schaltfläche „Upgrade starten“. Wenn der Fortschrittsbalken unten 100 % erreicht, was anzeigt, dass das Produkt erfolgreich aktualisiert wurde, zeigt Eco Upgrade Tools das Popup-Fenster „Aktualisierung erfolgreich“ an und schließt das Produkt ab Firmware-Upgrade. 3.4.1 Vorsichtsmaßnahmen für den Gebrauch 1.
  • Page 24: Programm Zur Anomalieanalyse Und Fehlerbehebung

    Sie, ob tionsleuchte des verbunden, die Produkte die angeschlossenen Geräte Produkts leuchtet können nicht miteinander normal funktionieren. nicht kommunizieren oder dieses ②Überprüfen Sie das Netzwerkka- Produkt ist beschädigt. bel des. V. Kontaktinformationen für den Kundendienst Offizielle Website-Adresse: www.eco-sources.cn Kundendienst-E-Mail: customer.service@eco-worthy.com -10-...
  • Page 25: Fcc Warning

    FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
