Summary of Contents for Radionode RN310

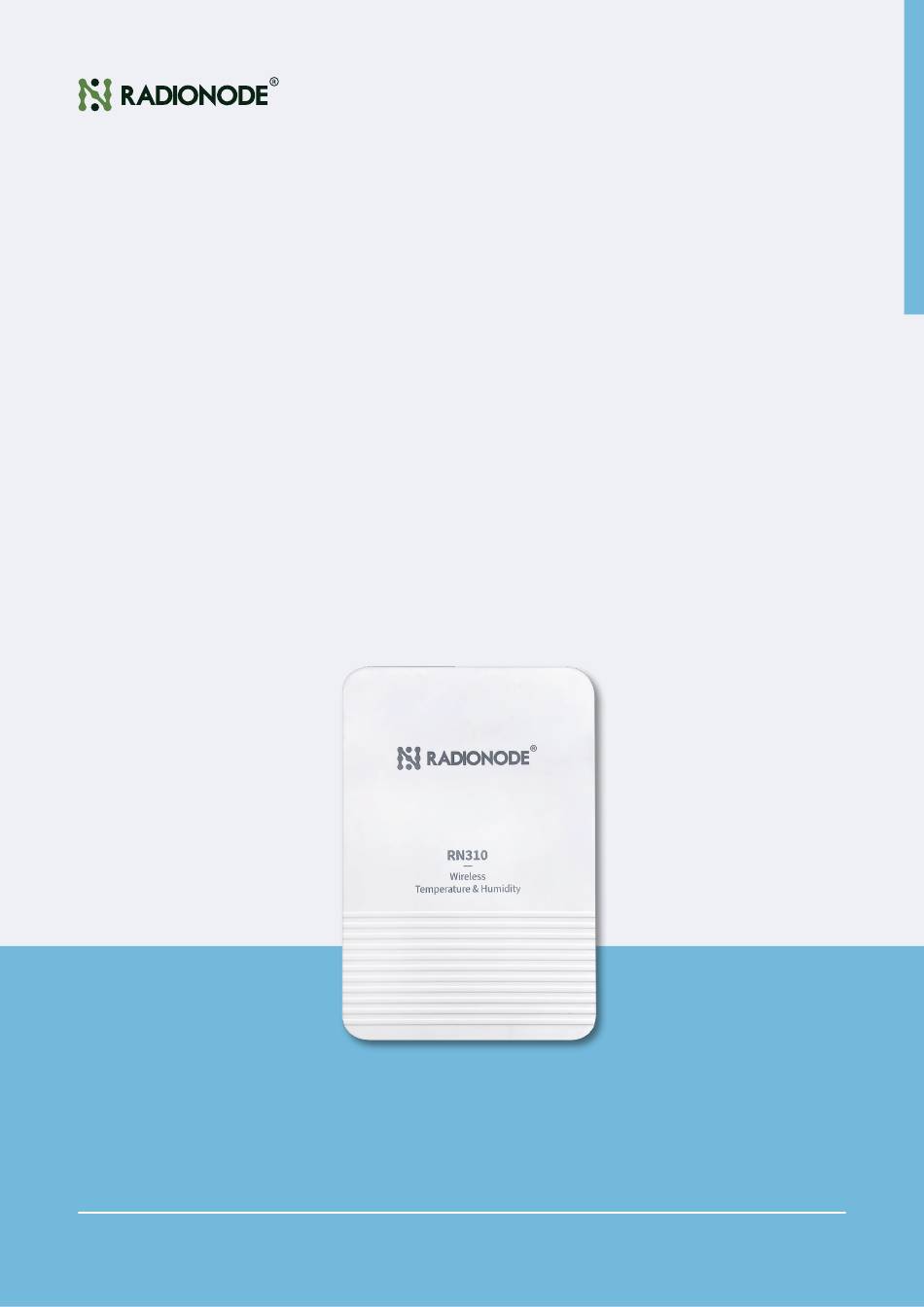

- Page 1 Wireless Temperature & Humidity Sensor ® 900MHz LoRaWAN RN310 User Guide 2023 | Rev. 1.01 Keep this document nearby so that it may be referred to when needed.
-
Page 2: Table Of Contents
Certifications Intellectual Property Rights Contact Introduction Key Features Exterior Product Components Configuration Turning on the RN310 and NFC communication Setup Registering on Radionode 365 Cloud Detailed Configuration Instructions LoRaWAN Settings Basic LoRaWAN Settings LoRaWAN Frequency Settings Basic Settings Data Storage... -
Page 3: About This Manual
About This document contains instructions for usage and installation of the RADIONODE RN310. Product specifications and certain features ® this herein may be subject to change without prior notice. Figures used in this manual are for explanatory purposes only, and may differ Manual from your system depending on installation conditions. -
Page 4: Intellectual Property Rights
Intellectual © 2011-2023(주)DEKIST. All rights reserved. Property All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or Rights part of this user guide by any means without written authorization from Xiamen DEKIST IoT Co., Ltd. -
Page 5: Introduction
In addition to LoRaWAN technology with low power consumption, ® it has built-in high-capacity batteries available for usage for up to 5 years without battery replacement. Moreover, RN310 is compatible with both DEKIST LoRaWAN Gateway and DEKIST IoT ® Cloud to achieve remote data monitoring and management. It is... -
Page 6: Key Features
Key Features Uses high-precision sensor, capable of sensor subtle changes in ● temperature and humidity IP67 waterproof enclosure with multi-level structure and sealing ● ring design enabling strong waterproof performance for harsh environments Uses FDA-approved food-grade material’s enclosure, which is ●... -
Page 7: Product Components
Product Components 1 × RN310 1 × Fixing Screw Wall Mounting Kits (Screw version Sensor (Screw version only) only) 1x Mirror Holder If any of the above items is missing or damaged, please contact your sales Representative. -
Page 8: Configuration
2 ) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3 ) RN310 sensor can also be configured by dedicated NFC reader, which can be purchased from DEKIST IoT. - Page 9 Once the device is successfully recognized, the RNTools app will display the device's basic information and settings. At this point, go to the "Status" menu, and slide the button under "Device Status" to activate it (ON). You can configure the device by pressing the 'Read'/'Write' buttons in the app.
-
Page 10: Registering On Radionode 365 Cloud
Registering To register your RN310 product on Radionode365, you need to have a LoRa gateway already registered on Radionode365. Follow these steps to register your RN310: Radionode Remove the rectangular panel(mirror holder) on the back of the 365 Cloud RN310 to access the QR code and device information. -
Page 11: Detailed Configuration Instructions
Detailed LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN network. ® Configu- ration Instructions LoRaWAN Go to “Setting → LoRaWAN Setting” of ”RNTools “App to configure join type, App EUI, App Key and other information. You can also keep Frequency all settings by default. - Page 12 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. The port is used for sending and receiving data, default port is Application Port Join Type OTAA and ABP mode are available.
-
Page 13: Lorawan Frequency Settings
LoRaWAN Go to “Setting → LoRaWAN Setting” of RNTools App to select supported frequency and select channels to send uplinks. Make sure Frequency the channels match the LoRaWAN gateway. ® Settings: If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. -
Page 14: Basic Settings
Basic Go to “Setting → General Setting” of RNTools App to change the reporting interval, etc. Settings Parameters Description Reporting interval of transmitting current sensor Reporting values to network server. Default: 10 mins, Interval Range: 1-1080 mins ■ Change the temperature unit displayed on the RNTools. -
Page 15: Data Storage
Data Storage RN310 sensor exports data via RNTools App. The device will record the data according to reporting interval even not joining network. 1. Go to “Setting → General Setting” of RNTools App to enable data storage feature. 2. Go to “Maintenance” of RNTools App, click “Export”, then select the data time range and click “Confirm”... -
Page 16: Advanced Settings
Advanced Settings Calibration RNTools supports numerical calibration for all items. Go to “Device → Settings → Data Collection Settings” of RNTools App to type the Settings calibration value and save, the deice will add the calibration value to raw value. Threshold Go to “Device →... -
Page 17: Maintenance
Maintenance Update RNTools App: Download firmware from www.radioode365.com to your smartphone. Open RNTools App and click “Browse” to import firmware and upgrade the device. Note: 1) Operation on RNTools is not supported during the upgrade. 2) Only Android version RNTools supports the upgrade feature. -
Page 18: Backup
Backup RN310 sensor supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band. ® RNTools App: Go to “Template” page on the App and save current settings as a template. -
Page 19: Reset To Factory Default
Reset to Please select one of following methods to reset device: Factory Please select one of following methods to reset device: Via Hardware: Hold on reset button inside the device more than 10s. Default Via RNTools App: Go to “Maintenance" to click “Reset”, then attach smart phone with NFC area to device to complete reset. -
Page 20: Installation
Installation Screw Remove the backplate on the back of the device, screw the wall plugs into the wall and fix the backplate with screws on it, then Version install back the device. Note that the vent of device should not face upwards when installing. -
Page 21: Data Format
1 Byte Type2 1 Byte Data2 M Bytes Channel 3 1 Byte For decoder examples please find files on https://help.radionode365.com Basic RN310 sensors report basic information of sensor whenever joining the network. Information Channel Type Description 01(Protocol 01=>V1 Version) 09 (Hardware 01 40 =>... -
Page 22: Sensor Data
Sensor Data RN310 sensors report sensor data according to reporting interval (10mins by default). Item Channel Type Description Battery Level UINT8, Unit: % INT16, Unit: °C, Resolution: 0.1 Temperature °C UINT8, Unit: %RH, Resolution: Humidity 0.5 %RH Example: 017564 03672201 046850... -
Page 23: Downlink Commands
Downlink RN310 sensors support downlink commands to configure the device. The application port is 85 by default. Commands Description Channel Type 02(Set Collecting Interval) 2 Bytes, unit: s 03(Set Reporting Interval) 2 Bytes, unit: s 9 Bytes, CTRL(1B)+Min(2B)+Max(2B)+ 00000000(4B) CTRL:... -
Page 24: Historical Data Enquiry
Historical RN310 sensors support sending downlink commands to enquire historical data for specified time point or time range. Before that, Data Enquiry ensure the device time is correct and data storage feature was enabled to store the data. Command format:... - Page 25 Example: 1. Enquire historical data between 2022/10/12 15:15:00 to 2022/10/12 16:35:00. fd6c 74694663 347c4663 Channel Type Value Start time: 74694663 => 63466974 = 1665558900 =2022/10/12 15:15:00 (Enquire data in End time: 347c4663 => 63467c34 = time range) 1665563700 =2022/10/12 16:35:00 Reply: fc6c00 Channel...
- Page 26 ⓒ 2023 DEKIST Co., Ltd. Telephone 1566-4359 Fax (+82) 31-8039-4400 Email master@dekist.com #A1801, 13, Heungdeok 1-ro, Giheung-gu, Yongin-si, Gyeonggi-do, Korea 16954...
