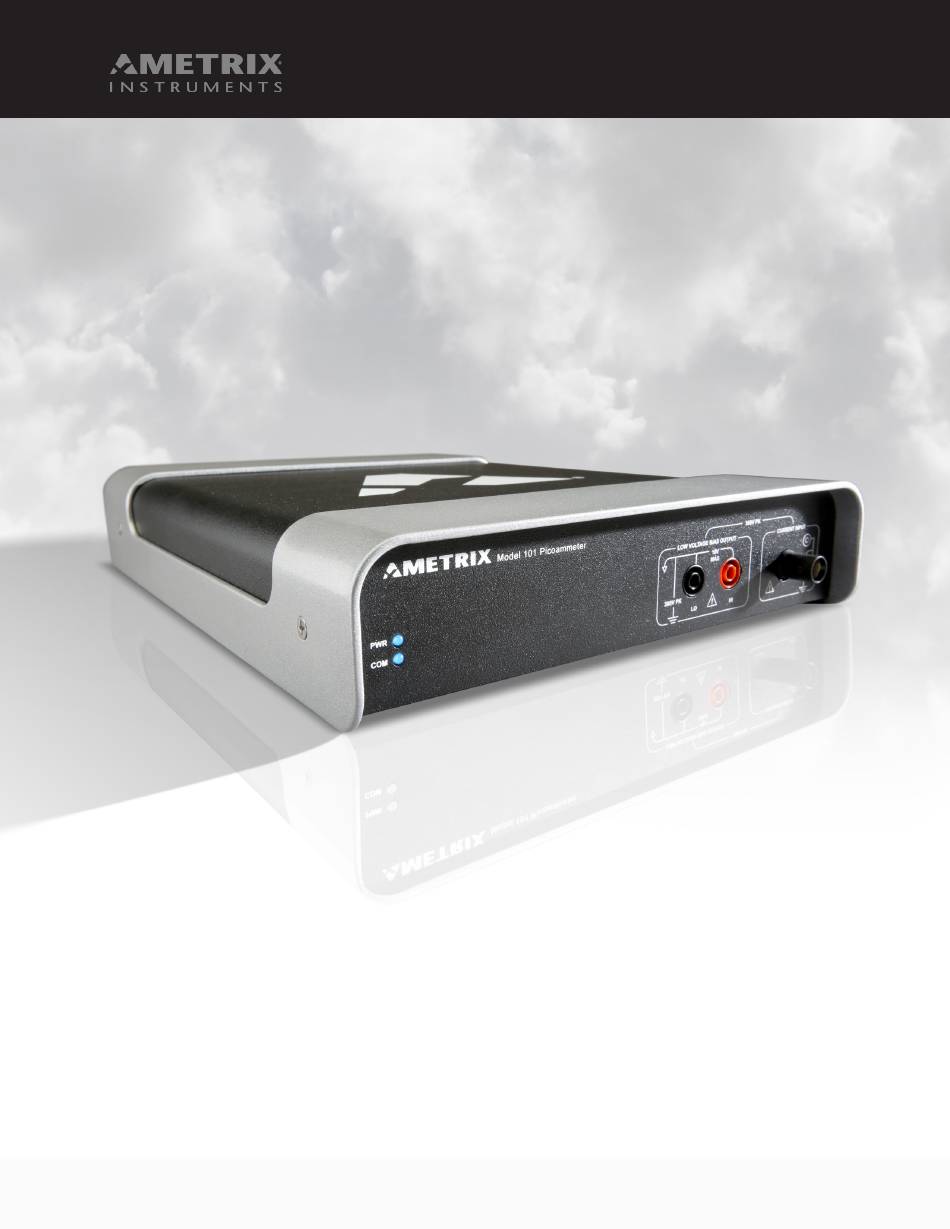

- Page 1 Model 100 Series Picoammeter Q UICK START G UIDE R e d u c e U n c e r t a i n t y Model 100 Series Picoammeter QUICK START GUIDE ametrixinst.com...
- Page 2 AMETRIX Instruments LLC is strictly prohibited. All AMETRIX Instruments product names are trademarks or registered trademarks of AMETRIX Instruments LLC. Document number: DOC-2885 Model 100 Series Quick Start Guide. Released 03-01-2016, rev B. ©Copyright June 3, 2016. AMETRIX Instruments LLC.
-
Page 3: Safety Information
Indicates that mercury is present in the display lamp Category II 300 V overvoltage protection Earth (ground) terminal Equipment protected throughout by double or reinforced insulation Model 100 Series Picoammeter QUICK START GUIDE ametrixinst.com... -
Page 4: Unpacking And Inspection
AMETRIX. The Model 100 Series is easy to set-up and ships with everything you need to setup the instrument. When unpacking your instrument, use the packing slip to verify that everything is present. - Page 5 Connect the signal source you want to measure Connection to the Model 100 Series is via a coaxial cable with a BNC on at least one end. The other end of the cable is placed in series with the circuit that is to be measured.
