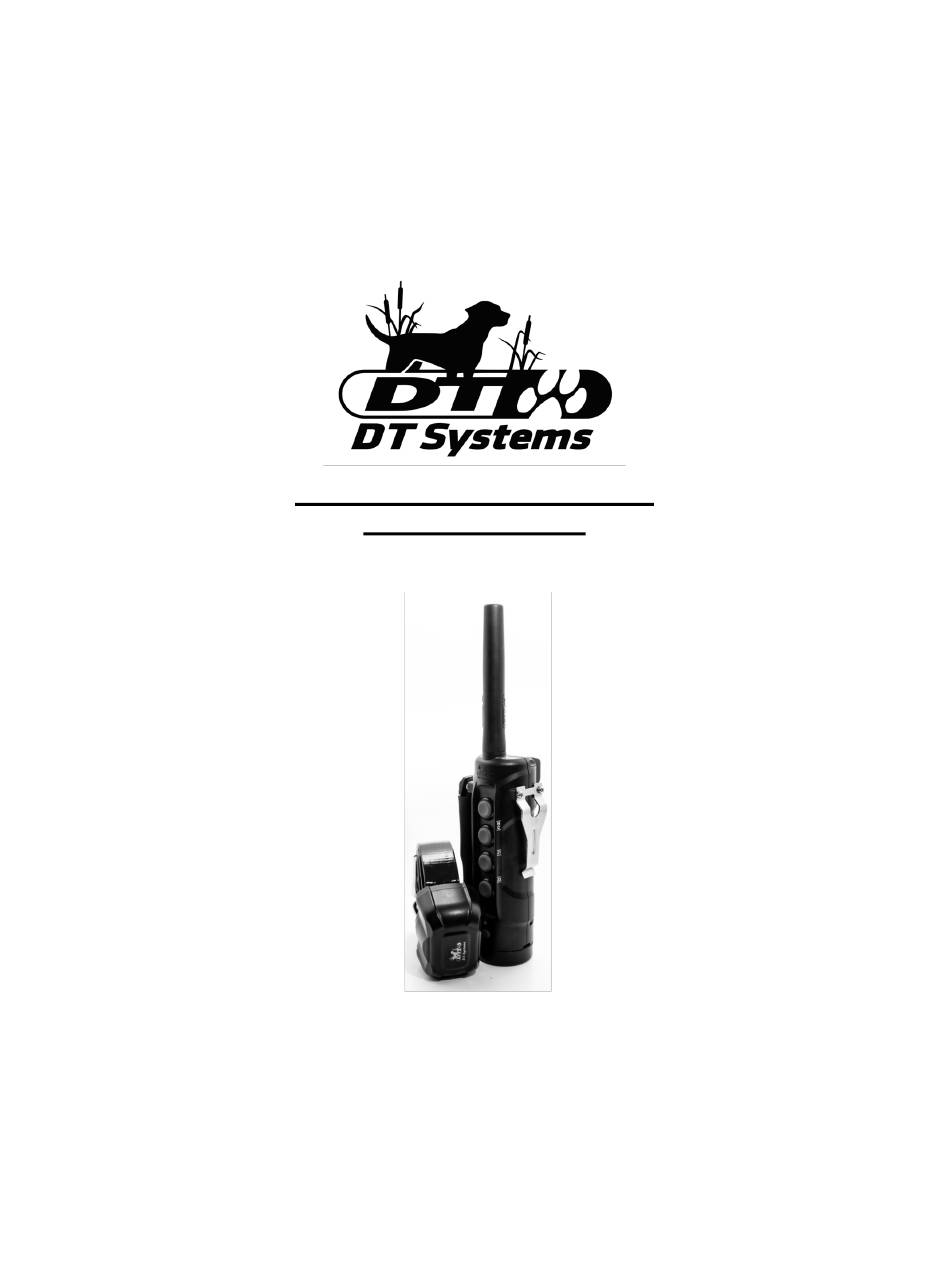

- Page 1 Super PRO Ranger 5100 e-collar trainer Owner’s Manual Visit Gun Dog Supply.com Order a DT SPR 5100 See other DT Products...
- Page 2 IMPORTANT NOTE: Please read this owner’s manual in its entirety before operating this unit. Should you have any questions about our collars or their operation please contact our Customer Service department (see back page for address, phone number, and email information). NOTICE! According to how you use your transmitter, the transmitting range...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents ........3 · Introduction ..........4 · Package Contents ........5 · Model Features ........5 · · Transmitter Parts & Functions ....6 Continuous Stimulation Levels (Low-Med- · High) Buttons………………..……………...9 · Collar Unit Parts & Functions ....10 ·... -
Page 4: Introduction
INTRODUCTION Congratulations, and thank you for purchasing our Super Pro Ranger 5100 Training Collar with “Add- On” capability, allowing the unit to expand up to an 4-dog unit. The SPR5100 features a 2 MILE Range made possible by our Patented MAXX-Range 360 antenna technology to ensure positive FM signal reception, no matter the terrain. -
Page 5: Package Contents
PACKAGE CONTENTS · Transmitter w/ Long Range Antenna & Hand Strap · Collar Receiver · Rechargeable Li-Poly Batteries in both (factory installed) · Battery Charger · Test Light · Owners Manual MODEL FEATURES · 2 MILE range with MAXX-Range internal collar antenna ·... -
Page 6: Transmitter Parts & Functions
TRANSMITTER PARTS & FUNCTIONS Long Range Antenna Stimulation Adjustment (+/-) Adjustable Hand Strap Continuous Button (Low) Continuous Collar Selector Button Buttons 1-4 (Medium) 1st & 2nd Button Together Belt Clip (High) Charging Nick Button Port Vibe or Tone Magnet Button On/Off LED Indicator Light... - Page 7 TRANSMITTER PARTS & FUNCTIONS Long Range Antenna - Check that Antenna is securely fastened before each use. Hand tighten only. Do not overtighten to prevent damage. LED Indicator Light - The LED lights while pressing any of the Transmitter buttons. The LED flashes rapidly after pressing a button if the battery is low.
- Page 8 TRANSMITTER PARTS & FUNCTIONS Programming Tone and Vibration Buttons: To switch modes between Vibration or Tone: 1) Press and hold the Function (light) button first, then press and hold the “V/T” button for appx 5 seconds. 2) The LCD Screen will change to either “V”...
-
Page 9: Continuous Stimulation Levels (Low-Med-High) Buttons
Low-Med-High Continuous Programming Your SPR 5100 includes our Continuous Low-Medium -High feature set. This enables you to select a stimulation level for your normal “Continuous” button, and with just the press of the “MC” button, you can immediately go up a level in stimulation to a “Medium” setting. -
Page 10: Collar Unit Parts & Functions
COLLAR UNIT PARTS & FUNCTIONS SmartLED Indicator Light Collar Belt with MAXX-Range 360 Antenna Magnetic ON/OFF Activation Switch Contacts Charging Receptacle Collar Unit Specifications Unit Dimensions Weight SPR5100 2 1/2” x 1 1/2” x 1 1/2” 5 oz. (with belt) Magnetic ON/OFF Activation Switch (M) - Turns the Collar Receiver unit ON/OFF by using the Magnet Indicator on the Transmitter (see page 14). - Page 11 COLLAR UNIT PARTS & FUNCTIONS Battery Charging Receptacle - The charging cable plugs into the charging receptacle for recharging (located on the the collar receiver facing the dog’s neck). After charging, always close the charging re- ceptacle with the rubber plug to prevent foreign particles from getting inside the unit.
-
Page 12: Smartled
SmartLED SPR5100 collar units are equipped with the SmartLED battery status system. The SmartLED system lets you know when the unit is charging and when the charging is complete. It also gives you a status on how much charge is remaining in the battery during use, when it needs charging, and when the batteries will need to be replaced. -
Page 13: Charging The Batteries
CHARGING THE BATTERIES SPR5100 collar unit equipped with rechargeable Lithium batteries, which are not memory sensitive and do not require depletion before recharging. Although batteries come partially charged from the factory, it is recommended that they are given a full charge (about 3-4 hours) before initial use. Battery Charging Procedure 1. -
Page 14: Turning On And Off
TURNING ON/OFF The Transmitter is always in a permanent sleep state. It is only ON when a button is being pressed and does not need to be turned off by the user. If the Transmitter does not activate, make sure battery is fully charged and LED light on remote is green. -
Page 15: Testing
TESTING Before testing, make sure that both units are fully charged and the power to the Collar Receiver is “ON”. To Test the Electronic Stimulation: 1. Place the tester firmly on the contacts of the Collar Receiver. 2. Set the intensity (note - an intensity level setting of 4 or less might not be enough to light the tester). -
Page 16: Programming The Collar
PROGRAMMING THE COLLAR When adding an “Add-On” collar, the collar will need to be programmed to the transmitter. If your current collar unit is not responding to the transmitter, it may also need to be reprogrammed to the transmitter. 1. Hold the Transmitter Magnet Indicator (M) directly against the Magnetic Activation Switch (M) on the side of the Collar Unit. -
Page 17: Properly Fitting The Collar
PROPERLY FITTING THE COLLAR NOTE: Proper collar tightness and position are very important to insure safe and consistent collar use. All electronic collars need to be very snug around the dog’s neck to work properly. They must be just tight enough to allow the “contacts”... -
Page 18: Setting The Intensity Levels
SETTING THE INTENSITY LEVEL It is very important to set the correct intensity level on your SPR5100 Training System before beginning your training sessions to provide the proper level of stimulation without over-stimulating your dog. 1. Place the Intensity Selection so that the system is set on Level 1. -
Page 19: Maintenance
MAINTENANCE It is very important to periodically clean your SPR5100 system for maximum performance. Regular cleaning will also lengthen the life of your unit. · Clean the collar box, belt and buckle with lukewarm water and a mild anti-bacterial soap. ·... -
Page 20: Important Safety Notes
IMPORTANT SAFETY NOTES · Before training with this unit, your dog’s health should be examined by a veterinarian. · Do not use with aggressive-tempered dogs. · Your SPR5100 collar is a very valuable tool if used correctly. extremely important that you completely understand all the functions of the collar and how to properly train with it before placing it on your dog. -
Page 21: Warranty
WARRANTY · D.T. Systems Premium Lifetime Warranty is the best warranty offered in the industry. This warranty is free to participating U.S. customers (a completed warranty registration card must be returned within 30 days of original purchase). This changes our normal one year parts and labor warranty to a limited lifetime warranty against manufacturing defects on parts and a one year warranty on labor. -
Page 22: Fcc/Ic/Ce Compliance
FCC/IC/CE COMPLIANCE Your SPR5100 Trainer has been manufactured under complete compliance with Part 15 of the Federal Communication Commission (FCC) rules, Industry Canada (IC) Standard RSS-310, and Article 3 of the Directive 1999/5/EC. The complex internal structure of each product has been designed to operate within specific regulations of FCC specifications. -
Page 24: Contact Information
2872 Walnut Hill Lane Dallas, Texas 75229 Tel: (214) 350-9446 Website: www.dtsystems.com E-mail: customerservice@dtsystems.com SPR 5100 2024 .1 Printed in Korea...
