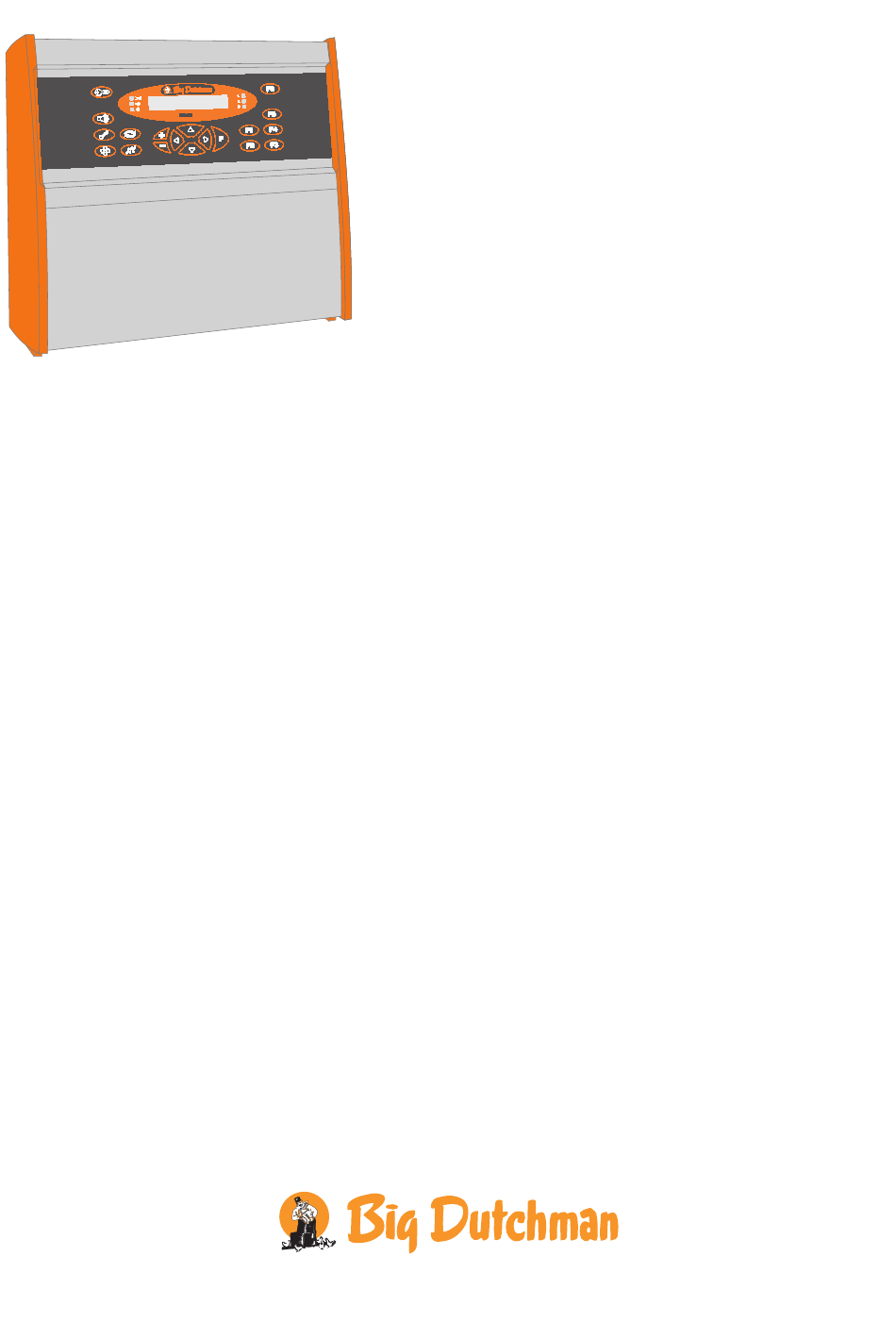

- Page 1 MC 36 A MC 36 A MC 36 A Code Nr. 99 97 0961 Ausgabe 06 01 M961 GB Nr.: 604841 Big Dutchman International GmbH · Calveslage · Auf der Lage 2 · 49377 Vechta Rufnr. 04447/801-0 · Fax 04447/801-237...
- Page 2 EC Directive. Guarantee Declaration This machine is guaranteed in accordance with the Big Dutchman International GmbH General Conditions of Sale for customers resident in Germany and the Big Dutchman International GmbH International Conditions of Sale for customers not resident in Germany.
-
Page 3: Software Version
BIG DUTCHMAN reserve our rights to change this document and the product herein described without further notice. BIG DUTCHMAN cannot guarantee that you will receive information about changes of the product or the manual. In case of doubt, please contact BIG DUTCHMAN. -
Page 4: Table Of Contents
3.4.7 Alarm limits for water consumption ........................... 27 3.5 Start/End-of-Batch Key and its Functions ...................... 28 3.5.1 Empty House/Anti Freeze ............................28 3.6 Water Consumption ............................29 3.7 Maintenance ..............................29 User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 5: Introduction
MC 36 A consist of a basic unit into which optional equipment can be installed, if required. The MC 36 A units have also been designed to accept an Euro Matic data module to allow the connection of a number of individual MC 36 A computers to one PC. -
Page 6: User's Guide
Bold indicates changeable values, see user’s manual Italic indicates menu line, which is shown if selected Texts in [ ] indicate options available, which the user can choose from, see user’s manual User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 7: Ventilation Key
In END OF BATCH: The computer controls according to the values in In-between functions Empty house. If the system should close at end of batch, EMPTY HOUSE under the In-between functions must be adjusted to 0%. User’s Guide MC 36 A Edition: M 961 GB... -
Page 8: Menu Survey - Adjustment/Service
(e.g. 2% to 4%) and 24 hours should be allowed to see the reset result. If there is any doubt, seek advice from an expert. User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 9: Detailed User's Guide
20°C. This facility will prevent the system from running at maximum late into the night following a warm day. This reduces the instance of draught on the livestock. User’s Guide MC 36 A Edition: M 961 GB... -
Page 10: Extra Ventilation
3°C Start ventilation = Air output Extra vent. 100% stepless + MS1+MS2+MS3+MS4+MS5+MS6 Comfort 100% stepless + MS1+MS2+MS3+MS4+MS5 100% stepless + MS1+MS2+MS3+MS4 75% stepless + MS3+MS4 Indoor temperature °C Set temperature User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 11: Cooling
See example. The combination high house temperature and humidity may be potentially lethal to the animals. Therefore cooling is disconnected when the house humidity exceeds the set humidity, normally 75-85%. User’s Guide MC 36 A Edition: M 961 GB... -
Page 12: Minimum Heat
2.0°C Set extra ventilation = 1.5°C Set cooling temperature = 4.0°C Ventilation Extra ventilation Cooling Heat Comfort Extra ventilation Indoor temperature in °C Set temperature heat Set temperature Cooling temperature User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 13: Temperature Curve
(°C) of lowered temperature (day 46). 6) The set temperature is not changed automatically after the last point of discontinuity (day no.). The temperature can only be changed at manual operation. User’s Guide MC 36 A Edition: M 961 GB 01.06.01... - Page 14 30,0 28,0 26,0 22,0 22,0 22,0 Heat T. 29,5 27,5 25,0 20,0 20,0 20,0 3) The course is illustrated by a curve: ° Temperature Set temperature Set temperature heat Days User’s Guide MC 36 A Edition: 01.06.01 M 961 GB...
-
Page 15: Simple P-Band Adjustment On The Ventilation
(See section 3.1.2). By simple P-Band adjustment the: Extra vent. temperature must be at least: P-band+0.5°C (4.0+0.5=4.5°C in the example) Cooling temperature must be at least: P-band+1.0°C (4.0+1.0=5.0°C in the example) User’s Guide MC 36 A Edition: M 961 GB 01.06.01... -
Page 16: The Himidity Key And Its Functions
“Heat supply ON” under the temperature key Set humidity = Min. ventilation = Ventilation in % of nominal Ventilation Relative humidity in the livestock house Set humidity User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 17: Humidity Ventilation With Temperature Reduction
When the ventilation level reaches minimum, the temperature regulation will supply heat in order to retain the temperature at the set temperature for heat. Re. Error in heat and Stop humidity vent., see all so the Technical Manual, sec. 3.8.6. User’s Guide MC 36 A Edition: M 961 GB... -
Page 18: No Humidity Control
Set humidity Explanation: When the humidity in the house sinks under 55%, the humidification system will be activated. When the humidity in the house exceeds 70%, the ventilation will be increased. User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 19: Humidity Curve
The dotted line from day 26 - - - shows the continuos course by changing the set humidity -5% on day 26. 6) The humidity is not changed automatically after the last point of discontinuity (day no.). The humidity can only be changed at manual operation. User’s Guide MC 36 A Edition: M 961 GB... -
Page 20: Ventilation Key And Its Functions
6) The min. vent. is not changed automatically after the last point of discontinuity (day no.). The min. vent. can only be changed at manual operation. Remember to enter the number of animals under the Batch key. User’s Guide MC 36 A Edition: 01.06.01... -
Page 21: Maximum Ventilation/Maximum Ventilation Curve
Comfort temp. = 1°C Fans Comfort temp. 1ºC Set temperature Start of fans +2ºC The fans run according to the above diagram, until ” Free range ” is set OFF. User’s Guide MC 36 A Edition: M 961 GB 01.06.01... -
Page 22: Flap Opening Reduction At Extra Ventilation
Extra ventilation must be installed in the installation menu to make flap opening reduction possible. It is not enough that extra ventilation is a part of MultiStep as in paragraph 3.1.2 Extra ventilation. This function is connected together with the last step of extra ventilation. User’s Guide MC 36 A Edition: 01.06.01... -
Page 23: Cycle Timer
When the ventilation requirement is higher than what corresponds to 10% of the flap for air inlet, the cycle timer function stops, and the system runs stepless up through the ventilation area. User’s Guide MC 36 A Edition: M 961 GB... -
Page 24: Alarm Key And Its Facilities
3.4.2 High/low Temperature Alarm without Outdoor Temperature Compensation °C Temperature area where alarm is activated High temperature +3°C Set temperature Time Set temperature Time heat Low temp. -2°C Temperature area where alarm is activated °C User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 25: Disconnection Of Alarm Functions
If the indoor temperature exceeds the absolute high temperature limit, the alarm is always activated. This function may be compared to the function of the thermal alarm. House temperature ºC Indoor temperature area, where absolute alarm is activated Absolute high temperature 35ºC User’s Guide MC 36 A Edition: M 961 GB 01.06.01... -
Page 26: Alarm Functions In General
Any comfort control setting will be added to the high temperature setting before the alarm is activated. Example: Set temperature = 20°C Comfort allowance = 1.5°C High temperature = +3°C The high temperature alarm will be activated at (20+1.5+3) = 24.5°C User’s Guide MC 36 A Edition: 01.06.01 M 961 GB... -
Page 27: Alarm Limits For Water Consumption
Also here 26 hours will pass until the situation is normal. However, the computer will do that automatically. As the animals get older, their water consumption also increases. Therefore the max. alarm limit is often higher than the min. alarm limit. User’s Guide MC 36 A Edition: M 961 GB... -
Page 28: Start/End-Of-Batch Key And Its Functions
When the set temperature heat is 4°C, heat is not supplied until the indoor temperature reaches 4°C or is below. The function could be used to retain a constant temperature or for heating over a longer period of time, when the house is in END-OF-BATCH. User’s Guide MC 36 A Edition: 01.06.01... -
Page 29: Water Consumption
Do not expose the controller to direct water jets or cleaning with a high pressure cleaner. The alarm system must be tested regularly (once a week). User’s Guide MC 36 A Edition: M 961 GB... - Page 30 Big Dutchman International GmbH · Calveslage · Auf der Lage 2 · 49377 Vechta Rufnr. 04447/801-0 · Fax 04447/801-237...
