Summary of Contents for Edis Dual CamLink RAW

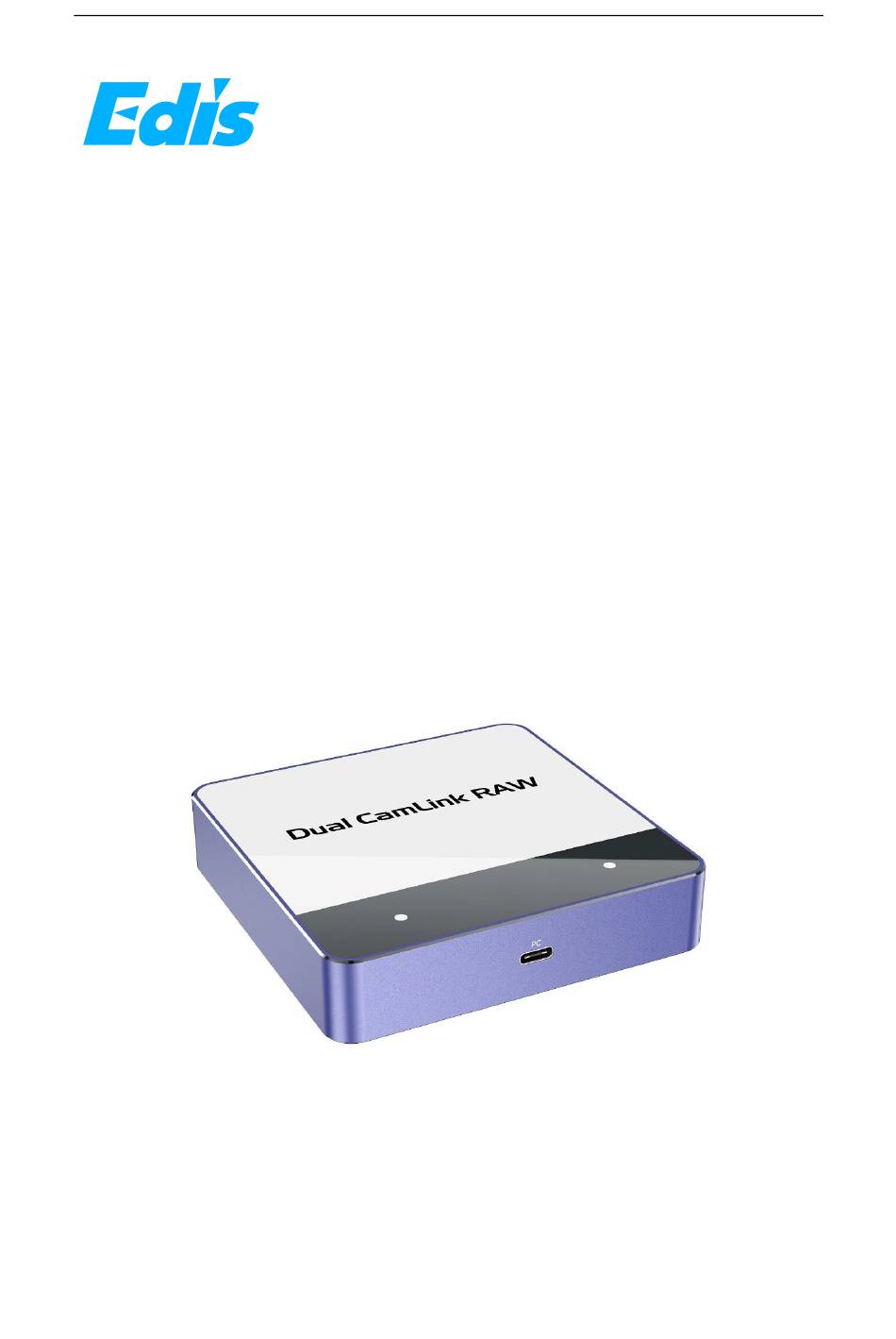

  • Page 1 2ch HDMI Video Capture Manual...
  • Page 2 Overview Thanks for purchasing Dual CamLink RAW capture card. Please read this manual before use and keep it in a safe place for future reference. You can use this device: Capture and stream two channel HDMI signal up to 4K or RGB24 1080P60 such as Camcorder, DSLR, action camera, mobile devices and etc.

  • Page 3: Camera Tips

    Camera Tips The tips will ensure the best experience and image quality when using camera with Dual CamLink RAW capture card. These are general tips and may not apply directly to the camera you are using. 1, Disable AUTO SHUTOFF: Most cameras will automatically turn off to prevent battery drain.

  • Page 4: Select Device

    Double-click the OBS Studio icon on the desktop. Click icon +under Sources window, and select Video Capture Device. Click OK in the new pop-up window. Please click Device and select ezcap Dual CamLink RAW CH1. You can change the scene name and video capture device name.

  • Page 5: Video Setting

    You will see the video from HDMI 1 port of Dual CamLink RAW appear in the preview window. You can add channel2 video with similar setting above – ezcap Dual CamLink RAW CH2. You can click the drop-down box next to FPS to select the appropriate FPS, and click the drop-down box next to Video Format to select the video format.
  • Page 6 You can also set audio for channel 2 devices. Multi-scene switch A powerful video mixer engineered for two cameras production, Dual CamLink RAW equips you to capture two HDMI signals with ultimate ease and flexibility. Add different scenes according to your actual video production needs on OBS. In each different scene, each HDMI video can be reused in different video combination modes.
  • Page 7 picture. You can switch the different picture combination between the different scene right now. Note：If you are using the OBS version as Ver. 29 or higher, maybe you need to set up the audio device with the following methods Click the icon+under the source area in the bottom left corner of the OBS panel, and then select Audio Input Capture.
  • Page 8 Click the settings icon on the Audio Mixer interface, and then select Advanced Audio Properties. In the new pop-up window, in the Audio Input Capture column, click Audio , and then select Mornitoring Monitor Only (mute output). In the Audio Mixer interface, in the Video Capture Device column, click the volume icon to turn off audio output.
  • Page 9 Recording Click Settings in the low right conner of OBS panel, and click Video on the left in the pop-up Settings window. Click the drop-down box next to Base (canvas) Resolution to select the appropriate resolution, and click the drop-down box next to Output (Scaled) Resolution to select the output resolution.

  • Page 10: Specifications

    drop-down box next to Service to choose the software platform you want, then click icon Apply and OK in the Settings panel. Click Start Streaming in the low right conner of OBS panel to start streaming, and click Stop Streaming to stop streaming. Note: Please click the help at the top of the OBS interface, and learn more about OBS in the link that pops up.

  • Page 11: Operating System

    1280 x 720 - 60fps/NV12/I420/YUY2 720 x 576 - 60fps/NV12/I420/YUY2. 720 x 480 - 60fps/ NV12/I420/YUY2 Dimensions (W x D x H): 99 x 99 x 23 mm Weight：190g * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
