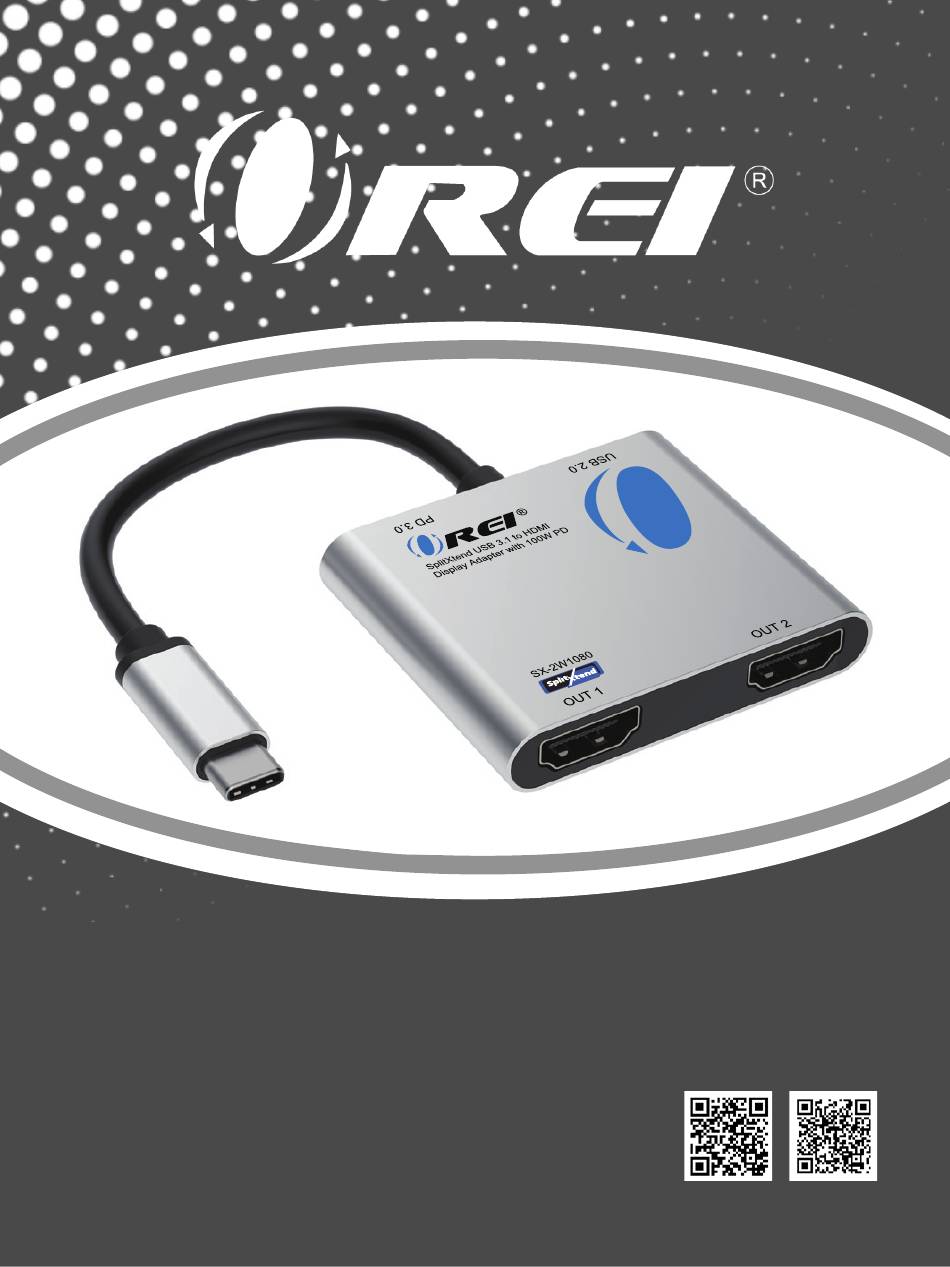

- Page 1 SX-2W1080 Follow us on Youtube and Facebook SplitXtend USB 3.1 to HDMI Display Adapter with 100W PD US E R M ANUA L www.orei.com page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents & Specifications Operation Control & Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 3: Registration Page
Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. Call, email or chat with us now. -
Page 4: Introduction
Introduction The SplitXtend SX-2W1080 is a USB C to HDMI adapt- er that allows you to connect 2 displays to your laptop, enabling you to extend or duplicate screens for increased productivity. It supports video resolutions up to 4K@60Hz with a single output and 4K@30Hz with both outputs. -
Page 5: Features
Features 1. UBS 3.1 compliant 2. 2 HDMI outputs supporting 4K@60Hz when only one is used and 4K@30Hz when both are used 3. Mirror or Extend displays for multitasking 4. PD3.0 100W fast charging to charge your laptop while using it 5. -
Page 6: Package Contents & Specifications
Package Contents & Specifications Package Contents SX-2W1080 1pcs User manual 1pcs Technical HDCP Compliance HDCP 2.3 HDMI Compliance HDMI 2.0 for single output only Video Bandwidth 3.4Gbps per channel (10.2Gbps all channels) 480i,576i,1080i,480p,576p,720p,1080p, Video Resolution 4K@24/30/50/60Hz Color Space 4:4:4/4:2:2/4:2:0 Color Depth 8/10/12 bit LPCM/DTS/Dolby Digital/DTS-HD Master Audio™... - Page 7 Specifications Mechanical Housing Aluminium Alloy + ABS Color Silver L: 58.5mm / 2.3in Dimensions W: 51.5mm / 2.02in H: 11.8mm / 0.46in Weight 65g / 2.29oz Power Supply FCC, CE, RoHS Power Consumption Operation 0°C ~ 60°C / 32°F ~ 140°F Temperature Storage Temperature -10℃to 70℃...
-
Page 8: Operation Control & Functions
Operation Control & Functions SplitXtend USB 3.1 to HDMI Display Adapter with 100W PD SX-2W1080 OUT 1 OUT 2 Page 08... - Page 9 Operation Control & Functions Name Function Description USB-C Male Connect to the USB C port on a Laptop USB-C USB C port with PD 3.0 100W charging support USB 2.0 Connect a USB device such as USB drives, etc. 4. & 5. HDMI 1 & 2 Connect a display device such as a TV or Monitor.
-
Page 10: Application Example
Application Example Page 10... -
Page 11: Faqs & Troubleshooting
FAQs & Troubleshooting 1. No video output Try lowering the resolution from the laptop Try changing the HDMI cables Make sure your USB C port supports video output 2. No audio output Check if the adapter is selected as the audio output in the settings Still have some questions? Please feel free to contact us at: info@orei.com. - Page 12 SplitXtend USB 3.1 to HDMI Display Adapter with 100W PD SX-2W1080 www.orei.com © 2024 page 12...
