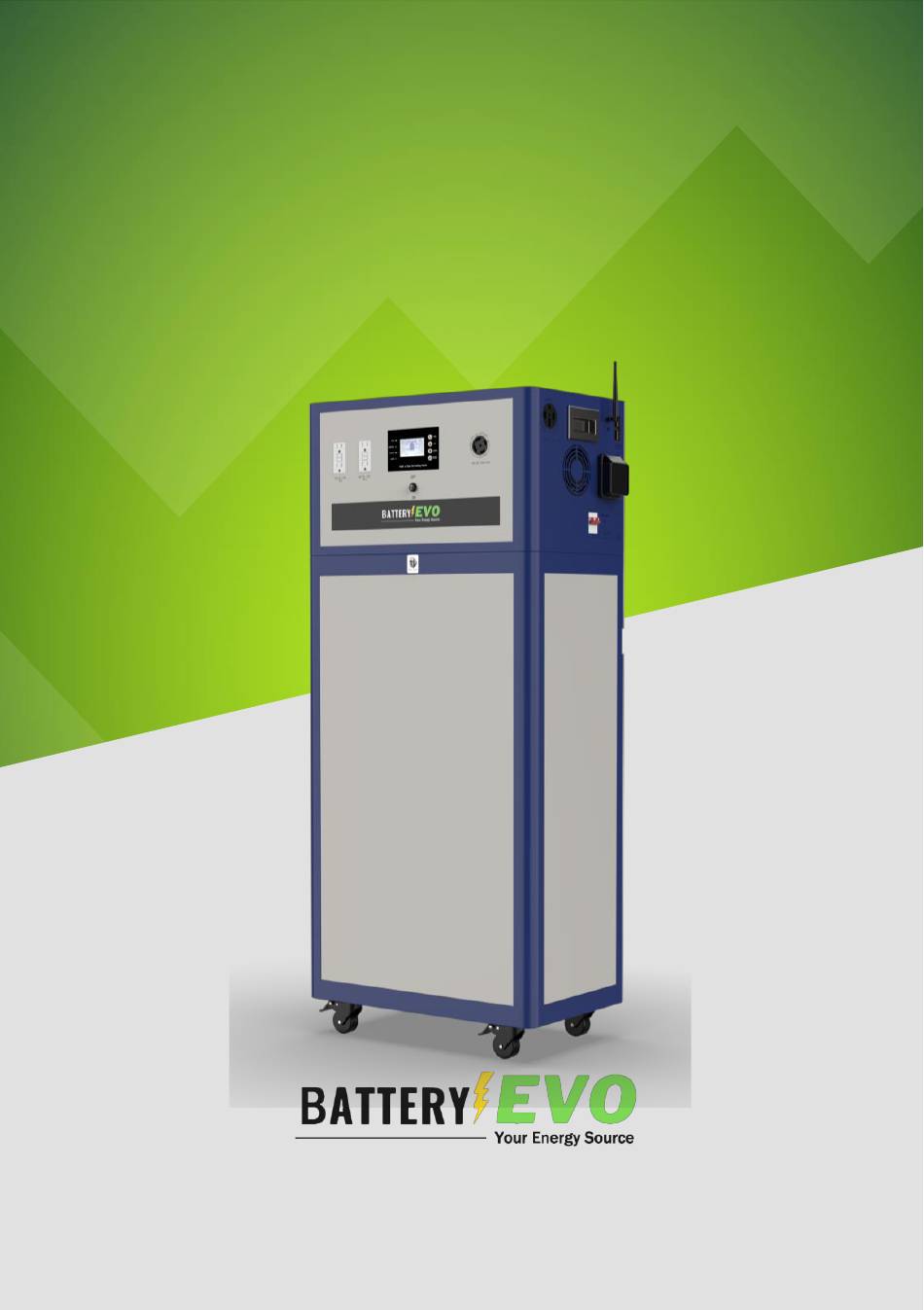

Walrus
Atlantic
1030-48
USER MANUAL
INSTALLATION GUIDE
48V Walrus USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Walrus Atlantic 1030-48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BatteryEVO Walrus Atlantic 1030-48

Summary of Contents for BatteryEVO Walrus Atlantic 1030-48

  • Page 1 Walrus Atlantic 1030-48 USER MANUAL INSTALLATION GUIDE 48V Walrus USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features & Applications Product Specifications Unit Specification Product Detail Screen Menu Mobile Application Guide Download & Install Registration & Sign in Add device & Connection Accessories Technical Safety Guidelines Transportation Recycling Warranty & Return Information Warnings & Precautions Walrus Atlantic USER MANUAL...

  • Page 3: Introduction

    Walrus Atlantic. The document applies explicitly to the BatteryEVO WALRUS 1030-48. Features & Applications BatteryEVO’s Walrus Atlantic is a 30kWh portable energy unit, ideal for solar systems, off-grid setups, and emergency power supply. It incorporates an advanced BMS (Battery Management System) for safe operation across a broad temperature range, ensuring quick and secure charging even at temperatures as low as 0°C.

  • Page 4: Product Specifications

    Product Specifications Unit Specification SKU # EVO-WLRS-1030-48 INVERTER POWER (KVA) 12.5 BATTERY CAPACITY (KWh) L:620mm / W: 390mm / H:1329.69mm DIMENSION L:24.4in / W: 15.4in / H:52.35in NET WEIGHT 300.3KG / 662lbs PV IN CONNECTOR: BE175 PV INPUT VOLTAGE: 90VDC-230VDC (Open Circuit Voltage) PV INPUT MAX CURRENT: 80 Amps (4KW) PV CHARGING VOLTAGE:...

  • Page 5: Product Detail

    Product Detail 1. 120V AC (GFCI) Outlets 1&2 2. Interaction area 3. 120V / 240V AC (NEMA L14- 30R) Output Outlet 4. Main Switch 5. Wheels with brakes Descriptions: Standard GFCI class A Outlet providing 120V power. The area for getting Walrus information and performing settings. For detailed information, please refer to Section 8;...
  • Page 6 AC Out (NEMA14-50R) outlet Wi-Fi PV Input (90V-230V DC) AC Input 120V/240V (SS2-50P) outlet Breaker for AC In (Max 63A) Ground DC Input (Max 88.2V) 8. Generator Communication Port 9. 2 of RS485 Descriptions: This 50A Embedded Ground Blade Power Outlet (NEMA14-50R) provides 120 or 240V AC power.
  • Page 7 NEMA L14-30 NEMA14-50R SS2-50P The ground wire should always remain connected to prevent short circuits and avoid potential damage. NEMA L14-30 & NEMA14-50R:Line1 + Neutral = 120VAC Line2 + Neutral = 120VAC Line1 + Line2 = 240VAC SS2-50P: X + W = 120VAC Y + W = 120VAC X + Y = 240VAC Walrus Atlantic USER MANUAL...
  • Page 8 What is inside the Inverter box: PV input Data line #2 MPPT Output Fan #1,#2 (Red&Black) (Red&Black) Data line #1 MPPT Control AC Out L1 Red AC In L1 Red AC Out L1 Red Wi-Fi AC in L1 Red AC Out L2 Black AC In L2 Black AC Out L2 Black AC in L2 Black...

  • Page 9: Screen Menu

    Screen Menu BatteryEVO's Walrus has an interaction area, which includes an LCD, signal indicator lights, and interactive buttons. Users can configure various working parameters on this screen, such as charging power and operational mode, for the Walrus. Additionally, it provides real-time information on the Walrus's operational status, including the inverter's output power and load percentage, parameters, and the working status of each feature.
  • Page 10 Grid connection status & voltage Battery Total loads (Watts) PV connection status Priority status Enabling mode Battery voltage and capacity percentage Image #1 Solar charging current Local time Number of connected batteries Hold ↲3sec “ENTER/CONFIRM” and it shows like Image#2, Password: 0101 Image#2: Only able to edit the value after enter the password.
  • Page 11 Image#3.0 Move the cursor and press the Enter ↲ button to access the selected setting page. Hit “ Output-V ” you can enter Inverter Output Voltage page, shown like Image#3.1, Image#3.1 Editing the output voltage of the standard GFCI class A outlets, while the output voltage of the Twist Lock Outlet (NEMA L14-30) will be two times (= 2 X selected voltage).
  • Page 12 Hit “ Output. Freq ” you can enter Inverter Output Frequency page, show like Image#3.2 Image#3.2: Editing the output AC frequency for both Standard GFCI class A Outlet, Twist Lock Outlet (NEMA L14-30), and Embedded Ground Blade Power Outlet (NEMA14-50R). Hit “...
  • Page 13 Hit “ PV Chg. Amps ” you can enter Solar Charging Current page, show like Image#3.4 Image#3.4: Select the AC charging current from the options provided. Hit “ Chg. AC Rnge ” you can enter AC Input Range page, shown like Image#3.5 Image#3.5: The AC input voltage range varies with the power mode—UPS or INV.
  • Page 14 Hit “ Priority ” you can enter Priority Status page, show like Image#3.6 Image#3.6.1: Image#3.6.2: Select one of the provided charging modes; When the solar charging mode is selected, AC charging will be disconnected. However, when the AC charging mode is chosen, both solar and AC charging will occur simultaneously.
  • Page 15 Hit “ SAV MODE ” you can enter Power Saving Output page, show like Image#3.7 Image#3.7: Select whether to activate the power saving mode, which will limit the power consumption of Walrus in standby mode. Walrus Atlantic USER MANUAL...
  • Page 16 Hit “ BKLight ” you can enter LCD Backlighting status page, show like Image#3.8 Image#3.8: Choose the LCD backlight mode: selecting 'ON' will keep the LCD screen's backlight constantly illuminated; opting for 'Normal (1Min)' mode will maintain the backlight for one minute during each operation in Walrus interaction area. Hit “...
  • Page 17 Hit “ Set Battery ” you can enter Adjustment Battery Parameters page, show like Image#3.10 Image#3.10 • CC-V: Constant Current/Constant Voltage. The 56.8V represents the battery charging voltage； • FLA-V: Float Voltage. It is the voltage (55.2V) at which a battery is maintained after being fully charged to maintain that capacity by compensating for battery self-discharge；...
  • Page 18 Using Up/Down buttons, switch to ‘System Status’ page, as shown in Image#3.11 AC charging voltage(V), frequency(Hz) 240V AC output socket info 120V AC output socket1 info 120V AC output socket2 info Battery voltage(V), SOC(%), temperatures(F° ) Image#3.11 Using Up/Down buttons, switch to ‘PV Status’ page, as shown in Image#3.12 Solar charging voltage Solar charging current...
  • Page 19 Using Up/Down buttons, switch to ‘System Setting Status’ page, as shown in Image#3.13 AC charging set current Solar charging set current Display backlight setting Walrus priority charging mode Walrus saving mode status Image#3.13 Using Up/Down buttons, switch to ‘Battery Status’ page, as shown in Image#3.14 Battery Charging Voltage Upper Limit Battery Discharge Voltage Lower...

  • Page 20: Mobile Application Guide

    Installing the App • Once the download is complete, the app will automatically begin the installation process. • After installation, you'll find the BatteryEVO app icon on your home screen or app drawer. Walrus Atlantic USER MANUAL...

  • Page 21: Registration & Sign In

    Service and Privacy Policy, then submit your registration. • You may be asked to verify your email address. Check your email inbox for a verification code from BatteryEVO and click on it to confirm your account. Walrus Atlantic USER MANUAL...

  • Page 22: Add Device & Connection

    Add a device (datalogger) • After logged in, there will be the list of added devices or datalogger. • To add a new datalogger, you need to click the “＋” button. • Find the PN number and bar code at the top of the Wi-Fi antenna.
  • Page 23 • Complete the parameter as far as possible • There are two required fields: “Design power(KW)” ---10 “Datalogger address”--- Your location, you can click the icon to enter to the GPS to get the location. • At the top left of the page, find the drop-down list of presentation types.
  • Page 24 Wi-Fi Pairing • To pair Walrus to the local Wi-Fi, we need to ensure the local Wi-Fi is working properly. • Click the “Me” option on the navigation menu at the button. 中国移动 • Click the “Network tools” icon the option box will pop up here.
  • Page 25 • Before the next step, the mobile device should connect to the datalogger as the Wi-Fi connection. • Select the datalogger network that is the same as the PN number on Walrus. • The password for the datalogger: 12345678 Walrus Atlantic USER MANUAL...
  • Page 26 • Click the “Next” button to access the next page. • If a prompt window pops up, the datalogger connection has failed and needs to try again. • Enter or select (by clicking the Wi- Fi icon) the local router to which the datalogger should connected.
  • Page 27 Alternatively, contact BatteryEVO technical support team for assistance. Bluetooth Pairing • Click the “Network tools” icon the option box will pop up here.
  • Page 28 • Bluetooth either activates automatically or requires manual enabling. • The App then initiates a search for nearby devices with Bluetooth capabilities. • Select the Bluetooth which has same PN number with datalogger from the listed device. Walrus Atlantic USER MANUAL...
  • Page 29 • Bluetooth connected successful to the datalogger. • Click “Internet Settings” to continue the datalogger pairing to the local router. • Enter or select (by clicking the Wi- Fi icon) the local router to which the datalogger should connected. • Enter the router’s password. Walrus Atlantic USER MANUAL...
  • Page 30 Alternatively, contact BatteryEVO technical support team for assistance. Viewing Walrus Status • At the top left of the page, find the drop-down list of presentation types.
  • Page 31 • Click triangle icon on the left of the datalogger. Devices that are already connected to datalogger will be shown below. • Click the device. • The system status and data are synchronized in real-time. Walrus Atlantic USER MANUAL...

  • Page 32: Accessories

    (NEMA14 grid. -50R) 50 Amp This cable is suitable for 10 Ft RV connecting the battery output to Optional Extension the power grid. Cable Optional items are available on the BatteryEVO website. Walrus Atlantic USER MANUAL...

  • Page 33: Technical Safety Guidelines

    Technical Safety Guidelines WARNING: Before installing or operating Walrus, please make sure to review all safety guidelines, warnings, and precautions thoroughly. Do not install Walrus in a location that is exposed to direct sunlight. Do not charge Walrus with a voltage exceeding 58.8V. Do not charge the Walrus when the temperature is below 0°C.

  • Page 34: Transportation

    Transportation WARNING: Before installing, make sure to review all safety guidelines, warnings, and precautions thoroughly. 1. Walrus should be kept upright, and the brakes on the wheels should be engaged to secure Walrus. DOWN, Brakes UP, Brakes OFF Walrus Atlantic USER MANUAL...

  • Page 35: Recycling

    & return policy: • For all returns or warranty claims contact support@BatteryEVO.com. • 30-day money back guarantee. Full refunds may be issued for returns of undamaged batteries not related to warranty claims, subject to a 20% restocking fee.
  • Page 36 Replacement batteries or components will only be sent after we have received and inspected your returned Walrus or component to determine the cause of any problems. BatteryEVO is not responsible for return shipping. •...

  • Page 37: Warnings & Precautions

    Warnings & Precautions Lithium Iron Phosphate (LiFePO4) batteries are a safe chemistry, but it is important to follow safety measures when handling any electronics. Please adhere to this manual’s instructions for safe handling and operation. General Safety • Always wear protective gear when handling batteries. •...
  • Page 38 Charging and Handing • In the case of charging, use only a dedicated charger. Battery Charging Voltage must be under 58.4VDC. • Charge according to the conditions specified by the user manual. Hazardous Emergency Treatment • If Walrus exhibits any abnormal conditions, such as overheating or smoking, immediately disconnect all connections.
  • Page 39 https://batteryevo.com...
  • Page 40 https://batteryevo.com...
