Summary of Contents for DMP 1100R Series

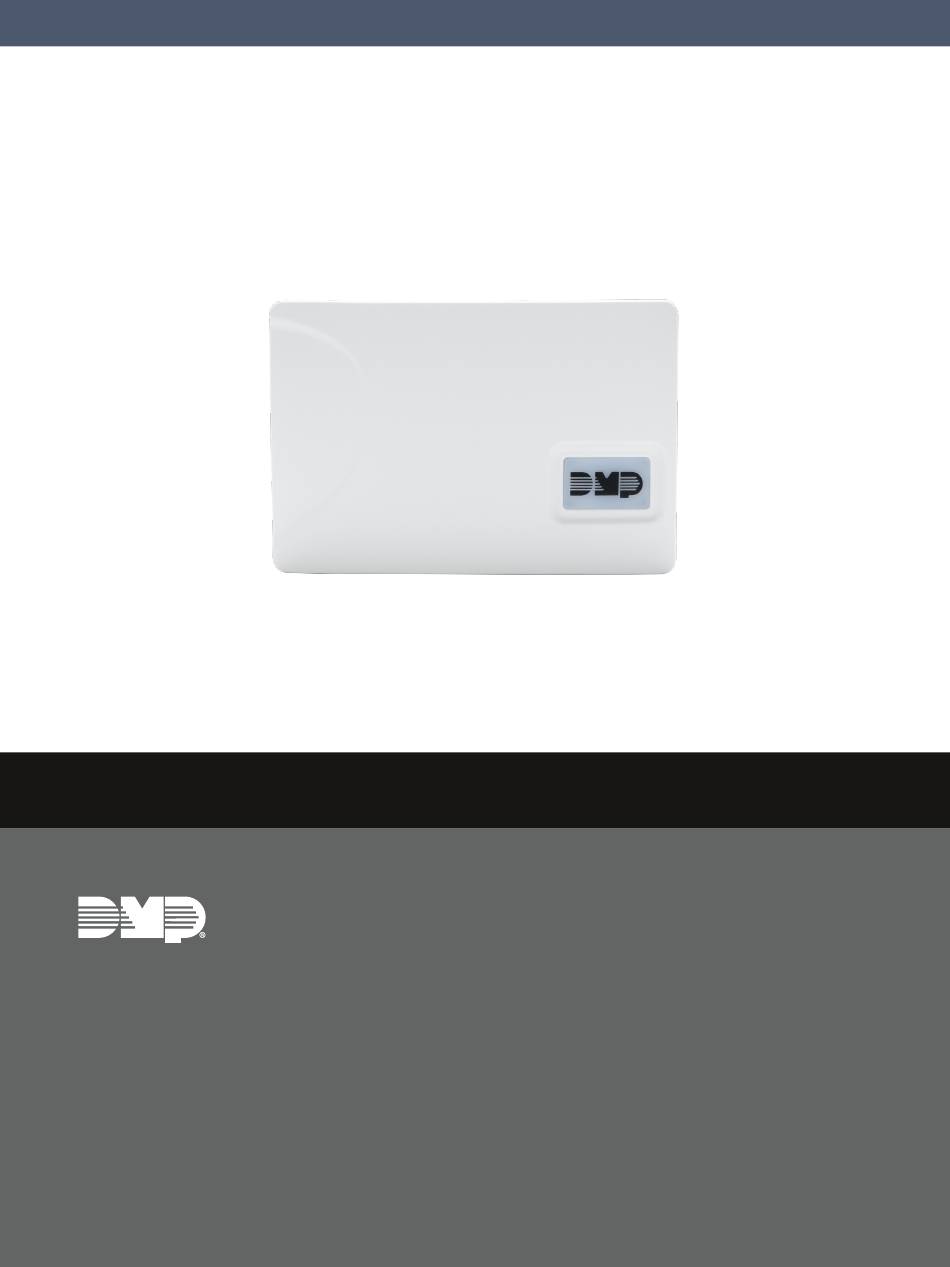

- Page 1 INSTALLATION AND PROGRAMMING GUIDE 1100R Series Wireless Repeater...
-
Page 2: Get Started
GET STARTED The 1100R Series Wireless Repeater increases the wireless communication range and improves the signal quality between the DMP wireless receiver and transmitters. The 1100R features 128-bit AES encryption and supports DMP encrypted wireless devices. Up to eight repeaters can be installed on a wireless system. The repeater is powered from a 12 VDC power supply and includes a 24-hour battery backup. -
Page 3: Program The Panel
At a keypad, enter 6653 (PROG) to access the PROGRAMMER menu. In ZONE INFORMATION, enter the wireless zone number from the table below. If using multiple repeaters, they must be programmed as sequential zone numbers. AVAILABLE DMP PANEL ZONE RANGES ZONES XTLplus and XTLtouch... -
Page 4: Installation
Relocate the 1106 or wireless receiver until the LED confirms clear communication. The DMP logo LED on the 1100R will turn green indicating the signal strength of the repeater is good. If the DMP logo LED is red, the repeater should be moved to a location that allows the logo LED to remain green. - Page 5 The 1100R can be powered from a 12 VDC external power supply, such as the included DMP model 372-1000-W or an optional external DC power supply, such as the DMP Model 505-12 or PS12-5. In addition to powering the 1100R, the power supply also charges the back-up battery on the 1100R that should be connected at the time of the installation.
-
Page 6: Additional Information
Powering from External 12 VDC Power Supply The 1100R is powered from a 12 VDC power supply such as a DMP Model 505-12 or PS12-5. In addition to powering the repeater, the power supply also charges the back-up battery of the repeater. If the DC power source is removed, the power failure is indicated as an open condition on the repeater zone. -
Page 7: Specifications
SPECIFICATIONS Operating Temperature 32°F - 120°F Primary Operating Voltage 12 VDC, 30 mA Standby Battery 1100RBAT800/8 Voltage 3.7 VDC Capacity 800 mAh Type Lithium Polymer, rechargeable Standby 24 hours Frequency Range 905-924 MHz Dimensions 5.5” W x 3.75” H x 1” D Color White Housing Material... - Page 8 CERTIFICATIONS California State Fire Marshal (CSFM) ▶ ▶ FCC Part 15 Registration ID: CCKPCO114R6 CCKPC0245 ▶ Industry Canada: 5251A-PC0114R6 5251A-PC0245 ▶ New York City (FDNY) Underwriters Laboratory (UL) Listed ANSI/UL 365 Police Station Connected Burglar ANSI/UL 609 Local Burglar Alarm Units and Systems ANSI/UL 1023 Household Burglar Alarm System Units ANSI/UL 1076...
-
Page 9: Fcc Information
I N T R U S I O N • F I R E • A C C E S S • N E T W O R K S manufactured in Springfield, MO 2500 North Partnership Boulevard using U.S. and global components. Springfield, Missouri 65803-8877 LT-1824 1.03 25073 800.641.4282 | DMP.com © 2025...
