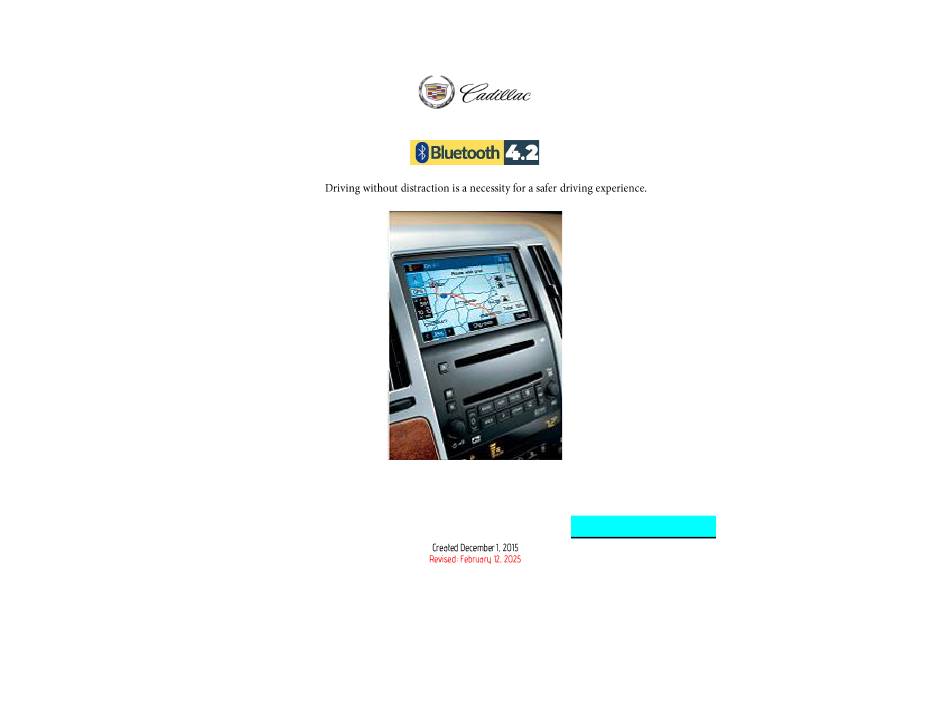

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BTA-STS QUICK START INSTALLALION GUIDE FOR 2005-11 CADILLAC STS WITH XM TUNER MODULE (U2K)
-
Page 2: Installation
Bluetooth music streaming module uses the radio’s XM port to stream music applications from A2DP enabled devices (e.g., Smartphone, Tablet, Kindle etc.) Simply connect the BTA-STS to the back of the radio, pair audio device and stream all applications (e.g., music, GPS, audio books etc.) on the 6-CD changer or 6-DVD navigation radio. - Page 3 Warning The 16-pin connectors “keyed” to avoid connecting errors. The BTA-STS 16-pin plug is “Keyed” to fit only the XM socket on radio The module harness is pre-wired to use the radio 12V turn-on supply, (See Fig.3/3A) Avoid pulling on wires. Grasp plug to disconnect.
- Page 4 Fig. 8 Fig. 10 Connect installation harness 16-pin plug (See Fig. 8) to module 16-pin socket (See Fig. 9) Fig. 11 Warning: Jack may be left freestanding, but if mounted; ensure panel is less than 4mm thick otherwise the AUX shaft may not protrude enough to engage with nut. If necessary, use dremel, sander etc.
- Page 5 Optional USB extension cable installation Notes: 1. Optional 6 ft. dash mount USB extension cable (Fig. 13) is not required for operation; however, it extends USB charging port (See Fig. 14) to dashboard, glovebox etc. or connect your own USB charging cable. 2.
-
Page 6: Operation
Pairing Operation Pairing process varies among devices but basic steps are the same. This process Turn ignition and radio “ON” is done upon initial install and will not have to be repeated. 2. Press “BAND” or “XM” softkey until XM1 or XM2 is displayed 3. -
Page 7: Frequently Asked Questions And Troubleshooting
2. My XM subscription has expired, will the BTA-STS still work? YES; as long as the XM module is present the BTA-STS will work. 3. I’m subscribed to XM, but will it still work after installing the BTA-STS? YES; simply select “Active subscription” from order page.
