Summary of Contents for life finds LF-DOC1

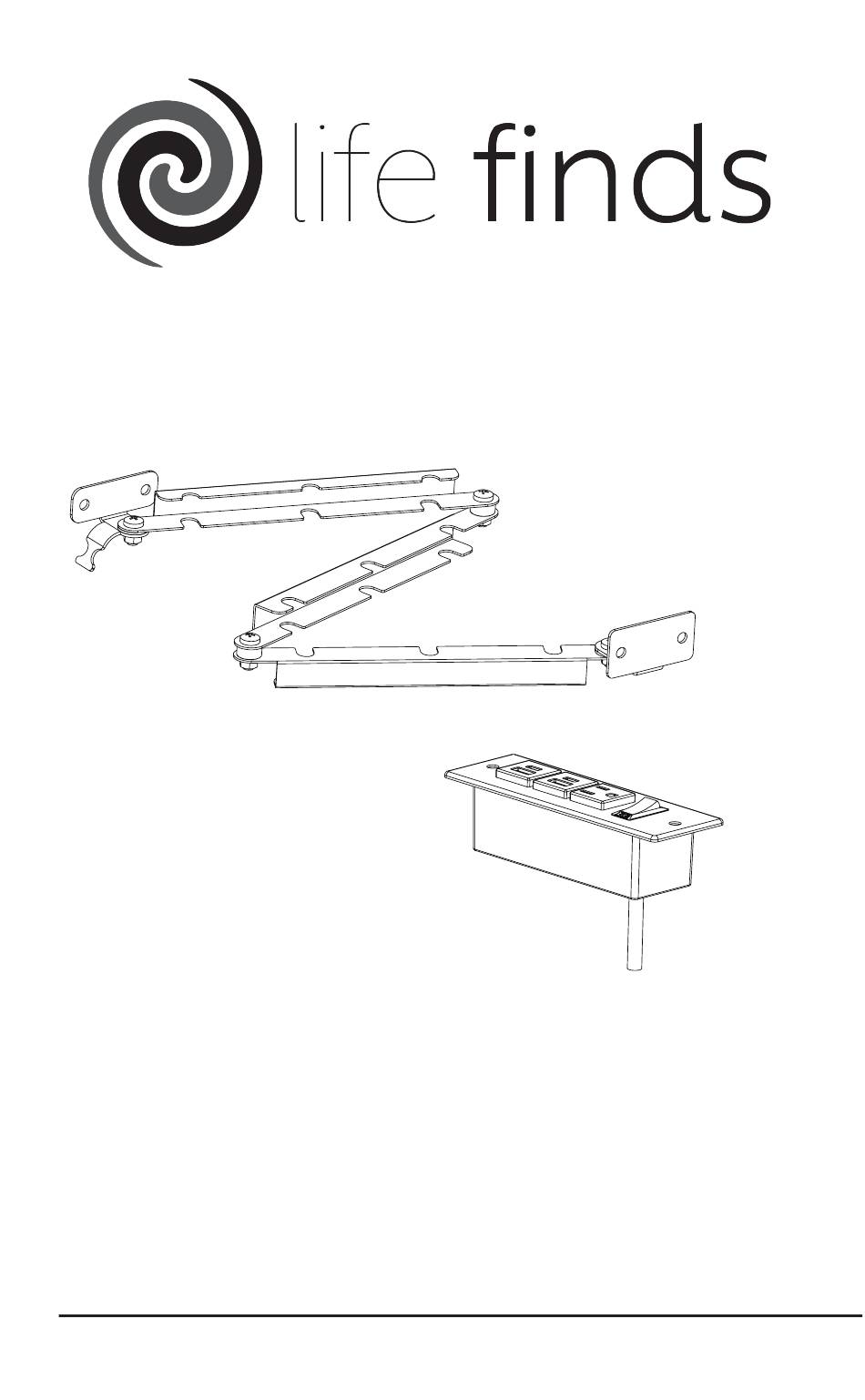

- Page 1 Compact In-Drawer Outlet Charging Station SKU: LF-DOC1 Instruction Manual...
- Page 2 CAUTION! If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@life-finds.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x6) Cable Guide Power Strip Zip Tie Included Hardware & Tools S-B (x2) S-A (x4) ST4x16mm Flat Head ST5x16mm Round Screw Head Screw Tools Needed: Drill Phillips Drill Bit Pencil Screwdriver... -
Page 4: Assembly Steps
ASSEMBLY STEPS PRE-ASSEMBLY Mark and cut a 5 ⅜” x 2” ( 135mm x 50mm) rectangle on the right side of the drawers rear wall. Ensure there is at least a 0.75” (19mm) distance from the cutout to the interior wall. Left Side Installation: To prepare cabinet for installation of Power Strip on... - Page 5 STEP 1 Install the mounting plate with the bent tab on Cable Guide (A) approximately 10” (25cm) left of the drawer cutout. Mark hole locations using a pencil. Drill ½” (12mm) deep pilot holes using a ⅛” (3mm) drill bit. Secure the Cable Guide (A) using ST5x16mm Round Head Screws (S-A) with a Phillips screwdriver or Drill.
- Page 6 STEP 3 Attach the other end of Cable Guide (A) onto the back of the drawer with spaced approximately ¾” (19mm) from the side of the power strip. Mark hole locations using a pencil. Drill ½” (12mm) deep pilot holes using a ⅛” (3mm) drill bit. Secure the Cable Guide (A) using the ST5x16mm Round Head Screws (S-A) with a Phillips screwdriver or Drill.
- Page 7 STEP 5 Flip the switch on Power Strip (B) to turn on and off power being supplied. USB Specs: Wattage - 10W Voltage - 5V Amps - 2.1A...
- Page 8 LAST UPDATED: 02/15/24 REV1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com 309-278-5303...
