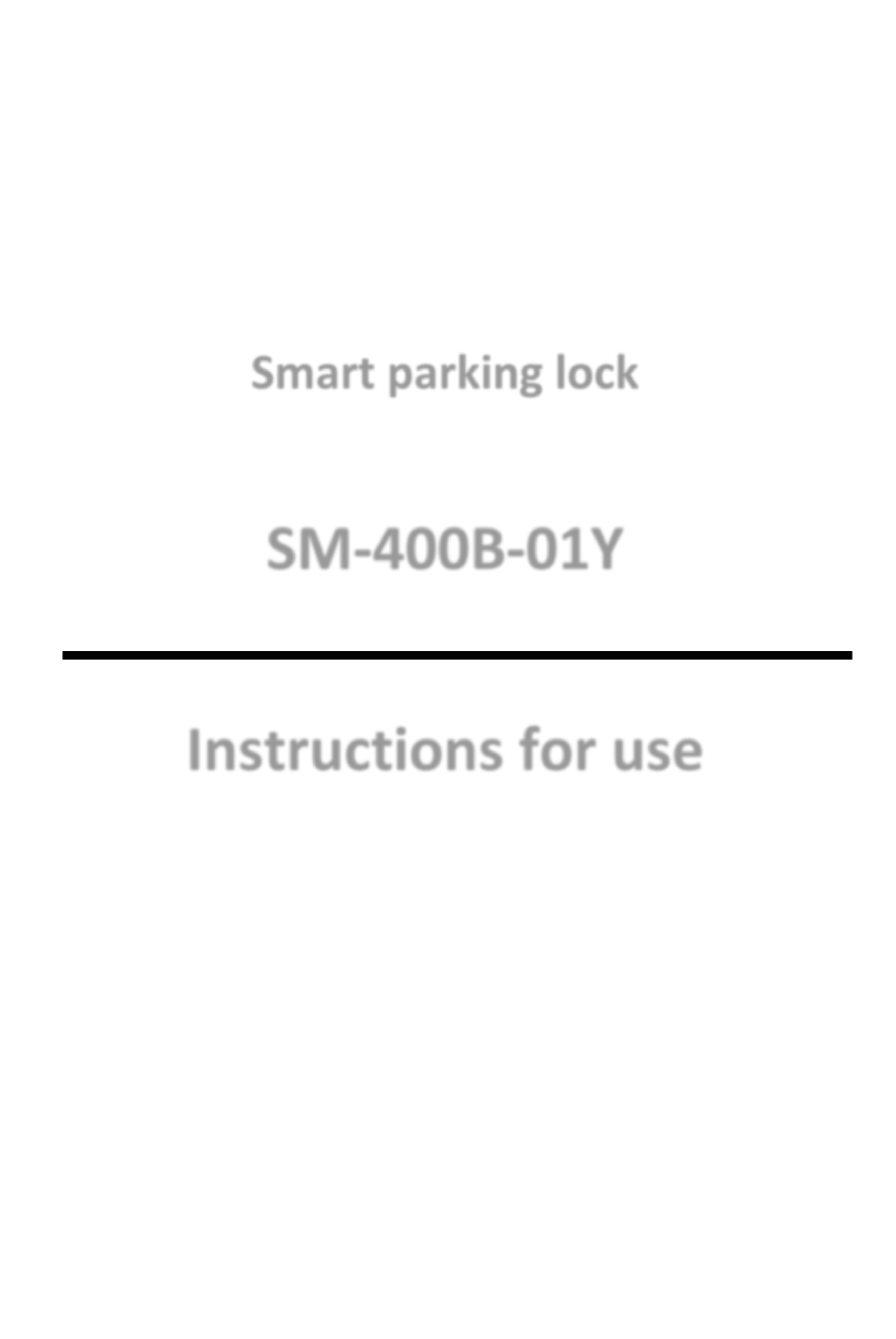

SMARTPARK

Smart parking lock

SM-400B-01Y

Instructions for use

Update date: 25/04/2023

Before using the device, read the instruction manual carefully and

familiarize yourself thoroughly with the safety instructions or

warnings. Save the instructions for possible later reference.

Table of Contents

Need help?

Do you have a question about the SM-400B-01Y and is the answer not in the manual?

Questions and answers

Summary of Contents for Smart Park SM-400B-01Y

Page 1 SMARTPARK Smart parking lock SM-400B-01Y Instructions for use Update date: 25/04/2023 Before using the device, read the instruction manual carefully and familiarize yourself thoroughly with the safety instructions or warnings. Save the instructions for possible later reference.
Page 2: Table Of Contents
SMARTPARK SM-400B-01Y Instruction Manual Content SAFETY INSTRUCTIONS AND WARNINGS ..................2 1.1......................2 ARNINGS AND PRECAUTIONS 1.2......................... 2 EPLACING THE BATTERY 1.3........................ 3 EMOVAL INSTRUCTIONS MAIN FUNCTIONS ........................4 2.1................. 4 PERATION OF THE SLUICE VIA REMOTE CONTROL 2.2.
Page 3: Safety Instructions And Warnings
SMARTPARK SM-400B-01Y Instruction Manual 1. SAFETY INSTRUCTIONS AND WARNINGS Before using the SMARTRPARK lock, read the instructions and familiarize yourself thoroughly with the safety instructions and/or warnings listed below. Always use the lock in accordance with these instructions. If damage to the product is caused by failure to follow the instructions or use contrary to the instructions, the warranty will not be considered.
Page 4: Removal Instructions
SMARTPARK SM-400B-01Y Instruction Manual • Always insert type D batteries in accordance with the +/- polarity markings. Otherwise, Overheating, fire, or leakage of battery fluid may occur. • Always replace all batteries at once. Do not use new and old batteries at the same time.
Page 5: Main Functions
SMARTPARK SM-400B-01Y Instruction Manual 2. MAIN FUNCTIONS 2.1. Operation of the sluice via remote control By pressing the remote control button, the barrier lifts or lowers the parking barrier (barrier arm). 2.2. Alarm and its reset If someone is trying to park in your parking space and force is applied to the parking barrier, an alarm is triggered.
Page 6: Content And Description Of The Smart Lock
SMARTPARK SM-400B-01Y Instruction Manual 3. CONTENT AND DESCRIPTION OF THE SMART LOCK 3.1. Content The package includes: 1x SMARTPARK SM-400B-01Y parking lock 2x remote control 3x Steel Anchor Bolt 2x Wrench 1x Instruction Manual 3.2. Description 1- The Arm of the Barrier...
Page 7: Installation
SMARTPARK SM-400B-01Y Instruction Manual 4. INSTALLATION • If you are not the owner of the parking space, obtain permission to install the barrier before installing the barrier Lock. • Only use a suitable tool for drilling into concrete or material that is in a parking space.
Page 8 SMARTPARK SM-400B-01Y Instruction Manual Use a suitable drill to drill the marked holes (12 mm in diameter and 80 mm in depth).
Page 9: Maintenance
SMARTPARK SM-400B-01Y Instruction Manual Remove the nuts and inserts from the anchor bolts. Insert anchors (inserts) into the holes and hit them a few times with a hammer to fix them in the ground. Install the lock so that the ends of the anchor inserts fit through the fixing holes. Add bolts and nuts, then tighten with a suitable wrench.
Page 10: Debugging
SMARTPARK SM-400B-01Y Instruction Manual 6. DEBUGGING Error Possible cause Solution The hand of the barrier Poor connection or too Approach the barrier and does not go down. much distance from the reactivate it. barrier. The lock cylinder is broken. Consult a locksmith or contact the technical service.
Page 11: Warranty Statement
SMARTPARK SM-400B-01Y Instruction Manual 8. WARRANTY STATEMENT KOBRA Team, d.o.o., declares: • that the product will function flawlessly during the warranty period if you use it in accordance with the attached instructions; • that the warranty period for the device is 12 months from the date of purchase and that it begins to run with the delivery of the goods Consumer;...
Page 12: Warranty Card
MANUFACTURER: Hangzhou Pshare Technology Co., Ltd., Made in China EC DECLARATION OF CONFORMITY: The manufacturer declares that the smart parking lock SMARTPARK SM-400B-01Y complies with the European EC directives and essential safety rules (the certificate represents the CE mark). Declarations and certificates of conformity are available at the above address of the importer/authorized repairer.
