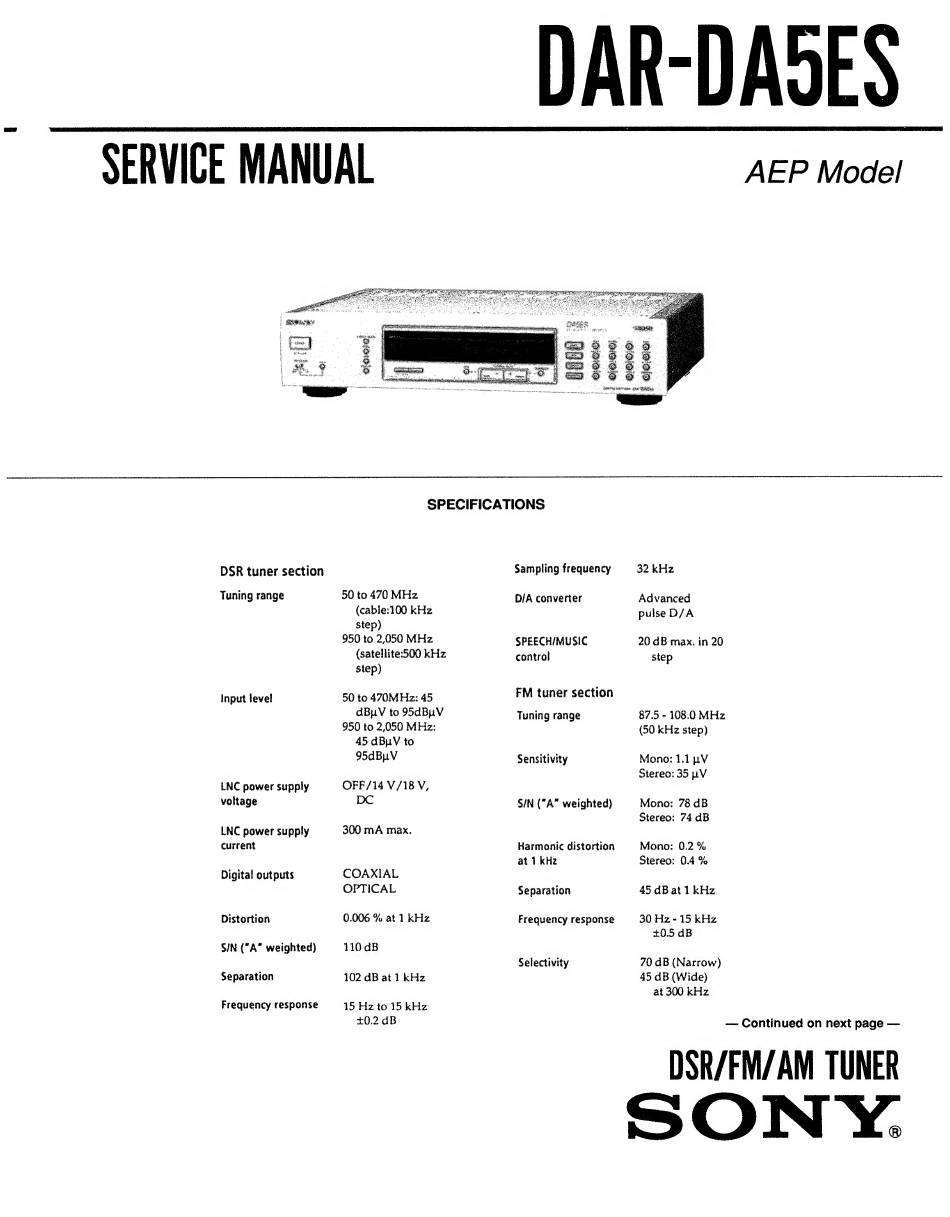

Sony DAR-DA5ES Service Manual

SERVICE MANUAL
| Rie
DSR tuner section
Tuning range
Input level
LNC power supply
voltage
LNC power supply
current
Digital outputs
Distortion
SIN ("A" weighted)
Separation
Frequency response
DAR-DASES
SPECIFICATIONS
50 to 470 MHz
(cable:100 kHz
step)
950 to 2,050 MHz
(satellite:500 kHz
step)
50 to 470MHz: 45
ABV to 95dBuV
950 to 2,050 MHz:
45 dBuV to
95dBuV
OFF/14 V/18 V,
10. @
300 mA max.
COAXIAL
OPTICAL
0.006 % at 1 kHz
110 dB
102 dB at 1 kHz
15 Hz to 15 kHz
+0.2 dB
Sampling frequency
D/A converter
SPEECH/MUSIC
control
FM tuner section
Tuning range
Sensitivity
SIN ("A* weighted)
Harmonic distortion
at 1 kHz
Separation
Frequency response
Selectivity
AEP Model
32 kHz
Advanced
pulse D/A
20 dB max. in 20
step
87.5 - 108.0 MHz
(50 kHz step)
Mono: 1.1 pV
Stereo: 35 pV
Mono: 78 dB
Stereo: 74 dB
Mono: 0.2 %
Stereo: 0.4 %
45 dBat 1 kHz
30 Hz - 15 kHz
+0.5 dB
70 dB (Narrow)
45 dB (Wide)
at 300 kHz
— Continued on next page —
DSR/FM/AM TUNER
SONY.
