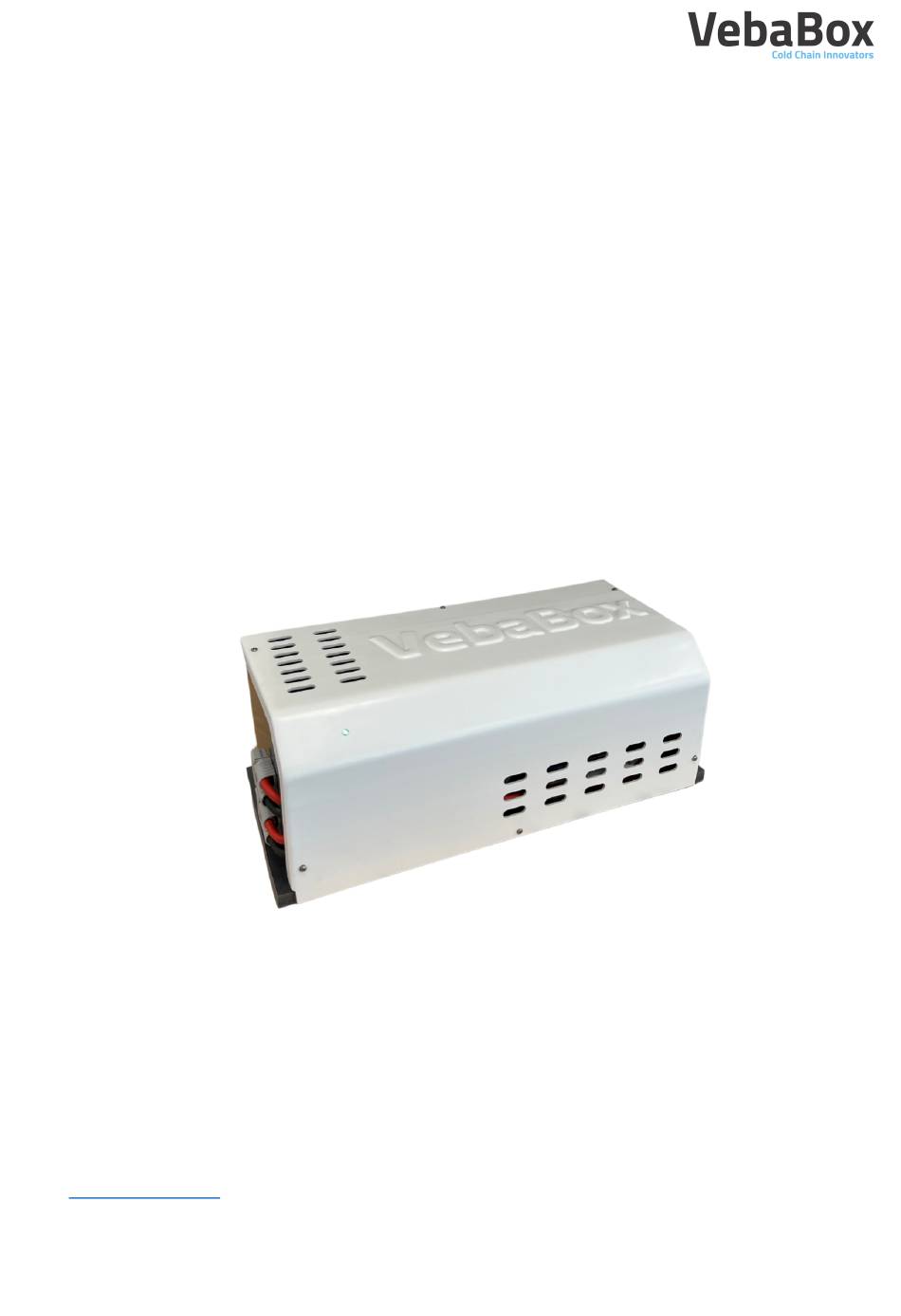

- Page 1 Service Manual Battery power pack SLI120-EV12 SLI240-EV12 Original instructions VebaBox Cold Chain Innovators info@vebabox.com www.vebatemp.com...
-
Page 2: Table Of Contents
5. Installation ................1 6. Software setting of Nemo charger ........1 7. Installation inside vehicle ............. 4 8. Operation ................5 9. Troubleshooting ..............7 10. Storage ................7 SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox... -
Page 3: Safety Precautions
Do not operate the power pack if it is visibly damaged. The VebaBox power pack may only be repaired by qualified personnel. Inadequate repairs can cause considerable hazards. If your power pack should need repairing, please contact your local distributor. -
Page 4: General Safety Rules For Working With Batteries
• Misuse, improper installation, abnormal servicing, storage of hazardous chemicals, use of corrosive substances, transit damage, recharging of cooling system, accident, fire, improper repair, tampering or abuse. • Incorrect voltages or faults with regard to power supply which falls outside of the VebaBox operating parameters. First Aid First Aid –... -
Page 5: Product Specifications
TUC2001 and TUF1005 thermal units. The TUC6000 thermal unit has a max power consumption of 80Ah. This can result that TUC6000 thermal unit will drain the battery and will activate low voltage protection. SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox... -
Page 6: Installation
5. Installation... - Page 8 SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox...
-
Page 9: Software Setting Of Nemo Charger
6. Software setting of Nemo charger The nemo dc/dc charger needs to be installed with the correct software settings. To adjust the software settings you need to have the following applications. -Laptop installed with RapNEMO software -TBB interface cable (connection of nemo charger to laptop) Connect the COM-RS485 from the nemo charger to the interface cable and the USB to the laptop. - Page 10 Chose the correct battery capacity. For the SLI120-EV is this 100Ah and for the SLI240-EV is this 200Ah. Batteries that are parallel connected should be count together. (e.g. 2x 100Ah is 200Ah) SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox...
- Page 11 There is also an option to view the realtime data, this can be useful during maintenance or service. When all parameters are correct press send setting to send the parameters to the nemo device. After you can close the RapNEMO and disconnect the cables. SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox...
- Page 12 The serial number is made out of: EVYYWWXX (YY=year WW=weeknumber, XX=opeenvolgend nummer van de betreffende week. QR Code (article number 3503000006) Label: Thermal unit & Car to indicate which cable should be connect to the connector. SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox...
-
Page 13: Installation Inside Vehicle
LED light. This led light indicates the state of the battery. On: battery is active Off: battery is in undervoltage protection and need to be charged directly. SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox... -
Page 14: External Battery Charger
When the battery is empty and there is no option to charge it through the EV. Then it can be charged with external charger: 8010000002 - External battery charger for VebaBox SLI-EV12 battery packs. This charger is programmed with the custom charging parameters for the battery of the SLI-EV12 battery packs. -
Page 15: Troubleshooting
Handle the battery carefully to avoid sharp impacts or extreme pressure on the battery housing. • Charge the battery at least once every 3~6 months to prevent it from over discharge. • Fully charge the battery when it is taken out of storage. SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox... - Page 16 SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox...
- Page 17 Make sure the cable connection is fused with fuse 80A. SLI120-EV12 SLI240-EV12 Version: 02 © 2024 VebaBox User Manual VebaBox...
