ToLife TZ-K2 Manual

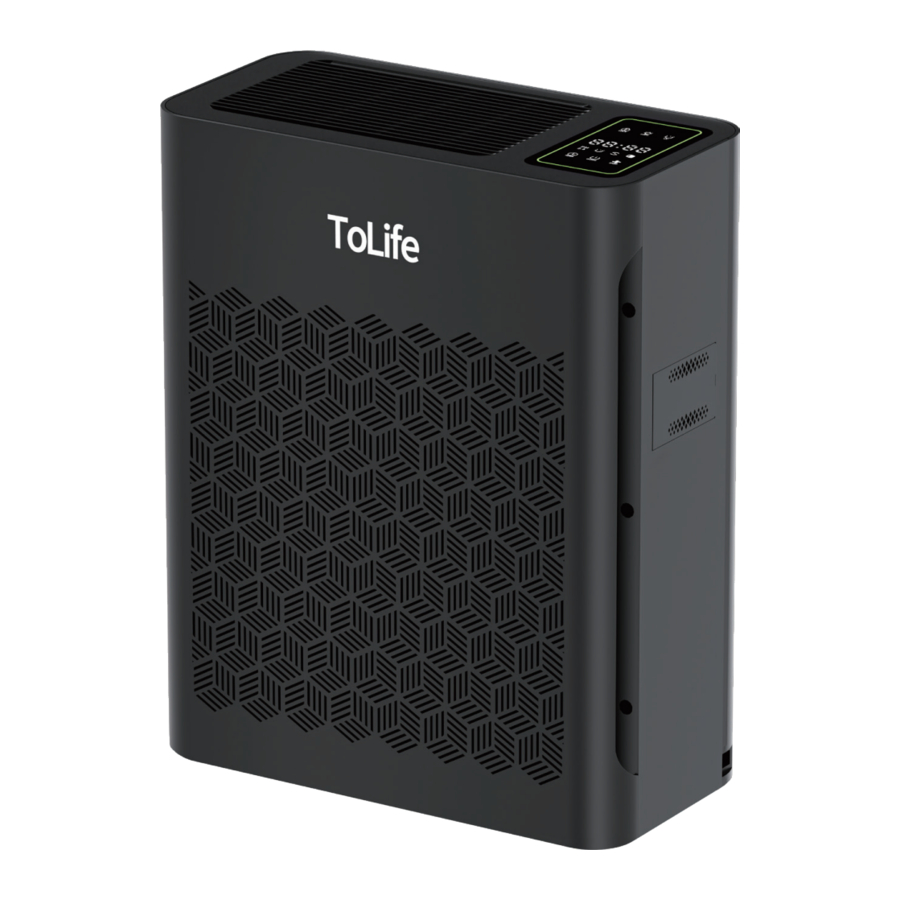

KNOW YOUR AIR PURIFIER

OVERVIEW - PART 1

NOTE:
OVERVIEW - PART 2

  • Place the air purifier on a flat surface.
  • To allow air to flow freely in and out of the air purifier, a ways leave 15 inches of clearance on all sides of the air purifier.

PRODUCT SPECIFICATIONS

Model TZ-K2
Rated Power 45W
Noise Level 23-58dB
Rated Frequency 60 HZ
Rated Voltage 120V
Ideal Room Size 1095 ft2/ 102 m2
Net weight 9.3 LB
CADR 159 CFM / 270 m3/h
Standby Power < 1W

WHAT'S IN THE BOX

  • 1x Air Purifier
  • 1x 3-Stage Filter (Pre-lnstalled)
  • 1x User Manual

START TO USE


The air purifier comes with a filter included, do remember to remove the packaging of the filter before use

  1. Remove the filter cover.
  1. Take out the filter and remove the plastic package
  2. After installing the filter, put the cover back on.

Note: Make sure you insert the filter in the correct position.

  1. Remove the filter cover.
    START TO USE - Step 1
  2. Take out the filter and remove the plastic package.
  3. After installing the filter, put the cover back on.
    START TO USE - Step 2

OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS - Part 1

Standby mode
After plugging in the power cord, the power button lights up and continues to flash, indicating that the device has entered standby mode
ON/OFF Button
Turn the air purifier on/off.
Fan Speed Button
Cycle through fan speeds: L:l(low), L:2 (medium), L:3 (high),L:A (auto)
Timer Button
Cycle through 2H, 4H, 6H, 8H, and turning off timer.
Light Button
Tum the light on/off.
UV Button
Turns the UV on/off.
Child Lock Button
Turn and hold the child lock for 3 seconds, all keys are locked except the child lock button. Turn and hold the child lock for 3 seconds again, all keys are unlocked
Cycle Timer Function
After selecting the timer, long press the timer button for 3 seconds to activate the cycle timer function The machine will turn off at the set time and automatically turn on at the same time the next day. For example, if you set a 2-hour timer starting at 9 AM and enable the cycle timer function, the air purifier will turn off at 11 AM and automatically turn on at 9 AM the next day, with a 2-hour timer automatically set.
(Note: Disconnecting the power supply line will disable this function, please keep it powered on.)
Filter Replacement Indicator
After the machine has been running for 6000 hours, the filter replacement reminder will light up and continuously flash in white light to remind you to replace the filter. After replacing the filter, simultaneously press and hold the timer + fan speed button for 3 seconds to reset the filter life to 6000 hours. The machine will emit a "beep" sound, and the filter replacement reminder will be turned off, indicating that the reset is successful

OPERATING INSTRUCTIONS - Part 2

Air Quality Good 0-75 Fair 76-150 Poor 151-999
Color of the Air Quality Display Light Green Yellow Red
Wind speed when automatic mode is enabled L:1 L:2 L:3

3-STAGE FILTRATION

3-STAGE FILTRATION

  1. Pre-filter
    • Pre-FiIter captures dust, hair, lint, pet fur and fibers.
  2. H13 HEPA Filter
    • H13 HEPA Filter traps at least 99.97% of airborne particles 0.3 microns in size
    • Trap pollen, pet dander, fine dust and smoke particles
  3. Activated Carbon Filter
    • Activated Carbon Filter helps capture and neutralizes cooking smell, smoke, odors, fumes and VOCs.

TROUBLESHOOTING

Problem Possible Solution
Air purifier will not turn on or respond to button controls.
  • Check that the power plug is connected to a power outlet and the outlet is turned on.
  • Check that air purifier is assembled correctly.
  • Check to see if the power cord is damaged. If it is, stop using the air purifier and connect Customer Support.

Airflow is significantly insufficient
  • Make sure the filter is removed from its packaging and properly assembled.
  • Leave 15 inches of clearance on all sides of the air purifier.
  • Check if the filter is clogged with large particles, such as hair or lint.
  • Replace the filter.

Air purifier makes an unusual noise while working
  • Make sure the filter is properly in place with plastic packaging removed.
  • Make sure the air purifier is operating on a hard, flat, level surface.
  • The air purifier may be damaged, or a foreign object may be inside. Stop using the unit and contact Customer Support. Do not try to repair the air purifier by yourself.

The air purifier produces an unpleasant smell
  • Clean the filter and aroma pad or replace if necessary.
  • Make sure not use air purifier in an area with high humidity or while diffusing essential oils.
  • Contact Customer Support.

Note: If your problem is not listed, please contact Customer Support.

CLEANING & MAINTENANCE

Cleaning the Air Purifier
We recommend that you clean the air purifier at least once every 3 weeks to extend storage and reduce the risk of fire, electric shock

  • Unplug before cleaning.
  • Use only a dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, WAX POLISH, OR ANY CHEMICAL SOLUTION.
  • Vacuum the inside of the air purifier.

Cleaning the Filter

  • The outer pre-filter should be cleaned every 2-4 weeks to increase the efficiency and extend the life of your filter.
  • Clean the pre-filter using a soft brush or vacuum hose to remove hair, dust, and large particles.
  • Do not clean the filter with water or other liquids.

Storage
If not using the air purifier for an extended period of time, wrap both the air purifier and the filter in plastic packaging and store in a dry place to avoid moisture damage.

Brand: ToLife
Tel: 626-476-8559
Email: support@tolifeus.com
Website: https://www.tolifeus.com

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

To reduce the risk of fire, electric shock, or other injury, please follow the instructions before using this product.

  1. Ensure the plug fits properly into a polarized electrical outlet.
  2. This appliance is intended for use in rooms with temperatures ranging from 14º F to 104º, and with a relative humidity of less than 85%
  3. To protect against electrical hazards, keep the air purifier away from wet or humid environments. NEVER place in water or liquid.
  4. NEVER place air purifier on a soft surface such as a bed or sofa as this might cause the unit to tip over and the air inlet or outlet grills to be blocked
  5. NEVER drop or insert any objects into any openings.
  6. Do not use the unit outdoor. This purifier is only suitable for indoor use, please avoid strong sunlight and rain
  7. To avoid fire hazard, keep the cord out of heavy traffic areas, NEVER put the cord under rugs, near heat registers, radiator, stoves, or heaters
  8. Do not handle the air purifier with wet hands. Thoroughly dry your hands before handling any part of the unit.
  9. This unit does not remove carbon monoxide or radon. It cannot be used as a safety device to prevent or clean up accidents with combustion processes and hazardous chemicals.
  10. Always allow 15 inches of clearance on all sides of the purifier.
  11. NEVER use detergents, gasoline, glass purifier, furniture polish, paint thinner, or other household solvents to clean any part of the purifier.
  12. Dot not use the air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support
  13. Plastic film can be dangerous. To avoid danger of suffocation, make the plastic film keep away from children.
  14. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature

  15. To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device
  16. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
  17. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

  18. To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).
