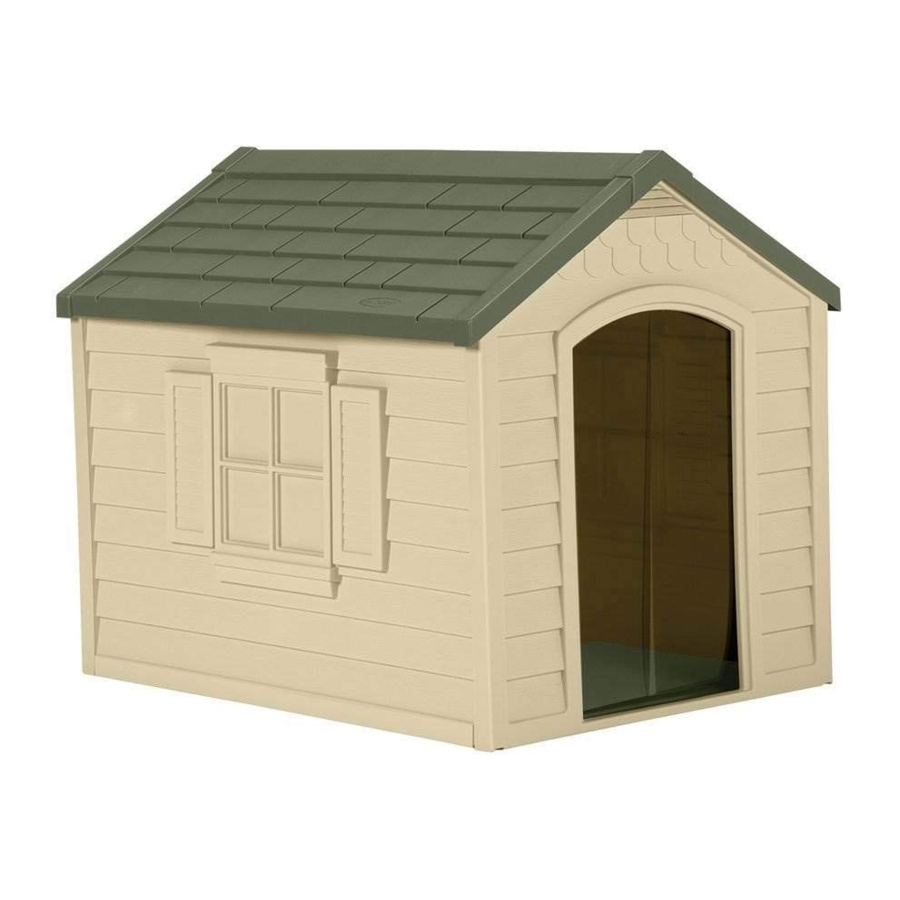

Suncast DH250 Manual

Before you begin...

Read instructions prior to assembly. This kit contains parts that can be damaged if incorrectly assembled. Please follow instructions. Suncast is not responsible for replacing parts damaged due to incorrect assembly.

Assembly Instructions

NOTE:Door Flaps are optional. Flaps can be installed or removed for seasonal use.

  1. Attach Door Flaps to backside of Front Panel D using provided Wing Nuts. Do NOT overtighten Wing Nuts. Set panel aside.
    Tip: In warm weather, open or remove Door Flaps to keep your pet comfortable
    Assembly Instructions - Step 1
  1. Assemble Floor by aligning and inserting the tabs of one Floor Panel B with the corresponding receptacles in other Floor Panel B. Slide and lock the two Floor Panelstogether.
    Assembly Instructions - Step 2
  1. Place one Side Panel A on a flat surface with the letter A facing upward. Starting at one end, align and insert the tabs of the Side Panel with corresponding receptacles in the Floor assembly. Apply pressure to snap into place.
    Assembly Instructions - Step 3
  1. Align tabs of the second Side Panel A with the corresponding receptacles in the Floor assembly. Insert tabs of Floor assembly and apply pressure to snap into place. Support second Panel and immediately stand unit on end.
    Assembly Instructions - Step 4
  1. Choose an end to be the back of the unit, align and insert tabs of Back Panel C into corresponding receptacles of the Side and Floor Panels. Start at the top right hand corner of the dog house and apply pressure to snap tabs into place. Continue along the edge of the Back Panel in a clockwise direction to fully secure the Back Panel to the assembled unit.
    Assembly Instructions - Step 5
  1. Rotate assembly so that Back Panel C is face down. Place tabs of Front Panel D into corresponding receptacles of the Side and Floor Panels. Start at the top right hand corner of the dog house and apply pressure to snap tabs into place. Continue along the edge of the Front Panel in a clockwise direction to fully secure the Front Panel to the assembled unit. Set assembly upright on Floor and set aside.
    Assembly Instructions - Step 6
  1. To assemble Roof, place Roof Panels E at approximately the 45 degree angle shown. Align 4 pegs with corresponding receptacles and slide Roof Panels together to connect.
    Assembly Instructions - Step 7
  1. Rotate Roof Panels outward until the tabs on each end of the panels snap together. Set Roof assembly aside.
    Assembly Instructions - Step 8

Securing to Ground

NOTE:It is recommended that the Dog House be staked to the ground if it is to be located in a windy area.
Your Dog House can be secured to ground by placing stakes in the four stake holes.
Stakes are not included.
To secure to ground use a utility knife to cut through the resin X located in each corner. Insert one stake into each X. Use a rubber mallet to drive stakes into ground.

Use care when using knife. Wear protective gloves to avoid hand injury. Do NOT try to cut completely through resin with a single cut, but rather, score resin with repeated cuts until blade cuts through.
Securing to Ground - Step 1

NOTE: Roof can be assembled in either direction.

  1. Starting at one end, align and place tabs of Roof assembly into the 14 corresponding receptacles in the Front, Backand Side Panels. Apply pressure along the edge of the roof to snap into place moving in a clockwise direction to engage all tabs. Check all connections to verify they are fully engaged. Place assembled Dog House on level surface for use.
    Securing to Ground - Step 2

Cleaning Inside of Dog House

To remove Roof for cleaning, disengage the tabs one at a time by carefully prying on the outer wall of the Roof and pulling upward, working your way around to all of the tabs before completely removing Roof. To clean Dog House use warm soapy water and a towel or sponge. Water will flow out of house through the channel on the floor. To reinstall Roof assembly, follow Step 10.

Ordering Instructions

Call Suncast for pricing information.
Call 800-846-2345 or 630-879-2050.
Monday - Friday 8:00 am - 4:30 pm Central Time. (Except holidays)
Or see www.suncast.com

For information on Suncast products and replacement parts see www.suncast.com
Ordering Instructions

Index No. Part Name Part No Cost Each Qty Ord Total Cost
1 Side panel A (2) 010174028
2 Floor PanelB (2) 010174148
3 Back PanelC (1) 010173928
4 Front Panel D (1) 010173828
5 Root PanelE (2) 010174248
6 Door Flaps (2) 0440430
7 WingNuts(4) 0220037

NOTE: For Dogs up to 70 lbs.

  • DO NOT sit, stand or lean on house.
  • NOT intended for use by children.
  • This product may become susceptible to damage in freezing temperatures.
  • Do NOT store near excessive heat.
  • If parts become broken or cracked, they should be replaced.
  • Place Dog House on a level surface.
