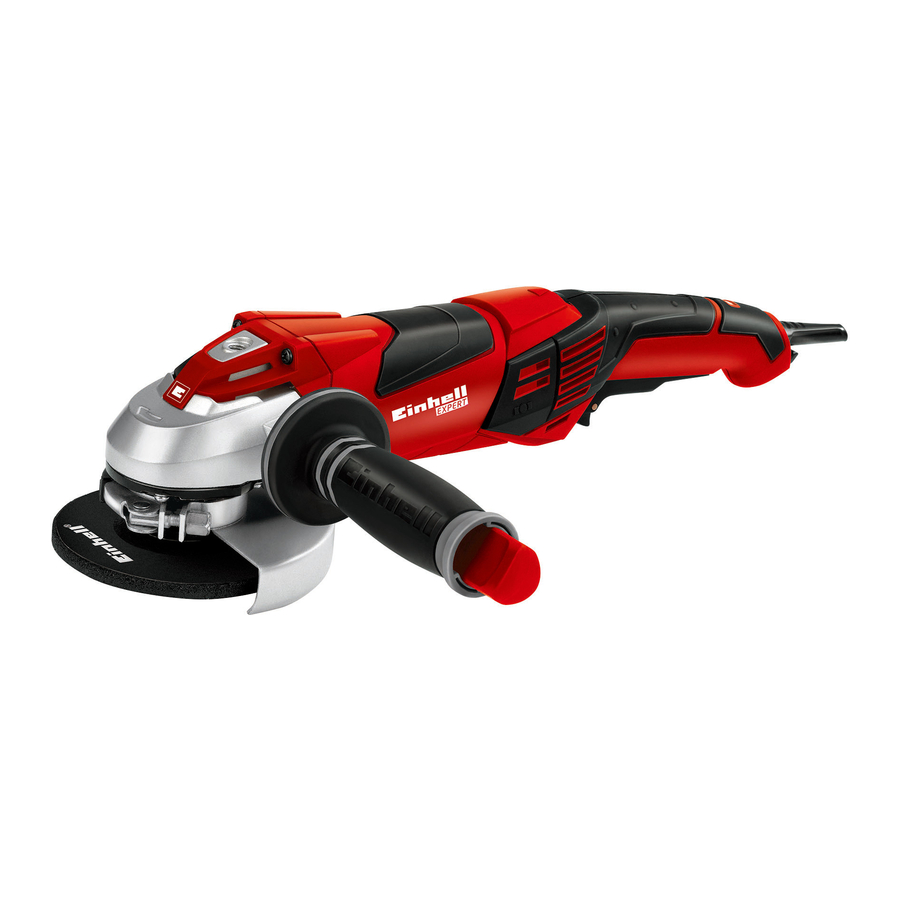

EINHELL Expert TE-AG 125 CE (44.308.60) Manual

EINHELL Expert TE-AG 125 CE (44.308.60) Manual

Also See for TE-AG 125 CE:

Advertisement

EINHELL Expert TE-AG 125 CE (44.308.60) Manual

Safety information


"
Read the operating instructions to reduce the risk of inquiry"

Wear ear-muff s.
The impact of noise can cause damage to hearing.

Wear a breathing mask.
Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Wear safety goggles.
Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

This safety guard is designed for sanding/grinding.

This safety guard is designed for cutting and grinding/sanding.
(not included in items supplied)

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well. We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

Please refer to the booklet included in delivery for the safety instructions.

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.

Layout and items supplied

Layout

Layout

  1. Spindle lock
  2. ON/OFF switch
  3. Additional handle
  4. Guard
  5. Flange nut wrench
  6. Speed controller
  7. Status indicator

Items supplied

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

  • Open the packaging and take out the equipment with care.
  • Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied. Inspect the equipment and accessories for transport damage.
  • If possible, please keep the packaging until the end of the guarantee period.


The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

  • Original operating instructions
  • Safety instructions

Proper use

The angle grinder is designed for grinding metal and stone when using the appropriate grinding wheel and guard.

To cut metal and stone the grinder/sander may only be used when the guard (available as an accessory) is mounted.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Technical data

Mains voltage: 230 V ~ 50 Hz
Power input: 1100 W
Idling speed: 3000-11.000 rpm
Max. wheel diameter: 125 mm
Mounting spindle thread: M14
Protection class: II /
Weight: 2,6 kg

Sound and vibration
Sound and vibration values were measured in accordance with EN 60745.
LpA sound pressure level: 88,2 dB(A)
KpA uncertainty: 3 dB
LWA sound power level: 99,2 dB(A)
KWA uncertainty: 3 dB

Wear ear-muff s.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Handle:
Vibration emission value ahAG = 10,401 m/s2 K uncertainty = 1.5 m/s2

Additional handle:
Vibration emission value ah = 12,213 m/s2 K uncertainty = 1.5 m/s2

Additional information for electric power tools

The specifi ed vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specifi ed value in exceptional circumstances.
The specified vibration value can be used to compare the equipment with other electric power tools.
The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

  • Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
  • Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.

Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

  1. Lung damage if no suitable protective dust mask is used.
  2. Damage to hearing if no suitable ear protection is used.
  3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Fitting the additional handle

Fitting the additional handle

  • The angle grinder must not be used without the additional handle (3).
  • The additional handle can be secured in any of three positions (A, B, C).
Tool side S uitable for
L eft (position A / as shown) R ight-handed users
R ight (position B) L eft-handed users
T op (position C) U sing cutting wheels

Setting the guard

Setting the guard

  • Switch off the tool. Pull the power plug.
  • Adjust the guard (4) to protect your hands so that the material being ground is directed away from your body.
  • T he position of the guard (4) can be adjusted to any specific working conditions. Undo the clamp handle (a) and turn the cover (4) into the required position.
  • Ensure that the guard (4) correctly covers the gear wheel casing.
  • Secure the clamp handle (a) again.
  • Ensure that the guard (4) is secure.

warningTake care that the safety device is secure.
warning Never use the angle grinder without the guard.

Test run for new grinding Wheels

Allow the right-angle grinder to run in idle for at least 1 minute with the grinding or cutting wheel fi tted in place. Vibrating wheels are to be replaced immediately.

Operation

Switch

The angle grinder comes with a safety switch which is designed to prevent accidents. To start, push the locking lever (a) forwards, then press the On/Off switch (2).
Switch

Speed controller
Speed controller
You can select the speed by turning the speed controller (6).
Switch position 1: approx. 3,000 rpm
Switch position 2: approx. 6,000 rpm
Switch position 3: approx. 8,000 rpm
Switch position 4: approx. 9,800 rpm
Switch position 5: approx. 10,500 rpm
Switch position 6: approx. 11,000 rpm
The best speed depends on the area of application and the maximum rated speed of the grinding/sanding tool. Select a speed in the range from 3,000 to 11,000 rpm using the speed control switch (6). You can choose from 6 diff erent switch positions. The speeds in the various switch positions are as follows:

Plus direction: Higher speed
Minus direction: Lower speed

Status indicator (Fig. 1)
The status indicator (7) lights up when the power plug is connected.
warning Wait until the machine has reached its top speed. You can then position the angle grinder on the workpiece and machine it.

Changing the grinding wheels

Use the face spanner (5) supplied to change the grinding wheels. The face spanner (5) is stored in the additional handle (3). Pull the face spanner (5) out of the additional handle (3) when you need it.

For safety reasons, the angle grinder must not be operated with the face spanner (5) inserted in it.
Changing the grinding wheels

Pull out the power plug.

  • Simple wheel change by spindle lock:
  • Press the spindle lock and allow the grinding wheel to latch in place.
  • Open the flange nut with the face spanner.
  • (Fig. 7)
    Pull out the power plug
  • Change the grinding or cutting wheel and tighten the flange nut with the face spanner.


Only ever press the spindle lock when the motor and grinding spindle are at a standstill! You must keep the spindle lock pressed while you change the wheel!
For grinding or cutting wheels up to approx. 3 mm thick, screw on the fl ange nut with the fl at side facing the grinding or cutting wheel.

Flange arrangements when using grinding wheels and cutting wheels

Flange arrangements when using grinding wheels and cutting wheels - Step 1

  • Flange arrangement when using a depressed-centre or straight grinding wheel (Fig. 9)
    Flange arrangements when using grinding wheels and cutting wheels - Step 2
    1. Clamping flange
    2. Flange nut
  • Flange arrangement when using a depressed-centre cutting wheel (Fig. 10)
    Flange arrangements when using grinding wheels and cutting wheels - Step 3
    1. Clamping flange
    2. Flange nut
  • Flange arrangement when using a straight cutting wheel (Fig. 11)
    Flange arrangements when using grinding wheels and cutting wheels - Step 4
    1. Clamping flange
    2. Flange nut

Motor

It is vital for the motor to be well ventilated during operation. Be sure, therefore, to keep the ventilation holes clean at all times.

Grinding Wheels

  • Never use a grinding or cutting wheel bigger than the specified diameter.
  • Before using a grinding or cutting wheel, check its rated speed.
  • The maximum speed of the grinding or cutting wheel used must be higher than the idle speed of the angle grinder.
  • Use only grinding and cutting wheels that are approved for a minimum speed of 11,000 rpm and a peripheral speed of 80 m/sec.
  • Check the direction of rotation when you use diamond cutting wheels. The directional arrow on the diamond cutting wheel must point in the direction in which the tool rotates.

Take special care that the grinding/sanding wheels are properly stored and transported. Ensure that the grinding/sanding wheels are never exposed to shock, jolts or sharp edges (for example during transport or storage in a toolbox). This could cause damage (such as cracks) to the grinding/sanding wheels and place the user in serious danger.

Operating Modes

Rough grinding (Fig. 12)

Use the safety device for sanding/grinding (included in items supplied). For the best rough grinding results, hold the grinding wheel at an angle of between 30° and 40° to the workpiece surface and guide back and forth over the workpiece in steady movements.
Rough grinding

Cutting (Fig. 13)

Use the safety device for abrasive cutting (available as accessory) When you use the right-angle grinder for cutting purposes, avoid tilting it in the cutting plane. The cutting wheel must have a clean cutting edge. A diamond cutting wheel is best used to cut hard stone.
warning It is prohibited to use the machine on asbestos materials!
warning Never use a cutting wheel for rough grinding.
Cutting

Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

Cleaning

  • Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
  • Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualifi ed electrician. Important! The carbon brushes should not be rep laced by anyone but a qualifi ed electrician.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Ordering replacement parts:

Please quote the following data when ordering replacement parts:

  • Type of machine
  • Article number of the machine
  • Identification number of the machine
  • Replacement part number of the part required
    For our latest prices and information please go to www.isc-gmbh.info

Safety guard for cutting (Art. No.: 44.500.33)

Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.
