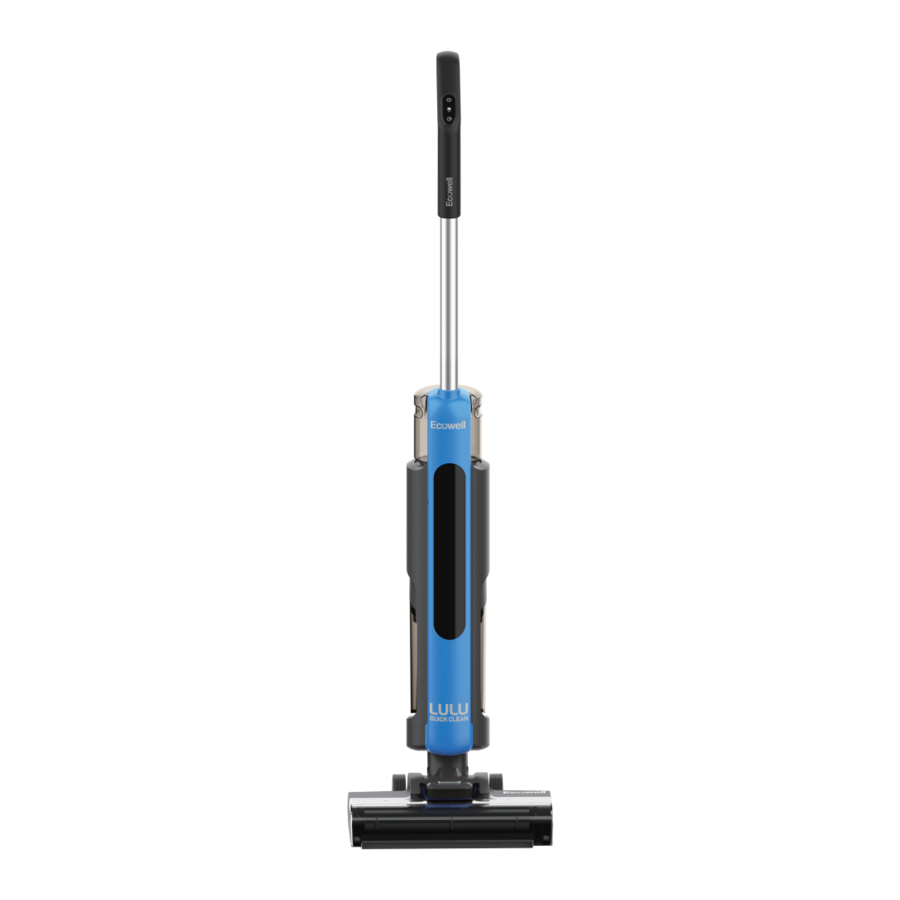

ECOWELL Lulu CL-2001 (P03) Manual

PRODUCT OVERVIEW

TECHNICAL SPECS

Category	Technical Specs
Product model	CL-2001
Operating voltage(V)	29.6V
Rated power(W)	180W
Battery capacity (mAh)	2600mAh
Charging voltage	36V 500mA
Battery model	18650-2600
Adapter model	CZH015360050USWP
Solution barrel capacity(oz)	20.29oz
Primary charging time(h)	5-6h
Continuous working time for one charge(min)	≈ 25mins
Overall dimension(inch)	42.87*11.02*9.33inches
Net weight(lbs)	8.16lbs

• The above data is from our laboratory, and the actual use varies according to the change of the environment.
• Due to the need for continuous improvement of products, the information is subject to actual product, and our company reserves the right to update the products.

PRODUCT INTRODUCTION

PRODUCT DISASSEMBLING

Handle installation instructions

Insert the end of the handle into the port of the host along the vertical direction of the wire so that the arrow mark on the back completely submerges into the body. After hearing the click, ensure that the handle is tight without looseness, that is, the installation is successful.

If you want to disassemble, please insert a tool into the removal hole on the back of the fuselage, firmly press the stop block, and pull the handle upward at the same time to complete the removal.

Take out the clean water tank

To take out the water tank, hold the body with one hand and press the water tank down with the other hand. Rotate and take it out in the direction of arrows and

Install the clean water tank

To install the water tank, hold the water tank and align it with the bottle cap drop hole. First press it in the direction of arrow , and then push it tightly in the direction of arrow . After hearing the click, ensure that the water tank is tight and stable. The installation is complete.

Disassembly and assembly instructions for roller cover

To remove the front cover of the roller, press the front release button with your thumb , pull it up and take out the roller cover .

To remove the roller, pull up the left roller handle with your fingers.

OPERATION

Get Started

• Before use, please check whether your cleaning machine has power. If not, please charge it (refer to "product charging" for details) and use it after it is fully charged.
• Select the use mode according to the actual needs.

• Please do not use foam liquid.
• It is recommended to use large scale water spraying in heavily soiled environments.

The on / off key of the machine is located on the handle, as shown in the figure. Short press this key to start the machine. After startup, the mode defaults to the normal cleaning mode without water spraying. Short press this key again to stop the machine.

The key button of water spray on is shown in the figure. When working, press this key the first time to start small-scale water spray for the floor brush. Press this key the second time to start large-scale water spray for the floor brush. Press this key the third time for the floor brush to stop spraying water.

After using the machine, it is recommended to place it vertically on the tray specially equipped for you.

Fill tank with water

Add tap water
Water spray function. Do not add water higher than 40°C. It is forbidden to add non-original cleaning fluid and unknown chemicals.

1. Unscrew the cap (Fig.1).

2. Inject tap water (below 40 C) the water level (Fig.2).

3. Tightly cover the upper cover of the water tank to ensure that it is tight without looseness (Fig.3).


Product charging

Connect one end of the charger to the host and the other end to the home socket. When charging, please keep the machine upright and close to the corner of the wall to avoid tripping and other injuries.

About indicators

Every 3 months after purchase, please use the charger specially equipped for you by our company to charge the battery for 3 hours (there is no need to fully charge).

PRODUCT MAINTENANCE

CLEAN THE MAIN BODY

In order not to affect the performance of the machine, it is recommended that you maintain its parts regularly.

HOT TIPS
After cleaning, it is recommended to place the whole machine upright in the station. Do not to put it in direct sunlight or a wet place.

1. Please stop the machine before cleaning (Fig.1).

2. Scrub with water or neutral detergent. Be sure to dry the cleaning cloth before scrubbing. Do not infiltrate water into the electrical components of the machine (Fig.2).


Clean the dirty water tank

1. When the dust bucket is full of sewage and reaches the warning line, the water level buoy rises to the preset position, and the machine stops working. Please empty the dirty water tank as soon as possible.
2. After stopping the work, take out the dirty water tank, pour out the sewage, and wash it the tank with water (Fig.3-7).

3. Put the sponge filter element into the drying rack for drying (Fig.8).

4. After cleaning, close the dirty water tank cover, and install it back to the machine body, until hearing the click (Fig.9).


ROLLER SELF-CLEANING

• After using the whole machine, please use the self-cleaning function to keep it clean and tidy.

Before using the self-cleaning function and after the self-cleaning, please clean the sewage in the dirty water tank.

Before self-cleaning, please place the machine in the station. It is recommended to fill the clean water tank with water. Long press the machine self-cleaning button for 1 second to start the self-cleaning procedure. After self-cleaning, the machine will shut down automatically. Each cleaning takes 2 minutes and 5 seconds.

Roller self-cleaning

• It is recommended to clean the roller brush cover regularly after the whole machine is used to keep it clean and tidy.

1. First put your finger on the position as shown in (Fig.1), press the front release button with your thumb, break it up, and take out the roller cover.

2. After removal, rinse with clean water until it is clean (Fig.2).


CLEAN THE ROLLER

• It is recommended to clean the roller after each use of the whole machine to keep it clean and tidy.

1. Pull up the handle at the left end of the roller and remove the roller (Fig.1).

2. The handle of the roller can be removed. Please use a tool to remove the hair or debris wrapped on the roller head, and then wash and dry the roller with clean water (Fig.2).

3. After cleaning, first install the roller handle, and then install the roller into the floor brush. During installation, first align the right concave tooth structure of the roller with the right protruding tooth structure, and then push the left (one end with handle) along the left groove (Fig. 3).


TROUBLESHOOTING

Analysis and treatment of common faults

• This recommendation is made in the previous section.

IMPORTANT TIPS

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING

Before using this product, please carefully read all the contents of this manual and install the machine according to the steps of this manual. Keep this manual properly stored. If you transfer the product to a third party for use, please attach this manual with the machine. Any operation inconsistent with the instructions in the manual may cause product damage or serious personal injury. This product is only suitable for operation in conventional household environments; not suitable for industrial or outdoor use.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Prevent unintentional starting. Ensure the switch is in the off position before connecting to battery pack or picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance while the switch is on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• Do not use a battery pack or appliance that is damaged or modified.
• Damaged or modified batteries may exhibit unpredictable behavior result in in fire, explosion or risk of injury.
• Do not expose appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. The temperature of 130°C can be replaced by the temperature of 265°F.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions.
• Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• The product is not suitable for people with physical, sensory or intellectual defects or lack of experience and common sense (including children), unless supervised or guided by others to ensure its safety.
• Do not touch the plug or any live part of the product with wet hands to avoid the risk of electric shock.
• If the adapter or plug is damaged, please stop using it. Please call our professional maintenance personnel to replace it to avoid harm.
• Do not use high-temperature substances (cigarette butts, matches or hot ash, etc.), ultra-fine substances (such as lime, cement, sawdust, gypsum powder, ash, carbon powder, etc.), large sharp fragments (such as glass, nails, pins, etc.), dangerous goods (such as solvents, descaling agents, etc.), chemicals (such as acids, cleaners, etc.), flammable and explosive liquids (gasoline, alcohol products), or other substances with uncertain physical properties.
• Please keep the airflow channel and moving part of this product away from long hair, loose clothing, fingers, and other parts of the body. Do not point the vacuum tube, accessory suction head, or tools towards your eyes, ears, or mouth.
• When in use, if signs of electric leakage or excessive motor temperature are found, such as overheating, abnormal sound, peculiar smell, weak suction, etc., stop using immediately and call the professional maintenance personnel of the company.
• When charging, please use the charger specially equipped by our company for you; other types of chargers may cause battery failure or extreme thermal effects.
• If the product is not used for a long time, turn off the power supply and unplug the plug of the charging base.
• After using the machine, please clean the recycling bucket in time to keep the ventilation path unblocked, so as to avoid blocking, resulting in reduced suction and motor heating, which will affect the service life of the cleaning machine.
• After using the machine, please keep it in a dry place. Wet places will affect the insulation and service life of electrical appliances.
• The body and floor brush of the cleaning machine are equipped with power on settings and cannot be washed in water.
• Please regularly check the smoothness of the suction nozzle. If there is any blockage, please remove it immediately to avoid the decrease of suction caused by the blockage and affecting the service performance of the machine.
• Do not repair the machine by yourself in case of failure. Please call the after-sales department of the company for help.
• All technical and other data reflected in this product manual are obtained by our company or the designated third-party testing company, and the final interpretation right belongs to our company.
•
  To reduce the risk of fire and electric shock due to internal component damage, use only the specified cleaning fluid intended for use with this appliance. See the cleaning fluid section of this manual.
• To reduce the risk of fire, do not use a flammable or combustible liquid to clean a floor.

SAVE THESE INSTRUCTIONS

About the scope of product use

• This product is suitable for hard floors in indoor environments, including waxed floors, stone grinding floors, rubber floors, marble floors, granite floors, terrazzo floors, solid wood floors, composite floors, bamboo floors, and all kinds of mirror tiles, porcelain tiles and other flat surfaces. If this product is used on uneven ground surface, the best use effect may not be achieved.
• Do not use this product near or on the surface of flammable and explosive objects, which may cause fire and explosion.
• Do not use this product near the working fireplace and heater to prevent the deformation of the machine shell.
• Do not use this washer to absorb detergents, kerosene, gasoline, alcohol, paint, perfume, etc. These liquids may cause short circuit, fire or explosion.
• Do not use this cleaning machine to absorb the toner used inside a laser printer and copier, which may cause fire or explosion.
• Do not use this cleaning machine to absorb sharp objects, such as glass fragments, small toys, pins, paper clips, stones, gypsum, large pieces of paper, etc. These objects may cause blockage and damage the machine.
• Do not use this cleaning machine to absorb any burning or smoking objects, such as soot that has not extinguished the heat source, burning cigarette butts or matches, etc.

About cleaning solution
If a large amount of cleaning fluid penetrates the motor, it will cause danger.

• Please follow the instructions to mix detergent. It is recommended to use cleaners made by our company and our standard manufacturers. The cleaner shall not contain acid, alkali solution or substances harmful to the environment.
• Keep the detergent out of the reach of children. If the cleaning solution accidentally enters the eyes, rinse it thoroughly with clean water; in case of accidental ingestion, seek medical attention immediately.
• Local environmental regulations shall be followed when treating sewage and cleaning solution.

About machine

• Do not disassemble the closed machine by yourself. There are no parts in the machine that can be repaired by customers, and do not try to change the machine, which will lead to danger.
• Using a voltage that does not correspond to the specifications of this product will damage the motor and more likely cause harm to the user.
• The correct rated voltage is indicated on the nameplate.
• Do not shake the machine up and down or collide violently to prevent sewage from flowing into the motor.
• When the motor is working, please do not lift or carry the appliance up and down, and do not tilt the machine to one side or lay it flat to prevent sewage from entering the motor.
• In order to prevent tripping, the machine should be placed against the wall after use.
• Do not use if the solution tank and recovery tank are not properly installed.
• Do not place any small objects at the air outlet, and do not block the air outlet. Remove all small objects that may hinder the smooth air flow at the air outlet to prevent the machine from overheating.
•
  Do not wet the machine body; otherwise fire and electric shock may occur due to short circuit of the machine.

Genuine parts and accessories
We recommend using this appliance only with ECOWELL brand solutions (for carpet and spot cleaners), parts, and accessories. Damage caused by use with other than ECOWELL brand solutions, parts, and accessories is not covered by and may void void your warranty.

TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION MANUAL BEFORE OPERATING PRODUCT.
PLEASE DO NOT RETURN TO STORE.
ALTON IS HERE TO HELP.
Helpline:
1-888-899-0146

Alton Industry Ltd. Group
Manufactured by: Alton Industry Ltd. Group
643 Innovation Dr., West Chicago, IL 60185

For more information, please visit
www.ecowell.com
