Euroscreen SI-H XL 300 Installation And Maintenance Manual

Motorized projector lift
Hide thumbs

Advertisement

Table of Contents

INSTALLATION AND
MAINTENANCE MANUAL
mod. SI-H XL 300
mod. SI-H XL 500
ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE
Any distribution, reproduction, copying or publication of this document is prohibited.

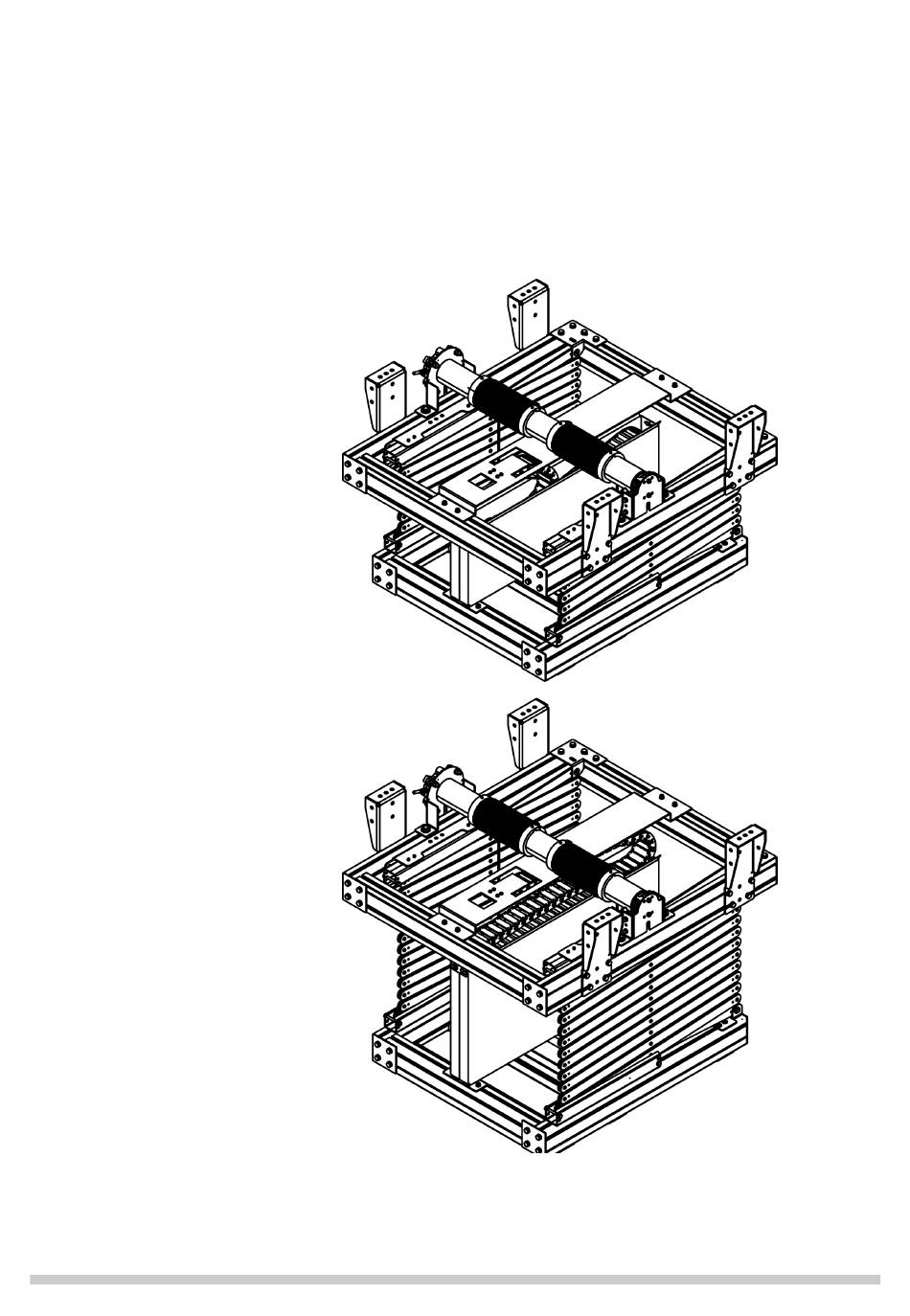

Motorized Projector Lift
Translation into English language
This document is property of Euroscreen Srl.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-H XL 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Euroscreen SI-H XL 300

Summary of Contents for Euroscreen SI-H XL 300

  • Page 1 MAINTENANCE MANUAL Motorized Projector Lift mod. SI-H XL 300 mod. SI-H XL 500 ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE Translation into English language This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 2 INSTRUCTIONS CAREFULLY: - The projector lift must be used INDOORS ONLY. - INSTALLATION OF SI-H XL 300 OR SI-H XL 500 PROJECTOR LIFT HAS TO BE CARRIED OUT FROM QUALIFIED PERSONNEL ONLY. - IT IS FORBIDDEN TO STAY UNDER THE LIFT AND WITHIN A RANGE OF 3 MT.
  • Page 3 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 - DO NOT try to disassemble the lift or to paint the structure, as these operations will invalidate the warranty. - It is compulsory the half-yearly and yearly check. Please fill in the requested fields on the check register at page 22 of this document.

  • Page 4: Warranty Conditions

    Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 2.0 - WARRANTY CONDITIONS This projector lift is guaranteed 2 years from the purchase date for manufacturing defects and 5 years on motor defects. Responsibility is limited to repairing or substitution of the defected components and without any other charge at our expense.
  • Page 5 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 3.0 - PACKAGIND AND SUPPLIED EQUIPMENT LIST When you open the packaging, please CHECK that it contains ALL the components below listed. In case one or more components are missed, please refer to the dealer you purchased the product from.
  • Page 6 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 4.0 - MOTORIZED PROJECTOR LIFTS’ DIMENSIONS 4.1 - PROJECTOR LIFT SI-H XL 300 Side View Frontal View This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 7 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 Upper view of the top structure Ceiling mounting bracket turned OUTSIDE Ceiling mounting bracket turned INSIDE Upper view of the bottom structure Adjustable bracket for...
  • Page 8 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 4.2 - PROJECTOR LIFT SI-H XL 500 Side View Frontal View This document is property of Euroscreen Srl. Any distribution, reproduction, copying or publication of this document is prohibited.
  • Page 9 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 Upper view of the top structure Ceiling mounting bracket turned OUTSIDE Ceiling mounting bracket turned INSIDE Upper view of the bottom structure Adjustable bracket for...

  • Page 10: Installation

    Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 5.0 - INSTALLATION Mount the four metal brackets (C) on the upper aluminum frame of the lift, using the splines of the upper frame both on the right and on the left hand side, as per drawing below.
  • Page 11 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 Connect the metal bracket (C) to the profile by the socket head screws and the crowned nuts, move the metal bracket along the profile in order to position it where needed.
  • Page 12 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 Position the metal brackets as indicated in the drawing below, tighten firmly the socket head screws. Mount the lift onto the ceiling (screws and plugs NOT supplied), taking care that the upper profile is perfectly levelled, both in depth and in width.

  • Page 13: Electrical Connection

    Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 6.0 - ELECTRICAL CONNECTION The motor has the possibility to be controlled via the supplied handheld RF remote control or via wired low voltage contact closures.
  • Page 14 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 This is the electrical connection scheme: Safety System Tubolar Motor Blue (Neutral) Yellow/Green (Earth) Brown (Phase) Brown Blue (Neutral) The projector lift includes a CABLE MANAGEMENT SYSTEM.

  • Page 15: Technical Data

    Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 7.0 - TECHNICAL DATA 7.1 - PROJECTOR LIFT SI-H XL 300 Power supply 230 VAC / 50 Hz Max Consumption 360 W Motor Speed 12 rpm Roll Up / Down Speed 22 sec./metre...
  • Page 16 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 8.0 - FIXING OF THE VIDEOPROJECTOR Roll down the lift by pushing � button on the remote control, in order to lower the lift till the lower end-stop (SERVICE mode), preset in the factory at approx.
  • Page 17 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 Unloose the four screws as shown on the drawing below and position the three profiles where needed. Once you have aligned the splines of the profiles with the anchoring points on the projector, tighten the screws and the bolts of the profiles following a cross scheme.
  • Page 18 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 9.0 - ADJUSTMENT OF PITCHING AND ROLLING OF THE PROJECTOR Projectors have not a regular distribution of the weight on their surface but tent to have unbalancing caused by the lamp, by the optical system and so on.
  • Page 19 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 In order to adjust ROLLING, please tighten or unloose the nuts that act on the tension of the steel cables. This document is property of Euroscreen Srl.
  • Page 20 10.0 - ADJUSTMENT OF THE END STOPS The SI-H XL 300 and the SI-H XL 500 motorized lifts are supplied with a remote control that allows to set three stop positions: 1- CLOSED LIFT: preset by the factory, in closed upper position.

  • Page 21: Use Of The Remote Control

    Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 C- SETTING OF THE INTERMEDIATE STOP (PROJECTION MODE position) - Lower down the lift till half stroke, pressing the remote control button � and stop it with button ■.

  • Page 22: Check Register

    Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 12.0 - CHECK REGISTER Quarterly, Half Yearly and Yearly In addition to the manufacturer inspection guidelines, we recommend you to check your country’s legal obligations for checking and testing of lifting equipment. Check the regulations in force in the country of use on the frequency relating the check of steel cables and anchoring systems.
  • Page 23 Installation and maintenance manual Motorized Projector Lift mod. SI-H XL 300 and SI-H XL 500 12.2 - YEARLY CHECK CHECK STEEL CABLES COVERED BY BLACK PVC – NO STEEL WIRES HAVE TO BE VISIBLE OUTSIDE THE BLACK PVC SCABBARD. CHECK OF THE CEILING FIXING BRACKETS OF THE PROJECTOR LIFT.

This manual is also suitable for:

Si-h xl 500
