FULMINARE PU-P07 Manual

Product Parameters

Please read the instruction manual carefully before use
Please keep the instructions properly

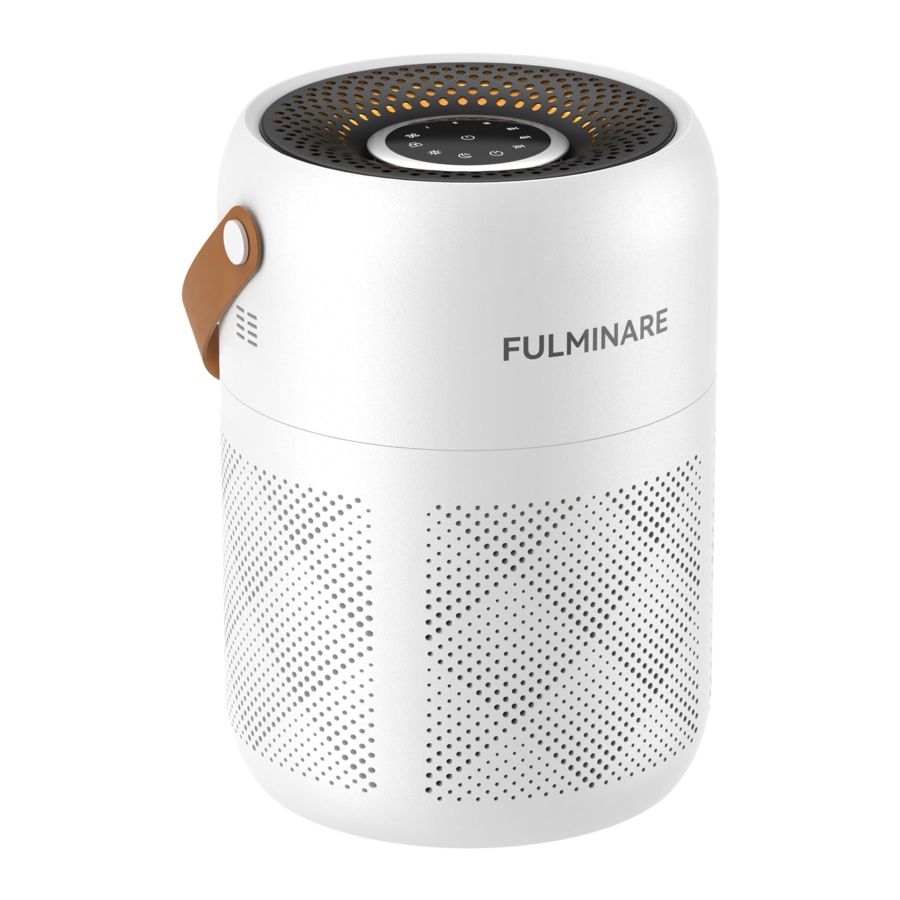

1. Product Name: PU-P07 Air Purifier
2. Product Model: PU-P07
3. Material: ABS/PCBA
4. Input Voltage: DC5V-6.5V MAX
5. Working current: 250mA-680mA
6. Working power: 1.25W-3.5W
7. Product Size: 160*169*211mm/6.3*6.6*8.3"
8. Product Weight: 745g /1.6l
9. Executive Standard: GB4706.45-2008
10. Inspection: Qualified Product
11. Country of Origin: Shenzhen-China

Product Component

Function Operation

1. Power button function (Power button): Click the key for 1st time, turn on automatic mode, and the fan switches gears according to the air quality.
   Click the key for 2nd time, manual model;
   Click the key for 3rd times, manual mode 2;
   Click the key for 4th times, manual mode 3;
   Click the key for 5th times, turn off.
2. Air quality indicator selection (power button): On startup state, the machine will display the current air quality indicator light according to the current air quality. Long press the power button to select the air quality indicator on and off.
3. Type-c input port: The product type-c input port can supply power to the product.

Indicator Light

1. Definition of air quality indicator: when the red light is on, the air quality is very poor. When the blue is on, the air quality is poor; When the green light is on, the air quality is good.
2. Air quality indicator: When the product is connected to the power, the air quality indicator light will turn on red, blue, and green in turn, the air quality indicator light turns green. After the warm-up time (about IOS) is over, the machine changes the indicator color according to the air quality in any mode.
3. Working indication (left - right ): In automatic mode, the automatic mode indicates LED1 lamp to breathe. The machine switches gears according to air quality, and the gear indicator LED2-LED3-LED4 switches long light one by one. In manual mode, the automatic mode indicator is off. Manual mode 1st gear, white LED2 long bright. Manual mode 2nd gear, switch to white LED3 long bright. Manual mode 3rd gear, switch to white LED4 long bright.

Precautions

1. The filter element of this product is recommended to be cleaned every half a month and replaced every three months.
2. When cleaning the filter element, do not wash it with water. Use a hairdryer to blow the inside of the filter element, or use a soft brush or toothbrush to clean the dust attached to the surface of the filter.
3. When cleaning the filter element, please do not knock the filter element, otherwise, the internal structure of the filter element will be damaged and the filtering effect will not be achieved.
4. The applicable scope of this product is 10-20 square meters.lf the space is large, please use the appropriate product.
5. Do not spray corrosive liquid such as essence, essential oil, perfume, etc, on the filter.

Filter replacement steps

1. Counterclockwise to open the host

2. Put out the filter element

3. Put in the replacement filter

4. Clockwise to tighten the host


Product Accessories

Air purifier *1,
Type-c cable *1,
Instructions *1,
Qualified certificate
