Summary of Contents for Sparex S.170552

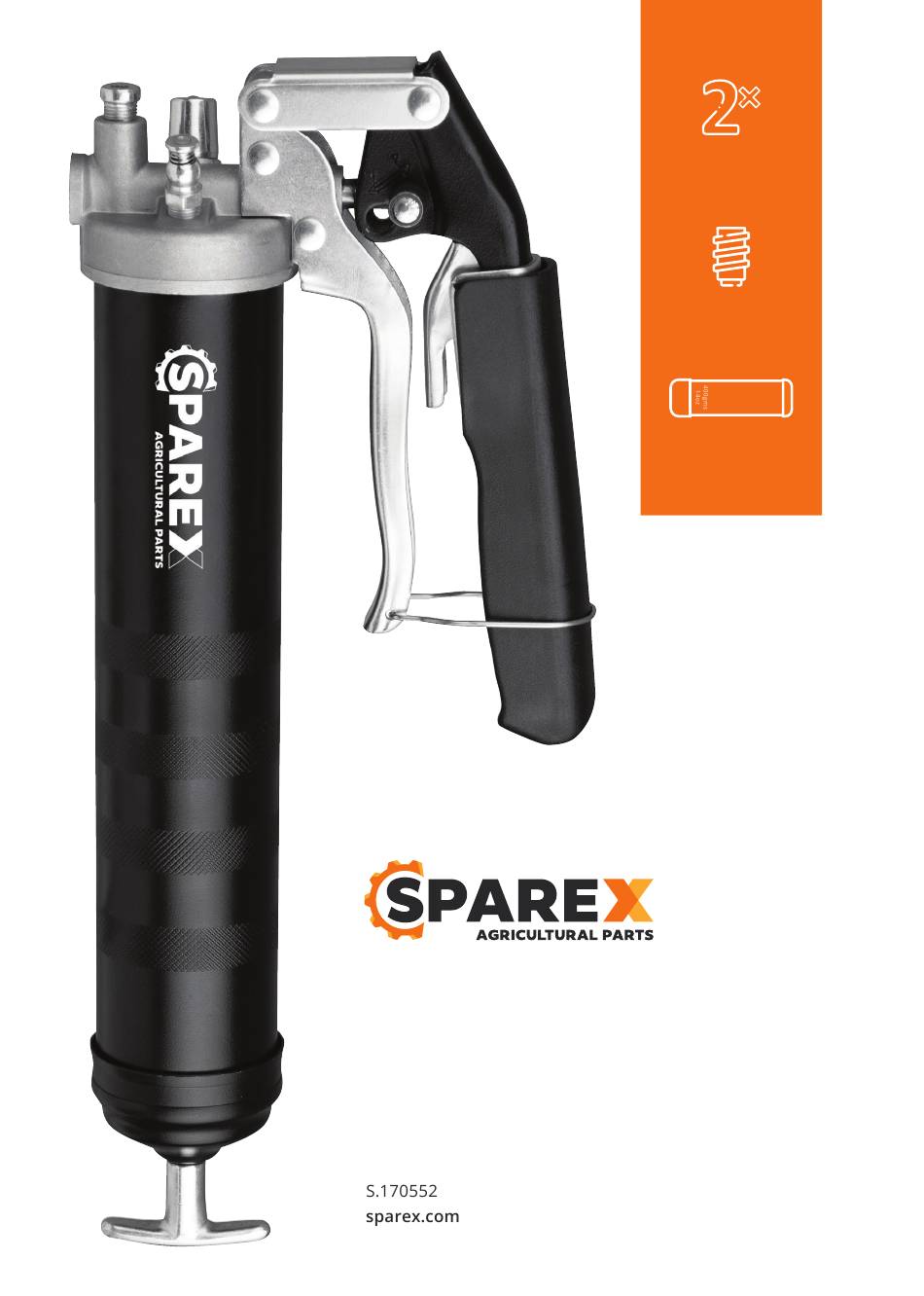

- Page 1 Pistol & Lever Action 1/8” BSPT Thread 400gms / 14oz Capacity Dual Grease Gun Instruction Manual...
- Page 2 Specification High Volume Mode Lever Style Pistol Style Pressure Delivers Pressure Delivers Upto 1.1gms / 5500 PSI (380 Bar) stroke (1 oz. per 26 strokes) Aluminium die cast head with bulk loader and air bleeder valve S.170552 Dual Grease Gun Instruction Manual...
-
Page 3: Safety Information
Removing trapped air Always follow the steps listed above in preparing to load your grease gun before proceeding to the appropriate • After filling grease gun, trapped air should be removed by following the below steps. loading method. S.170552 Dual Grease Gun Instruction Manual... -
Page 4: Troubleshooting
• While pulling the button (10), push the lever towards the grease gun barrel (1) as shown in the figure. 2. For High Volume mode (to achieve max. output and less greasing time) • While pulling the button (10), pull the lever away from the grease gun barrel (1) as shown in the figure. S.170552 Dual Grease Gun Instruction Manual... -
Page 5: Exploded View
Tilt, Twist & nipple Pull Ref No. Parts Description Quantity Grease gun barrel Grease gun head Grease coupler Extension (Rigid steel & Flexible hose) Lever / Pistol Plunger handle` Plunger rod Air release valve Bulk loader valve Button S.170552 Dual Grease Gun Instruction Manual...
