V800 Cabinet Assembly - Frame Kit Assembly
Required Tools
13mm Wrench
24mm Wrench
T30 Torx Driver
4
6
8
9
1-2

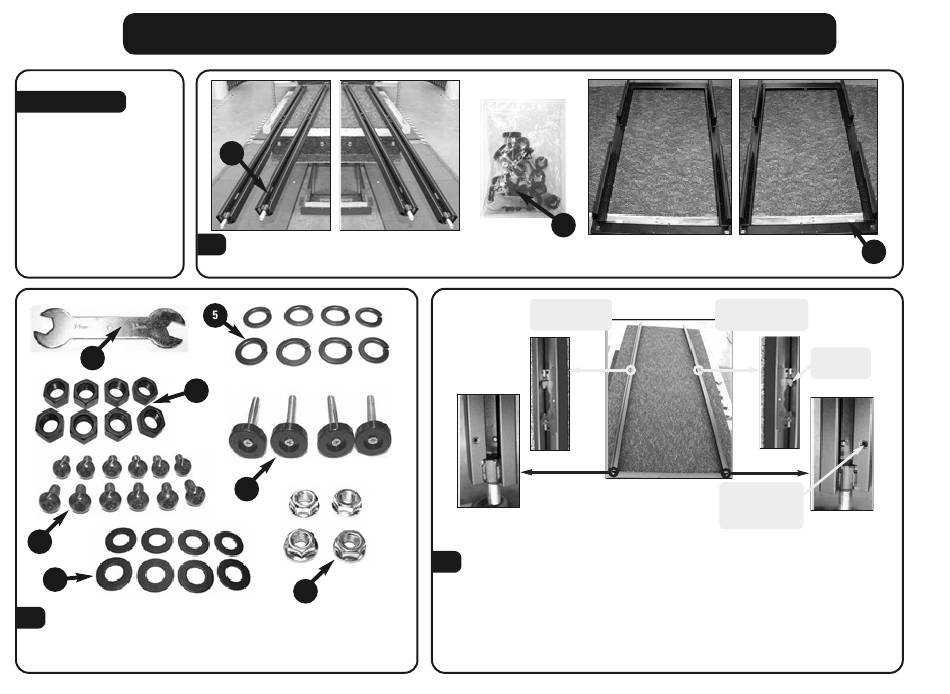

Open hardware kit and verify all components are present. Kit will include one
wrench [4], eight M16 spring washers [5], eight M16 hex nuts [6], four leveling
feet [7], twelve M6-12 torx head screws [8], eight M16 flat washers [9], and
four M6 flange nuts [10]
1
1-1
Gather frame kit and ensure following components are present: four universal vertical frame posts [1], one cabinet hardware kit
[2], and two top/base frames [3].
7
10
2
TOP FRAME
POSITION x2
1-3
Position vertical frames as shown. Ensure two of the vertical frames are positioned with clips
and M6-12 screw holes on the right side and the other two vertical frames are positioned with
clips and M6-12 screw holes on the left.
3
BOTTOM FRAME
POSITION x2
CLIPS
FACE OUT
M6-12
SCREW HOLE
FACES OUT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Siemon V800
Summary of Contents for Siemon V800
- Page 1 V800 Cabinet Assembly - Frame Kit Assembly Required Tools 13mm Wrench 24mm Wrench T30 Torx Driver Gather frame kit and ensure following components are present: four universal vertical frame posts [1], one cabinet hardware kit [2], and two top/base frames [3].
- Page 2 M6-12 Screw Holes Align Vertical Side Panel Slots Frame Face Inward Holes Clips Edges are Flush Face Out Position one base/top frame on one end as shown ensuring side panel slots on frame face in as shown. Slide threaded end of vertical frames through designated holes on base/top frame as shown ensuring clips face out, M6-12 screw hole on vertical frame aligns with designated screw hole on Base/Top, and edge of vertical frame is flush against edge of Base/Top frame.
- Page 3 BOTTOM Using a ratchet, tighten each M16 hexagonal nut on frame as indicated ensuring nuts are secure and vertical frames remain 1-10 Install four leveling feet into threaded ends of vertical frame on bottom of base. perpendicular with base/top frames. NOTE: Torque screws between 65-70 in-lbs [7.34 - 7.91 N-m].
- Page 4 Stud 1-13 1-14 Align hole on bracket with stud on top pane ensuring bracket is oriented accord- ingly. Using a socket wrench, install one flange nut to secure bracket as shown. NOTE: Tighten nuts loose. BOTTOM Install Screw in Hole Closest to Corner 1-15 Using T30 Torx screwdriver, install four M6-12 screws approximately halfway into designated holes on top end of frame as shown.
- Page 5 Notch Notch and Screw are Aligned 1-16 Align cover/brackets subassembly to frame by aligning notch on each bracket to designated screw on frame as shown. Tighten screw and flange nut. NOTE: Torque screws and flange nuts to 35-40 in-lbs of torque. 1-17 Carefully raise cabinet to standing position.
- Page 6 1-21 Push bracket all the way to the front or rear of the cabinet to the desired depth and screw in each mounting rail bracket as shown. 1-22 Install remaining 11 NOTE: Torque each screw to 1-20 Gather 12 mounting rail brackets [16]. Install mounting rail bracket in the mounting rail brackets 35-40 in-lbs of torque.
- Page 7 V800 Cabinet Assembly - Side Panel Assembly Top Panel NOTE: If side panels are not required, skip to Key Lock Section 3 (Door Assembly) Bottom Panel Center Bumper Note difference between bottom panel and top panel. Top panel has Gather one designated bottom side panel [18] key lock installed and bottom panel has center bumper.
- Page 8 Slot on Slot on Frame inside Frame Bottom Tab of Frame Tab on Panel Gather one designated top side panel [20] and two bumpers. Align tabs on bottom edge of bottom Bring bottom panel up and lock slots on each end of panel with bottom tab on each panel with designated slots on bottom side of frame.
- Page 9 3F-1 Gather one full-size front door with SIEMON branding plate [22], four closed end caps [23], three M6x12 torx head screws [24], two black plastic cup washers [25], two M6 taper screws [26], two door hinges [27], two door hinge pins [28] and one door latch bracket [29].
- Page 10 Nylon Bushing Siemon Rests Against Branding Hinge Pin Holder Plate on Door Frame Secure Pin to Door with Closed End Cap Bottom Bottom 3F-6 Slide hinge pin through designated hole on edge of the bottom of the door ensuring NOTE: Nylon bushing must rest against short end of pin faces towards top of door.
- Page 11 3F-9 Gather one ground wire [32], one star washers [30] and Align Screw Holes Gather two split door brackets [33], four M6-12 screws. one M6-12 torx screw [31]. Connect ground wire to the [34]. Install to frame on top and bottom as shown. frame as shown to door.
- Page 12 Note: Stabilizing brackets are included for the purpose of securing a cabinet to a pallet for transport only and can be recycled or discarded if not required. Global Headquarters Watertown, Connecticut USA Tel: (1) 866-548-5814 www.siemon.com For a complete listing of our global offices visit our web site...
