Summary of Contents for Aqua Clear Aqua Air 18

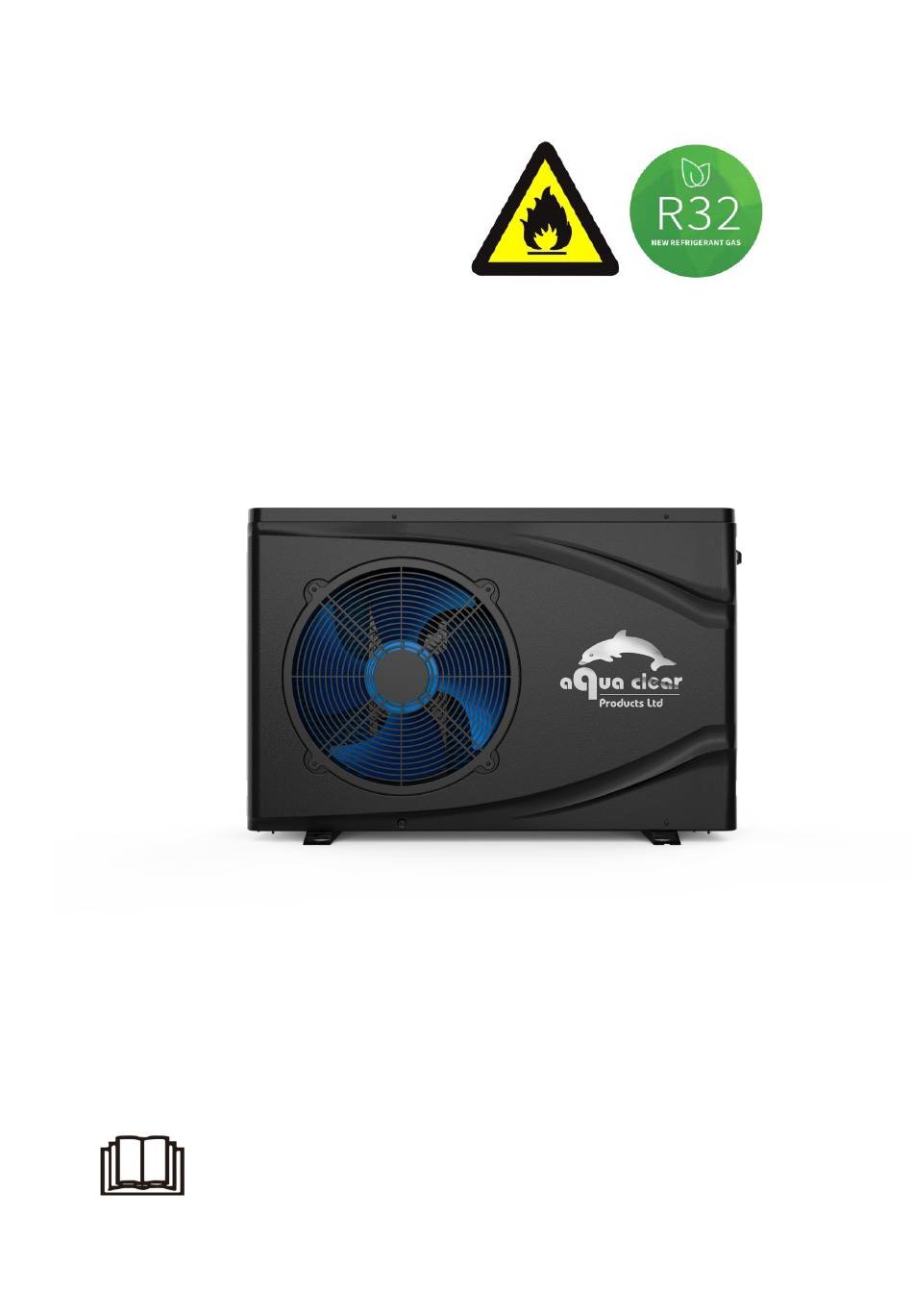

- Page 1 SWIMMING POOL HEAT PUMP Installation & Instruction Manual IMPORTANT NOTE: Thank you very much for purchasing our product. Before using your heat hump, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
CONTENT 1. FOREWORD ..............................1 1.1. Read the Manual Before Operation ....................... 1 1.2. The Symbol Description of the Device ....................6 1.3. Statement .............................. 6 1.4. Safety Factors ............................6 2. OVER VIEW OF THE HEAT PUMP ........................9 2.1. -
Page 3: Foreword
1. FOREWORD 1.1. Read the Manual Before Operation WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). - Page 4 No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
- Page 5 Ensure that the apparatus is mounted securely. Ensure that seals or sealing materials have not degraded to the point that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer’s specifications. Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.
- Page 6 Removal and evacuation When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: ①...
- Page 7 The recovery process is supervised at all times by a competent person; Recovery equipment and cylinders conform to the appropriate standards. ④ Pump down refrigerant system, if possible. ⑤ If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
-
Page 8: The Symbol Description Of The Device
1.2. The Symbol Description of the Device The precautions listed here are divided into the following types. They are quite important, so be sure to follow them carefully.Meanings of DANGER, WARNING, CAUTION and NOTE symbols. Symbols Meaning Description The symbol shows that this appliance uses a flammable refrigerant. - Page 9 If the unit is not secure or not installed, it may cause damage. The minimum support weight required for installation is 21g/㎜² If the unit was installed in a closed area or limited space, please consider the size of room ...
- Page 10 High speed running fan will result in serious injury. ⑨ This device is not designed for people who is physically or mentally weak (including children) and who does not have experience and knowledge of heating and cooling system. Unless it is used under direction and supervision of professional technician, or has received training on the using of this unit.
-
Page 11: Over View Of The Heat Pump
After unpacking, please check if you have all the following components. ① ④ Components Quantity Components Quantity ② User Manual Drain Pipe ③ Anti-vibration Pad Water Pipe Joint ⑤ Drain Connector 2.2. Dimensions of the Heat Pump Dimension heat hump：(mm) Model Aqua Air 18 1000 Aqua Air 25 1130... -
Page 12: Main Parts Of The Heat Pump
2.3. Main Parts of the Heat Pump Aqua Air 18 Aqua Air 25 ① ⑨ ⑰ ② ⑩ ⑱ Motor Support Fan Cover Middle Partition ③ ⑪ ⑲ Left Plate Wire Controller Right Handle ④ ⑫ ⑳ Left Handle Top Cover... - Page 13 Aqua Air 18 Aqua Air 25 ① Electrical Box Cover ① ② ② Electrical Box Cover ③ ③ Mainboard Two-Position Terminal ④ Electrical Box Fan Capacitor ⑤ Driver Board Mainboard ⑥ ⑦ Electrical Box...
-
Page 14: Parameter Of The Heat Pump
2.4. Parameter of the Heat Pump Model: Aqua Air 18 Aqua Air 25 Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C. Heating Capacity (kW) 4.34~18.1 5.05~25.28 Power Input (kW) 0.27~2.81 0.31~3.89 16.1~6.4 16.2~6.5 Heating Capacity (kW) 18.1 25.28 Boost Mode Heating Capacity (kW) 14.01... -
Page 15: Installation And Connection
3. INSTALLATION AND CONNECTION WARNING: The heat pump must be installed by a professional team. The users are not qualified to install by themselves, otherwise the heat pump might be damaged and risky for users’ safety. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. -
Page 16: Installation Instruction
2.In order to guarantee the heating efficiency, the water pipe length should be ≤10m between the pool and the heat pump. 3.3. Installation Instruction 3.3.1 Pre-requirements Equipment necessary for the installation of your heat pump: ① Power supply cable suitable for the heat hump’s power requirements. ②... -
Page 17: Location And Space
3.3.3 Location and Space Please comply with the following rules concerning the choice of heat pump location. ① The heat hump’s future location must be easily accessible for convenient operation and maintenance. ② It must be installed on the ground, fixed ideally on a level concrete floor. Ensure that the floor is sufficiently stable and can support the weight of the heat hump. -
Page 18: Electrical Installation
⑤ In places open to the public, it is mandatory to install an emergency stop button close to the heat pump. Power Supply Wires Model Electricity Supply Cable Diameter Specification Aqua Air 18 3G 4.0mm² AWG 12 220-240V~/50Hz Aqua Air 25 5G 2.5mm² AWG 14... -
Page 19: Electrical Connection
3.3.6 Electrical Connection WARNING:Power supply of heat pump must be disconnected before any operation. Please comply with the following instruction to connect heat pump. Step 1: Detach electrical side panel by a screwdriver to access electrical terminal block. Step 2: Insert cable into heat pump heat hump port. Step 3: Connect power supply cable to terminal block according to the diagram below. - Page 20 ④ Are there any leakage in the whole heating circulation system; ⑤ Condensate drain is normal or not; ⑥ Are there any abnormal sound or vibration during running?
-
Page 21: Control Function Description
4. Control Function Description 4.1 Operation Description 4.1.1 Control Panel Diagram 4.1.2 Panel Symbol Description Symbol Name Symbol Name Symbol Name Heating Mode On-off Silent Mode Defrosting Cooling Mode Smart Mode Key lock Powerful Mode Down Fault Mode Wi-Fi... -
Page 22: Operation Guideline List
4.1.3 Operation Guideline List Item Operation Way Press the " " and " " keys for 3 seconds in the main interface to Unlock unlock /lock the screen. In the main interface, press and hold the " " key for 3 seconds to turn On-off on / off. - Page 23 Item Operation Way Press " " for 3 seconds to enter the timing setting: Enter timing selection,the hour of "Timing On 1" will flash ,collect " " and " "can set hour; Click " " again to switch to the minute of "Timing On 1"...
-
Page 24: Fault Code And Solution
Code Meanings Water inlet temperature Water outlet temperature Ambient temperature Exhaust temperature Suction temperature Heating coil temperature Cooling coil temperature Main EEV opening Reserved Compressor current IPM temperature DC bus voltage value Actual speed of compressor DC fan speed 4.2 Fault Code and Solution 4.2.1 Fault Code Description 1) In the running process of unit, the unit may be faulted if the following code is displayed, please turn off power switch of the unit and turn on power switch of unit again after 30 seconds. - Page 25 (According to actual model) Measure the pressure value when heat pump is heating(cooling), if it’s lower than 6 bar, it means heat pump has got really lower pressure protection: Er 06 Low pressure Protection 1.Maybe there is some leakage in the refrigeration system;...
- Page 26 E20 fault will display the following error codes at the same time, the error codes will switch every 3 seconds. Among them, error codes 1-128 appear in priority. When error codes 1-128 don’t appear, then it will show error codes 257-384 . If two or more error codes appear at the same time, then display error codes accumulation.
-
Page 27: Trouble Shooting
1. AC overcurrent (currently available for external models with a separate filter board), the load is suddenly too large to reduce the frequency 2. Compressor overpower (combined plate, three-phase 380V, no AC over-current or single filter plate model) the load is suddenly too large to reduce the compressor overpower frequency too late 3. -
Page 29: Wi-Fi Settings
5. WI-FI SETTINGS 5.1. Software Installation Scan the QR code below. 5.2. Software Startup After installation, click “ ” on your desktop to start up Smart Life. 5.3. Software Registration and Configuration 1. Registration ① Users don’t have account can click “Register” to create an account: Register Enter your phone number Get Verification Code... - Page 30 ② After registration, you need to Create a Home: Create a Home Set Home Name Home Location Add Rooms. 2. Account ID+ Password Login ① Existing accounts can be logged in directly, in the following order.
- Page 31 ② If you forget your password you can choose to login with your verification code and select "Forget Password": Enter your phone number Get verification code . ③ After creating a home or logged in,enter the main interface of APP.
-
Page 32: Wi-Fi Module Configuration Steps
Note: Click the device to check the status, and you can set the operating mode, ON/OFF, timer. Click “＋” to add devices. 5.4. Wi-Fi Module Configuration Steps Method 1 Step 1: EZ Mode: When power is on, press and hold the keys at the same time for 3 seconds to enter the distribution network. - Page 33 Step 3: Open the "smart life" APP, log in into the main interface, click on the top right corner "+" or "add equipment" of the interface, enter the equipment type selection, the "Large Home Appliances", select "Smart Heat Pump" equipment and add equipment into the interface.
- Page 34 Step 4: After selecting "Smart Heat Pump", enter the interface of "Add Equipment", and confirm that the wire controller has selected the EZ mode. After the indicator light under flashes rapidly, click" Confirm indicator rapidly blink ". Enter the Wi-Fi connection interface, enter the Wi-Fi password of the mobile phone (it must be the same as the Wi-Fi of the mobile phone), click "Next", and then directly enter the connected status of the device.
- Page 35 Step 1 AP Mode: Press and hold the keys at the same time for 3s to enter the distribution network. The " " icon will flash slowly. Step 2&3 Same with EZ Mode above. Step 4 After entering the add device interface, click "EZ Mode" in the upper right corner; Enter the AP mode to add the device interface, confirm that the AP mode has been selected, and click"Confirm indicator slowly blink".
- Page 36 Enter the mobile phone Wi-Fi connection interface, find the “Smart Life_XXXX” connection, and the APP will automatically enter the device connection status. Step 5 : Same as EZ mode above. Note: If the connection is failed, please enter the AP mode manually and reconnect according to the above steps.
-
Page 37: Software Function Operation
5.5. Software Function Operation After the device is bound successfully, enter the operation interface of “Smart heat pump” (Device name, modifiable) In the main interface of “Smart Life”, click “Smart heat pump” to enter the operation interface. ① Back ②... - Page 38 Modify device name Click in the following order to enter device details, and click "Device Name" to rename the device. Device sharing To share a bound device, the user should do so in the following order. After successful sharing, the list will be added to show the person shared ...
- Page 39 Enter the account of the shared, click "Done", and the share success list shows the newly added account of the Shared. The interface of the person to be shared is as follows. The received shared device is displayed. Click it to operate and control the device.
-
Page 40: Device Removal
5.6. Device Removal 1.By wire controller Long press for 3s to enter EZ mode, it returns to connection state and flashes rapidly again. Long press for 3s to enter AP mode, it returns to connection state and flashes slowly again. 2.By APP Click “... - Page 41 Note: The Tuya APP will update the interfaces according to the user’s feedback. The specific operations and interfaces are referred to actual version.
-
Page 42: Maintenance And Winterzing
6. MAINTENANCE AND WINTERZING 6.1. Maintenance WARNING:Before undertaking maintenance work on the heat hump, ensure that you have disconnected the electrical power supply. Cleaning The heat pump’s casing must be cleaned with a damp cloth. The use of detergents or other household products could damage the surface of the casing and affect its properties.
