50,000PXV
QUICK HITCH
MANUAL
SPARE PARTS
Published: 15 March 2023
ID: M022 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50,000PXV and is the answer not in the manual?

Questions and answers

Summary of Contents for Autoguide 50,000PXV

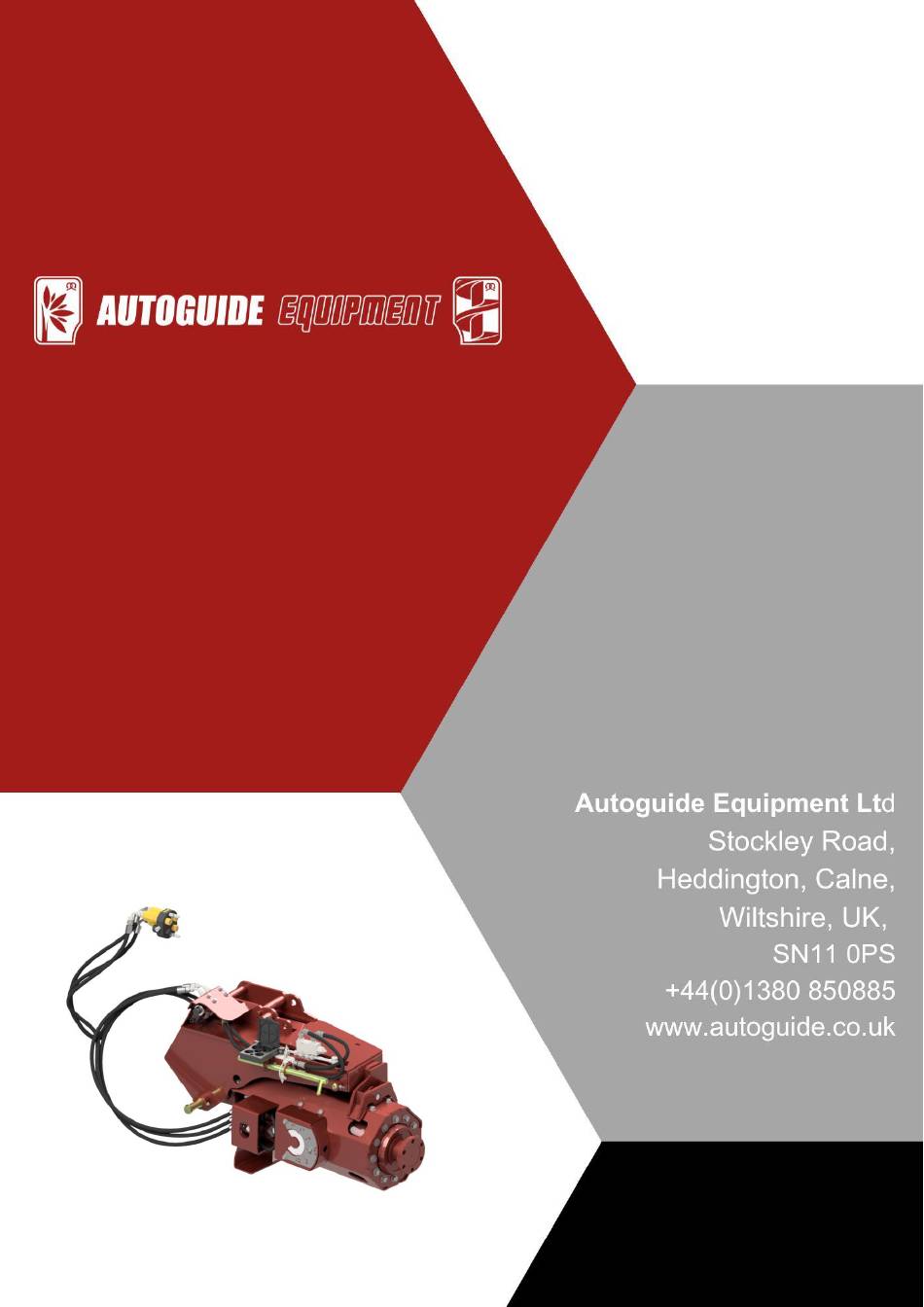

  • Page 1 50,000PXV QUICK HITCH MANUAL SPARE PARTS Published: 15 March 2023 ID: M022 1.6...
  • Page 3 These instructions give safety and operations information regarding the use of a Crane Mounted Auger Powerhead, Quick Hitch and Hydraulic Fold-Up bracket supplied by Autoguide Equipment. They contain the relevant information for products: Maximum Output Product Code Description Weight (Kg)
  • Page 4: Table Of Contents

    Troubleshooting ......................... 21 End of Life ..........................22 Spare Parts ..........................23 27649 – 50,000PXV Auger Power Head ................23 41700 – Fold Up Bracket ......................25 34250 – Fold Up Bracket Hydraulics ..................27 34312 – Quick Hitch Assembly ....................29 30733 –...
  • Page 5: Information

    NFORMATION Your Powerhead has been individually built with great emphasis on quality, strength and simplicity of design and with routine care will give many years of trouble free operation. The following instructions have been written to cover the use and maintenance of the machine. Care should be taken to ensure that you are referring to the correct section of your machine before carrying out any adjustments, or when ordering spare parts.
  • Page 6: Auger Selection

    With this information the correct auger can be selected to give increased penetration and speed. Soils are classified into 9 categories ranging from hard rock to loose silt. To determine which category will be being augured, a soil probe kit is available from Autoguide Equipment. Typical Probe Values...
  • Page 7: Aggressor Augers

    Once the soil classification is known the appropriate auger can be selected. Aggressor Augers Designed for drilling in loose soil and sand, Aggressor Augers come in 1.2m lengths, with an optional 1m extension. These suit Powerheads with up to a maximum rated output of 4500Nm. They use a 2” hexagon socket industry standard drive.
  • Page 8 If additional down force is require a Rockmaster hammer system is available from Autoguide. Autoguide have a wide range of different Augers available to dig holes ranging from 6” to 36” diameter in all soil classifications. These can be both rented and purchased.
  • Page 9: Powerhead Installation

    The Autoguide ‘Quick Hitch’ has been designed to enable ‘attachments’ for lorry-mounted cranes to be fitted or changed more easily utilising hydraulic power from the base unit.
  • Page 10 Assembly 2 comprises a fixed jaw D, a rotating claw E, a safety catch F, a safety pin G, a hydraulic cylinder H, locking/isolator valve I, and handle J. Note: The hitch may only be operated with the hydraulic/electrical (Faster) coupler disconnected...
  • Page 11: Mounting The Attachment

    Mounting the Attachment 1. The attachment must be positioned on a suitable flat surface and aligned such that its mounting plate is presented at a suitable angle to the crane boom. IMPORTANT: Do not at this stage connect the 3-way hydraulic coupler.
  • Page 12 4. Move the crane so that the fixed jaws D capture the attachment pin B. 5. Extend the crane boom, tipping the Powerhead forwards to position the second locking pin so that it can be secured by the claws.
  • Page 13 6. Operate the hydraulics to close the claws around the second shaft C, lifting the crane boom slightly to aid the movement of the claws. This process is not visible but a claw rotates to secure the second shaft. 7. Once the claws are fully engaged the safety catch will click into the locked position.
  • Page 14: Pre-Operation Check List

    9. Connect the hydraulic/electrical 3- way connector (‘Faster Coupler’) to supply power to the attachment. 10. Operate the cranes’ auxiliary circuit to test the Powerhead and ensure rotation. 11. Raise and lower the crane boom to make sure that there is no interference with the boom or swivel bracket.
  • Page 15: Powerhead Operation

    OWERHEAD PERATION Operating the Hydraulic Fold-Up Bracket Releasing the Powerhead 1. Position the crane boom angled towards the ground as shown. 2. Slowly lower the catcher arm through 90° by operating the hydraulic circuit.
  • Page 16 3. When the catcher arm is perpendicular to the bracket, the latch will automatically be released and the Powerhead will swing free. 4. Raise the catcher arm back into its home position using the hydraulic circuit 5. The Powerhead is now ready for use.
  • Page 17: Storing The Powerhead

    Storing the Powerhead 1. Position the crane boom angled away from the ground as shown so that the Powerhead hangs free. 2. Lower the catcher arm and allow it to rotate so that it makes contact with the Powerhead and rotates through 90° from starting position.
  • Page 18 latch plate at the base of the Powerhead, ensuring the pin has gone through all three layers of steel. 4. Once the latch is in place, raise the catcher up back into its home position to stowaway the Powerhead.
  • Page 19: Drilling Holes

    Drilling Holes 1. Attach the Auger to the Powerhead by sliding it over the hexagon bar output. 2. Insert the safety pin through the corresponding holes on both the Auger and Powerhead. 3. Carefully raise the Powerhead on the crane into position with the tip of the auger resting on the ground at the desired hole position.
  • Page 20 Rock Ripper augers will drill very hard material but the rate of penetration depends on the down force available. The Rockmaster hammer system available from Autoguide permits high penetration rates even with lorry mounted cranes.
  • Page 21: Dismounting The Attachment

    Dismounting the Attachment 1. Move the crane until the attachment is positioned on a suitable bracket or set on solid ground for stability. a. In the case of the pole grab (if fitted) this will usually be carried on a custom bracket so ensure it is firmly clamped in position.
  • Page 22 4. Next open the locking valve I and pressurise the claw operating cylinder (Auger DIG). 5. Remove the safety pin G and move the safety latch F to the UNLOCK position by pulling handle J. 6. Standing clear of the equipment, release the claw by pressurising the ram (Auger REVERSE).
  • Page 23: Troubleshooting

    ROUBLESHOOTING Symptom Possible Cause Action Jerky Cold Oil Allow time to warm up Air in Pipes Check oil Level Non Compatible Quick Couplers Use Matched pairs Non Compatible Quick Couplers Replace Hoses too small for flow Replace Wrong Model Powerhead Select appropriate model Slow Pump Failing...
  • Page 24: End Of Life

    ND OF When the machine reaches the end of its useable lifetime it is important that the independent elements of the machine are reused, recycled or disposed of suitably. Component What to do? Metals All metals should be recycled with an appropriate scrap metal merchant, preferable sorted into metal type.
  • Page 25: Spare Parts

    PARE ARTS 27649 – 50,000PXV Auger Power Head...
  • Page 26 Code Description 27649 50,000PXV Auger Power Head Code Description Quantity 27648 BODY W/A 50,000 PXV 34637 TOP PLATE W/A 27671 MOTOR & GEARBOX 35030 PARKING FOOT 50.000 (2010) 03807 BOLT M010 X 020 SET 02702 WASHER M010 FLAT FORM C...
  • Page 27: 41700 - Fold Up Bracket

    41700 – Fold Up Bracket...
  • Page 28 Code Description 41700 Fold Up Bracket Code Description Quantity 42578 CATCHER ARM ASSEMBLY 2018 40727 RAM MOUNT W/A 2018 01599 D/A RAM (FOLD-UP BRKT) 27218 LINK OPERATING ARM 27268 FLANGED BUSH 33977 EXTENDED PIVOT SHAFT W/A 42597 RAM PIN REAR W/A 2018 27222 RAM PIN FRONT W/A 27253...
  • Page 29: 34250 - Fold Up Bracket Hydraulics

    34250 – Fold Up Bracket Hydraulics...
  • Page 30 Code Description 34250 Fold Up Bracket Hydraulics Code Description Quantity 3545 'FASTER' QUICK RELEASE COUPLER 8712 SOLENOID VALVE 8637 DUAL CROSS LINE RELIEF VALVE 2735 SINGLE OVERCENTRE VALVE 34986 10S STEEL HYDRAULIC TUBE 100 LG 34985 10S STEEL HYDRAULIC TUBE 160 LG 9857 10S BANJO FITTING...
  • Page 31: 34312 - Quick Hitch Assembly

    34312 – Quick Hitch Assembly...
  • Page 32 Code Description 34312 Quick Hitch Assembly Code Description Quantity 34301 SIDE PLATE - QUICK HITCH 34303 PRIMARY LATCH W/A 34292 CLAW W/A 34568 D/A RAM MODIFIED (701/1) 34299 RAM PIN - QUICK HITCH 34297 CHROME SHAFT Ø25 X 150 34296 PIVOT PIN Ø20 X 113 34302 SPACER TUBE 22 X 16.5 X 113...
  • Page 33: 30733 Quick Hitch Latch Pin

    30733 – Quick Hitch Latch Pin Code Description 30733 Quick Hitch Latch Pin Code Description Quantity 30733 W/A LOCKING PIN EXTENDED 5591 SHAFT LOCKING PIN 3/8IN X 57...
  • Page 34: Stowage Cradle

    Stowage Cradle...
  • Page 35 NUT M012 NYLOC 30061 SHIM - 250 A/F POWERHEAD 1.0T 30701 GAUGE BOX W/A 30200 GAUGE SCALE 0-6 STAINLESS 8635 GAUGE 0-400 BAR 6IN BOTT ENT Code dependant on Top Level Part number. Contact Autoguide for advice on part code.
  • Page 36: Stowage Frame

    Stowage Frame...
  • Page 37 BOLT M016 X 120 3941 NUT M016 NYLOC P 3866 BOLT M012 X 050 2105 WASHER M012 FLAT FORM C 35083 HOOK W/A 1207 BOLT M012 X 060 Code dependant on Top Level Part number. Contact Autoguide for advice on part code.
  • Page 38 Autoguide Equipment Stockley Road Heddington Nr. Calne Wiltshire SN11 0PS England Tel: +44 (0) 1380 850885 Website: www.autoguide.co.uk...
