MFlux 5 Mobile Air Filter
Manual
Producer
Laguna Tools Inc.
744 Refuge Way, Suite 200 Grand Prairie, Texas 75050
USA
Phone: +1 800-234-1976
Website:
www.lagunatools.com
Distributor
IGM nástroje a stroje s.r.o.
Ke Kopanině 560, 252 67, Tuchoměřice
Czech Republic, EU
Phone: +420 220 950 910
E-mail:
sales@igmtools.com
Website:
www.igmtools.com
2024-11-18
151-MFlux5 LAGUNA Mobile Air Filter Manual EN v1.02.00 A4ob
VZOR_Návod k obsluze STROJ EN v1.00.00
151-MFlux5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGM MFlux 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for laguna IGM MFlux 5

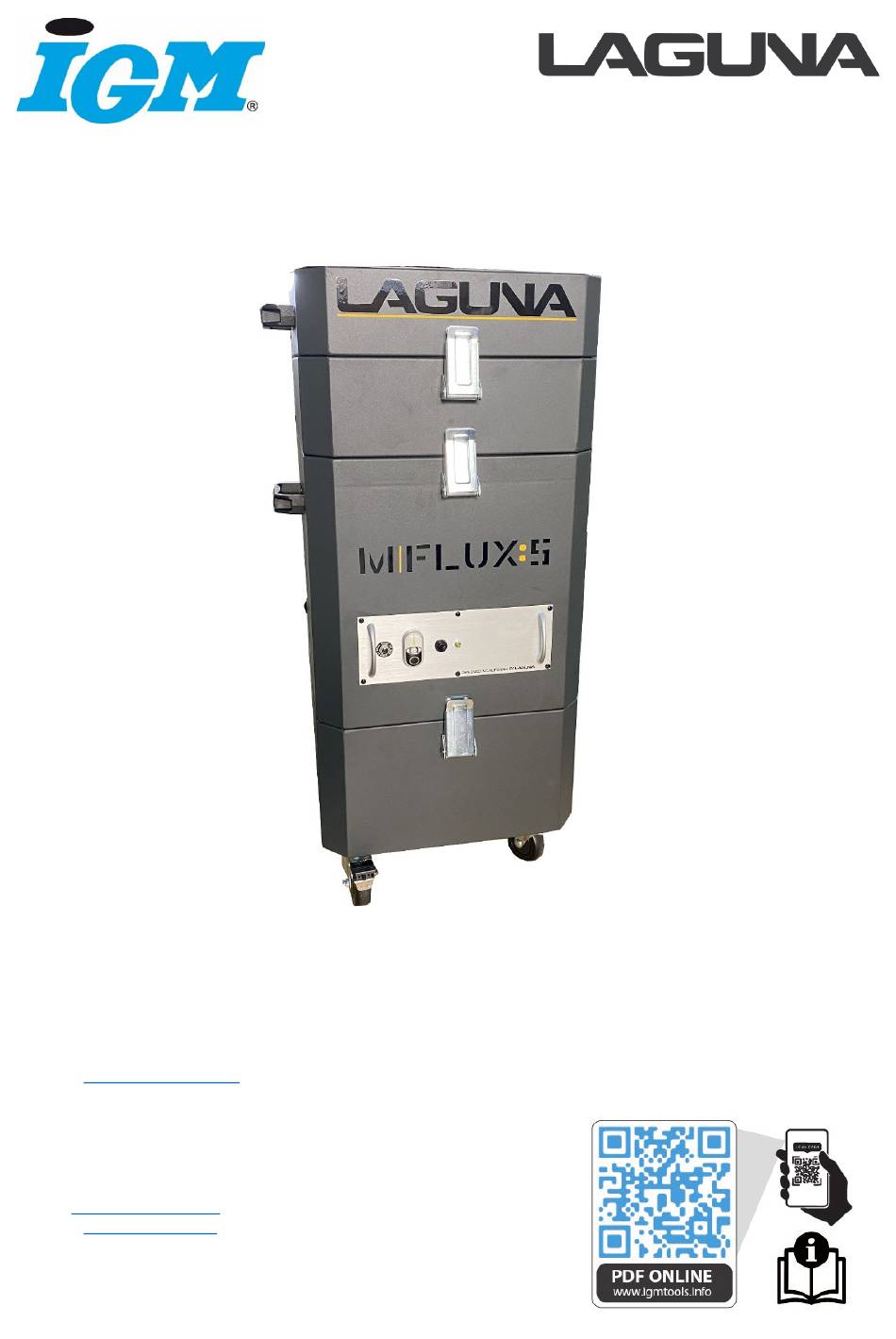

  • Page 1 Distributor IGM nástroje a stroje s.r.o. Ke Kopanině 560, 252 67, Tuchoměřice Czech Republic, EU Phone: +420 220 950 910 E-mail: sales@igmtools.com Website: www.igmtools.com 2024-11-18 151-MFlux5 LAGUNA Mobile Air Filter Manual EN v1.02.00 A4ob VZOR_Návod k obsluze STROJ EN v1.00.00...
  • Page 2: Table Of Contents

    Dear customer, thank you for the confidence you have placed in us with the purchase of your new Laguna machine from IGM. This manual was prepared for the owner and operator of IGM LAGUNA MFlux 5 Mobile Air Filter to promote safety during setup, operation and maintenance.
  • Page 3: Ec Declaration Of Conformity

    According to the following EC Directives - Machinery Directive: 2006/42/EC The applicant: LAGUNA TOOLS, INC./ 744 Refuge Way, Suite 200, Grand Prairie, Texas 75050 USA Manufacturer: SAN FORD MACHINERY CO., LTD./ No.169, Chung shan Rd., FengYuan Dist., Taichung City 420, Taiwan (R.O.C.), Taiwan, manufacturer, declares that the machine described hereafter:...
  • Page 4: Warranty

    1.1 Warranty IGM always strives to deliver a high-quality and efficient product. The warranty is governed by the valid terms and conditions of IGM. 2. Product Specifications Machine Dimensions (LxWxH): 483 x 452 x 925 mm Machine Weight: 45,1 kg Package Dimensions (LxWxH): 960 x 490 x 480 mm Package Weight:...
  • Page 5: Symbols

    3.3 Symbols Read the manual and all instructions carefully before use. Wear eye protection. Wear respiratory protection. Disconnect the machine from the power supply. Scan the QR code to find the manual. CE mark: The product is in compliance with EEA directives. Do not dispose of the appliance in the municipal waste.
  • Page 6: Environment

    Do not use the machine if the power cord or plug is damaged. All repairs may be carried out only by a qualified electrician! 3.6 Environment Do not dispose of the appliance in the municipal waste. Electronic appliances must be collected and handed in for proper recycling.
  • Page 7: Setup

    Remote control The remote control requires a 12V battery type 27A. A. ON button B. OFF button C. CLEAN button (PFlux only) D. Remote control pair button Pairing remote control 1. Ensure the machine is ON before pairing the remote control. 2.
  • Page 8: Operation

    5.3 Operation Ensure sufficient airflow. Check each box of the modular design for obstructions or foreign objects. 1. Secure all boxes with latches before turning the machine on. 2. Confirm that the power is supply is connected correctly and without damage. 3.
  • Page 9: Accessories

    3. Remove the HEPA filter and replace with a one. Make sure to insert the filter following the arrow on the label. 4. When replaced, make sure to reinsert the four fasteners and lock the box in place with latches. Ensure that the boxes are lined up to avoid leaks.
  • Page 10: Wiring

    9. Wiring www.igmtools.com...
  • Page 11: Parts List

    10. Parts List www.igmtools.com...
  • Page 12 Ref No Part Name Description Q’TY EXHAUSTFILTERBOX 3”WHEEL HEX BOLT 1/4”*3/4” FLAT WASHER 1/4” LATCH ROUND PH HD SCREW 3/16”*3/8” HEPA FILTER 330*330*100mm HEPAFILTER FASTENER FOAM TAPE 3/15mm MOTOR 1HP/230V/50HZ/SINGLE PHASE HEX BOLT 5/16”*3/4” FLAT WASHER 5/16” MOTOR GASKET MOTOR SUPPORT BASE HEX BOLT 1/4”*3/4”...
