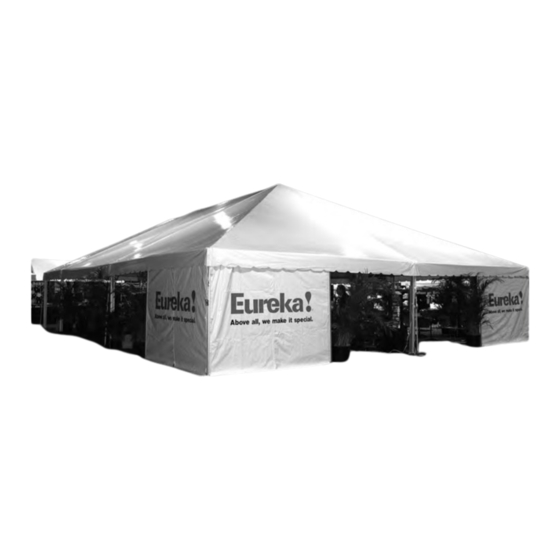

Eureka Twin Tube Plus Assembly Instructions Manual

40' wide with 10', 15' & 20' mids and extensions 30' wide with 10' & 15' mids and extensions 20' wide with 10' & 20' mids and extensions
Hide thumbs

Advertisement

Quick Links

Download this manual
Twin Tube Plus is safer and 25% faster to set up than other
frame tents and clearspans.
Wind rated fi ttings and braces on the 30' and 40' Twin Tube Plus
structures are wind rated to 80 miles an hour.
Now available with a 30' or 40' Gable End!
Available in:
40' wide with 10', 15' & 20' mids and extensions
30' wide with 10' & 15' mids and extensions
20' wide with 10' & 20' mids and extensions
w w w . e u r e k a t e n t s . c o m
f a x : 6 0 7 . 7 7 9 . 2 2 9 1
R E V . B 5 . 0 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the Twin Tube Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eureka Twin Tube Plus

Summary of Contents for Eureka Twin Tube Plus

  • Page 1 Twin Tube Plus is safer and 25% faster to set up than other frame tents and clearspans. Wind rated fi ttings and braces on the 30' and 40' Twin Tube Plus structures are wind rated to 80 miles an hour.
  • Page 2 Assembly Instructions for the TWIN TUBE PLUS: For easy assembly we recommend: • Steel toe shoes • Hard helmets • Safety gloves • Utility aprons • Step ladders • Drop cloths • Cleaning supplies • Read instructions thoroughly. • Make sure you have everything on the parts and shipping lists as soon as you receive the shipment.
  • Page 3 • Starting at a corner, pin the perimeters to the Insert the keder into the rafters. Fold the valance remaining intermediate and corner brackets until the back over the top of the canopy. Feed the keder from entire perimeter is pinned together. Raise or lower one side while the ropes are pulled from the opposite the crown with the jack, as necessary, to get it all side.
  • Page 4 40' WIDE PARTS LIST 2455300 40' x 40' Twin Tube Plus Kit - 8' 2455304 15' Ext. Twin Tube Plus Kit - 8' 2450432 Silver Pins 2450432 Silver Pins 2450442 2"x6" Splice 2450483 Twin Tube 2"x4" Red 14'4" 2450486 Twin Tube 2"x4" Orange 21' 8.5"...
  • Page 5 30' WIDE PARTS LIST 2455310 30' x 30' Twin Tube Plus Kit - 8' 2455314 15' Ext. 30' Twin Tube Plus - 8' 2450432 Silver Pins 2450432 Silver Pins 2450484 Twin Tube 2"x4" Brown 16'1" 2450483 Twin Tube 2"x4" Red 14'4"...
  • Page 6 20' WIDE PARTS LIST 2455320 20' x 20' TT Plus - 8' 2455324 20' Ext. 20' Twin Tube Plus - 8' 2450432 Silver Pins 2450432 Silver Pins 2450482 Twin Tube 2"x4" Green 10'6" 2450485 Twin Tube 2"x4" Blue 19'4" 2450483 Twin Tube 2"x4" Red 14'4"...
  • Page 7 40' WIDE x 40' 22'- 4.5" 12" 22" FRONT SIDE TO PEAK w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 . 7 7 9 . 2 2 9 1 R E V .
  • Page 8 40' WIDE 20' MID 22'- 4.5" 22" 12" FRONT SIDE w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 . 7 7 9 . 2 2 9 1 R E V .
  • Page 9 40' WIDE 15' MID & 10' MID 22'- 4.5" 22" 12" SIDE FRONT 22'- 4.5" 12" 22" FRONT SIDE w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 . 7 7 9 . 2 2 9 1 R E V .
  • Page 10 40'WIDE x 40' SCHEMATICS knee brace Standard Staking [ stake ] ridge brace = Blue = TT+ Blue = Orange 2 x 6 splice = TT+ Orange = Yellow Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site.
  • Page 11 40' x 50' SCHEMATICS knee Standard Staking brace [ stake ] = Blue ridge brace = TT+ Blue = White = TT+ White 2 x 6 splice = Orange = TT+ Orange = Yellow Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site.
  • Page 12 40' x 55' SCHEMATICS knee Standard Staking brace [ stake ] = Blue ridge brace = TT+ Blue = Red = TT+ Red 2 x 6 splice = Orange = TT+ Orange = Yellow Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site.
  • Page 13 40' x 60' SCHEMATICS knee Standard Staking brace [ stake ] ridge = Blue brace = TT+ Blue = Orange 2 x 6 = TT+ Orange splice = Yellow = Cables Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site.
  • Page 14 40' x 80' SCHEMATICS knee stake Standard Staking brace [ stake ] ridge = Blue brace = TT+ Blue 2 x 6 = Orange splice = TT+ Orange = Yellow = Cables Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site.
  • Page 15 30' WIDE x 30' PLAN 12" 22" 16' 9" 7' 6" 15' 6" FRONT SIDE 22' 4.5" TO PEAK w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 . 7 7 9 . 2 2 9 1 R E V .
  • Page 16 30'x15' MID - 30'x10' MID PLAN 22- 4.5" 22" 12" 7' 6" 15' 6" 30.0 FRONT SIDE PLAN 22- 4.5" 22" 7' 6" 15' 6" FRONT SIDE w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 .
  • Page 17 30' WIDE x 30' SCHEMATICS knee brace Standard Staking ridge [ stake ] brace =TT+ Red = Orange = Brown = TT+ Brown Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 18 30' x 40' SCHEMATICS knee brace Standard Staking [ stake ] ridge brace =TT+ Red = Orange = Brown = TT+ Brown = White = TT+ White Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 19 30' x 45' SCHEMATICS knee brace Standard Staking [ stake ] ridge brace = Red =TT+ Red = Orange = Brown = TT+ Brown Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 20 30' x 50' SCHEMATICS knee brace Standard Staking [ stake ] ridge = Brown brace = TT+ Brown = White = TT+ White = Orange = TT+ Red Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 21 30' x 60' SCHEMATICS knee brace Standard Staking [ stake ] ridge brace = Brown = TT+ Brown = Orange = Red = TT+ Red Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 22 20' x 20' PLAN 12" 22" FRONT SIDE w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 . 7 7 9 . 2 2 9 1 R E V .
  • Page 23 20' x 20' MID - 20' x 10' MID PLAN 22" 12" FRONT SIDE PLAN 22" 12" SIDE FRONT w w w . e u r e k a t e n t s . c o m f a x : 6 0 7 . 7 7 9 . 2 2 9 1 R E V .
  • Page 24 20' WIDE x 20' SCHEMATICS Standard Staking [ stake ] = Green = TT+ Green = TT+ White = Red Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 25 20' x 30' SCHEMATICS Standard Staking [ stake ] = Green = TT+ Green = White = TT+ White = Red Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
  • Page 26 20' x 40' SCHEMATICS Standard Staking [ stake ] = Green = TT+ Green = Blue = TT+ Blue = TT+ White = Red Important: Standard and Wind Kit diagrams are only a suggestion. Soil conditions can vary from site to site and within a setup site. Installer must refer to the specifi c tent design’s blueprint for stake load requirements in order to satisfy full wind load requirements.
