Summary of Contents for BHW 109354
- Page 1 F M • C O N N E C T FM Radio Control for Vehicle and AC Applications INSTALLATION INSTRUCTIONS Item #109354...
- Page 2 Components included in the FM•CONNECT kit PART NO. DESCRIPTION QUANTITY 109357 TRANSMITTER 109355 RECEIVER with 300mm cable and plug 4880 3m POWER CABLE...
-
Page 3: Table Of Contents
*** VERY IMPORTANT *** These instructions must be read thoroughly before starting installation as failure to do so can result in electrical damage to this product. There are guidelines for Vehicle Applications and AC Applications depending on use. The Installer must decide before installation on the function of the ‘STOP BUTTON’ on the transmitter, as this will determine the wiring of the receiver. -
Page 4: Stop Button Information

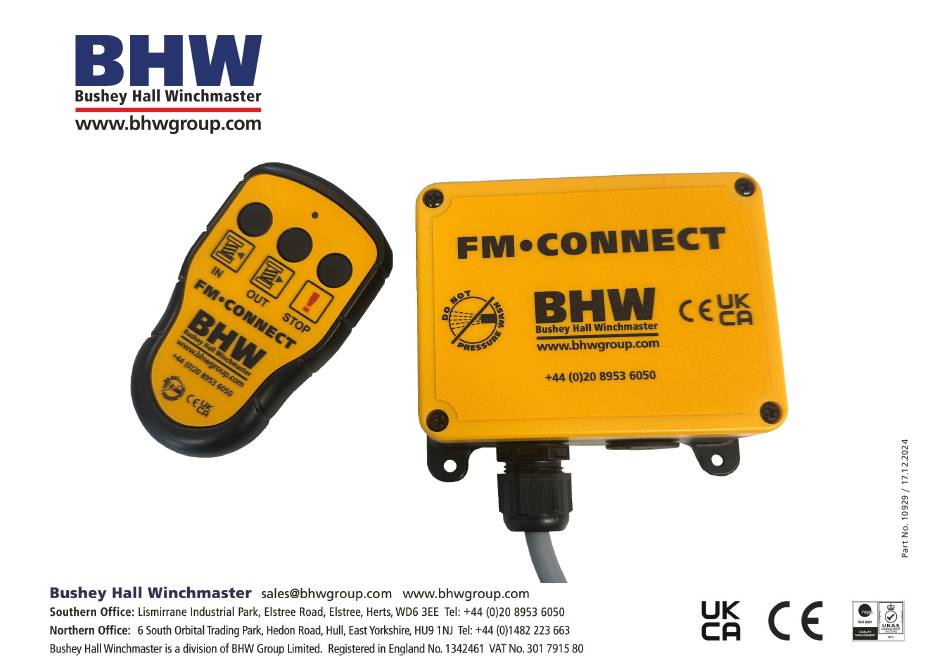

This can be a separate stand-alone dump valve, or a section that is integrated FM•CONNECT Transmitter, showing IN, OUT into the winch electric control valve. If a BHW Electric Control Valve is being and STOP buttons. incorporated in the installation, the FM Connect receiver can be pre-wired into the valve electric control system prior to supply if requested. -
Page 5: Vehicle Applications
If a BHW Electric Control Valve system is being incorporated in the winch system, the FM•CONNECT Receiver can be pre-wired into the valve prior to supply. -
Page 6: Inside The Receiver
VEHICLE APPLICATIONS Inside the Receiver Box The wiring shown here is supplied as standard.The LED’s are numbered, as they refer to recoding information shown on page 14. IMPORTANT NOTE: Depending on the wiring option chosen for the fit, please remember to insulate wires at the flying lead if they are NOT being used. -
Page 7: Wiring Option A - Electric Dc Winches - Standard As Supplier
VEHICLE APPLICATIONS WIRING OPTION A - Electric DC Winches Standard as Supplied Route the cable and wire as shown below. Please ensure wires unused from the Receiver box (White, Grey, Yellow/Green, Purple) with this option are suitably terminated and insulated. -
Page 8: Wiring Option B - Electric Dc Winches With Power Cut Off Solenoid
4272 (12V) or the 4273 (24V) Safety Relay Kits. These are NOT included with the standard FM•CONNECT kit. They are sold separately. Contact BHW Group sales on 020 8953 6050. Please note: FM•CONNECT White, Grey and Yellow/Green wires are not... -
Page 9: Wiring Option C - Hydraulic Winch With Control Valve Incorporating Dump Valve
Route the cable and wire as shown below. NOTE: This diagram shows the BHW control system with integral dumping section. This is activated by the ‘STOP’ button on the radio transmitter, or by a separate Emergency Stop button fitted to the vehicle. -
Page 10: Wiring Option D - Hydraulic Winch With Separate Dump Valve
A separate dump valve can be supplied (Part No. 10987 - up to 45 L/min, or Part No. 13584 - up to 159 L/min). Call BHW Group sales on 020 8953 6050. To connect the Receiver cable and socket, line up the keyway on the plug with the socket and screw the knurled connector in place. -
Page 11: Re-Connecting The Power Supply
VEHICLE APPLICATIONS – Re-Connecting the Power Supply NOTE: if working close to vehicle batteries remember they contain flammable gases and can explode. Wear eye protection and avoid leaning over the batteries. Do not wear metal jewellery. Re-activate power supply NOTE: If at any time the electrical supply to the receiver is disconnected, no matter for how long, the receiver will still remember the coded Transmitter and function correctly when the supply is reconnected. - Page 12 AC APPLICATIONS If FM•CONNECT is ordered with the low voltage control system, the standard pendant is fitted with a plug. This enables the manual pendant to be removed from the main controls and the FM•CONNECT fitted in place. This allows total wire free control of the winch or hoist upto approximately 40 metres. Note: if longer operating distances are required other aerial options are available on request.
- Page 13 AC APPLICATIONS N.B. CONNECT AS REQUIRED FOR THREE PHASE OR SINGLE PHASE OPERATION PENDANT CONTROL RADIO CONTROL STAYPUT (LATCHED) STOP 415/230V RECIEVER RAISE 24V 50HZ LOWER LINE CONTACTOR 7 WAY PLUG 7 WAY PLUG RAISE CONTACTOR 7 + EARTH SOCKET (OVERLOAD) LOWER CONTACTOR...
-
Page 14: General Information
GENERAL INFORMATION Coding the Receiver to a Replacement Transmitter When the FM•CONNECT is supplied as a complete kit the Transmitter will already be pre-coded to the Receiver. If however, due to loss or damage, the Transmitter has to be replaced, the new Transmitter will have to be recoded: Programming: Press Function Button (2) once. -
Page 15: Transmitter Battery Replacement And Warranty Information
Warranty does not apply where the product has been tampered with or altered in any way, or where the serial number or date stamp has been defaced, altered or removed, or if in the view of BHW Group Limited the damage or failure occurred from misuse, negligence or accident. -
Page 16: Trouble Shooting Information
TROUBLE SHOOTING If you have followed the instructions suppled and still cannot get the FM•CONNECT system to work, please contact BHW Group support on 020 8953 6050. UKCA / EU DECLARATION OF CONFORMITY We: BHW Group Limited Is compliant with the following European Commission...
