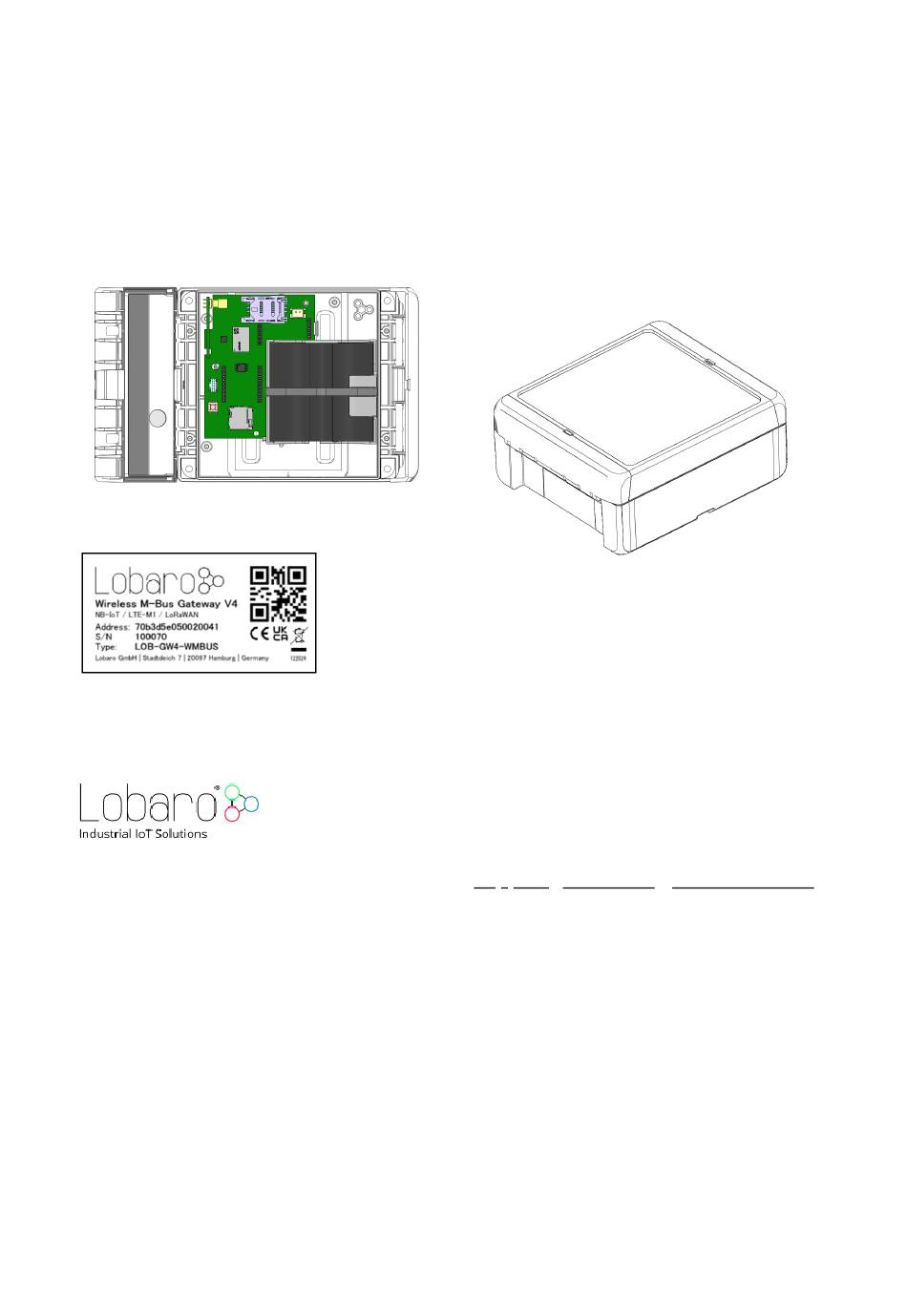

- Page 1 Product Manual - LOB-GW4- WMBUS Manufacturer Lobaro GmbH | Stadtdeich 7 | D20097 Hamburg | Germany support@lobaro.de | www.lobaro.de Variants LOB-GW4-WMBUS-230 V Product Manual LOBGW4WMBUS...
- Page 2 LOB-GW4-WMBUS-12 V LOB-GW4-WMBUS-SUN or LOB-GW4-WMBUS-SUN (+ Back- up Battery) Product Manual LOBGW4WMBUS...
-
Page 3: Installation
These instructions must be carefully read and followed before commissioning. They must be kept throughout the entire service life of the device. Battery - LOB-GW4-WMBUS Warning Dangerous goods! Safety Instructions for Lithium Batteries This device contains internal, replaceable 3.6V lithium batteries Li-SOCl2... -
Page 4: Battery Replacement
Personnel must be appropriately trained regarding hazard sources and maintenance measures. Intended Use The Lobaro Wireless MBus Gateway V4 is used for forwarding data from suitable measuring devices with radio interface via NBIoT mobile communications, DECTNR or alternatively LoRaWAN. The gateway is intended exclusively for this purpose. -
Page 5: Technical Data
Technical Data Type: LOBGW4WMBUS Order name: Wireless MBus Gateway V4 Input voltage: 3.3V to 5V, 3.6V Standard) Article number: 1200326 Type: LOBGW4WMBUS230 V Order name: Wireless MBus Gateway V4 (ext. Power, 230 V Input voltage: 230 V to 5 V Article number: 1200474 General Type: LOBGW4WMBUS12 V... -
Page 6: Installation Steps
DECTNR PreparationBand: 1.9 GHz LOBGW4WMBUS Approved type: ER346152SPC1550A/W Voltage: 3.6V Other types: On request Chemistry: Li-SOCl2 Capacity: 38 Ah 2 x ER34615, 190mAh SPC1550A/W Continuous current: 230mA Weight: 230 g Connection: JSTXH 2Pin Batteries Hazard class 9 LOBGW4WMBUSSOLAR Back-up Battery) Approved types: ER18505 / ER18505M Voltage: 3.6V Other types: On request... - Page 7 Device commissioning a LOBGW4WMBUS Insert battery cable into PCB connector (a), insert LTEM / NBIoT SIM card into SIM socket (b). The SD card holder (c) is not used in this product. Alternative to avoid opening of housing using a reed contact and a magnet (no visual feedback via LED given!...
- Page 8 c LOBGW4WMBUS12 V Insert included power adapter with round connector into DC socket (a) of the device and plug the other end into power outlet d LOBGW4WMBUSSUN Press reset button (a) Product Manual LOBGW4WMBUS...
- Page 9 Wall mounting without wall bracket - attach to wall using two dowels and two screws Close housing manually Wall mounting with wall bracket - attach to wall using two dowels and two screws and mount gateway. Place from above and slide on Product Manual ...
-
Page 10: Pole Mounting
When using wall bracket, remove the gateway using the included tool. Insert the tool into the groove on the bottom and push up to the housing wall until it stops. Then gently pull the device up and away from the wall. Pole Mounting The following additional components are required for mounting to a pole. - Page 11 Pole mounts 1 are connected to the gateway using screws and nuts 2. Then the screw clamps 3 are to be guided through the pole mounting tabs and tightened to a suitable pole using a slotted screwdriver. Simplified CE Declaration Product Manual ...
-
Page 12: Further Information
In Germany and for products delivered directly from Germany: Due to applicable regulations, the electrical and electronic devices from Lobaro GmbH may not be disposed of through public collection points for electrical equipment! To create opportunities for returning old devices, we work with several qualified recycling companies. - Page 13 Further information, such as detailed technical product description, comprehensive operating instructions, additional recycling and safety instructions are available online at https://doc.lobaro.com. Product Manual LOBGW4WMBUS...
