Thyro-PX
User Guide
DESCRIPTION
The AE Water-Cooled Stack provides a water-cooled thyristor pair for high-power applications.
The unit can be controlled by the Thyro-PX power controller. If optical isolation between the power
controller and the stack is needed, you can use the electrical to optical interface and optical to
electrical interface boards.

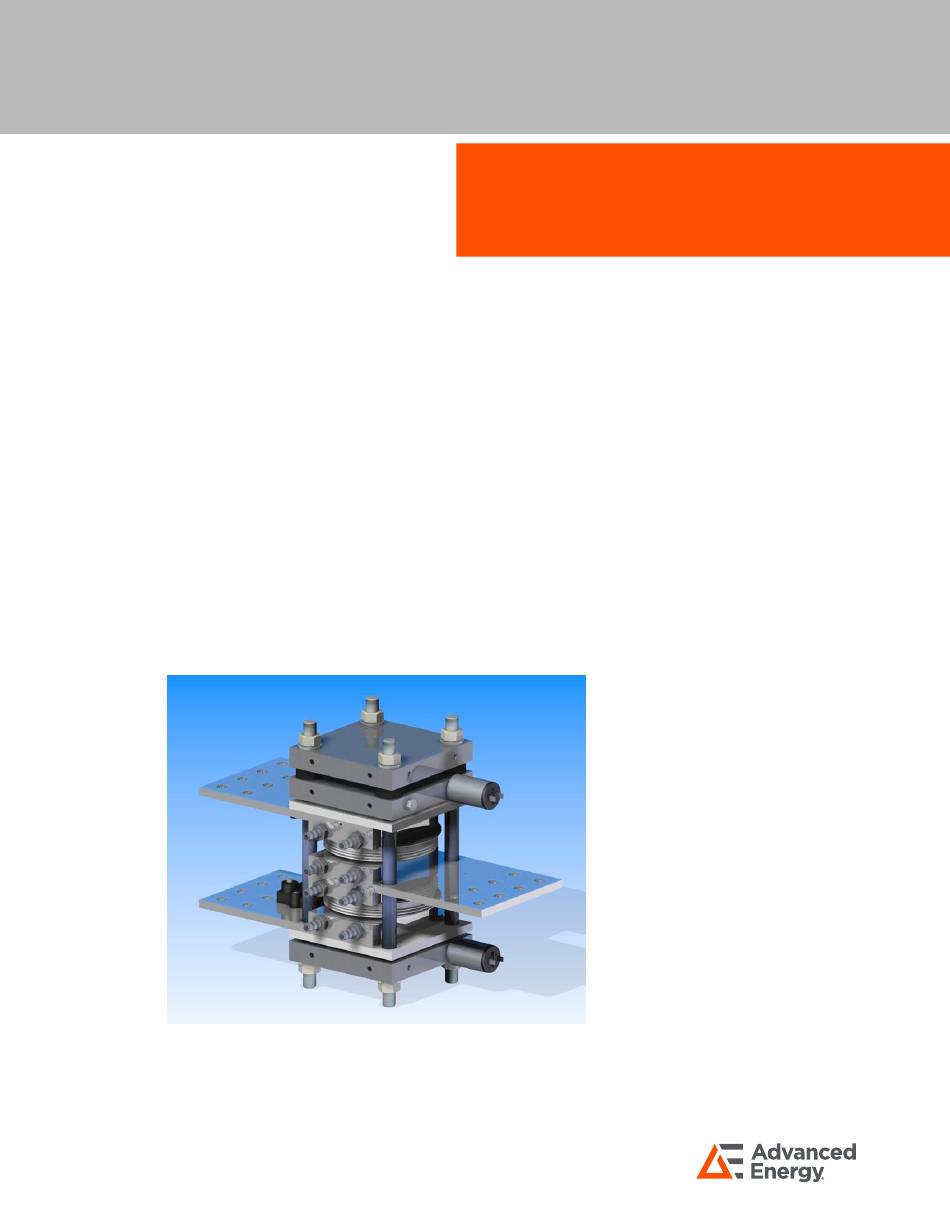

Figure 1. Water-Cooled Stack accessory
This document and the information contained herein are the proprietary property of Advanced
Energy Industries, Inc. Copyright © 2022 Advanced Energy Industries, Inc. All Rights Reserved.
®
Water-Cooled Stack
• Power output: > 2000 A, > 1500 kW per bridged rectifier
• Mains voltage: up to 690 V AC
• Normally-closed overtemperature switch: +85°C (+185° F)
• Maximum ambient temperature: +35°C (+95° F)
• Heat sink: Copper alloy with polyurethane hoses and stainless steel hose fittings
• Coolant: Water, deionized water, or water with 40% glycol
• Coolant flow rate: ≤ 10 lpm (2.6 gpm) per thyristor
57010252-00A August 2022
Related Documentation
For complete information on the Thyro-PX unit,
see the user manual for the unit.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Advanced Energy Thyro-PX Water-Cooled Stack
- Page 1 • Coolant flow rate: ≤ 10 lpm (2.6 gpm) per thyristor Figure 1. Water-Cooled Stack accessory This document and the information contained herein are the proprietary property of Advanced Energy Industries, Inc. Copyright © 2022 Advanced Energy Industries, Inc. All Rights Reserved.
-
Page 2: Typical Applications
® ® Advanced Energy Thyro-PX Water-Cooled Stack Related Links • “Typical Applications” on page 2 • “Cooling” on page 3 • “Water-Cooled Stack Installation” on page 4 • “Technical Support” on page 8 TYPICAL APPLICATIONS DC Output Configuration The following figure shows thyristor stacks combined to a B6C circuit for 3-phase SCR with DC output. - Page 3 ® ® Advanced Energy Thyro-PX Water-Cooled Stack AC Output Configuration The following figure shows thyristor stacks combined to a W3C circuit for 3-phase SCR with AC output. The control functions are implemented using an AE Thyro-PX controller and interface boards, which are available separately.
-
Page 4: Cooling Water Requirements
® ® Advanced Energy Thyro-PX Water-Cooled Stack previous heat sink. Since the water is heated as it flows through each heat sink, this is the lowest performance configuration. Performance is improved when both heat sinks of each thyristor are connected in series. -
Page 5: Front View
® ® Advanced Energy Thyro-PX Water-Cooled Stack Front view Side view Snubber wiring not shown Output 1 Snubber capacitor 1 Cathode 1 Water connections Gate 1 Snubber resistors Thermal switches Cathode 2 Input Gate 2 Output 2 Snubber capacitor 2 Figure 5. Water-cooled stack elements (snubber wiring not shown) - Page 6 ® ® Advanced Energy Thyro-PX Water-Cooled Stack DANGER: Personnel must receive proper training before installing or troubleshooting high-energy electrical equipment. Potentially lethal voltages could cause death, serious personal injury, or damage to the equipment. Ensure that all appropriate safety precautions are taken.
- Page 7 ® ® Advanced Energy Thyro-PX Water-Cooled Stack 6. Connect the normally-closed temperature switches on each heat sink in series with the interlock circuit. The switch contacts are rated at 250 V, 10 A, and open at 85°C (185°F). For installations operating at greater than 250 V AC, use the heat-shrink tubing supplied with the unit to double insulate the temperature switch wires.
-
Page 8: Technical Support
mailto:powercontroller@aei.com TRADEMARKS All Advanced Energy trademarks are the property of Advanced Energy Industries, Inc. For the list of Advanced Energy trademarks, visit: https://www.advancedenergy.com/legal/. Any unauthorized use of Advanced Energy trademarks is prohibited. All other trademarks are the property of their respective owners.
