Summary of Contents for BAQ GSX-400

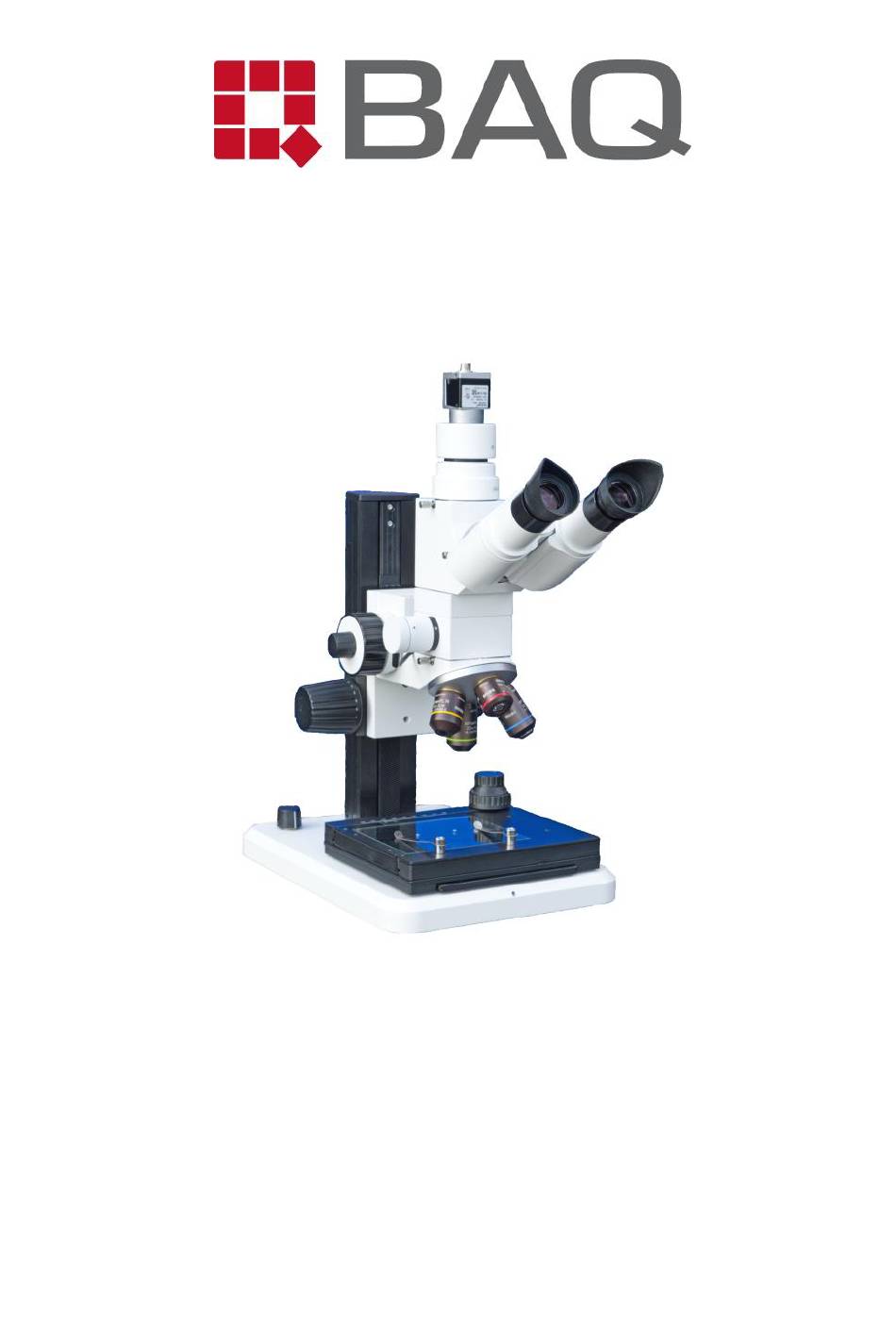

- Page 1 Reflected light microscopes GSX-400/GSX-600 Manual...
-
Page 2: Table Of Contents
1. Safety and General Instructions ................... 3 1.1. Properties and applications ..................3 1.2. Structure and Function ....................3 1.3. Technical Data GSX-400 / GSX-600 ................4 2. Start-Up ........................5 2.1. Preparing for Operation .................... 5 2.2. Focus Adjustment ...................... 5 2.3. -
Page 3: Safety And General Instructions
1.2. Structure and Function This device and its accessories are delivered in a The GSX-400 / GSX-600 microscope for reflected safe and tested condition. Any damage must be light applications consists of a solid stand, onto reported to the manufacturer immediately. -
Page 4: Technical Data Gsx-400 / Gsx-600
Video adapter, C-mount connection thread Maximum Sample Height Photo tube 1x visual / 0.8x photo approx. 170 mm (GSX-400); 370 mm (GSX-600) Coaxial coarse and fine focus drive Stand column with quick height adjustment (Distance from Optical Axis to Stand Column... -
Page 5: Start-Up
with the clamping screw located on the front 2. Start-Up side. 2.1. Preparing for Operation Finally, insert the GF-Pw 10x/20 eyepieces (7) into the binocular tube. The GF-Pw 10x/20 Carefully open the microscope packaging. eyepieces can be used with or without eye cups. They are designed for users who wear glasses. -
Page 6: General Operating Instructions
the object with the right eye through the right first. Ensure that the guide screw on the back of eyepiece. the tube mount engages with the groove of the The objective with the smallest magnification tube. Finally, tighten the knurled screw. factor is then swiveled in. -
Page 7: Maintenance And Care
Precision Mechanics Grease DMP-4 (high The GSX-400 and GSX-600 microscopes and their viscosity), available from BAQ accessories are maintenance-free over an extended period under normal use. However, in Both surfaces should be coated with a thin layer cases of continuous operation (shift work) or of this grease at regular intervals. -
Page 8: Accessories (Optional)
4. Accessories (Optional) 4.1. Eyepieces 4.1.1. Fixed eyepieces are available in various magnifications (first number) and with different field-of-view numbers (second number). They allow for changes in total magnification beyond the range of the magnification changer without Fig. 2: affecting the working distance. All eyepieces can Binocular tube with 30 mm insertion diameter be equipped with eye cups. -
Page 9: Photo Tube 1X Visual / 0.8X Photo
4.4. Photo Tube 1x Visual / 0.8x 4.5. Measuring Instruments Photo 4.5.1. Eyepiece Reticle The 50/50 photo tube with image orientation is ideal both visual observation Eyepiece reticles can be used in adjustable simultaneous photo and video documentation. eyepieces (Section 4.1.2). For optimal viewing, the visual output is tilted by 30°. -
Page 10: Video Adapter
4.6. Video Adapter 4.7. Tables For proper adjustment of the camera's field of A quick-change point makes it easy to switch view to the eyepiece image, four video adapters between the sliding table and positioning table. with magnifications of 0.3x, 0.4x, 0.63x, and 1x are available. -
Page 11: Complaints, Warranties
Such changes do not obligate us to provide separate notification. BAQ GmbH Hermann-Schlichting-Str. 14 38110 Braunschweig Germany Tel: +49 5307 / 95102 - 0 Fax: +49 5307 / 95102 - 20 Mail: info@baq.de / service@baq.de Web: www.baq.de Version: January 2025...
