MODELS: SCER60 / 6015

V 1.0 | 1124

User

Manual

4 Zone Ceramic Hob

Table of Contents

Need help?

Do you have a question about the SCER60/6015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solt SCER60/6015

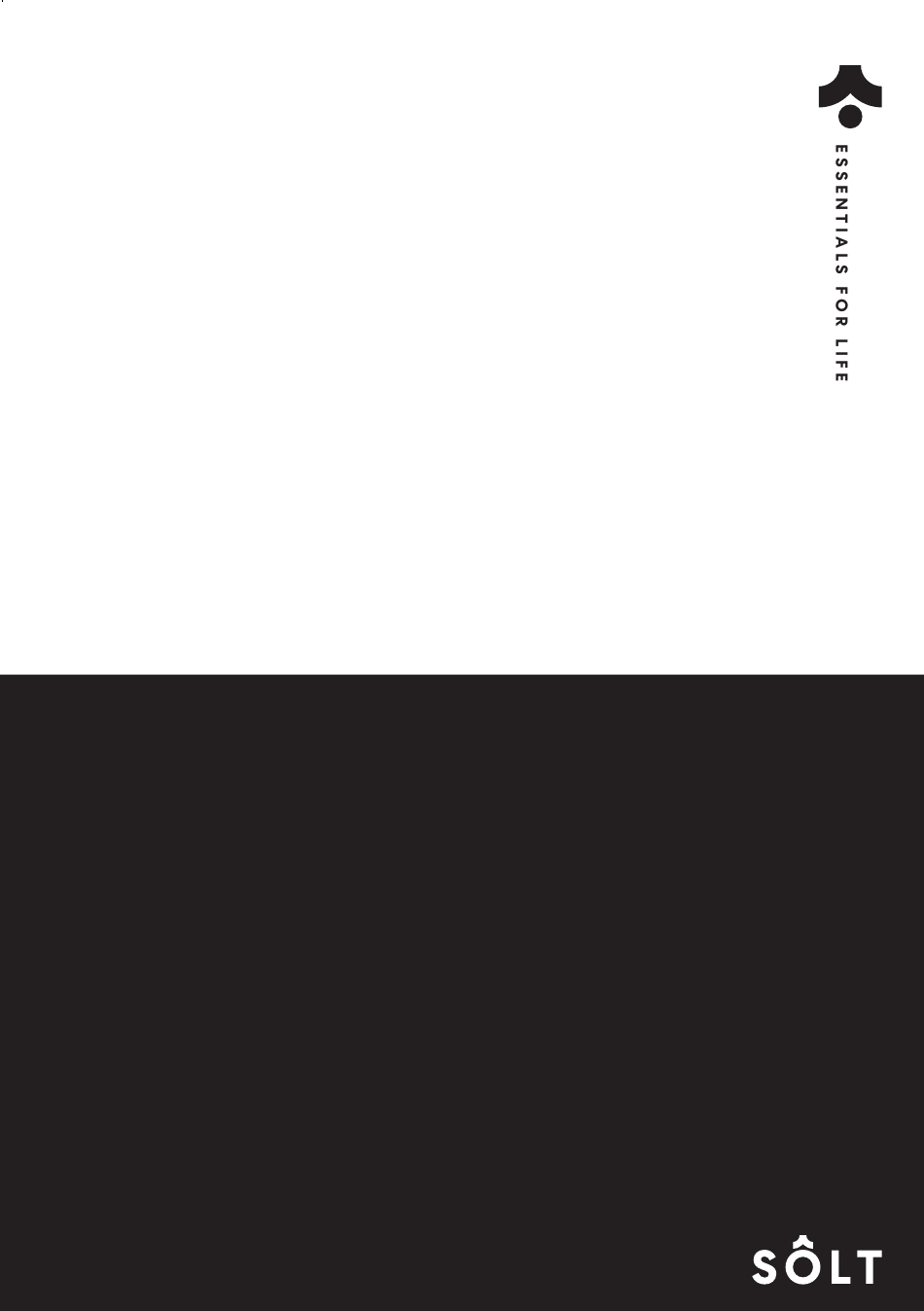

Page 1 MODELS: SCER60 / 6015 V 1.0 | 1124 User Manual 4 Zone Ceramic Hob...
Page 2 UK. Please refer to the warranty card at the rear of this manual for information regarding your product’s parts and labour warranty, or visit us online at w w w ww w . . solt.house Sôlt —...
Page 3: Important Safety Instructions
SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on • Connection to a good earth wiring system is essential and mandatory.
Page 4: Health Hazard
• This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the...
Page 5 Hot Surface Hazard • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. •...
Page 6 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
Page 7 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way...
Page 8: Product Overview
Top view 1. max. 1800 W zone 2. max. 1200 W zone 3. max.1800 W zone 4. max.1200 W zone 5. Control panel SCER60/6015 The control panel SCER60/6015 1. ON/OFF switch 4. Child lock 2. Select power level 5. Select heating zone...
Page 9: Product Information
Product information The ceramic hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.
Page 10: Using Your Hob
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. Using your hob To start cooking After power on, the buzzer beeps once, all the indicators light up for 1 • second then go out, indicating that the hob has entered the state of standby mode.
Page 11: Locking The Controls
When you have finished cooking Touching the heating zone selection that you wish to switch off Turn the cooking zone off by scrolling down to”0”. Make sure the display shows”0”. Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces “H”...
Page 12 When the hob is in lock mode, all the controls are disable except the ON/ OFF, you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. Residual Heat Warning When the hob has been operating for some time, there will be some residual heat.
Page 13 3. Set the time by touching the”-” or” +” control of the timer (e.g. 5), the maximum timer is 15 minutes. 4. When the time is set, it will begin to count down immediately. The display will show the remaining time. 5.
Page 14 Set the timer for model SCER60 Using the timer as a minute minder zone slection key is not activated (zone 1. Make sure the cooktop is turned on. And indication ‘-‘ is not blinking). Note: you can set minute minder before or after cooking zone power setting finished.
Page 15 Using the timer to switch off one or more cooking zones Touching the heating zone selection control that you want to set the timer for. Touch timer control, the “00” will show in the timer display. and the “0” fiashes. 3.
Page 16 If the timer is set on more than one zone: When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the min. timer. The dot of the corresponding zone blinks. (set to 5 minutes) (set to 15 minutes) Once the countdown timer expires, the corresponding zone will switch off.
Page 17 Cooking tips When food comes to the boil, reduce the power setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. • Start cooking on a high setting and reduce the setting when the food has •...
Page 18: Heat Settings
Heat settings Heat setting Suitability • delicate warming for small amounts of food 1 - 2 • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming 3 - 4 • reheating • rapid simmering • cooking rice •...
Page 19 Care and cleaning Important! What? How? Everyday soiling on • When the power to the cooktop is 1. Switch the power to the cooktop glass (fingerprints, switched off, there will be no ‘hot off. 2. Apply a cooktop cleaner while the marks, stains left by surface’...
Page 20: Hints And Tips
See ‘Choosing scratched. Unsuitable, abrasive the right cookware’. scourer or Cleaning products being used. See ‘Care and cleaning’. Technical specification Ceramic Hob SCER60/6015 Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 6000W *Product Size D×W×H(mm) 590×520×50 Building-in Dimensions A×B (mm)
Page 21: Selection Of Installation Equipment
D(mm) A(mm) B(mm) X(mm) SCER60/6015 50 mini Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate...
Page 22 A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that The work surface is square and level, and no structural members interfere • with space requirements. The work surface is made of a heat-resistant material. •...
Page 23 When you have installed the hob, make sure that The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of air from outside the cabinetry to the base of the hob. • If the hob is installed above a drawer or cupboard space, a thermal protection •...
Page 24 Cautions  The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.  The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.  The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
Page 25 Energy data Information for domestic electric hobs SCER60 SCER6015...
Page 26 Product support Help and assistance If you require any technical guidance or find that your tumble dryer is not operating as intended, a simple solution often found Troubleshooting section these instructions. If you still require further assistance, call one of our service experts on 01759 48 78 26. To help give us fast and efficient service, please have the following information ready: You can find these on Model Ref...
Page 27 Declaration of conformance to Disposal product standards This appliance/fitting is marked according to the European directive This appliance conforms to all relavant standards 2012/19/EU on Waste Electrical applicable to domestic appliances sold in the UK and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...
Page 28 Solt Service: T. 01759 48 78 26 E. admin@appliancesupport.co.uk Online. www.appliancesupport.co.uk/solt www.solt.house...
