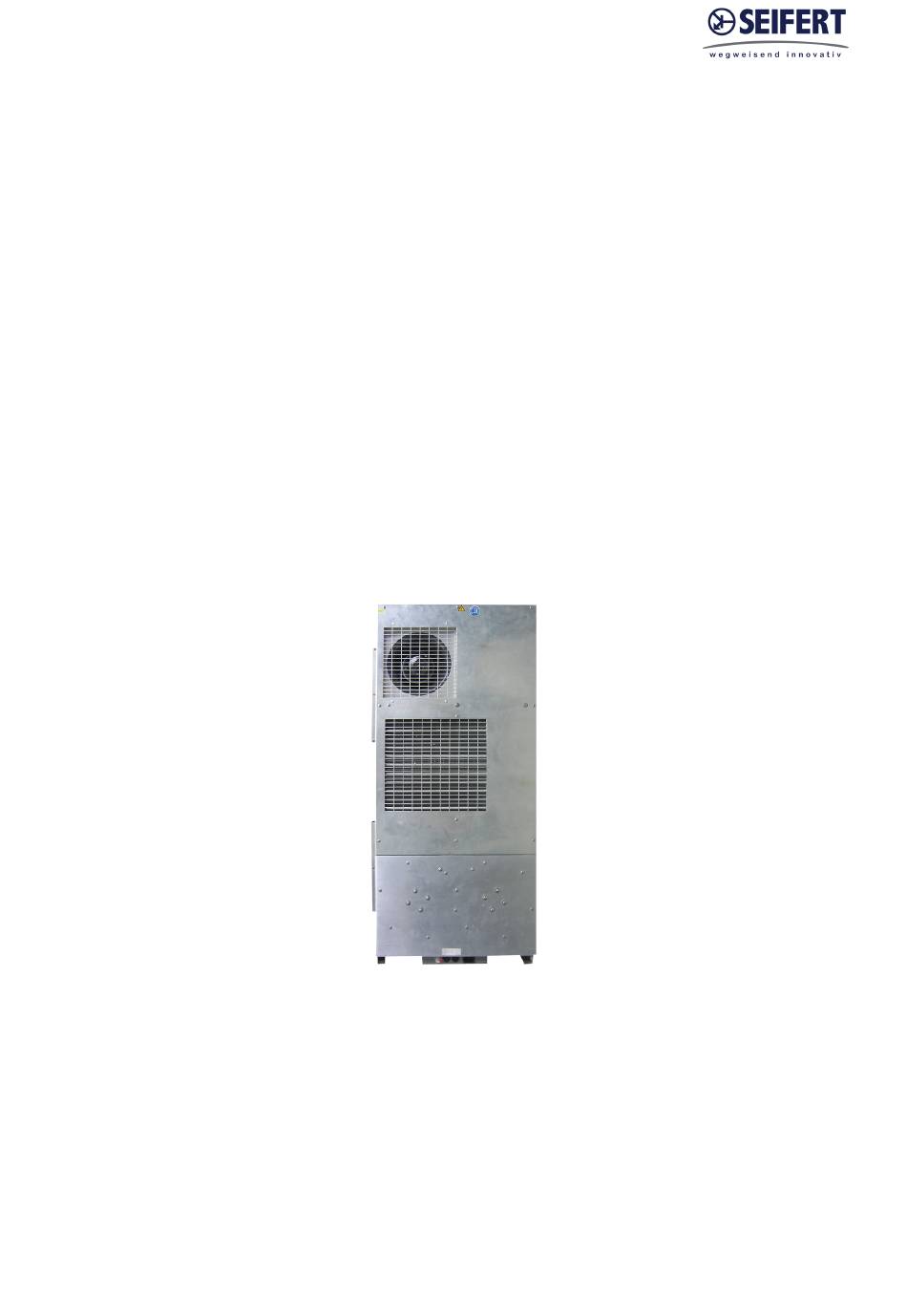

Table of Content BPB218001/1

..................................................................................................................................

2. Legal regulations

3. Safety instructions

4. Application

....................................................................................................................................

5. Technical data

..............................................................................................................................

6. Mounting

.......................................................................................................................................

7. Cut Out Dimension

8. Electrical Connection

9. Controller Layout Description

10. Wiring Diagram

11. Taking into Operation

12. Trouble Shooting

13. Maintenance & Cleaning

14. Transport & Storage

15. Parts supplied / Spare parts / Accessories

Version No. 1-1 - 19.02.2025

.........................................................................................................................

......................................................................................................................

.......................................................................................................................

...................................................................................................................

..................................................................................................

........................................................................................................................

.............................................................................................................

.....................................................................................................................

.........................................................................................................

................................................................................................................

..........................................................................

Doc. No. 994020865

1 / 15

Table of Contents

Need help?

Do you have a question about the BPB218001/1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seifert BPB218001/1

Page 1: Table Of Contents
Table of Content BPB218001/1 1. User manual ..........................2. Legal regulations ......................... 3. Safety instructions ........................4. Application ............................ 5. Technical data ..........................6. Mounting ............................7. Cut Out Dimension ........................8. Electrical Connection ........................9. Controller Layout Description ....................
Page 2: User Manual
1. User manual This instruction manual contains information and instructions to enable the user to work safely, correctly and economically on the unit. Understanding and adhering to the manual can help one: Avoid any dangers. Reduce repair costs and stoppages. Extend and improve the reliability and working life of the unit.
Page 3: Legal Regulations
2. Legal regulations Liability The information, data and instructions contained in this instruction manual are current at the time of going to press. We reserve the right to make technical changes to the unit in the course of its development. Therefore, no claims can be accepted for previously delivered units based on the information, diagrams or descriptions contained in this manual.
Page 4: Safety Instructions
3. Safety instructions Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of the unit.
Page 5: Application
-20°C and +55°C. Units can be ordered with an additional electrical cabinet heater. For the cooling capacities and evironmental ratings please refer to the type plate data. 5. Technical data Order Number BPB218001/1 Cooling capacity L35L35 (EN14511-3) 1.8 kW Compressor type...
Page 6: Mounting
6. Mounting The power supply rating on unit rating plate must comply with mains rating. Always disconnect the power supply before opening the unit. The heat load to be dissipated from enclosure should not exceed speciﬁc cooling output of the unit at any condition.
Page 7: Cut Out Dimension
7. Cut Out Dimension Version No. 1-1 - 19.02.2025 Doc. No. 994020865 7 / 15...
Page 8: Electrical Connection
8. Electrical Connection High electric voltage present. Installation, maintenance, cleaning and any other work must be carried out by qualiﬁed personnel only. The personnel must ensure that for the duration of this work the unit and the cabinet are disconnected from the electrical supply and protected against unauthorised/accidental reconnection.
Page 9 To connect the door contact switch: Remove the bridge from terminals 3 & 4. Connect the door contact switch to terminals 3 & 4. The contact must be closed when the cabinet door is closed. Version No. 1-1 - 19.02.2025 Doc.
Page 10: Controller Layout Description
9. Controller Layout Description FDP_PP Full display port and programming port Aux. Input optional Heater control Alarm control Temperature control Optional Sensor Door contact Alarm output Power in Compressor out Capacitor compressor Umgebungslüfter aus Kondensator Umgebungslüfter Ambient fan out Capacitor ambient fan Test button Simple display port Diagnose port...
Page 11: Wiring Diagram
10. Wiring Diagram Radial fan cold side Radial fan warm side right Radial fan warm side left Compressor motor Capacitor for M1 Capacitor for M2R Capacitor for M2L Capacitor for M3 Supply connector Alarm connector Varistor Neutral line fuse Live line fuse Temp.
Page 12 Version No. 1-1 - 19.02.2025 Doc. No. 994020865 12 / 15...
Page 13: Taking Into Operation
11. Taking into Operation Attention! The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately lubricated the oil, which has been displaced during transport, must be allowed to ﬂow back into it. The unit must therefore be allowed to stand for at least 30 min.
Page 14: Maintenance & Cleaning
13. Maintenance & Cleaning Always switch power supply oﬀ before starting any maintenance on the unit. The cooling unit is generally maintenance free and can be operated without ﬁlters in most environments. For units with ﬁlters these should be checked, cleaned and if necessary replaced on a regular basis. In addition the unit should have regular functional tests (approx.
Page 15: Parts Supplied / Spare Parts / Accessories
1m PVC hose 6x9mm clear soft, ﬂexible Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems Inc. Seifert Systems Pty Ltd. Albert-Einstein-Str. 3 HF09/10 Wilerstrasse 16 Bärnthal 1 Rep. Oﬃce 75 Circuit Drive...
