INSTRUCTION MANUAL
20x60FT Party Tent
SKU: WQG045
ATTENTION:
1. Please check the manual carefully and make sure you have received all the parts.
2. If there is any missing, please let us know the letter of the parts you need.
3. If there is any damage, please send clear photos to us, we will check and offer
you best solution soon.
Advertisement
Related Manuals for Erommy WQG045
Summary of Contents for Erommy WQG045
- Page 1 INSTRUCTION MANUAL 20x60FT Party Tent SKU: WQG045 ATTENTION: 1. Please check the manual carefully and make sure you have received all the parts. 2. If there is any missing, please let us know the letter of the parts you need.
- Page 2 Box A Part number Photo Part name Quantity (pcs) Roof Sidewalls Endwalls Box C Part number Photo Part name Quantity (pcs) 1#Pipe 2#Pipe Box D Part number Photo Part name Quantity (pcs) 3#Pipe Box E Part number Photo Part name Quantity (pcs) 3#Pipe 4#Pipe...
- Page 3 Box B Part number Photo Part name Quantity (pcs) Clamps 140° 3way-connectors 140° 4way-connectors 110° 3way-connectors 110° 4way-connectors Footplate Corner footplate Spiral peg Rope Hook Bungee ball Clamp Turn buckle Screw M6x30mm Screw M6x80mm Screw M6x50mm Screw nut...
- Page 4 Warning: 1. In order to prevent rusting from air exposure, oil is applied to the surface of the pipes. Before setting up the tent, please carefully remove the oil to keep the cover clean.. 2. Take note that the tent needs to be handled carefully to avoid damage. 3.
- Page 5 STEP 1 Insert part (2) into part (1) and make sure the holes are aligned. STEP 2 Use two pieces of (5) part, align its holes with the holes of (1) part and (2) part, and secure with (25) screws and (26) nuts. 26 26...
- Page 6 STEP 3 140° Connect the (8) connector to pole (1) and the (10) connector to pole (2). 110°...
- Page 7 STEP 4 Connect the (9) connector to pole (1) and the (11) connector to pole (2). 140° 110°...
- Page 8 STEP 5 Attach a reinforcing rod (7) to the rod (1) using screws (24) and (26).
- Page 9 STEP 6 Use the two ends of one crossbar (3) to connect the two joints (9), then use the two ends of the two crossbars (3) to connect the two joints (11), and so on. The crossbars on both sides are connected to joints (8) and (10), and the entire top frame is assembled.
- Page 10 STEP 7 Combine (21) with (22) and secure them to the (2) pole.
- Page 11 STEP 8 Attach the (4) pole to the (10) and (11) connectors on one side. STEP 9 Cover the frame with the roof (27).
- Page 12 STEP 10 Use elastic balls (19) to secure the top cloth (27) and the door (29) to the frame. Pay attention to the tension of the bungee balls, because if you use too many bungee balls on one side of the tent, the other side may be too tight to tie down.
- Page 13 STEP 11 Attach the (4) pole to the (10) and (11) connectors on the other side.
- Page 14 STEP 12 Connect the (12) footplate and (13) corner footplate to the (4) vertical rod.
- Page 15 STEP 13 Connect the footplates on both sides with (3) pipes.
- Page 16 STEP 14 Use clamps (20), screws (23) and nuts (26) to connect the reinforcing rod (6) to the horizontal rod (3) and vertical rod (4).
- Page 17 STEP 15 Use L-shaped ground nails (14) and U-shaped ground nails (15) to secure the frame firmly to the ground. 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15...
- Page 18 STEP 16 Fix the hanging cloth on the vertical pole (4) with hook (18). There are Velcro strips on the hanging fabric（27） for fastening.
- Page 19 STEP 17 Use elastic balls (19) to fix the window (28) and the top cloth (27) on the crossbar (3) together. Velcro on the window is used to secure the window securely to the vertical pole (4). x126...

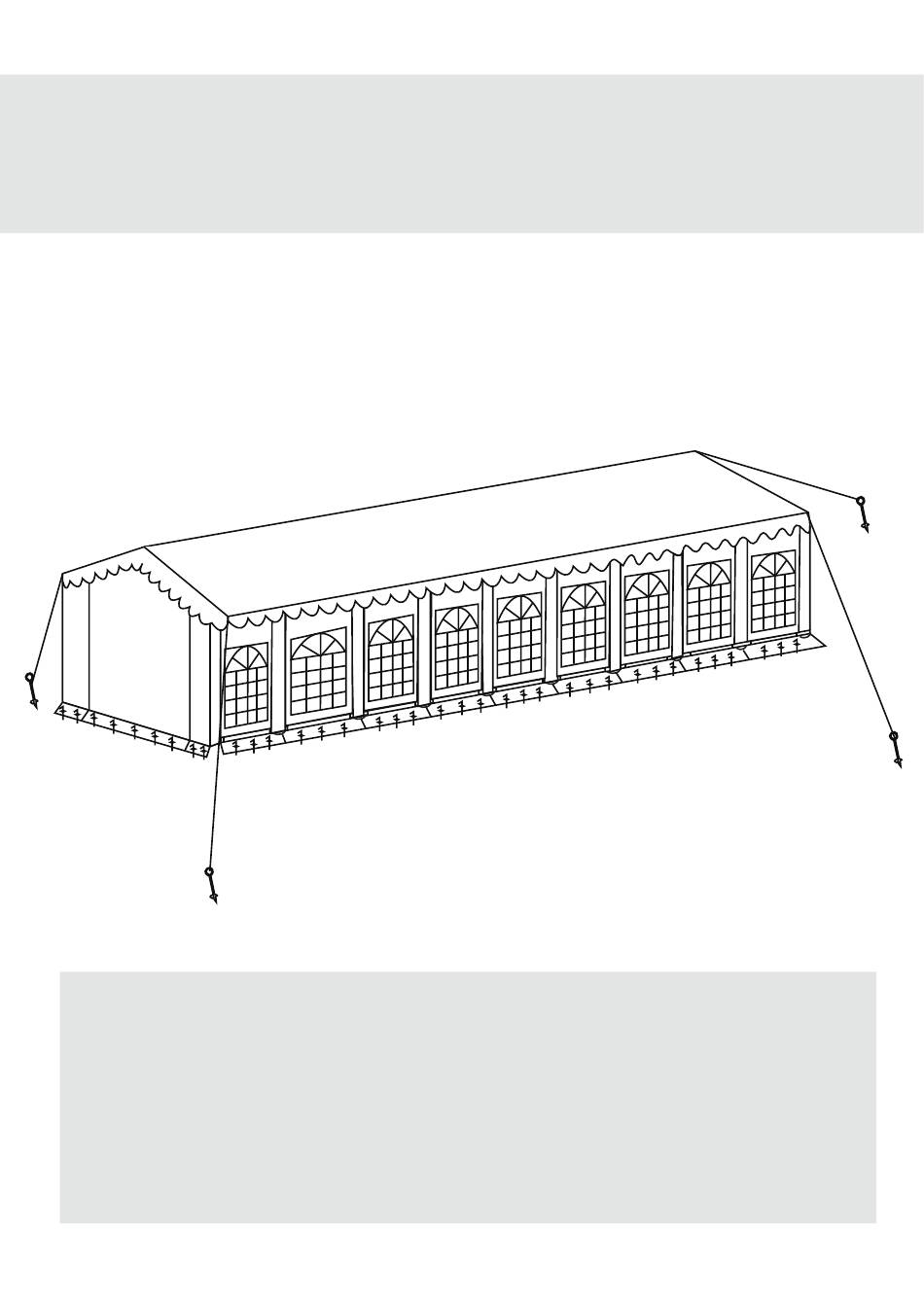

- Page 20 STEP 18 Use L-shaped ground nails (14) to secure the extended window, and use ropes (17) and ground nails (16) to secure the party tent firmly to the ground. 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14...
