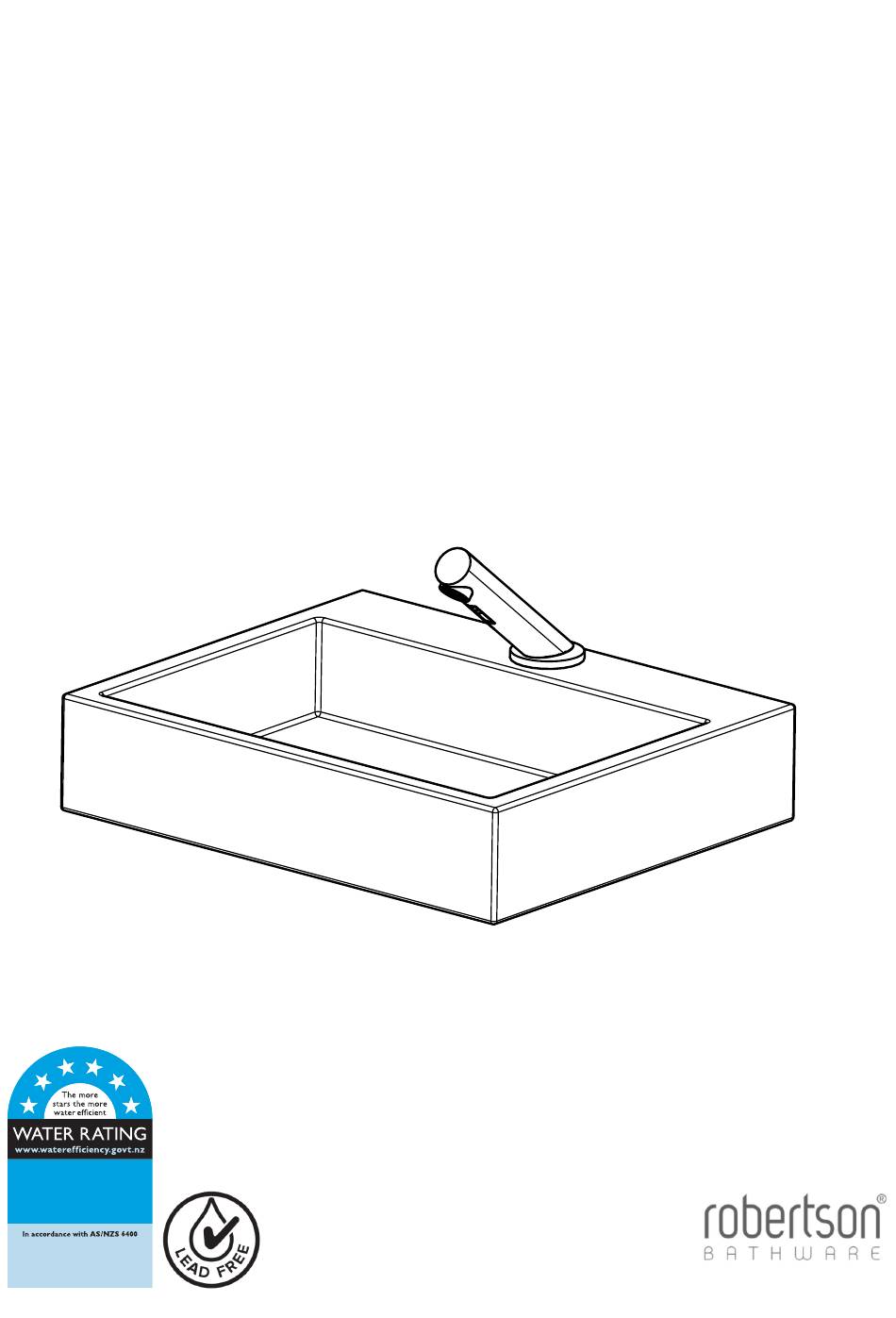

- Page 1 ELEMENTi TiLT CBS SENSOR FAUCET Installation instructions Reference: FH005 litres per minutes ROBERTSON ELEMENTI www.robertson.co.nz...
- Page 2 FAUCET CONFIGURATION Battery holder 4xAA Aerator Sensor Aerator Water inlet M15x1 Top seal Power Bottom seal adapter Stainless Spacer Mounting nut Locking screws...
-
Page 3: Before You Begin
BEFORE YOU BEGIN INSTALLATION • The faucet can be installed on any sink material (ceramic or stainless steel). • Read this instruc�on manual carefully before beginning installa�on. • Drain and clean the water pipes before installing the faucet. • Make sure there are only electronic cer�fied products (CE, UL…) near the faucet to achieve op�mum performance. - Page 4 Installation overview 1- Install the faucet over the sink. 3- Insert the filter inside the electronic valve. 2- Secure the position. 5- Insert flat seal, and screw the electronic valve on 4- Connect the hose and tighten it. the faucet. Tighten with wrench.
- Page 5 6- Fix the hose on the water main and tighten it 7- Connect 2 sensor wires to the micro valve. 4xAA, 4xLR6 8- Use the pad to secure the electric cable on the wall. 9- Install 4 batteries (not included) in the holder, pay attention to battery sides 10- Fix the holder in position, keep in mind the max 11- Wiring overview,...
- Page 6 12- Open water main. 13- Inspect and check for water leaks. 15- Wait 6 seconds for calibration, the red LED will 14- Connect the battery holder. Flash during this time. 16- Enjoy your touch-less faucet!
- Page 7 Faucet specifica�on’s Model: FH005 Body: Brass tube (no water contact) Finish: Chrome (No direct water contact to comply with lead free requirement) Aerator: Neoperl PL HC AIR STD 1.2PM (4.5L/min) Fixa�on: OD 35mm, Brass nut with screw lock. Micro valve: DF301_B00A Media: Potable water only ( filter usage mandatory)
-
Page 8: Operation
Usage, setup and maintenance OPERATION • Automa�c open and closing with hand presence. • An�-waste: a safety �me guarantees shut-off of water flow a�er 30 seconds. Must remove hands to launch a new cycle. • The LED located on the sensor in the spout will flash when the product is power ON for calibra�on, or if the ba�eries are low and need to be changed.
