Summary of Contents for RoyPow PT15KT-E/A

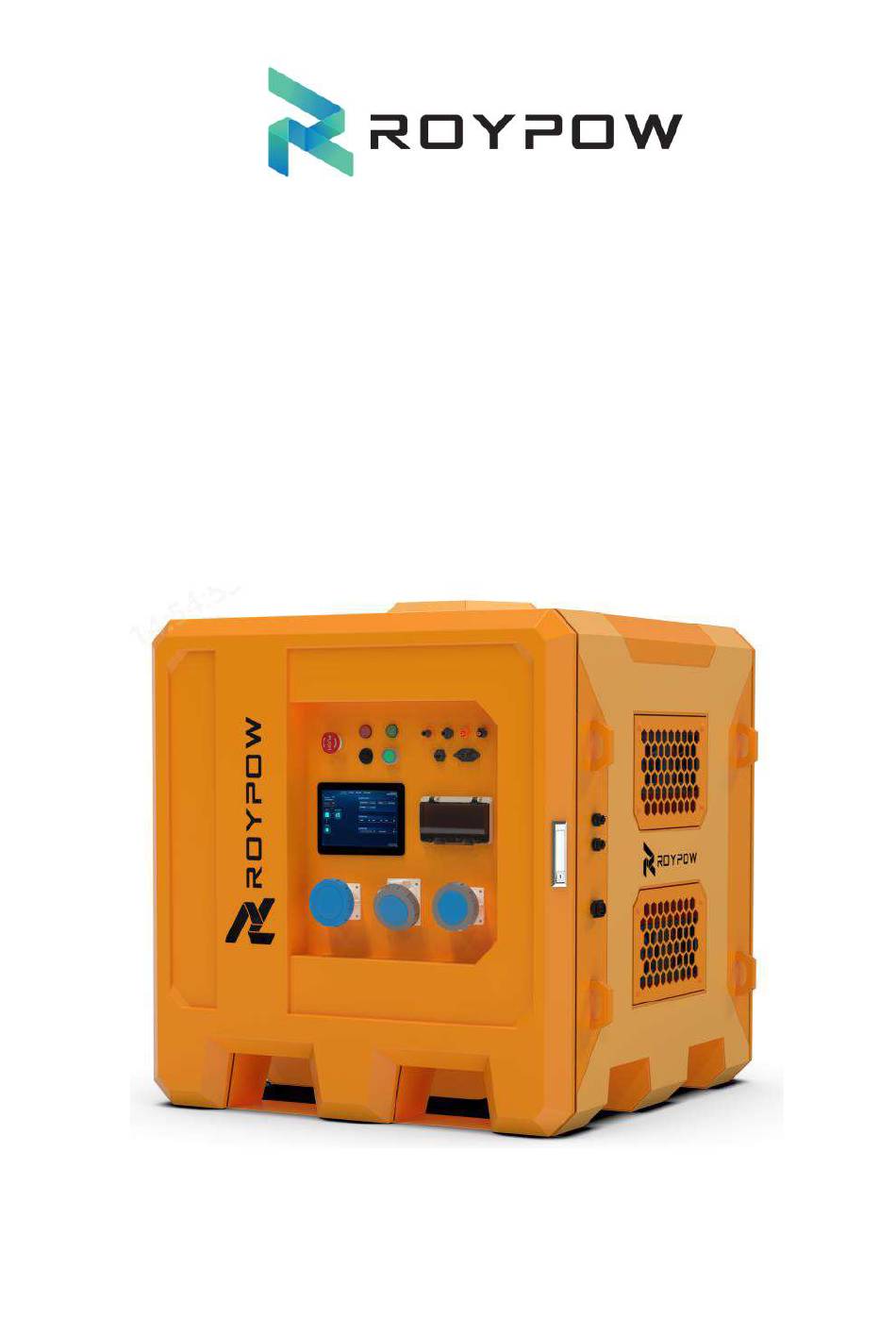

Page 1 PT15KT-E/A User manual...
Page 2 Version NO. Date Revise content Reviser V1.0 Nov 15, 2024 First release TC Li...
Page 3: Table Of Contents
contents 1. Safety precautions ........................4 2. System introduction ........................5 Mobile energy storage ....................5 System configuration scheme ..................5 System technical parameters ..................6 Hardware Panel introduction ..................7 System power on and off ......................10 Power ON & Discharging: ................... 10 Power OFF: .........................
Page 4: Safety Precautions
1. Safety precautions The mobile energy storage system should be away from heat sources and places that are easy to generate sparks, and avoid long-term direct sunlight and exposure; Do not place the mobile energy storage system in a harsh environment such as damp, greasy, flammable and explosive, or a large amount of dust.
Page 5: System Introduction
2. System introduction 2.1 Mobile energy storage ROYPOW PC15KT mobile energy storage system includes EMS smart screen, inverter, battery, DC/DC, IO module and related wiring harness, circuit breaker, lightning protection device, indicator light, operation switch, etc. The mobile energy storage system can obtain energy from AC power supply, generator, or external solar photovoltaic panel, store the generated electricity in lithium battery, and then supply the energy to external load.
Page 6: System Technical Parameters
2.3 System technical parameters Model PC15KT-E/A Rated Power 15KW (maximum 90KW , 6 units in parallel) Rated output 400V AC or 2 30VAC voltage (V) Output Current 3 x 21.8 A Output Apparent power (V) 22500 kVA Characteristics AC grid frequency 45Hz ~ 65Hz (Hz) Three-phase...
Page 7: Hardware Panel Introduction
size 1100 x 1100 x 1000 mm weight 450KG Mobile energy storage system parallel (support Max 6 units parallel) The system is configured using the dedicated parallel wiring harness shown above. Any OUTPUT outlet of the remaining two systems can output 30000VA rated power attention After connecting cables to the system, ensure that the cables are correctly connected before powering on the system.
Page 8 Hardware Switch image...
Page 10: System Power On And Off
3 System power on and off 3.1 Power ON & Discharging: 1. open the box, put breaker ON. 2. the battery LED will ON. Breaker Press the START button. The RUN LED will ON. Start button Turn ON the air-Switch. Air-Switch Power On 1, open the PC15KT door, put the breaker on, user can see the battery capacity LED will turn ON.
Page 11: Charging
3.3 Charging Power On Put the charger AC terminal into AC-IN port. AC-INPUT Charging 1, power on the PC15KT equipment. 2, put the charger AC terminal into the AC-IN port. 3, charging the PC15KT equipment. 4 Set operations on the EMS local page 4.1 Panel interface...
Page 12 PV interface: Battery interface:...
Page 13: Control Interface
As shown in the figure, the monitoring page is divided into three parts: the important system information, system SOC, system status (charging, discharge, standby, power) and the working mode. The lower left shows the system diagram, and you can view the detailed data by clicking on the corresponding device.
Page 14: Alarm Interface
4.3 Alarm interface The alarm page displays the system alarm information, including the serial number, alarm level, status, and occurrence time. You can click alarm for details and processing. 4.4 Fault interface...
Page 15: Parallel Interface
The curve function can view the charge and discharge power curve of the energy storage cabinet, change the battery soc curve, and view the historical situation through the date switch. 4.5 Parallel interface Operation coAntrol, can realize the PCS switch machine, BMS shutdown and other operations. The system can control the startup or shutdown control of PCS, and can realize the shutdown...
Page 16: Web App Operation Settings
(III) Personal Center: You can configure personal information, device network settings, message preferences, and access additional usage assistance. (IV) Users can download and install it on both the (IOS) App Store and (Android) Google Play by searching for RoyPow. iOS download Android download Note: To ensure this app's functionality and security, we may need to request certain permissions from your device's operating system while it's in use.
Page 17: Log In
registration failures. Fig. 2.1.1 Log In Fig. 2.1.2 User Registration 5.2 Log In After registration, you can log in. If you don't have an account, please sign up before logging in. Password Login: Click the desktop icon -> Enter your username (which is your email) -> Enter your password ->...
Page 18: Device Status
application, the APP will remind you to add an inverter when you log in next time. Note: Keep in mind that to access monitoring data, your user account must have At least one power station and one inverter with network connection successfully. On the APP platform, you have the option to scan the machine's QR code.
Page 19: Add Device
Fig. 3.1 Device Status 5.4 Add Device On the "State" page, click the "+" icon in the upper right corner, and follow the prompts to enter the information of the inverter you want to add. Click "Add" to add the new inverter. As shown in Fig. 3.1.1.
Page 20: Pv Parameters
Fig. 3.1.1 Add Inverter 5.5 PV Parameters In the "Parameters" section, click "PV" to access to parameters such as PV input voltage, PV input current, PV input power, and more for PV1 and PV2, as well as overall PV input parameters like total power and total current. Additionally, you can view parameters related to insulation impedance and generated energy.
Page 21: Load Parameters
Fig. 4.10 Grid Parameters Fig. 4.11 Inverter Parameters Fig. 4.12 Load Parameters 5.9 Load Parameters In the "Parameters" section, click "LOAD" to view parameters such as l1 voltage, l2 voltage, l1 current, l2 current, l1 power, l2 power. The interface is shown in Fig. 4.12. 5.10 Device Maintenance On the "Device Details"...
Page 22 view the device's logs. as shown in Fig. 4.15.
Page 23 Fig. 4.15 Device’s Log In the device Log screen, click one of the device log modules to jump to the alarm detail page. The interface is shown in Figure 4.16. Fig. 4.16 Alarm summary 6 . Common fault problems and solutions...
Page 24 Inverter fault description:...
Page 28 7. System maintenance warning：During maintenance, ensure that all the power supplies of the device are disconnected and all the capacitor power is discharged before performing corresponding checks or operations. Store batteries in a dry, well-ventilated environment away from water, heat, and other metal objects.
Page 29 RoyPow Technology Co., Ltd. Email: sales@roypowtech.com service@roypowtech.com marketing@roypowtech.com Web: www.roypowtech.com Add: ROYPOW Industrial Park. Intersection of Dongsheng South Road and Zhihui Avenue,Chenjiang Street, Zhongkai High-Tech District. Huizhou City. Guangdong Province. China...
