Summary of Contents for FiRA VISION B160

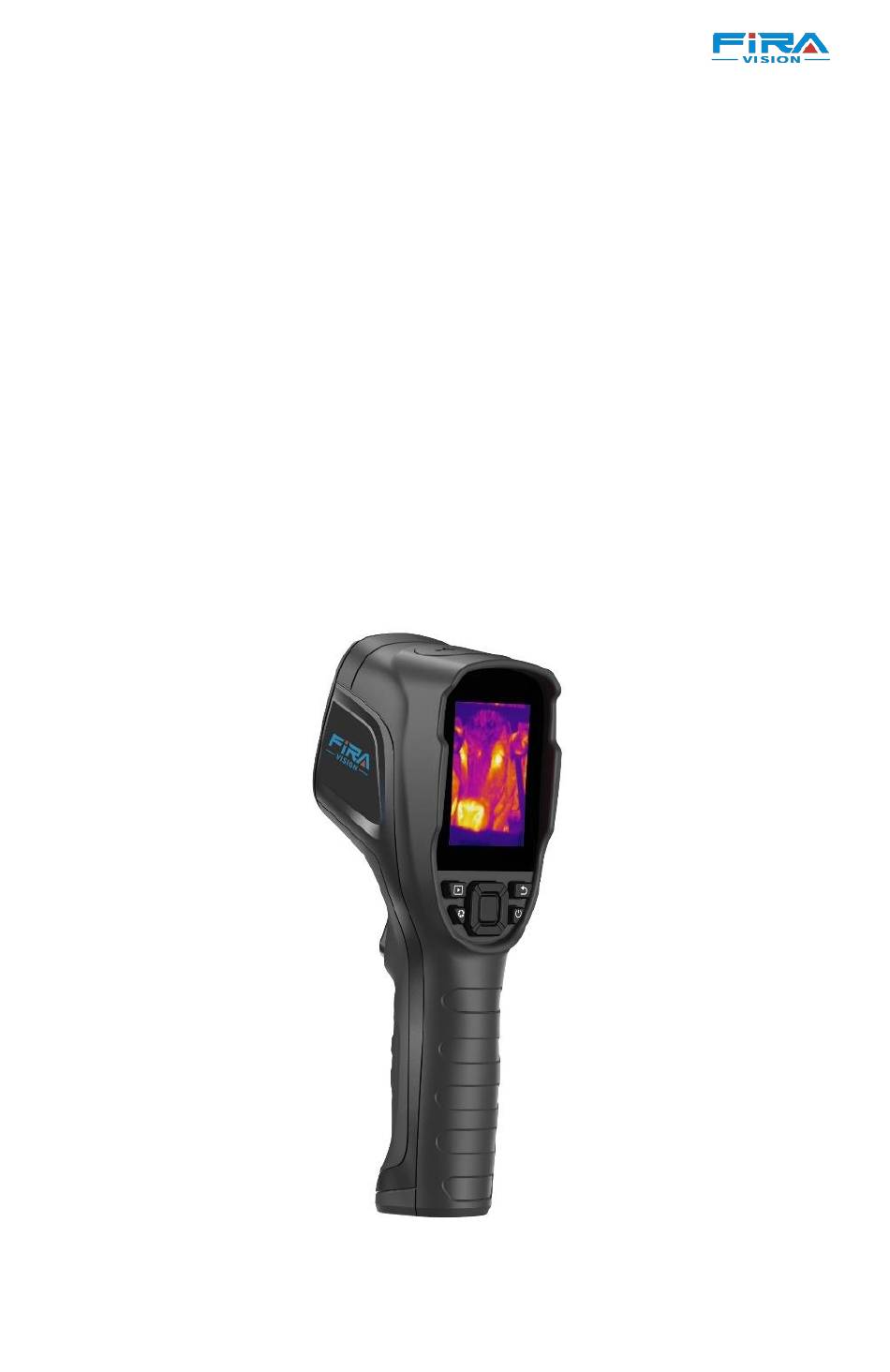

- Page 1 QUICK USER MANUAL Handheld Thermography Model: B160...
- Page 2 Warnings Before using the camera, please make sure that you have read understand the warnings described below. ※ Do not open the case without permission, repair or modification, maintenance issues can only be conducted by the company's qualified professionals! ※ It is strictly forbidden to point the lens of the equipment directly at strong or high-temperature radiation source (such as the sun), to avoid damage to the equipment's accuracy or even permanent damage!
- Page 3 ※ The equipment is manufactured with accurate calibration. It is recommended that the equipment be sent back for calibration once a year to ensure the stability of the device! ※ Due to the revision upgrades, this user manual will be updated from time to time.
-
Page 4: Table Of Contents
Contents Thermal Imager Case Contents ............5 Package ..................5 Camera Description ..............6 Camera Operation ................8 Quick start ................8 Navigation Menu Description ..........8 Emissivity Table ................10 We reserve the right to change products and specifications at any time without notice. www.firavision.com... -
Page 5: Thermal Imager Case Contents
Thermal Imager Case Contents Package When you receive the thermal imager, check that it is complete and in good condition and contact the supplier if it is damaged. The basic package contains the following parts： ❖ Camera* 1 ❖ Carry Bag * 1 ❖... -
Page 6: Camera Description
Camera Description We reserve the right to change products and specifications at any time without notice. www.firavision.com... - Page 7 We reserve the right to change products and specifications at any time without notice. www.firavision.com...
-
Page 8: Camera Operation
Camera Operation Quick start 1. Ensure the battery is fully charged. Power on the camera by long pressing the power button To take a photo press the trigger button To view image. Press the Albums Button 4. To change the Palette. Press the Up/Down buttons 5. - Page 9 MEAS MODE : -20°C ~150°C, 100°C~550°C TEMP UNIT : °C, °F, °K TEMP ALARM : Above Alarm, High Temp Setting, Below Alarm, Low Temp Setting, Alarm Capture, Capture Interval, Captures Num CUSTOM SPOT : Set custom spot PHOTO SET : Auto Save SHUTTER SET : Auto Shutter, Shutter Interval System Settings : Auto Off, Device Info, RESET, Format Memory, Brightness, PICQUALITY, Language, Date &...
-
Page 10: Emissivity Table
Emissivity Table Materials Surface condition Temperature Emissivity（ε） （℃） Non-oxidized 0.20 Aluminum Oxidized 0.55 Brass Lustrous 0.22 Oxidized 0.61 Copper Serious oxidized 0.78 Oxidized 0.74 Iron Rusty 0.65 Oxidized 0.64 Cast iron Not oxidized 0.21 Nickel Oxidized 0.37 Stainless steel Not oxidized 0.85 Steel 800℃... - Page 11 Paper White 0.93 Sand Surface 0.90 Water Distilled water 0.96 Skin Human 0.80 Fine 0.90 Ceramics Coarse 0.93 We reserve the right to change products and specifications at any time without notice. www.firavision.com...
