AIRLAB-DT Getting started
Before connecting and powering up any AIRLAB-DT part,
we strongly recommend you to read the enclosed manual at least once.

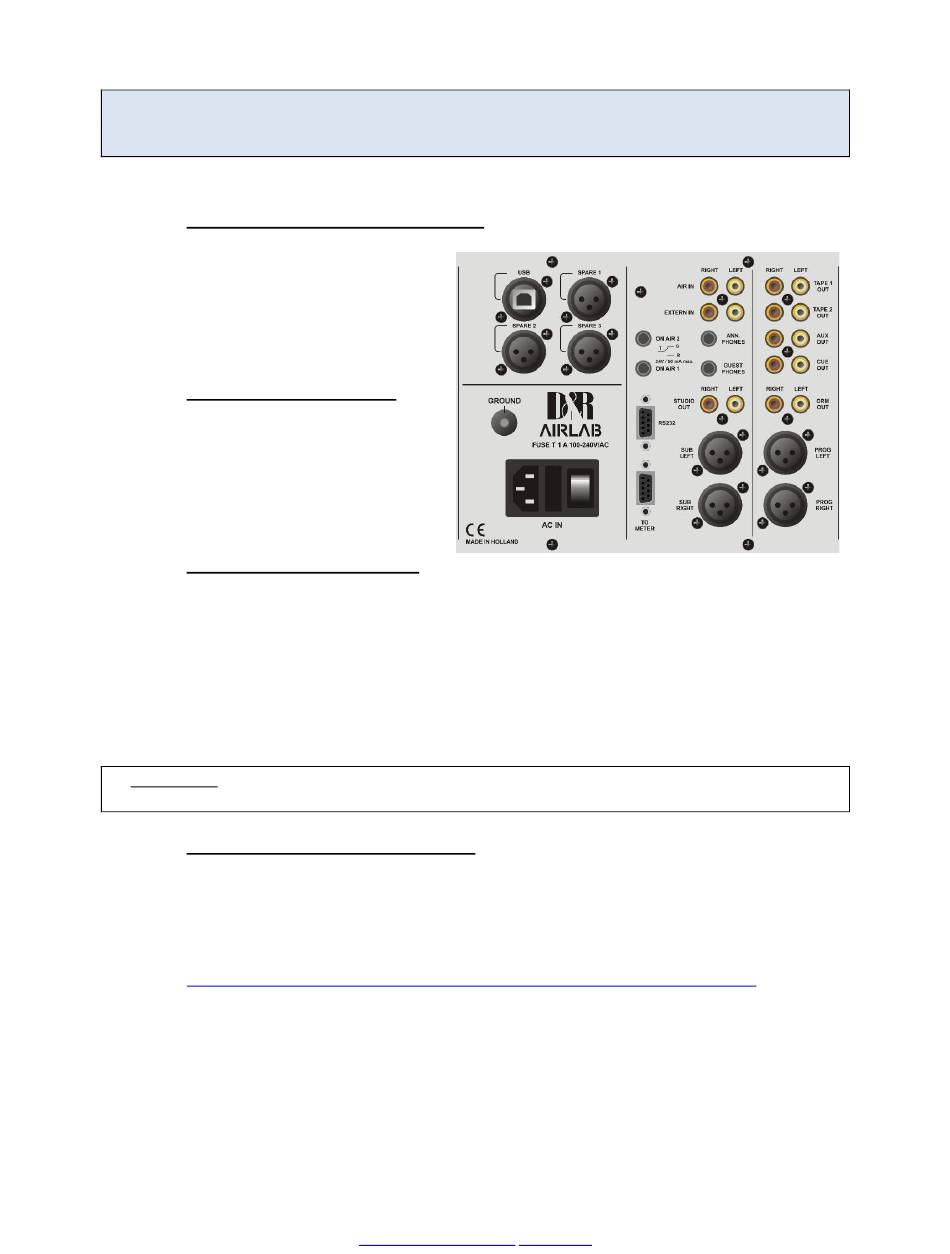

STEP 01: Connect the RS232 to USB cable.
Connect the RS232 to USB cable
between the RS232 input at the
Master section of the back plain
and your computer.
STEP 02: Connect the USB cable.
Connect the USB cable between the
USB connection on the Master
section of the back plain
and your computer.
STEP 03: Connect the power cable.
It's important to check that your local mains supply corresponds with the voltage range
of 90 volt up to 240 volt that the AIRLAB-DT can handle.
It is fused with a 2 Amp Slow blow fuse. DO NOT use any other value.
Connect the power cable between the Airlab-DT and a clean power outlet that has a ground.
Switch ON the Airlab-DT power on the Master section of the back plain.
IMPORTANT:
Do NOT switch the Airlab-DT On and OFF within 10 seconds. If switched OFF, wait for
10 seconds to allow all voltages to drop internally for a clean start.
STEP 04: Meter installing/configuration.
Install the Airlab Meters v1.61 – Setup.exe software on your computer that has been
delivered on the USB-stick inside the Airlab-DT package.
Please note that you can always find the most up-to-date software of all devices of
D&R on our
Wiki-page:
http://www.mambanet.org/wiki/dokuwiki/doku.php?id=supairlab:start
After installation you will see the Meter application on your screen.
Pressing the Settings button on the right top of this application skin, opens up the
Communication Interface window.
Now select the correct virtual serial port which will be created when the Airlab-DT is
connected to your computer with the USB cable.
After this, select the appropriate server IP address and port by clicking on
"Use UDP Server / Client".
Save the settings.
