Summary of Contents for Dahua Technology waythcan DHI-ISC-H103

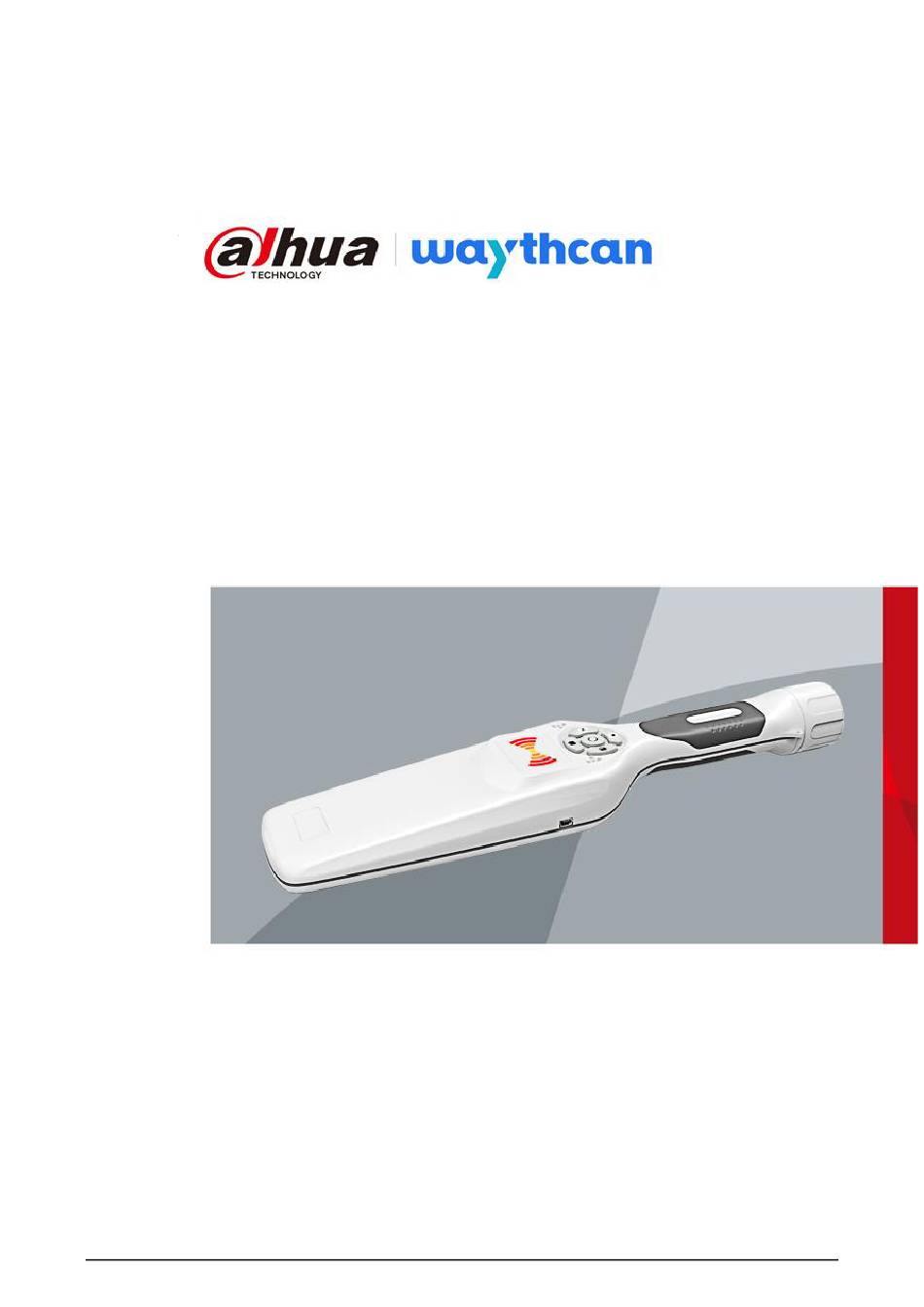

- Page 1 Handheld Metal Detector User’s Manual V1.0.0 ZHEJIANG DAHUA TECHNOLOGY CO., LTD.
-
Page 2: Foreword
User’s Manual Foreword Model DHI-ISC-H103 Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will DANGER result in death or serious injury. Indicates a medium or low potential hazard which, if not WARNING avoided, could result in slight or moderate injury. - Page 3 User’s Manual There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, we reserve the right of final explanation. Upgrade the reader software or try other mainstream reader software if the manual (in ...
-
Page 4: Important Safeguards And Warnings
User’s Manual Important Safeguards and Warnings This chapter describes the contents covering proper handling of the Detector, hazard prevention, and prevention of property damage. Read these contents carefully before using the Detector, comply with them when using, and keep the manual well for future reference. Operation Requirements Check the power supply is correct or not before the Detector operation. -
Page 5: Table Of Contents
User’s Manual Contents Foreword ................................... I Important Safeguards and Warnings ........................III 1 Overview ..................................5 Introduction ................................5 Operating Condition ..............................5 Appearance ................................5 2 Components ................................. 6 Packing List ................................6 Components ................................6 3 Parameters and Operations ............................. 7 Parameters ................................7 Structure ..................................7 Indicator .................................. -
Page 6: Overview
User’s Manual Overview Introduction Model: DHI-ISC-H103 Dimension:360*82*34 (length x width x height, mm) Operating Condition Operating temperature: -25℃～+60℃ Relative humidity: 0～95%, non-condensing. Power requirement: 2* AA batteries Appearance Product Appearance... -
Page 7: Components
User’s Manual Components Packing List Table 2-1 Checking list Name Quantity Handheld Metal Detector Charger 2 batteries Components Power adapter... -
Page 8: Parameters And Operations
User’s Manual Parameters and Operations Parameters Parameters Descriptions Dimension 360x82.5x 42.5 mm Weight 270g Battery 2* AA battery, standard equipment Universal charger (Applicable mobile phone Charger charger plug, PC USB port, etc.); NiMH AA battery charger Power consumption <60 Mw Shell material Mainly ABS and rubber Operating temperature... -
Page 9: Indicator
User’s Manual Structure descriptions Speaker Buttons. For details, see 3.5Buttons. Handle USB port Battery cover Detection area Fixing screws of battery cover Lanyard hole Conversion cable between USB and 3.5mm headphone Indicator Low battery: when in low battery status, the middle indicator quickly flashes. Low battery indicator Power status: when in charging status, the indicator circularly flashes as shown in Figure 3-4;... -
Page 10: Buttons
User’s Manual Detection modes Buttons Buttons One indicator per button to indicate the Detector working status. Buttons Buttons Descriptions Long press to power on; When Device is in working status, long ①Power button press to power it off; The Indicator flashes once every 3 seconds in working status. - Page 11 User’s Manual Buttons Descriptions Press the button for alarm mode circle switch as shown in the following order: sound-vibration-sound&vibration-sound When in sound&light alarm mode, no ②Alarm mode conversion button indicator flashes; When in vibration& light alarm mode, the indicator flashes every 3 seconds; When in sound&vibration&light alarm mode, the indicator flashes every 1.5 seconds.
-
Page 12: Cybersecurity Recommendations
User’s Manual Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic procedures toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 13 User’s Manual Change Default HTTP and Other Service Ports We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using.
- Page 14 User’s Manual suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect. Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks. Enable IP/MAC address filtering function to limit the range of hosts allowed to ...
- Page 15 User’s Manual...
